Imported schema Buildings.xsd
Namespace urn:x-inspire:specification:gmlas:Buildings:0.0
Properties
attribute form default unqualified
element form default qualified
version 0.0
Element bui:Building
Namespace urn:x-inspire:specification:gmlas:Buildings:0.0
Annotations

-- Definition --
 A building is a covered facility, usable for the protection of humans, animals, things or the production of economic goods. A building refers to any structure permanently constructed or erected on its site.

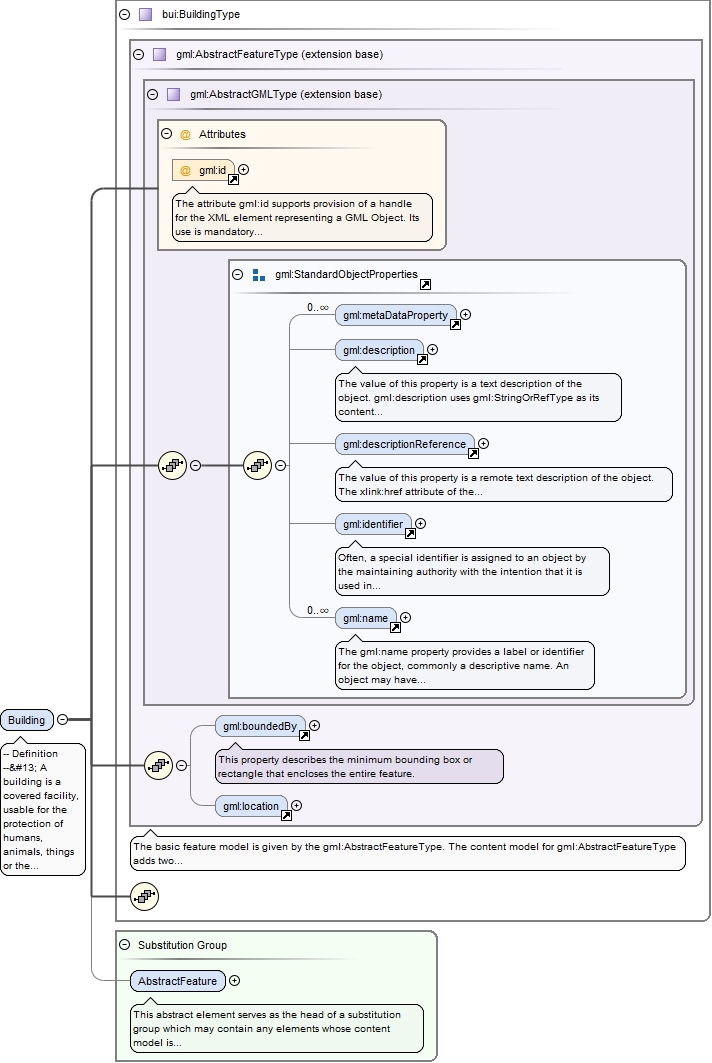

Diagram
DiagramgmlBase_xsd.tmp#iddeprecatedTypes_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#descriptionReferencegmlBase_xsd.tmp#identifiergmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypefeature_xsd.tmp#boundedBydeprecatedTypes_xsd.tmp#locationfeature_xsd.tmp#AbstractFeatureTypeBuildings_xsd.tmp#BuildingTypefeature_xsd.tmp#AbstractFeature
Type bui:BuildingType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gml:boundedBy, gml:description, gml:descriptionReference, gml:identifier, gml:location, gml:metaDataProperty, gml:name
Instance

<bui:Building gml:id="" xmlns:bui="urn:x-inspire:specification:gmlas:Buildings:0.0" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:boundedBy nilReason="">{0,1}</gml:boundedBy>
  <gml:location xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:location>
</bui:Building>
Attributes
QName Type Use Annotation
gml:id ID optional
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<element name="Building" substitutionGroup="gml:AbstractFeature" type="bui:BuildingType">
  <annotation>
    <documentation>-- Definition --&#13;A building is a covered facility, usable for the protection of humans, animals, things or the production of economic goods. A building refers to any structure permanently constructed or erected on its site.</documentation>
  </annotation>
</element>
Element bui:ControlTower
Namespace urn:x-inspire:specification:gmlas:Buildings:0.0
Annotations

-- Definition --
 Aerodrome control tower [Unit.Type='TWR' - AIXM5.0].


 -- Description --
 NOTE Point representing the situation of a Control Tower belonging to an aerodrome (airport/heliport), used to manage aircraft traffic in the runways and nearest airspace to the aerodrome.

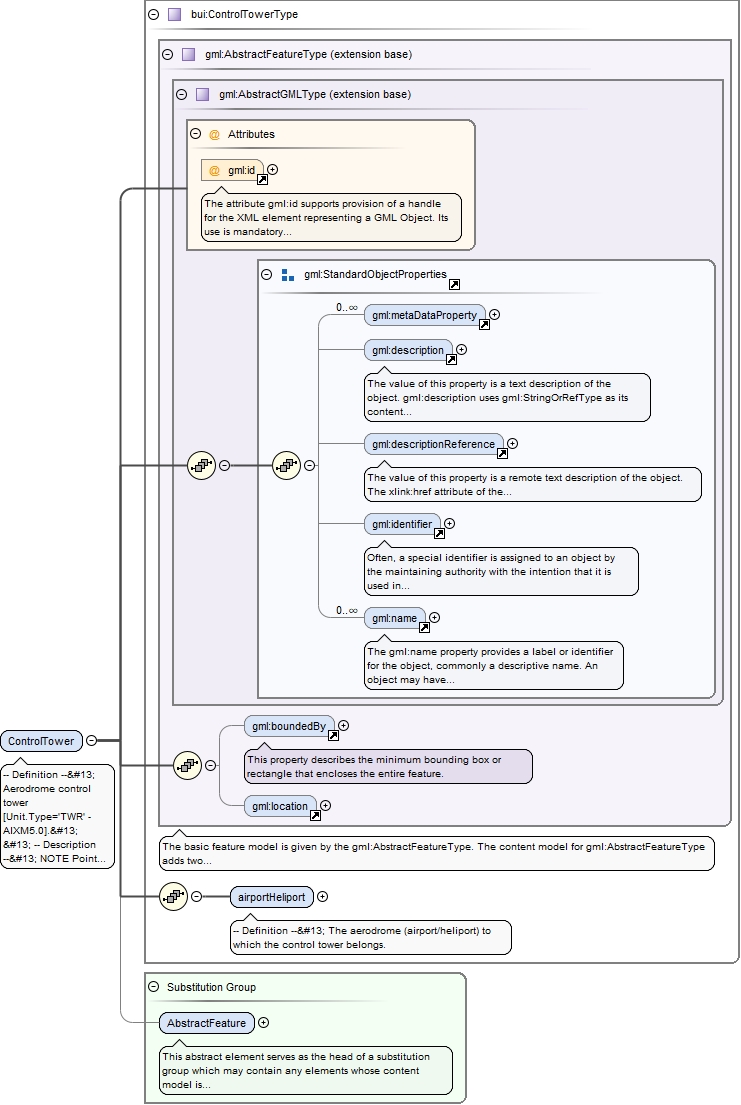

Diagram
DiagramgmlBase_xsd.tmp#iddeprecatedTypes_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#descriptionReferencegmlBase_xsd.tmp#identifiergmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypefeature_xsd.tmp#boundedBydeprecatedTypes_xsd.tmp#locationfeature_xsd.tmp#AbstractFeatureTypeBuildings_xsd.tmp#ControlTowerType_airportHeliportBuildings_xsd.tmp#ControlTowerTypefeature_xsd.tmp#AbstractFeature
Type bui:ControlTowerType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children bui:airportHeliport, gml:boundedBy, gml:description, gml:descriptionReference, gml:identifier, gml:location, gml:metaDataProperty, gml:name
Instance

<bui:ControlTower gml:id="" xmlns:bui="urn:x-inspire:specification:gmlas:Buildings:0.0" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:boundedBy nilReason="">{0,1}</gml:boundedBy>
  <gml:location xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:location>
  <bui:airportHeliport xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</bui:airportHeliport>
</bui:ControlTower>
Attributes
QName Type Use Annotation
gml:id ID optional
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<element name="ControlTower" substitutionGroup="gml:AbstractFeature" type="bui:ControlTowerType">
  <annotation>
    <documentation>-- Definition --&#13;Aerodrome control tower [Unit.Type='TWR' - AIXM5.0].&#13;&#13;-- Description --&#13;NOTE Point representing the situation of a Control Tower belonging to an aerodrome (airport/heliport), used to manage aircraft traffic in the runways and nearest airspace to the aerodrome.&#13;
    </documentation>
  </annotation>
</element>
Element bui:ControlTowerType / bui:airportHeliport
Namespace urn:x-inspire:specification:gmlas:Buildings:0.0
Annotations

-- Definition --
 The aerodrome (airport/heliport) to which the control tower belongs.

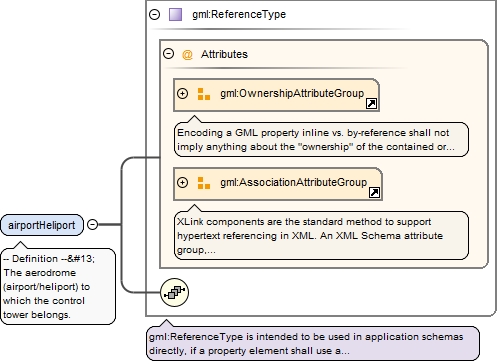

Diagram
DiagramgmlBase_xsd.tmp#OwnershipAttributeGroupgmlBase_xsd.tmp#AssociationAttributeGroupgmlBase_xsd.tmp#ReferenceType
Type gml:ReferenceType
Properties
content complex
nillable true
Model
Attributes
QName Type Fixed Default Use
gml:remoteSchema anyURI optional
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="airportHeliport" nillable="true" type="gml:ReferenceType">
  <annotation>
    <documentation>-- Definition --&#13;The aerodrome (airport/heliport) to which the control tower belongs.</documentation>
    <appinfo>
      <targetElement xmlns="http://www.opengis.net/gml/3.2">tn-a:AerodromeNode</targetElement>
      <reversePropertyName xmlns="http://www.opengis.net/gml/3.2">tn-a:controlTowers</reversePropertyName>
    </appinfo>
  </annotation>
</element>
Complex Type bui:BuildingType
Namespace urn:x-inspire:specification:gmlas:Buildings:0.0

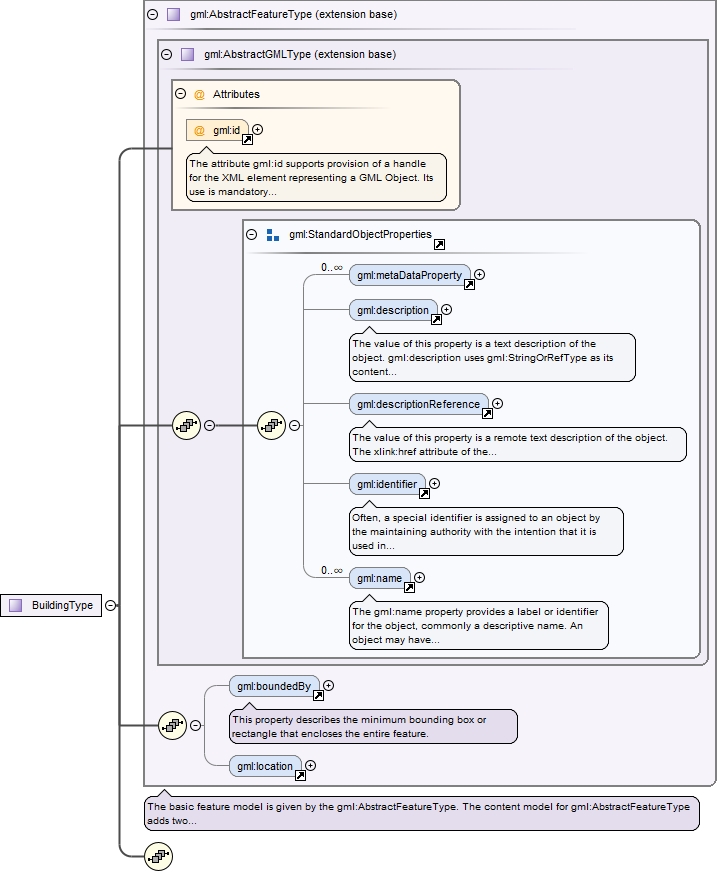

Diagram
DiagramgmlBase_xsd.tmp#iddeprecatedTypes_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#descriptionReferencegmlBase_xsd.tmp#identifiergmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypefeature_xsd.tmp#boundedBydeprecatedTypes_xsd.tmp#locationfeature_xsd.tmp#AbstractFeatureType
Type extension of gml:AbstractFeatureType
Type hierarchy
Used by
Element bui:Building
Model
Children gml:boundedBy, gml:description, gml:descriptionReference, gml:identifier, gml:location, gml:metaDataProperty, gml:name
Attributes
QName Type Use Annotation
gml:id ID optional
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<complexType name="BuildingType">
  <complexContent>
    <extension base="gml:AbstractFeatureType">
      <sequence/>
    </extension>
  </complexContent>
</complexType>
Complex Type bui:BuildingPropertyType
Namespace urn:x-inspire:specification:gmlas:Buildings:0.0

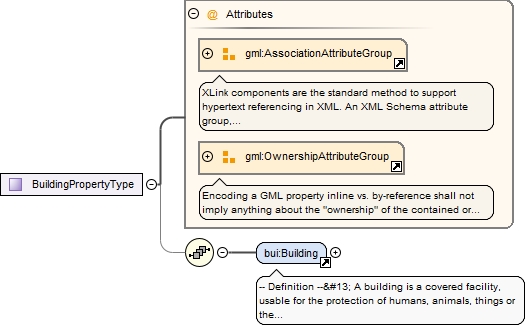

Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgmlBase_xsd.tmp#OwnershipAttributeGroupBuildings_xsd.tmp#Building
Model
Children bui:Building
Attributes
QName Type Fixed Default Use
gml:remoteSchema anyURI optional
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<complexType name="BuildingPropertyType">
  <sequence minOccurs="0">
    <element ref="bui:Building"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
  <attributeGroup ref="gml:OwnershipAttributeGroup"/>
</complexType>
Complex Type bui:ControlTowerType
Namespace urn:x-inspire:specification:gmlas:Buildings:0.0

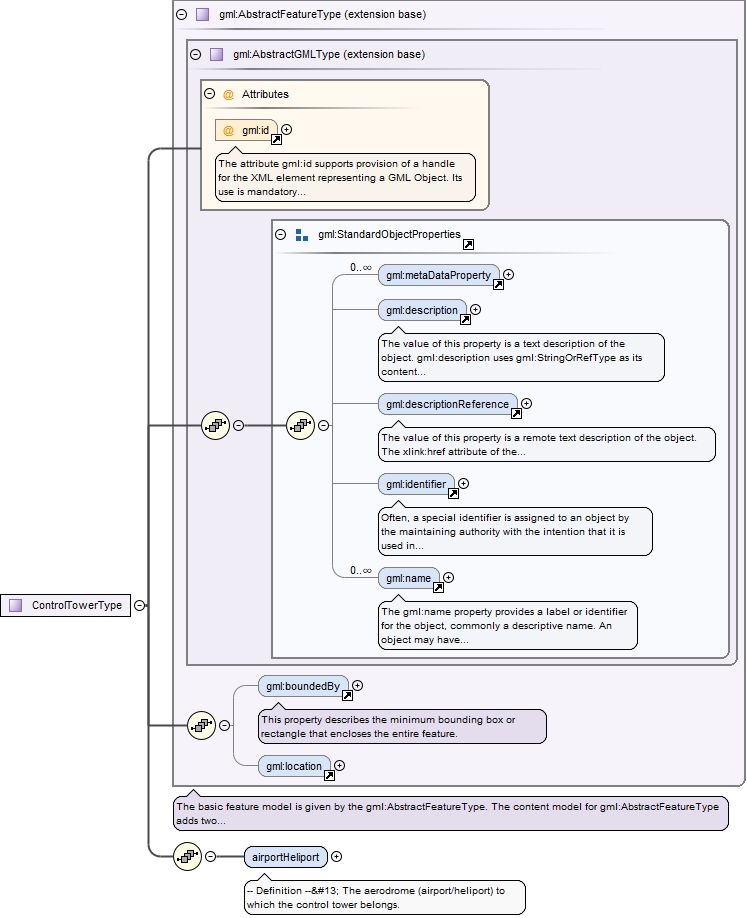

Diagram
DiagramgmlBase_xsd.tmp#iddeprecatedTypes_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#descriptionReferencegmlBase_xsd.tmp#identifiergmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypefeature_xsd.tmp#boundedBydeprecatedTypes_xsd.tmp#locationfeature_xsd.tmp#AbstractFeatureTypeBuildings_xsd.tmp#ControlTowerType_airportHeliport
Type extension of gml:AbstractFeatureType
Type hierarchy
Used by
Model
Children bui:airportHeliport, gml:boundedBy, gml:description, gml:descriptionReference, gml:identifier, gml:location, gml:metaDataProperty, gml:name
Attributes
QName Type Use Annotation
gml:id ID optional
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<complexType name="ControlTowerType">
  <complexContent>
    <extension base="gml:AbstractFeatureType">
      <sequence>
        <element name="airportHeliport" nillable="true" type="gml:ReferenceType">
          <annotation>
            <documentation>-- Definition --&#13;The aerodrome (airport/heliport) to which the control tower belongs.</documentation>
            <appinfo>
              <targetElement xmlns="http://www.opengis.net/gml/3.2">tn-a:AerodromeNode</targetElement>
              <reversePropertyName xmlns="http://www.opengis.net/gml/3.2">tn-a:controlTowers</reversePropertyName>
            </appinfo>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type bui:ControlTowerPropertyType
Namespace urn:x-inspire:specification:gmlas:Buildings:0.0

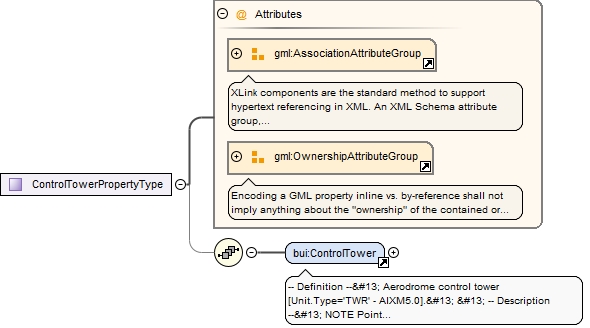

Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgmlBase_xsd.tmp#OwnershipAttributeGroupBuildings_xsd.tmp#ControlTower
Model
Children bui:ControlTower
Attributes
QName Type Fixed Default Use
gml:remoteSchema anyURI optional
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<complexType name="ControlTowerPropertyType">
  <sequence minOccurs="0">
    <element ref="bui:ControlTower"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
  <attributeGroup ref="gml:OwnershipAttributeGroup"/>
</complexType>
