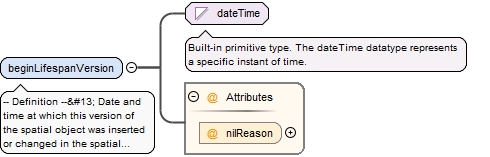

<element name="beginLifespanVersion" nillable="true"><annotation><documentation>-- Definition -- Date and time at which this version of the spatial object was inserted or changed in the spatial data set. </documentation></annotation><complexType><simpleContent><extension base="dateTime"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>
-- Definition -- External object identifier of the spatial object. -- Description -- NOTE An external object identifier is a unique object identifier published by the responsible body, which may be used by external applications to reference the spatial object. The identifier is an identifier of the spatial object, not an identifier of the real-world phenomenon.
<element minOccurs="0" name="inspireId" type="base:IdentifierPropertyType"><annotation><documentation>-- Definition -- External object identifier of the spatial object. -- Description -- NOTE An external object identifier is a unique object identifier published by the responsible body, which may be used by external applications to reference the spatial object. The identifier is an identifier of the spatial object, not an identifier of the real-world phenomenon. </documentation></annotation></element>

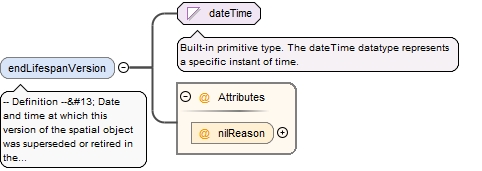

<element minOccurs="0" name="endLifespanVersion" nillable="true"><annotation><documentation>-- Definition -- Date and time at which this version of the spatial object was superseded or retired in the spatial data set. </documentation></annotation><complexType><simpleContent><extension base="dateTime"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>

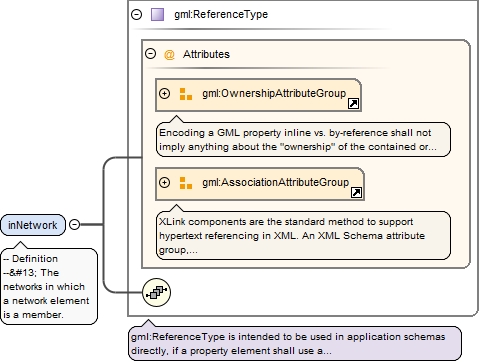

<element maxOccurs="unbounded" name="inNetwork" nillable="true" type="gml:ReferenceType"><annotation><documentation>-- Definition -- The networks in which a network element is a member.</documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:Network</targetElement><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">net:elements</reversePropertyName></appinfo></annotation></element>

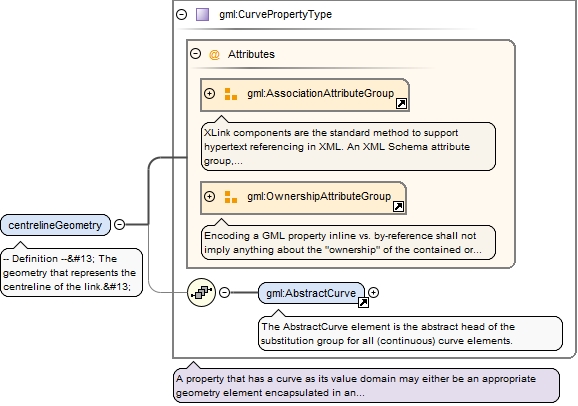

<element name="centrelineGeometry" type="gml:CurvePropertyType"><annotation><documentation>-- Definition -- The geometry that represents the centreline of the link. </documentation></annotation></element>

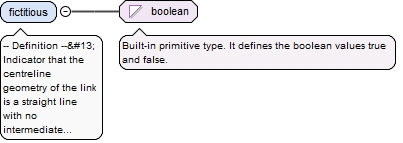

-- Definition -- Indicator that the centreline geometry of the link is a straight line with no intermediate control points – unless the straight line represents the geography in the resolution of the data set appropriately.
Diagram
Type
boolean
Properties
content
simple
Source
<element name="fictitious" type="boolean"><annotation><documentation>-- Definition -- Indicator that the centreline geometry of the link is a straight line with no intermediate control points – unless the straight line represents the geography in the resolution of the data set appropriately. </documentation></annotation></element>

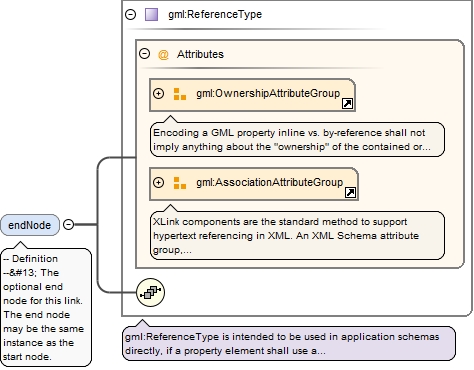

<element minOccurs="0" name="endNode" type="gml:ReferenceType"><annotation><documentation>-- Definition -- The optional end node for this link. The end node may be the same instance as the start node.</documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:Node</targetElement><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">net:spokeEnd</reversePropertyName></appinfo></annotation></element>

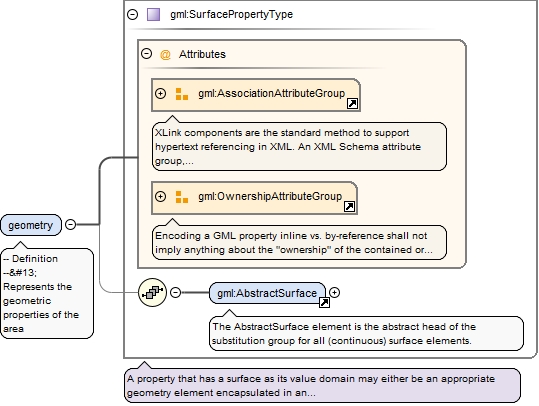

<element name="geometry" type="gml:SurfacePropertyType"><annotation><documentation>-- Definition -- Represents the geometric properties of the area</documentation></annotation></element>

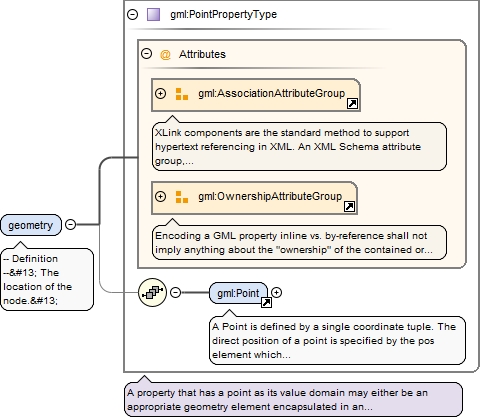

<element name="geometry" type="gml:PointPropertyType"><annotation><documentation>-- Definition -- The location of the node. </documentation></annotation></element>

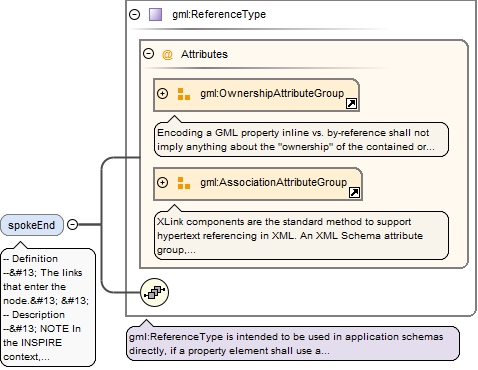

-- Definition -- The links that enter the node. -- Description -- NOTE In the INSPIRE context, this spoke property is to be published when this information is published in current exchange formats of the data set.
<element maxOccurs="unbounded" minOccurs="0" name="spokeEnd" nillable="true" type="gml:ReferenceType"><annotation><documentation>-- Definition -- The links that enter the node. -- Description -- NOTE In the INSPIRE context, this spoke property is to be published when this information is published in current exchange formats of the data set.</documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:Link</targetElement><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">net:endNode</reversePropertyName></appinfo></annotation></element>

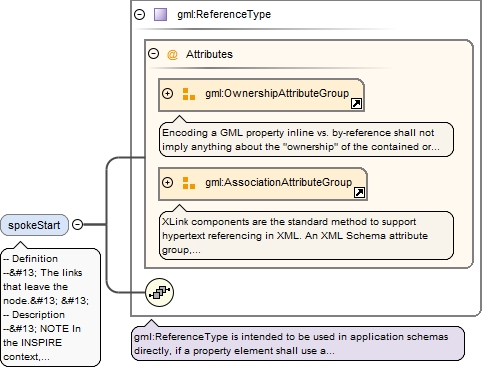

-- Definition -- The links that leave the node. -- Description -- NOTE In the INSPIRE context, this spoke property is to be published when this information is published in current exchange formats of the data set.
<element maxOccurs="unbounded" minOccurs="0" name="spokeStart" nillable="true" type="gml:ReferenceType"><annotation><documentation>-- Definition -- The links that leave the node. -- Description -- NOTE In the INSPIRE context, this spoke property is to be published when this information is published in current exchange formats of the data set.</documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:Link</targetElement><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">net:startNode</reversePropertyName></appinfo></annotation></element>

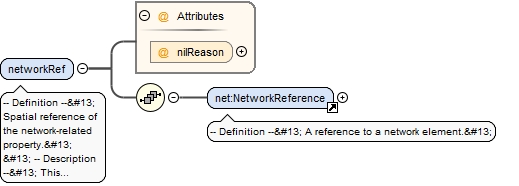

-- Definition -- Spatial reference of the network-related property. -- Description -- This attribute provides an indirect spatial reference based on a reference to an element of an underlying network. See the chapter on Object Referencing in the Generic Conceptual Model for a discussion on modelling object references.
<element maxOccurs="unbounded" name="networkRef" nillable="true"><annotation><documentation>-- Definition -- Spatial reference of the network-related property. -- Description -- This attribute provides an indirect spatial reference based on a reference to an element of an underlying network. See the chapter on Object Referencing in the Generic Conceptual Model for a discussion on modelling object references. </documentation></annotation><complexType><sequence><element ref="net:NetworkReference"/></sequence><attribute name="nilReason" type="gml:NilReasonType"/></complexType></element>

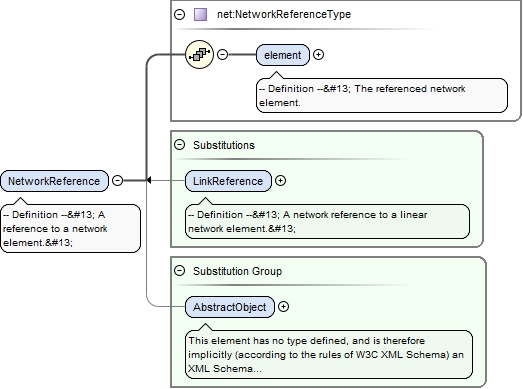

Element net:NetworkReference
Namespace
urn:x-inspire:specification:gmlas:Network:3.2
Annotations
-- Definition -- A reference to a network element.

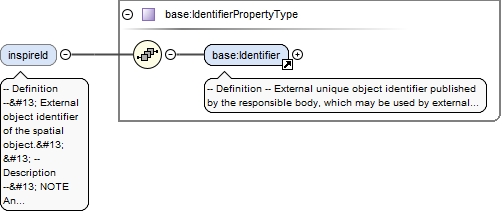

-- Definition -- External object identifier of the spatial object. -- Description -- NOTE An external object identifier is a unique object identifier published by the responsible body, which may be used by external applications to reference the spatial object. The identifier is an identifier of the spatial object, not an identifier of the real-world phenomenon.
<element minOccurs="0" name="inspireId" type="base:IdentifierPropertyType"><annotation><documentation>-- Definition -- External object identifier of the spatial object. -- Description -- NOTE An external object identifier is a unique object identifier published by the responsible body, which may be used by external applications to reference the spatial object. The identifier is an identifier of the spatial object, not an identifier of the real-world phenomenon. </documentation></annotation></element>
<element name="beginLifespanVersion" nillable="true"><annotation><documentation>-- Definition -- Date and time at which this version of the spatial object was inserted or changed in the spatial data set. </documentation></annotation><complexType><simpleContent><extension base="dateTime"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>
<element minOccurs="0" name="endLifespanVersion" nillable="true"><annotation><documentation>-- Definition -- Date and time at which this version of the spatial object was superseded or retired in the spatial data set. </documentation></annotation><complexType><simpleContent><extension base="dateTime"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>

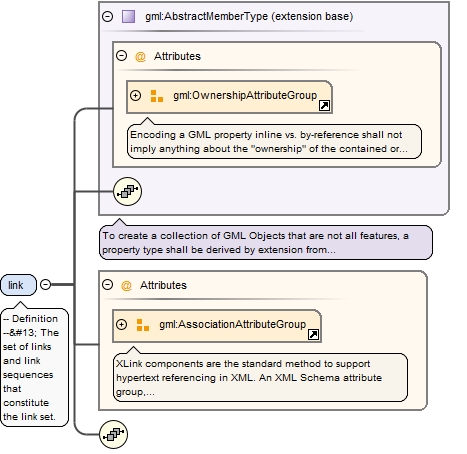

<element maxOccurs="unbounded" name="link"><annotation><documentation>-- Definition -- The set of links and link sequences that constitute the link set.</documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:GeneralisedLink</targetElement></appinfo></annotation><complexType><complexContent><extension base="gml:AbstractMemberType"><sequence/><attributeGroup ref="gml:AssociationAttributeGroup"/></extension></complexContent></complexType></element>
<element maxOccurs="unbounded" name="link" type="net:DirectedLinkPropertyType"><annotation><documentation>-- Definition -- The ordered collection of directed links that constitute the link sequence. </documentation></annotation></element>

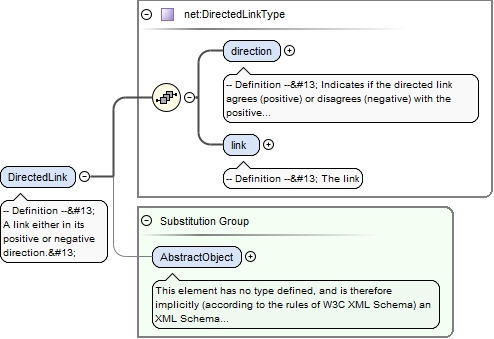

Element net:DirectedLink
Namespace
urn:x-inspire:specification:gmlas:Network:3.2
Annotations
-- Definition -- A link either in its positive or negative direction.
<element name="DirectedLink" substitutionGroup="gml:AbstractObject" type="net:DirectedLinkType"><annotation><documentation>-- Definition -- A link either in its positive or negative direction. </documentation></annotation></element>

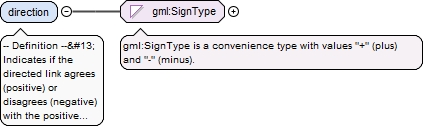

<element name="direction" type="gml:SignType"><annotation><documentation>-- Definition -- Indicates if the directed link agrees (positive) or disagrees (negative) with the positive direction of the link. </documentation></annotation></element>

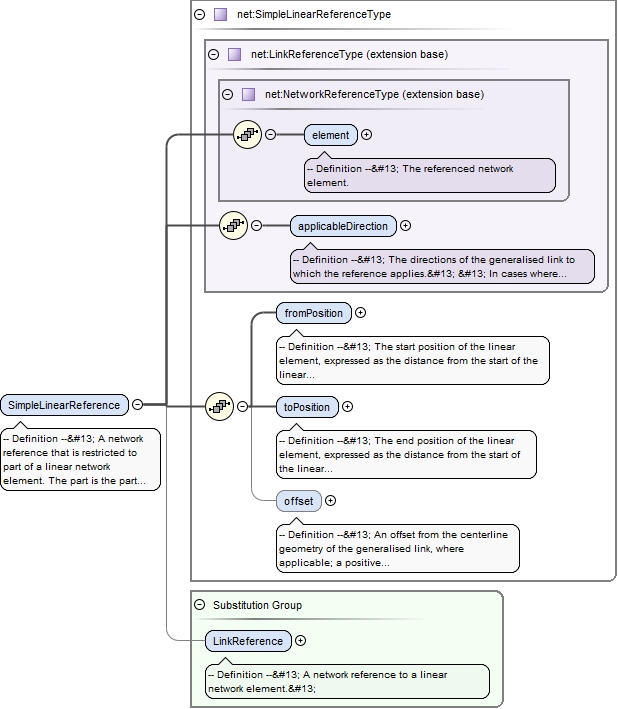

-- Definition -- A network reference that is restricted to part of a linear network element. The part is the part of the network element between fromPosition and toPosition.
<element name="SimpleLinearReference" substitutionGroup="net:LinkReference" type="net:SimpleLinearReferenceType"><annotation><documentation>-- Definition -- A network reference that is restricted to part of a linear network element. The part is the part of the network element between fromPosition and toPosition. </documentation></annotation></element>

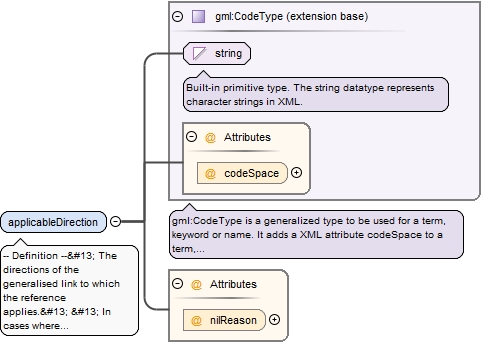

-- Definition -- The directions of the generalised link to which the reference applies. In cases where a property does not apply <i>to</i> a direction along a link, but represents a phenomenon <i>along</i> a link, “inDirection” refers to the right side in the direction of the link. -- Description -- EXAMPLE A speed limit is a property that applies to a direction of the link (or both directions) while a house number is a phenomenon along a link.
<element name="applicableDirection" nillable="true"><annotation><documentation>-- Definition -- The directions of the generalised link to which the reference applies. In cases where a property does not apply <i>to</i> a direction along a link, but represents a phenomenon <i>along</i> a link, “inDirection” refers to the right side in the direction of the link. -- Description -- EXAMPLE A speed limit is a property that applies to a direction of the link (or both directions) while a house number is a phenomenon along a link. </documentation></annotation><complexType><simpleContent><extension base="gml:CodeType"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>

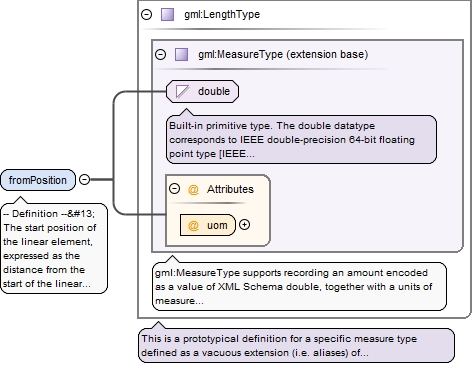

-- Definition -- The start position of the linear element, expressed as the distance from the start of the linear network element along its curve geometry.
<element name="fromPosition" type="gml:LengthType"><annotation><documentation>-- Definition -- The start position of the linear element, expressed as the distance from the start of the linear network element along its curve geometry. </documentation></annotation></element>

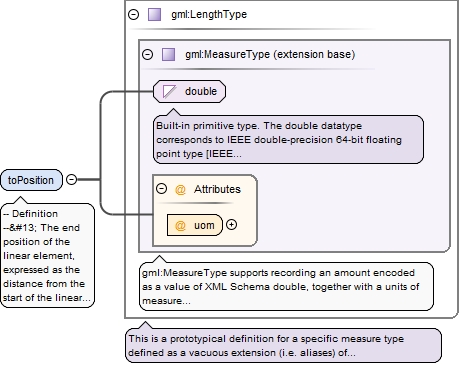

-- Definition -- The end position of the linear element, expressed as the distance from the start of the linear network element along its curve geometry.
<element name="toPosition" type="gml:LengthType"><annotation><documentation>-- Definition -- The end position of the linear element, expressed as the distance from the start of the linear network element along its curve geometry. </documentation></annotation></element>

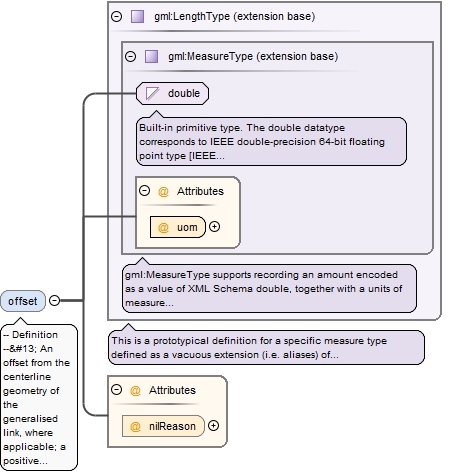

-- Definition -- An offset from the centerline geometry of the generalised link, where applicable; a positive offset is to the right in the direction of the link, a negative offset is to the left.
<element minOccurs="0" name="offset" nillable="true"><annotation><documentation>-- Definition -- An offset from the centerline geometry of the generalised link, where applicable; a positive offset is to the right in the direction of the link, a negative offset is to the left. </documentation></annotation><complexType><simpleContent><extension base="gml:LengthType"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>

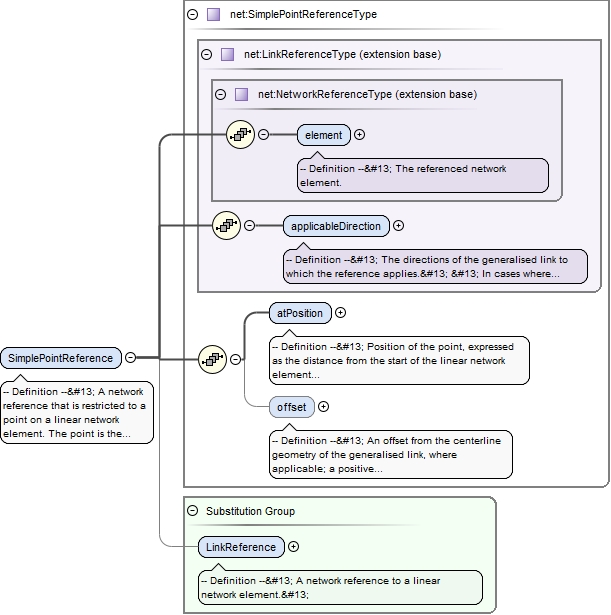

Element net:SimplePointReference
Namespace
urn:x-inspire:specification:gmlas:Network:3.2
Annotations
-- Definition -- A network reference that is restricted to a point on a linear network element. The point is the location on the network element at the position atPosition along the network.
<element name="SimplePointReference" substitutionGroup="net:LinkReference" type="net:SimplePointReferenceType"><annotation><documentation>-- Definition -- A network reference that is restricted to a point on a linear network element. The point is the location on the network element at the position atPosition along the network. </documentation></annotation></element>
<element name="atPosition" type="gml:LengthType"><annotation><documentation>-- Definition -- Position of the point, expressed as the distance from the start of the linear network element along its curve geometry. </documentation></annotation></element>
-- Definition -- An offset from the centerline geometry of the generalised link, where applicable; a positive offset is to the right in the direction of the link, a negative offset is to the left.
<element minOccurs="0" name="offset" nillable="true"><annotation><documentation>-- Definition -- An offset from the centerline geometry of the generalised link, where applicable; a positive offset is to the right in the direction of the link, a negative offset is to the left. </documentation></annotation><complexType><simpleContent><extension base="gml:LengthType"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>

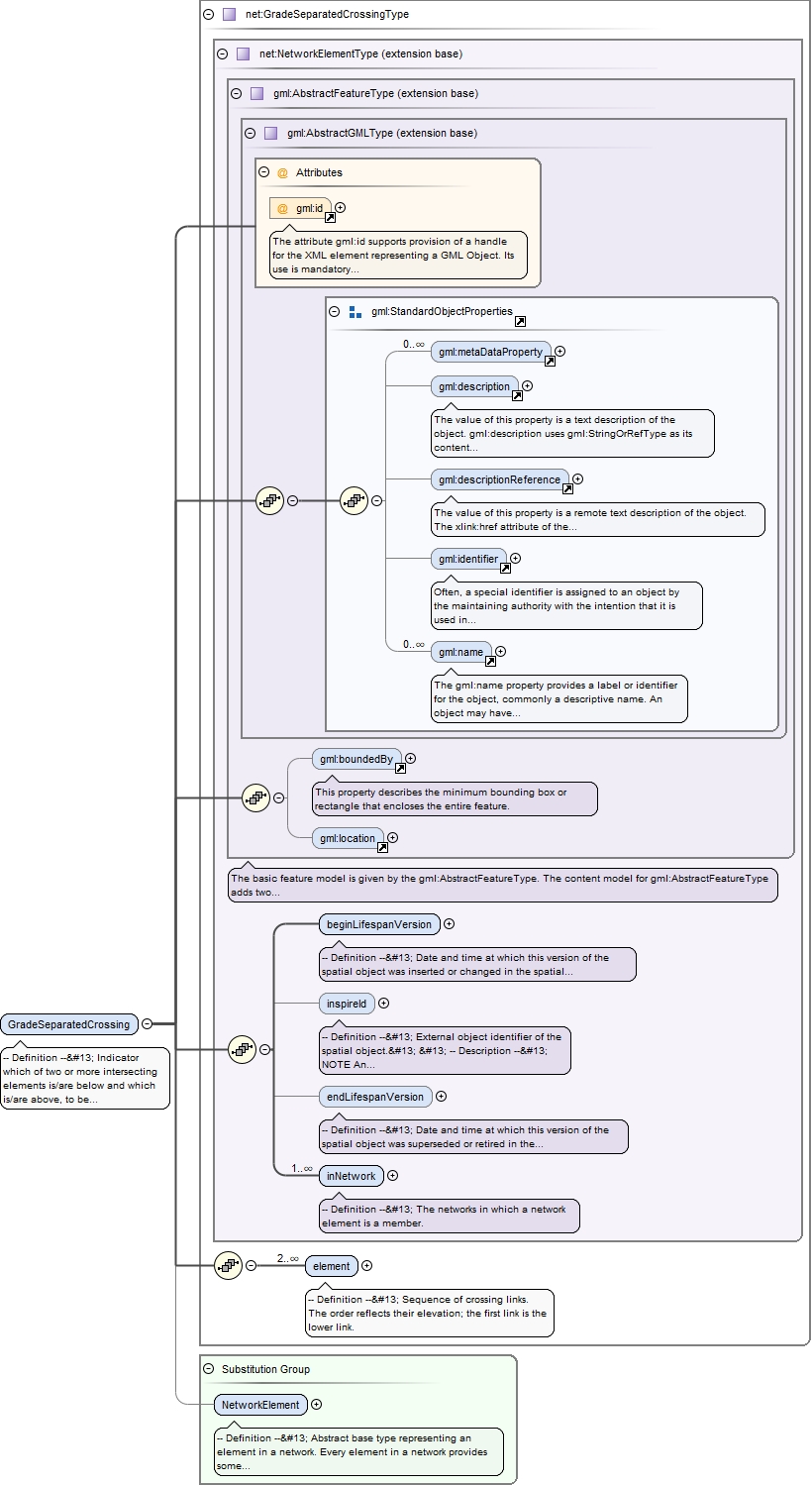

Element net:GradeSeparatedCrossing
Namespace
urn:x-inspire:specification:gmlas:Network:3.2
Annotations
-- Definition -- Indicator which of two or more intersecting elements is/are below and which is/are above, to be used if elevation coordinates are not present or cannot be trusted. -- Description -- NOTE 1 In most cases, the number of elements will be two. NOTE 2 In the normal case this is when elements intersect in the x/y-plane when the z coordinate is not present or is not accurate enough.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name="GradeSeparatedCrossing" substitutionGroup="net:NetworkElement" type="net:GradeSeparatedCrossingType"><annotation><documentation>-- Definition -- Indicator which of two or more intersecting elements is/are below and which is/are above, to be used if elevation coordinates are not present or cannot be trusted. -- Description -- NOTE 1 In most cases, the number of elements will be two. NOTE 2 In the normal case this is when elements intersect in the x/y-plane when the z coordinate is not present or is not accurate enough. </documentation></annotation></element>

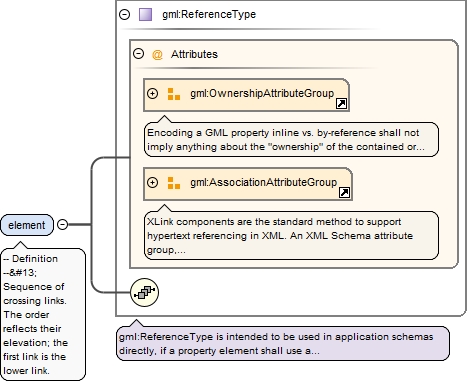

<element maxOccurs="unbounded" minOccurs="2" name="element" type="gml:ReferenceType"><annotation><documentation>-- Definition -- Sequence of crossing links. The order reflects their elevation; the first link is the lower link.</documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:Link</targetElement></appinfo></annotation></element>

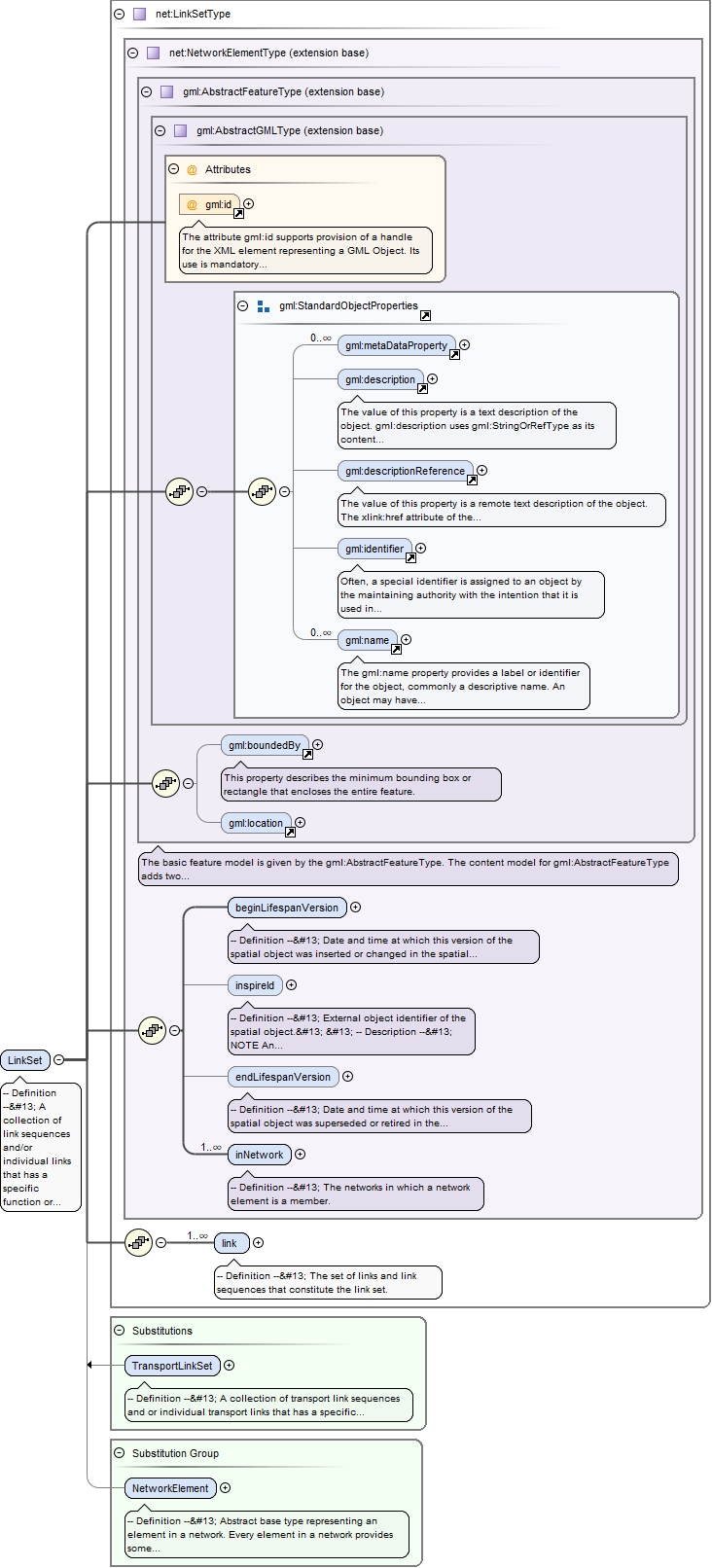

Element net:LinkSet
Namespace
urn:x-inspire:specification:gmlas:Network:3.2
Annotations
-- Definition -- A collection of link sequences and/or individual links that has a specific function or significance in a network. -- Description -- NOTE This spatial object type supports the aggregation of links to form objects with branches, loops, parallel sequences of links, gaps, etc. EXAMPLE A dual carriageway road, as a collection of the two link sequences that represent each carriageway.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element abstract="true" name="LinkSet" substitutionGroup="net:NetworkElement" type="net:LinkSetType"><annotation><documentation>-- Definition -- A collection of link sequences and/or individual links that has a specific function or significance in a network. -- Description -- NOTE This spatial object type supports the aggregation of links to form objects with branches, loops, parallel sequences of links, gaps, etc. EXAMPLE A dual carriageway road, as a collection of the two link sequences that represent each carriageway. </documentation></annotation></element>

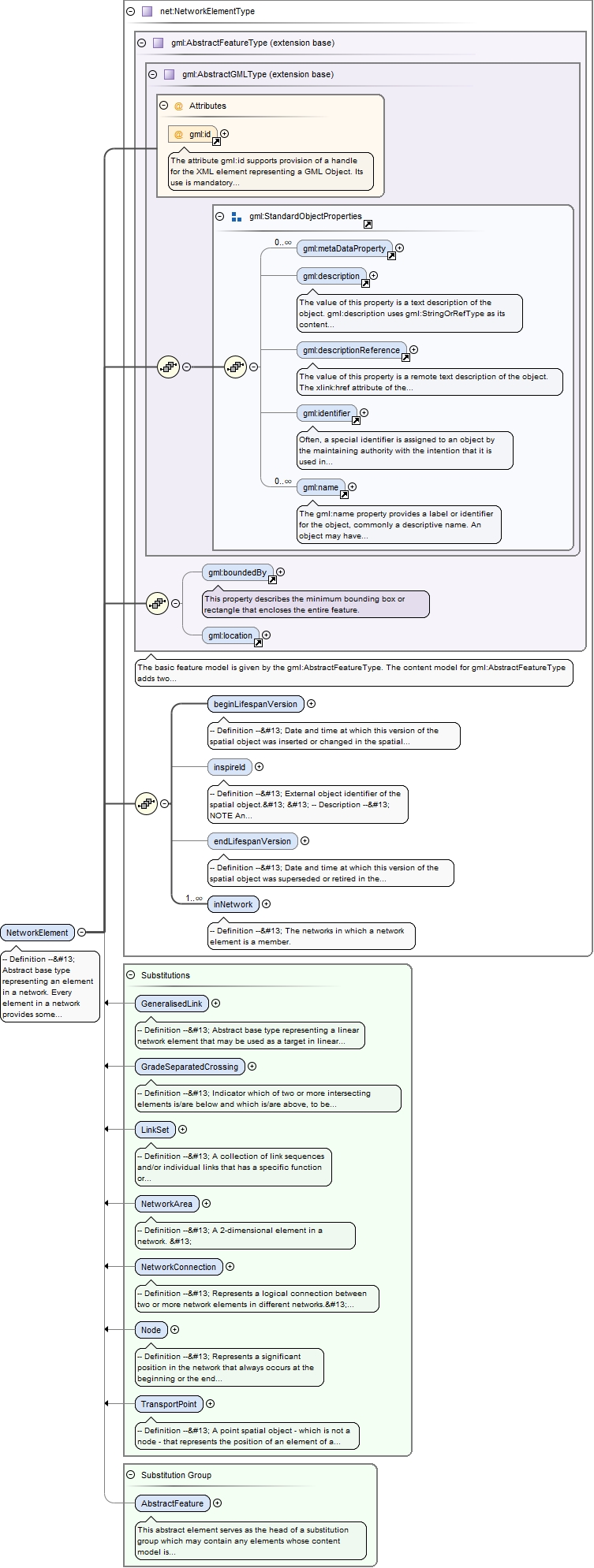

Element net:NetworkElement
Namespace
urn:x-inspire:specification:gmlas:Network:3.2
Annotations
-- Definition -- Abstract base type representing an element in a network. Every element in a network provides some function that is of interest in the network.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element abstract="true" name="NetworkElement" substitutionGroup="gml:AbstractFeature" type="net:NetworkElementType"><annotation><documentation>-- Definition -- Abstract base type representing an element in a network. Every element in a network provides some function that is of interest in the network. </documentation></annotation></element>

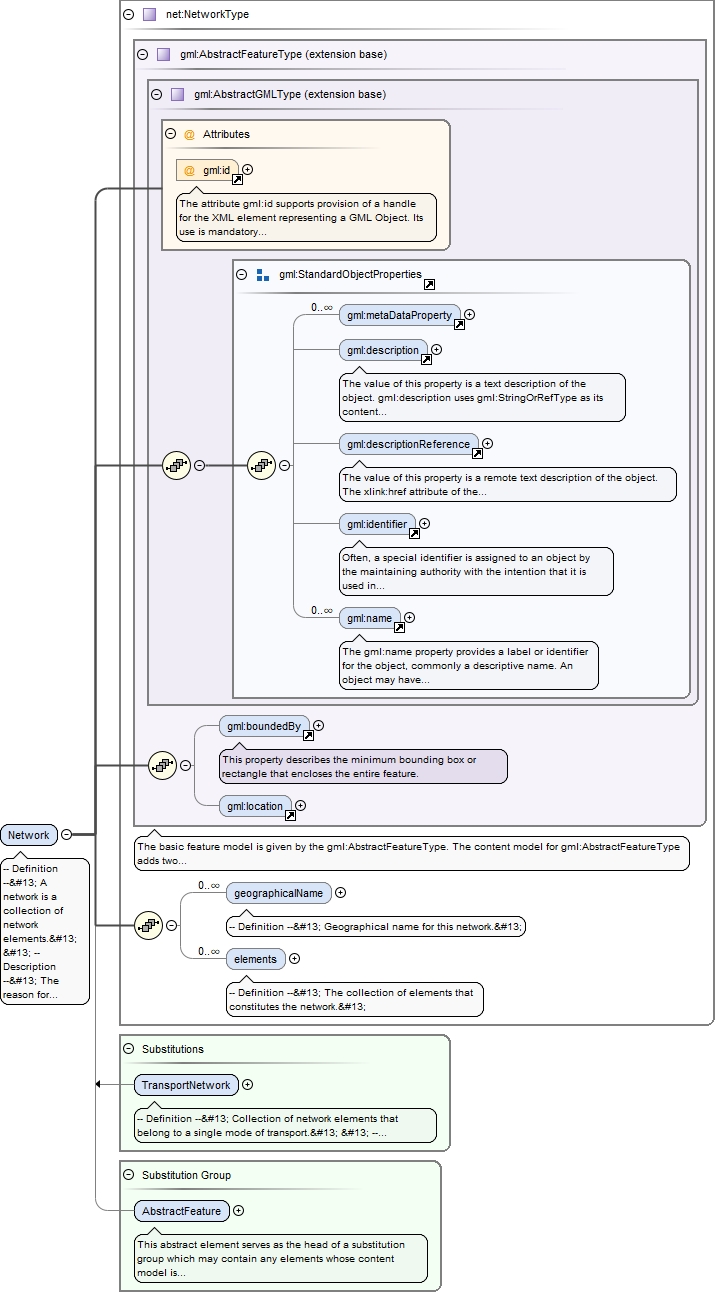

Element net:Network
Namespace
urn:x-inspire:specification:gmlas:Network:3.2
Annotations
-- Definition -- A network is a collection of network elements. -- Description -- The reason for collecting certain elements in a certain network may vary (e.g. connected elements for the same mode of transport)
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name="Network" substitutionGroup="gml:AbstractFeature" type="net:NetworkType"><annotation><documentation>-- Definition -- A network is a collection of network elements. -- Description -- The reason for collecting certain elements in a certain network may vary (e.g. connected elements for the same mode of transport) </documentation></annotation></element>

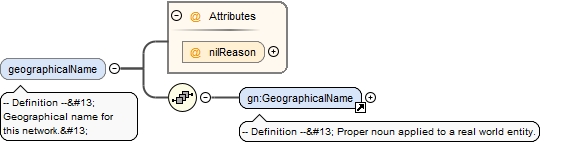

<element maxOccurs="unbounded" minOccurs="0" name="geographicalName" nillable="true"><annotation><documentation>-- Definition -- Geographical name for this network. </documentation></annotation><complexType><sequence><element ref="gn:GeographicalName"/></sequence><attribute name="nilReason" type="gml:NilReasonType"/></complexType></element>

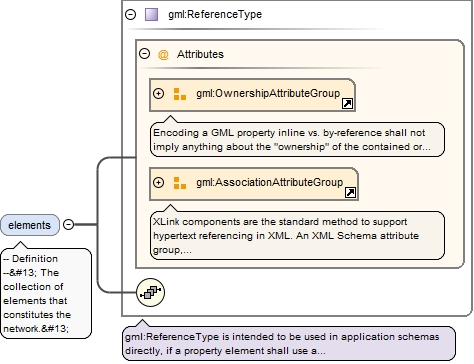

<element maxOccurs="unbounded" minOccurs="0" name="elements" type="gml:ReferenceType"><annotation><documentation>-- Definition -- The collection of elements that constitutes the network. </documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:NetworkElement</targetElement><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">net:inNetwork</reversePropertyName></appinfo></annotation></element>

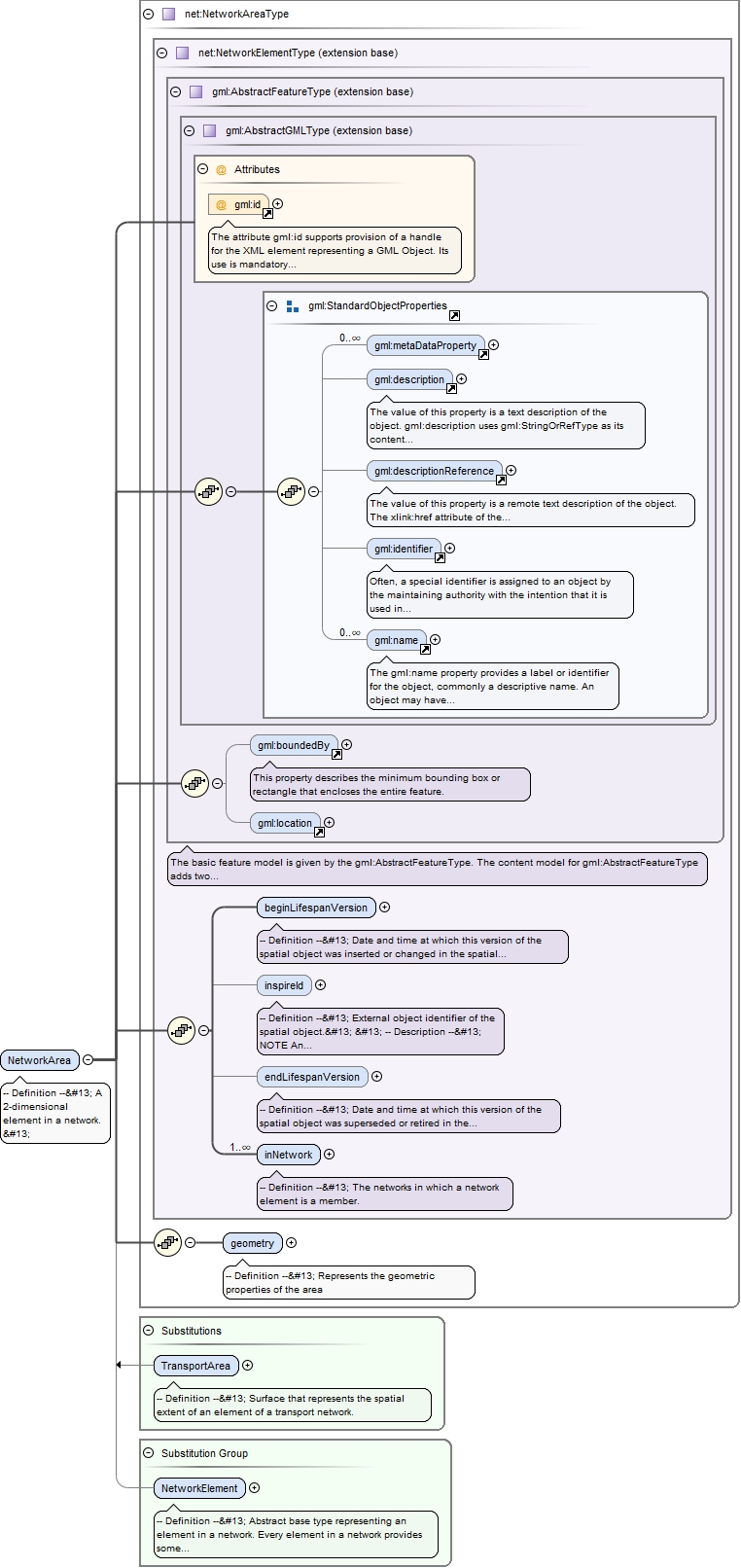

Element net:NetworkArea
Namespace
urn:x-inspire:specification:gmlas:Network:3.2
Annotations
-- Definition -- A 2-dimensional element in a network.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element abstract="true" name="NetworkArea" substitutionGroup="net:NetworkElement" type="net:NetworkAreaType"><annotation><documentation>-- Definition -- A 2-dimensional element in a network. </documentation></annotation></element>

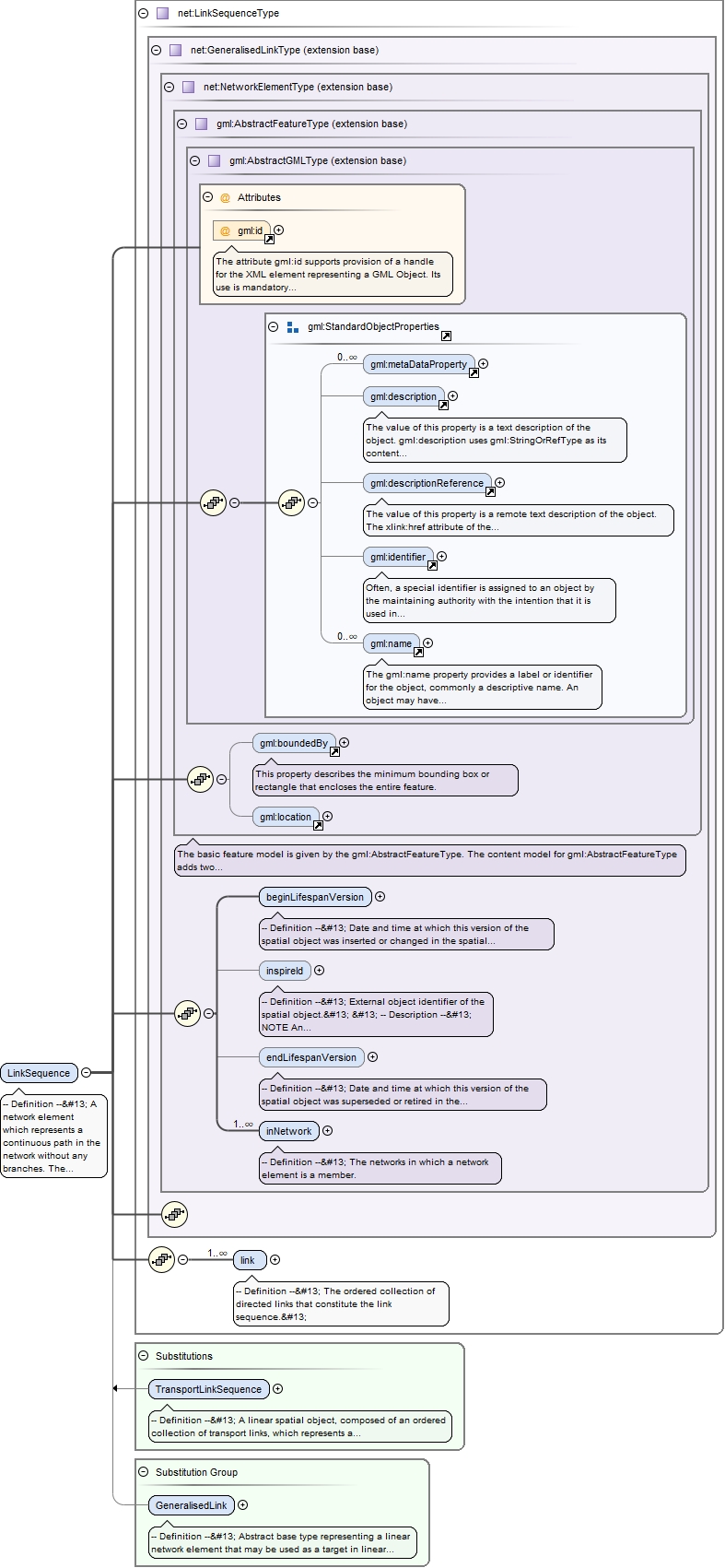

Element net:LinkSequence
Namespace
urn:x-inspire:specification:gmlas:Network:3.2
Annotations
-- Definition -- A network element which represents a continuous path in the network without any branches. The element has a defined beginning and end and every position on the link sequence is identifiable with one single parameter such as length. -- Description -- EXAMPLE A link sequence may represent a route.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element abstract="true" name="LinkSequence" substitutionGroup="net:GeneralisedLink" type="net:LinkSequenceType"><annotation><documentation>-- Definition -- A network element which represents a continuous path in the network without any branches. The element has a defined beginning and end and every position on the link sequence is identifiable with one single parameter such as length. -- Description -- EXAMPLE A link sequence may represent a route. </documentation></annotation></element>

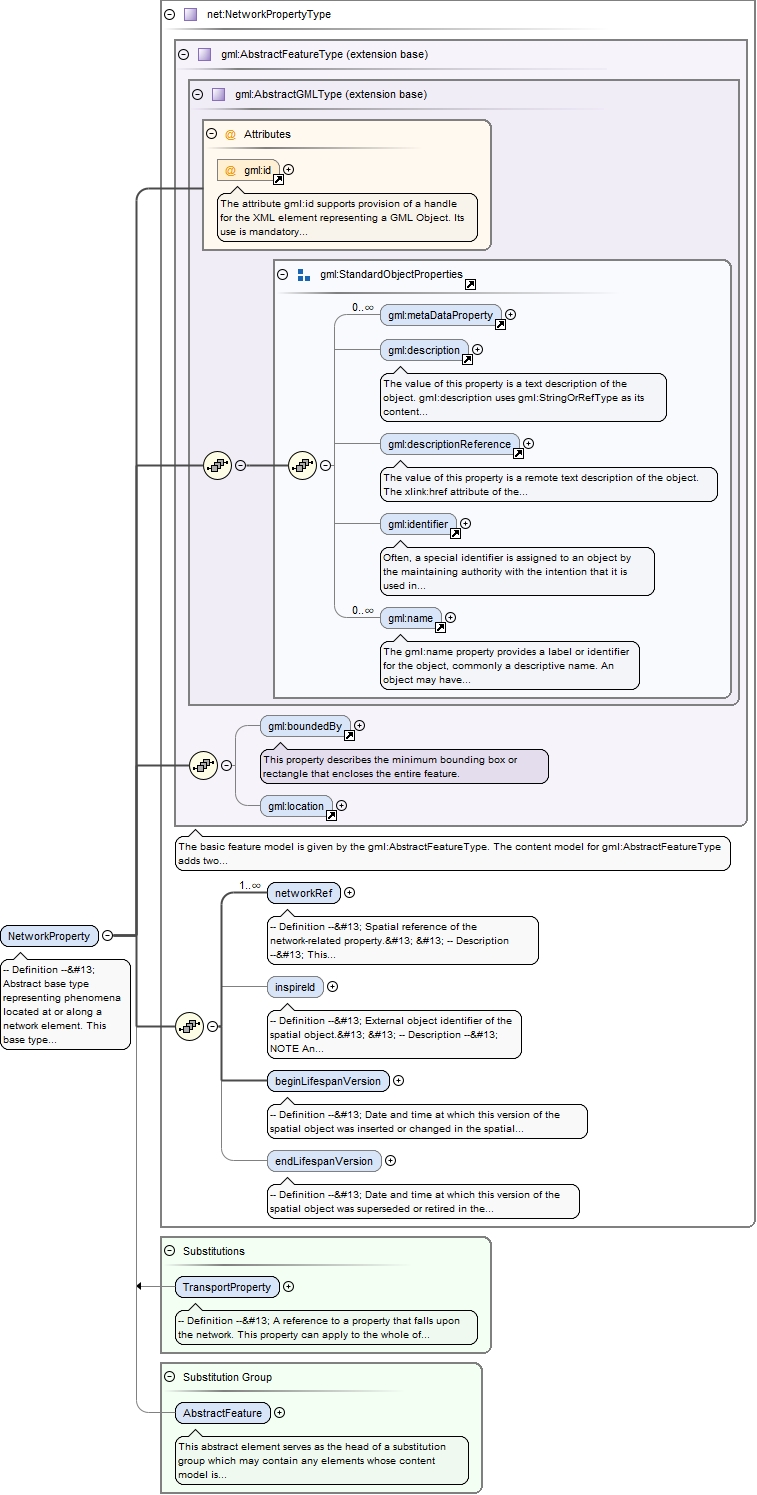

Element net:NetworkProperty
Namespace
urn:x-inspire:specification:gmlas:Network:3.2
Annotations
-- Definition -- Abstract base type representing phenomena located at or along a network element. This base type provides general properties to associate the network-related phenomena (network properties) with the network elements. -- Description -- In the simplest case (NetworkReference), the network property applies to the whole network element. In the case of a Link, the spatial reference may be restricted to part of the Link by using a linear reference. ISO/TC 211 is currently in the early stages of developing a standard for Linear Referencing (ISO 19148). A simple mechanism to express linear references is provided in this version of the network model; it is expected that the model will be extended once ISO 19148 is stable. The current simple model requires for all linear references two expressions representing a distance from the start of the Link along its curve geometry. The network property applies to the part of the Link between fromPosition and toPosition.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element abstract="true" name="NetworkProperty" substitutionGroup="gml:AbstractFeature" type="net:NetworkPropertyType"><annotation><documentation>-- Definition -- Abstract base type representing phenomena located at or along a network element. This base type provides general properties to associate the network-related phenomena (network properties) with the network elements. -- Description -- In the simplest case (NetworkReference), the network property applies to the whole network element. In the case of a Link, the spatial reference may be restricted to part of the Link by using a linear reference. ISO/TC 211 is currently in the early stages of developing a standard for Linear Referencing (ISO 19148). A simple mechanism to express linear references is provided in this version of the network model; it is expected that the model will be extended once ISO 19148 is stable. The current simple model requires for all linear references two expressions representing a distance from the start of the Link along its curve geometry. The network property applies to the part of the Link between fromPosition and toPosition. </documentation></annotation></element>

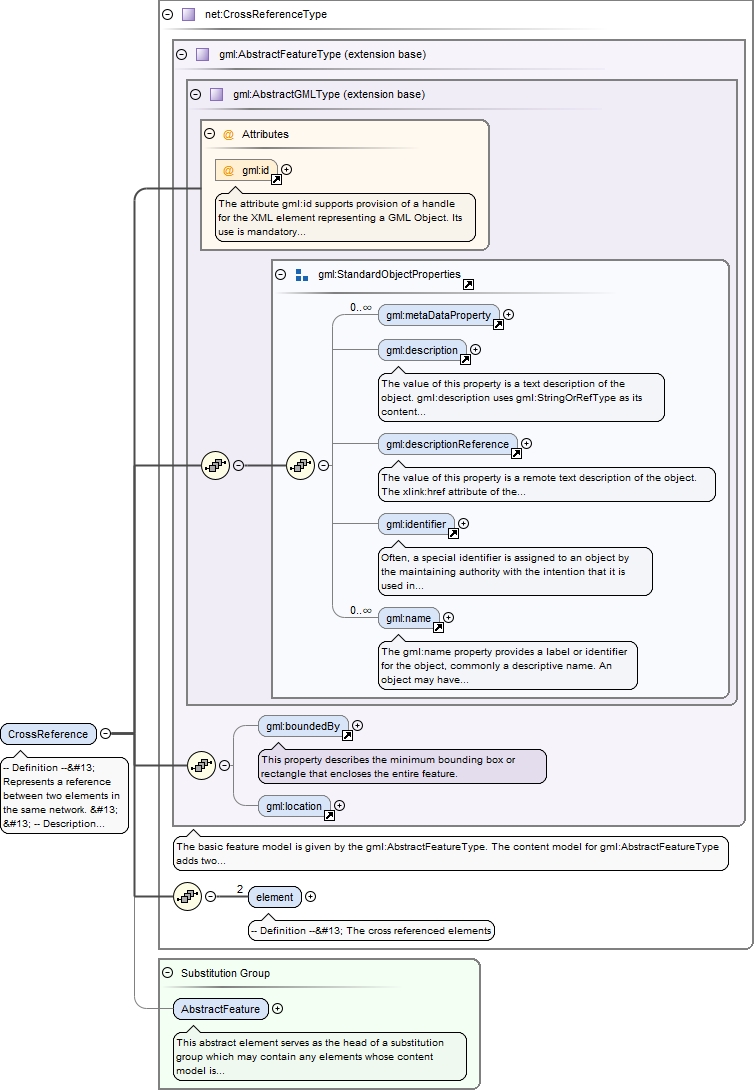

Element net:CrossReference
Namespace
urn:x-inspire:specification:gmlas:Network:3.2
Annotations

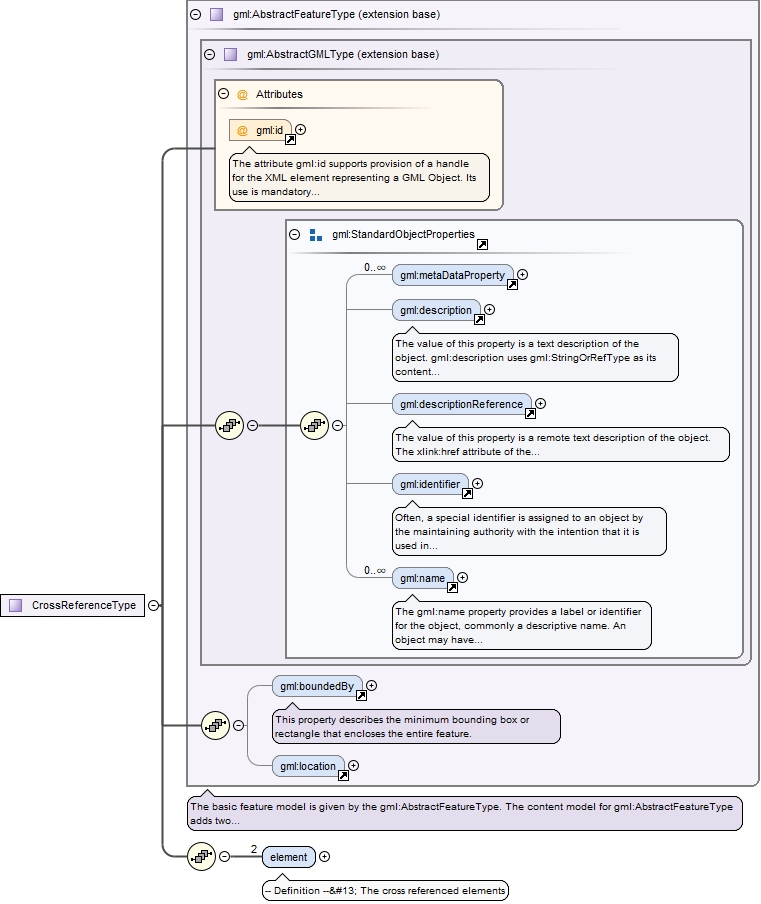

-- Definition -- Represents a reference between two elements in the same network. -- Description -- The cross reference may represent the case where two elements are different representations of the same spatial object.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name="CrossReference" substitutionGroup="gml:AbstractFeature" type="net:CrossReferenceType"><annotation><documentation>-- Definition -- Represents a reference between two elements in the same network. -- Description -- The cross reference may represent the case where two elements are different representations of the same spatial object. </documentation></annotation></element>

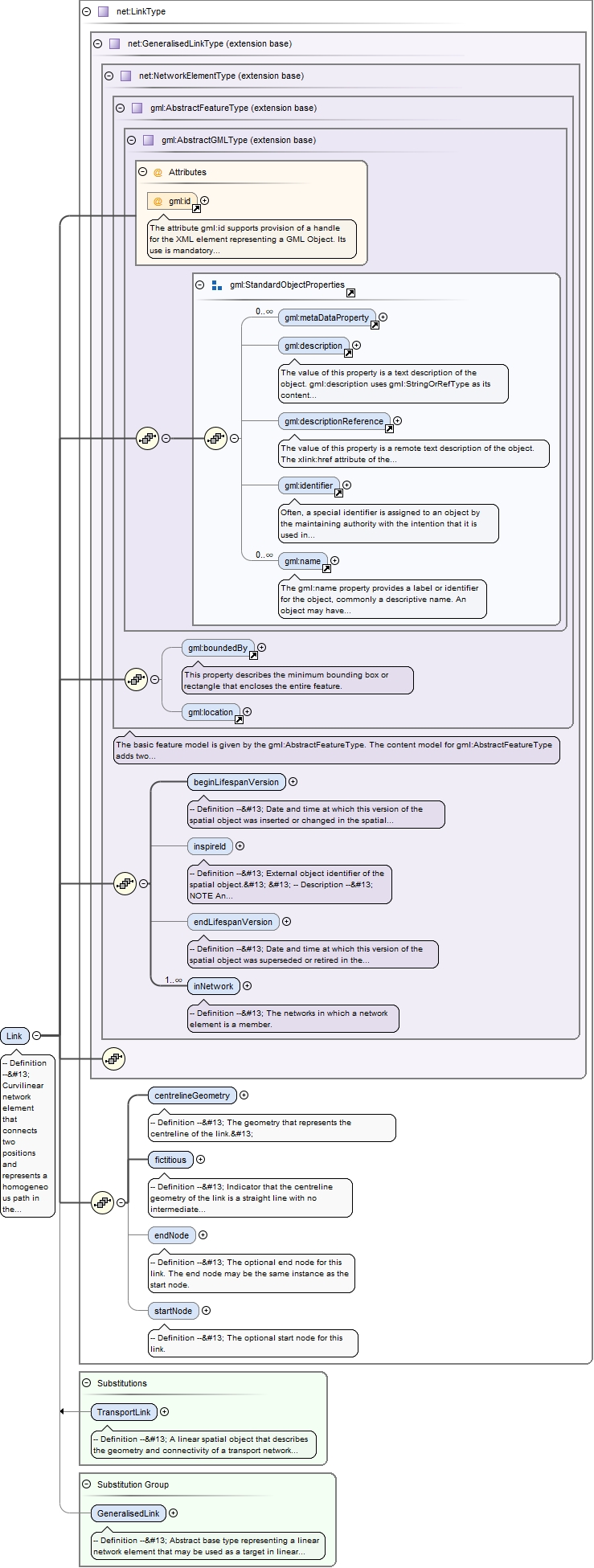

-- Definition -- Curvilinear network element that connects two positions and represents a homogeneous path in the network. The connected positions may be represented as nodes.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element abstract="true" name="Link" substitutionGroup="net:GeneralisedLink" type="net:LinkType"><annotation><documentation>-- Definition -- Curvilinear network element that connects two positions and represents a homogeneous path in the network. The connected positions may be represented as nodes. </documentation></annotation></element>

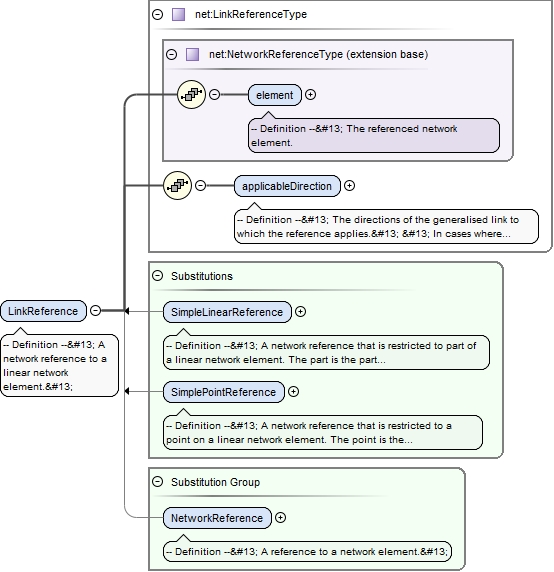

Element net:LinkReference
Namespace
urn:x-inspire:specification:gmlas:Network:3.2
Annotations
-- Definition -- A network reference to a linear network element.
<element name="LinkReference" substitutionGroup="net:NetworkReference" type="net:LinkReferenceType"><annotation><documentation>-- Definition -- A network reference to a linear network element. </documentation></annotation></element>

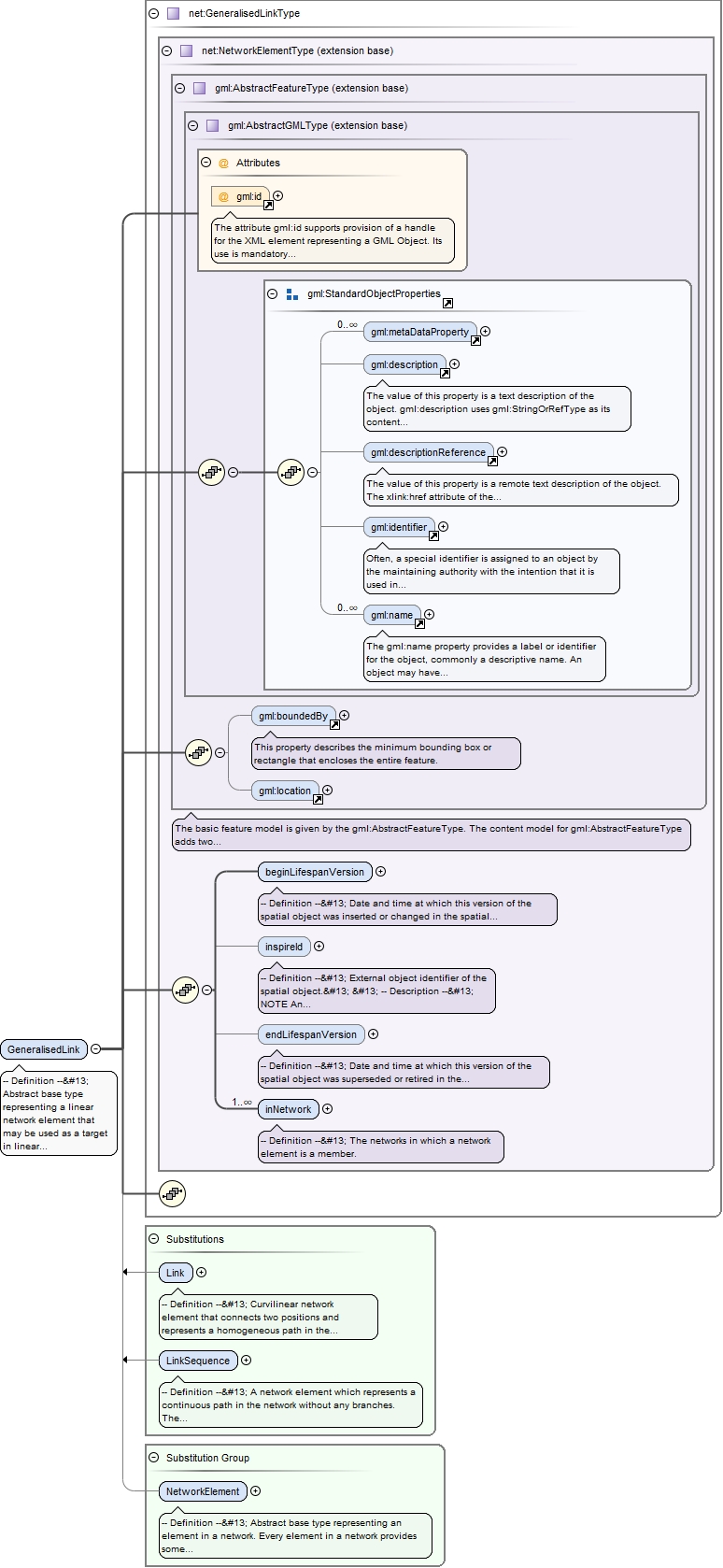

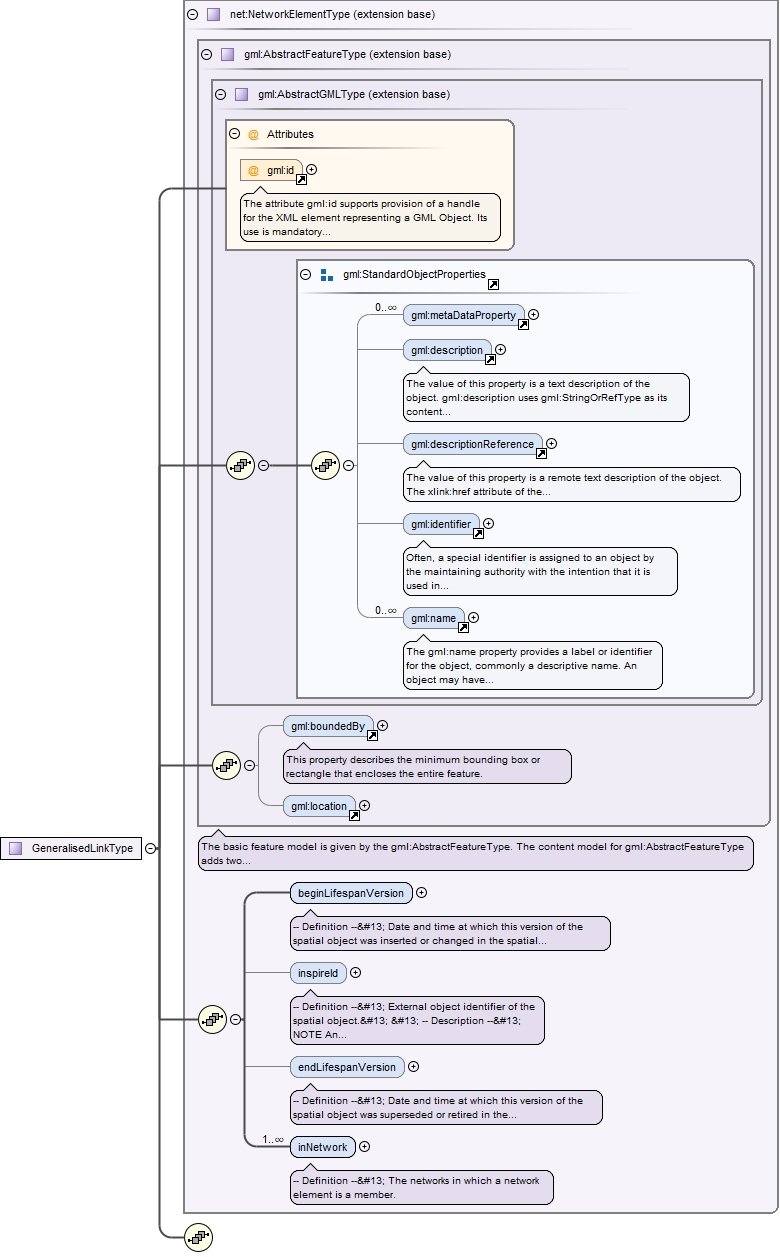

Element net:GeneralisedLink
Namespace
urn:x-inspire:specification:gmlas:Network:3.2
Annotations
-- Definition -- Abstract base type representing a linear network element that may be used as a target in linear referencing.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element abstract="true" name="GeneralisedLink" substitutionGroup="net:NetworkElement" type="net:GeneralisedLinkType"><annotation><documentation>-- Definition -- Abstract base type representing a linear network element that may be used as a target in linear referencing. </documentation></annotation></element>

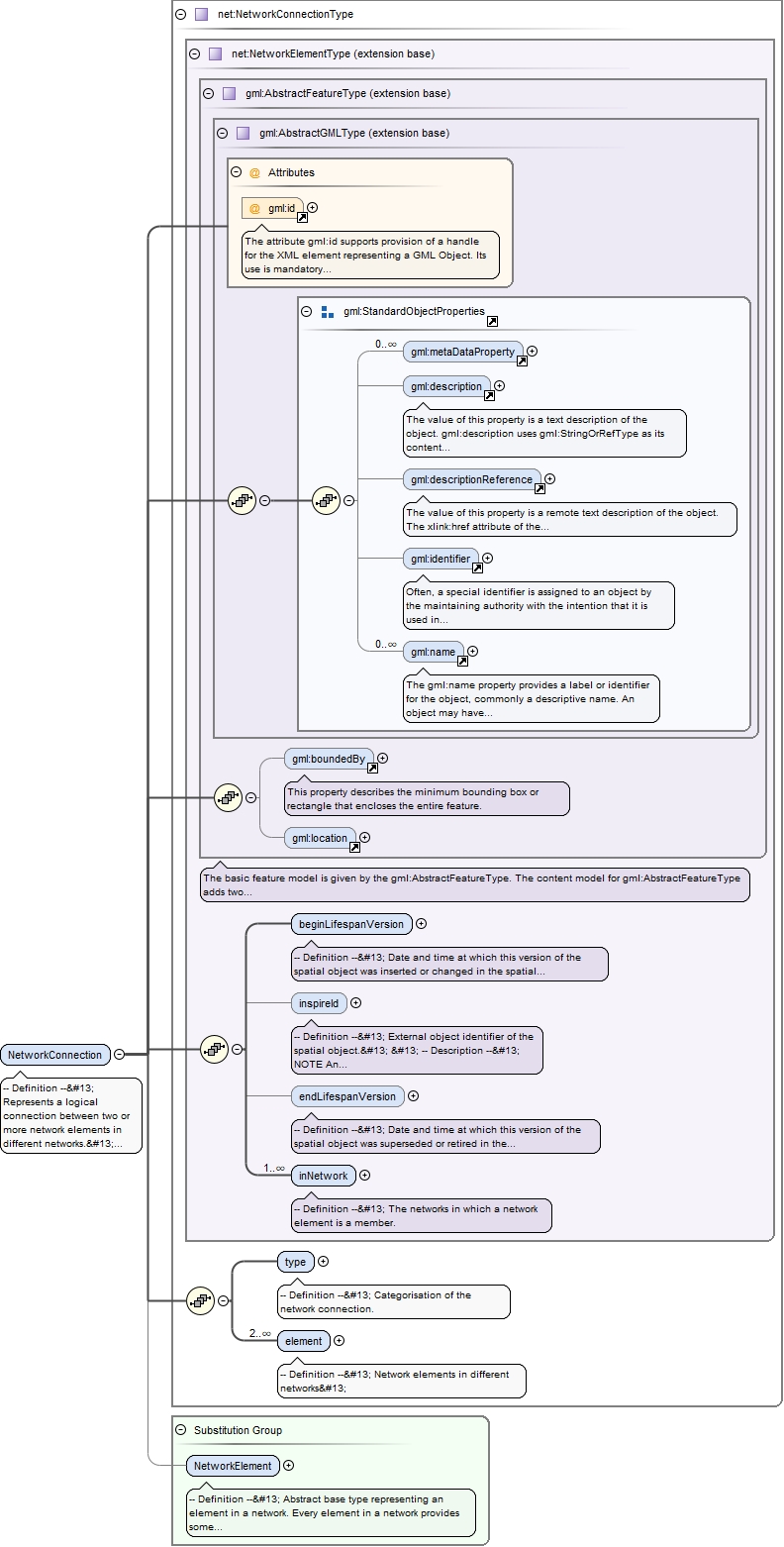

Element net:NetworkConnection
Namespace
urn:x-inspire:specification:gmlas:Network:3.2
Annotations

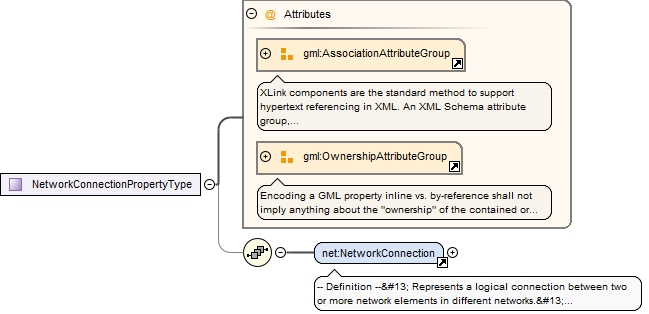

-- Definition -- Represents a logical connection between two or more network elements in different networks. -- Description -- In the case where the networks are in different spatial data sets, a network connection object may exist in both data sets.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name="NetworkConnection" substitutionGroup="net:NetworkElement" type="net:NetworkConnectionType"><annotation><documentation>-- Definition -- Represents a logical connection between two or more network elements in different networks. -- Description -- In the case where the networks are in different spatial data sets, a network connection object may exist in both data sets. </documentation></annotation></element>
<element maxOccurs="unbounded" minOccurs="2" name="element" type="gml:ReferenceType"><annotation><documentation>-- Definition -- Network elements in different networks </documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:NetworkElement</targetElement></appinfo></annotation></element>

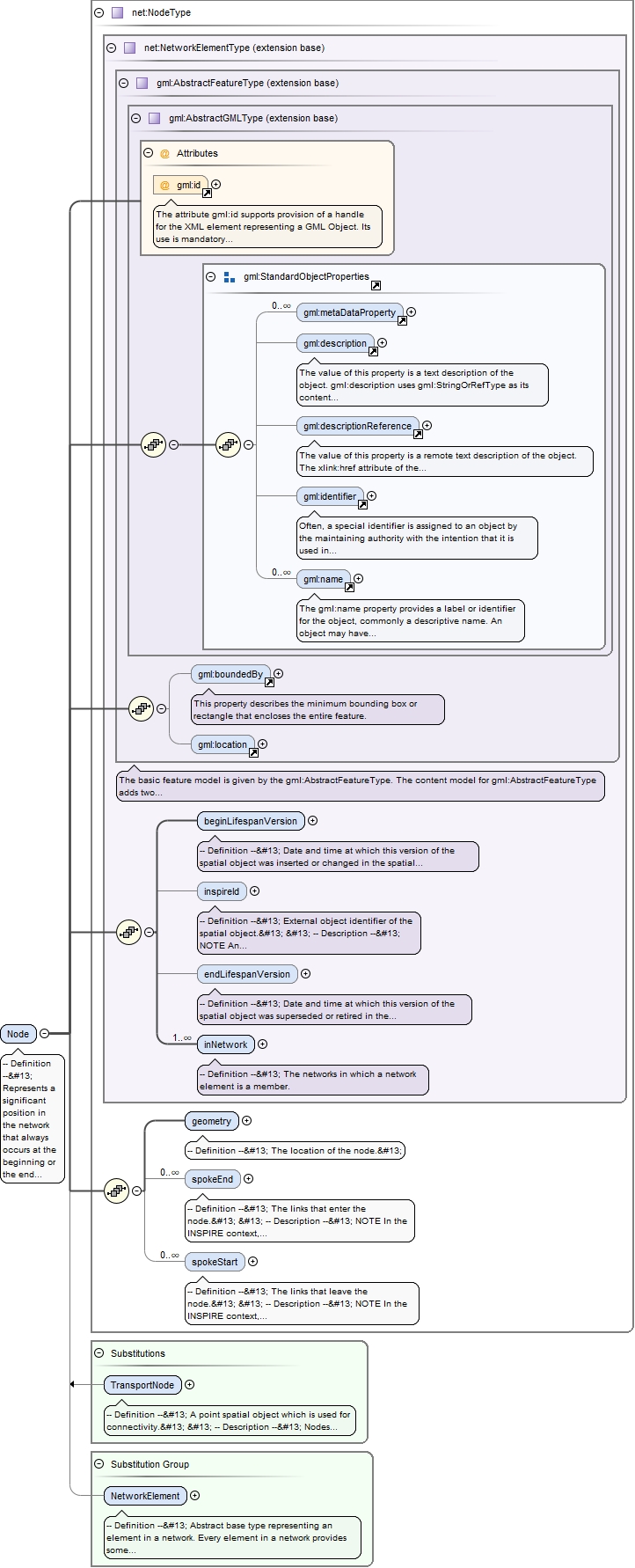

Element net:Node
Namespace
urn:x-inspire:specification:gmlas:Network:3.2
Annotations
-- Definition -- Represents a significant position in the network that always occurs at the beginning or the end of a link. -- Description -- NOTE if a topological representation of the network is used the road node is either a topological connection between two or more links or the termination of a ink. If a geometric representation of the network is used road nodes are represented by points or alternatively another geometric shape. [EuroRoadS]
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element abstract="true" name="Node" substitutionGroup="net:NetworkElement" type="net:NodeType"><annotation><documentation>-- Definition -- Represents a significant position in the network that always occurs at the beginning or the end of a link. -- Description -- NOTE if a topological representation of the network is used the road node is either a topological connection between two or more links or the termination of a ink. If a geometric representation of the network is used road nodes are represented by points or alternatively another geometric shape. [EuroRoadS] </documentation></annotation></element>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<complexType abstract="true" name="LinkType"><complexContent><extension base="net:GeneralisedLinkType"><sequence><element name="centrelineGeometry" type="gml:CurvePropertyType"><annotation><documentation>-- Definition -- The geometry that represents the centreline of the link. </documentation></annotation></element><element name="fictitious" type="boolean"><annotation><documentation>-- Definition -- Indicator that the centreline geometry of the link is a straight line with no intermediate control points – unless the straight line represents the geography in the resolution of the data set appropriately. </documentation></annotation></element><element minOccurs="0" name="endNode" type="gml:ReferenceType"><annotation><documentation>-- Definition -- The optional end node for this link. The end node may be the same instance as the start node.</documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:Node</targetElement><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">net:spokeEnd</reversePropertyName></appinfo></annotation></element><element minOccurs="0" name="startNode" type="gml:ReferenceType"><annotation><documentation>-- Definition -- The optional start node for this link.</documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:Node</targetElement><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">net:spokeStart</reversePropertyName></appinfo></annotation></element></sequence></extension></complexContent></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

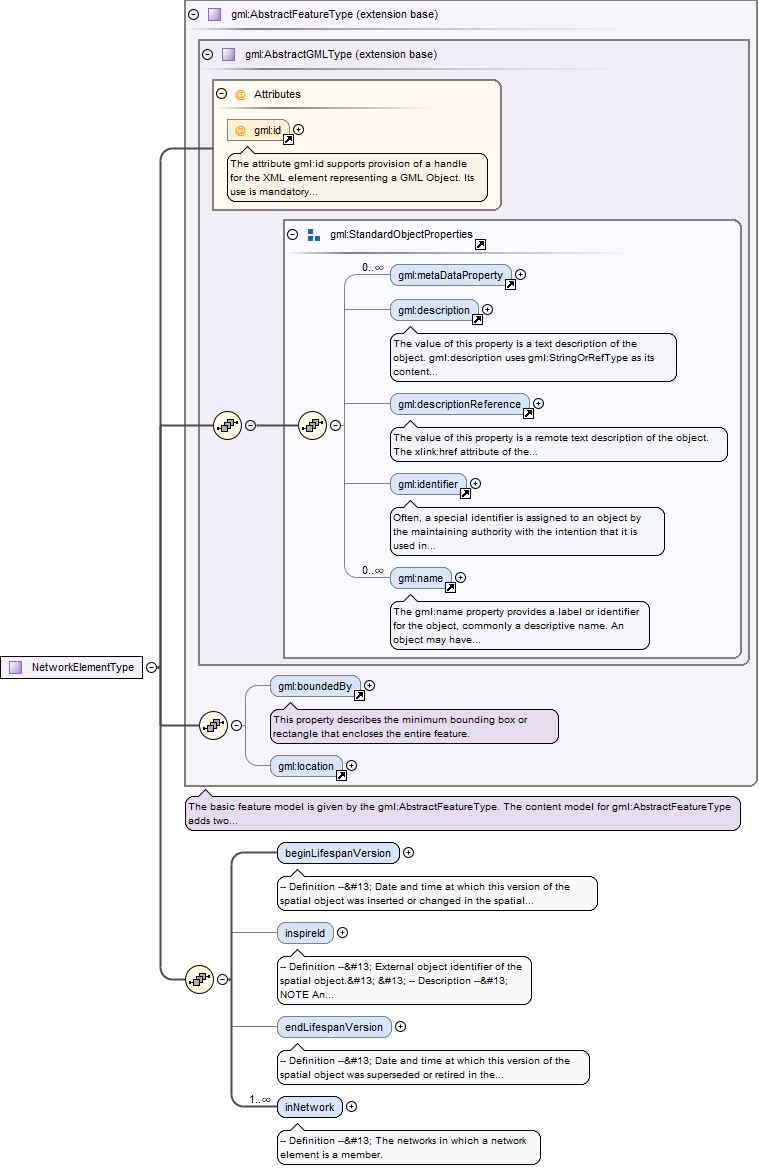

<complexType abstract="true" name="NetworkElementType"><complexContent><extension base="gml:AbstractFeatureType"><sequence><element name="beginLifespanVersion" nillable="true"><annotation><documentation>-- Definition -- Date and time at which this version of the spatial object was inserted or changed in the spatial data set. </documentation></annotation><complexType><simpleContent><extension base="dateTime"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element><element minOccurs="0" name="inspireId" type="base:IdentifierPropertyType"><annotation><documentation>-- Definition -- External object identifier of the spatial object. -- Description -- NOTE An external object identifier is a unique object identifier published by the responsible body, which may be used by external applications to reference the spatial object. The identifier is an identifier of the spatial object, not an identifier of the real-world phenomenon. </documentation></annotation></element><element minOccurs="0" name="endLifespanVersion" nillable="true"><annotation><documentation>-- Definition -- Date and time at which this version of the spatial object was superseded or retired in the spatial data set. </documentation></annotation><complexType><simpleContent><extension base="dateTime"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element><element maxOccurs="unbounded" name="inNetwork" nillable="true" type="gml:ReferenceType"><annotation><documentation>-- Definition -- The networks in which a network element is a member.</documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:Network</targetElement><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">net:elements</reversePropertyName></appinfo></annotation></element></sequence></extension></complexContent></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

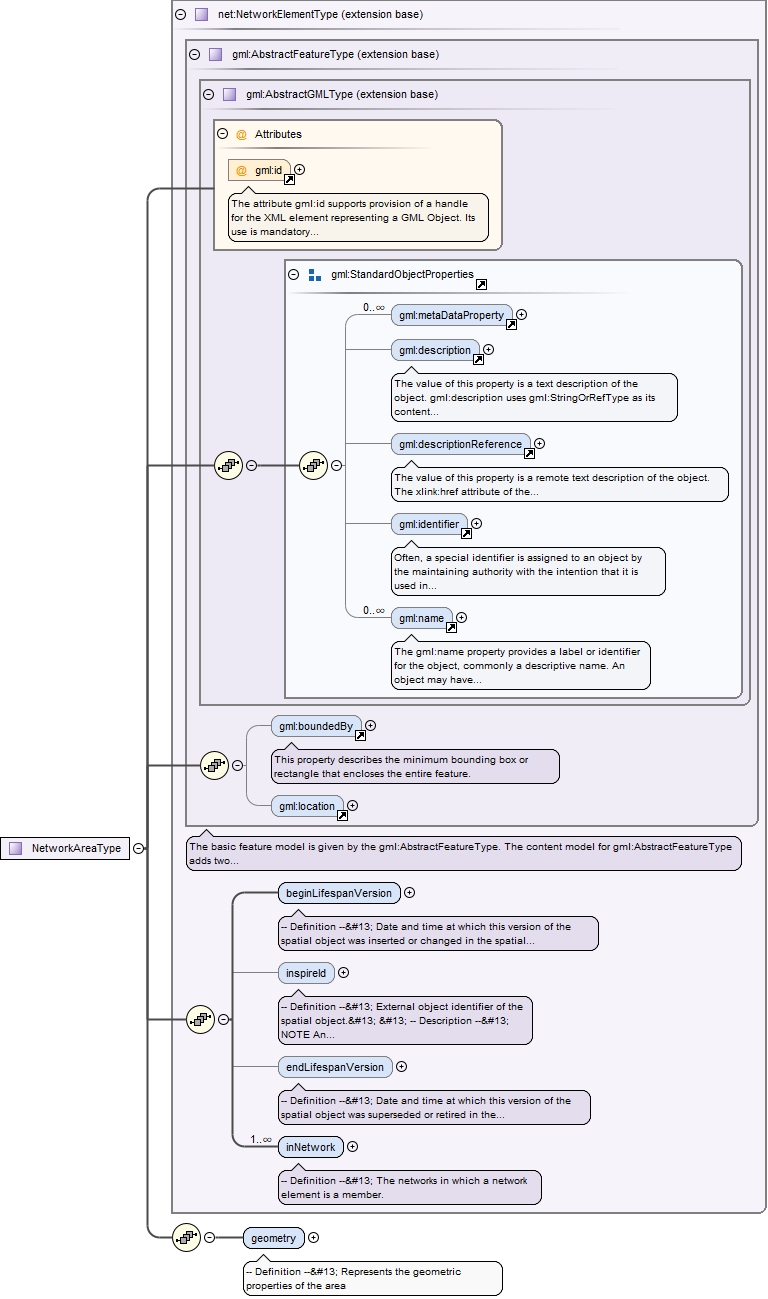

<complexType abstract="true" name="NetworkAreaType"><complexContent><extension base="net:NetworkElementType"><sequence><element name="geometry" type="gml:SurfacePropertyType"><annotation><documentation>-- Definition -- Represents the geometric properties of the area</documentation></annotation></element></sequence></extension></complexContent></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

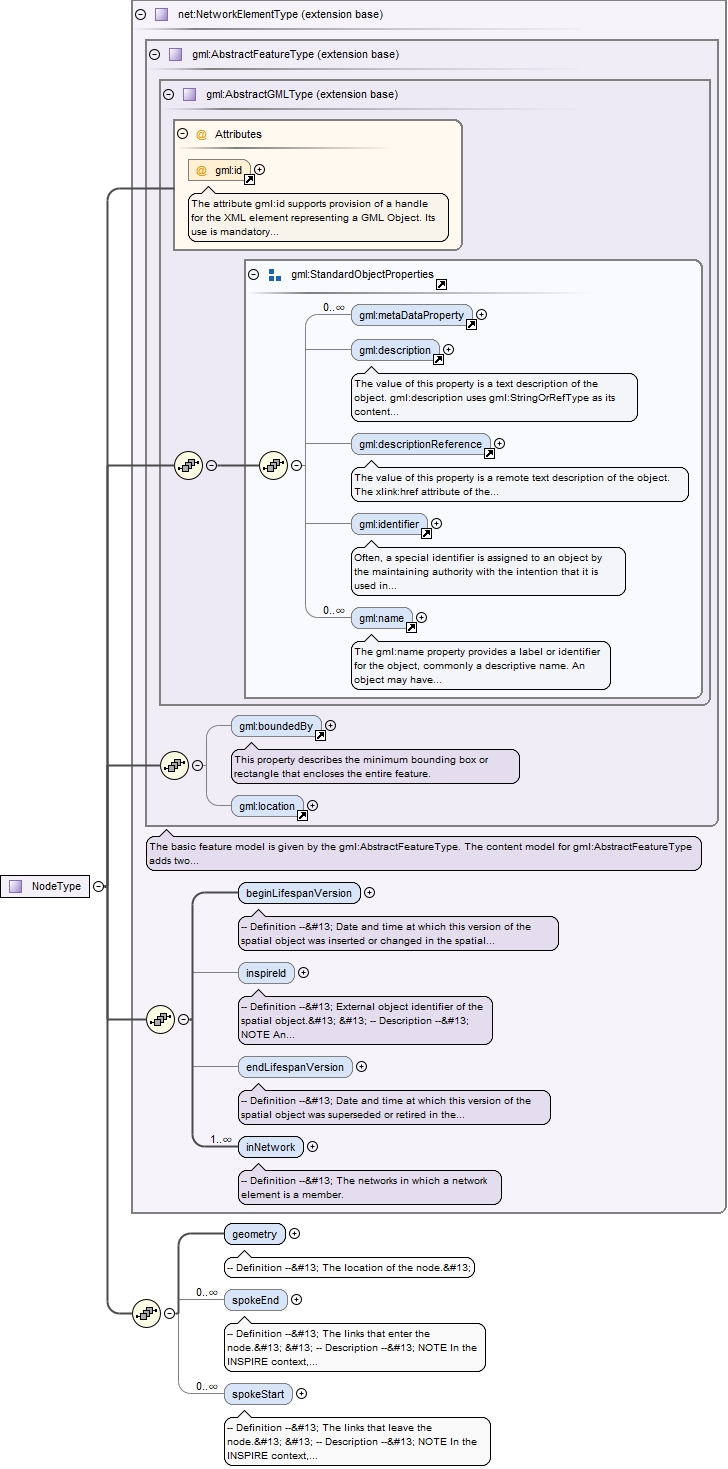

<complexType abstract="true" name="NodeType"><complexContent><extension base="net:NetworkElementType"><sequence><element name="geometry" type="gml:PointPropertyType"><annotation><documentation>-- Definition -- The location of the node. </documentation></annotation></element><element maxOccurs="unbounded" minOccurs="0" name="spokeEnd" nillable="true" type="gml:ReferenceType"><annotation><documentation>-- Definition -- The links that enter the node. -- Description -- NOTE In the INSPIRE context, this spoke property is to be published when this information is published in current exchange formats of the data set.</documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:Link</targetElement><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">net:endNode</reversePropertyName></appinfo></annotation></element><element maxOccurs="unbounded" minOccurs="0" name="spokeStart" nillable="true" type="gml:ReferenceType"><annotation><documentation>-- Definition -- The links that leave the node. -- Description -- NOTE In the INSPIRE context, this spoke property is to be published when this information is published in current exchange formats of the data set.</documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:Link</targetElement><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">net:startNode</reversePropertyName></appinfo></annotation></element></sequence></extension></complexContent></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

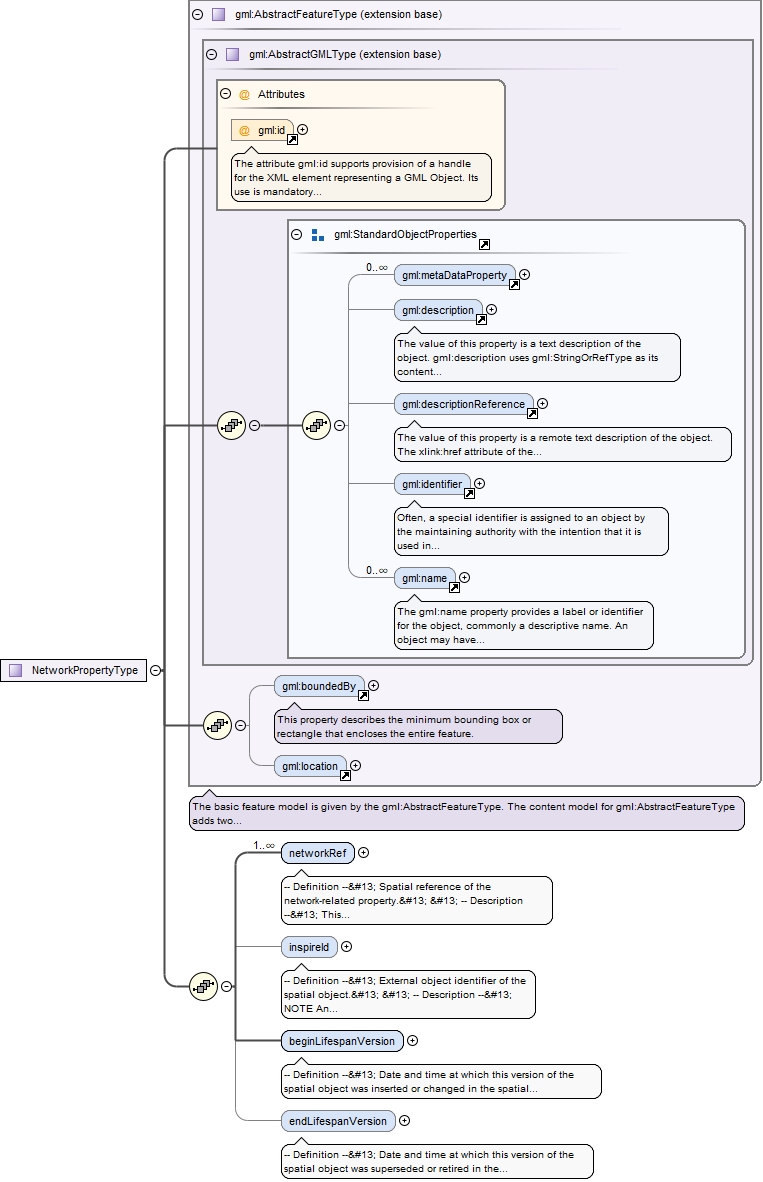

<complexType abstract="true" name="NetworkPropertyType"><complexContent><extension base="gml:AbstractFeatureType"><sequence><element maxOccurs="unbounded" name="networkRef" nillable="true"><annotation><documentation>-- Definition -- Spatial reference of the network-related property. -- Description -- This attribute provides an indirect spatial reference based on a reference to an element of an underlying network. See the chapter on Object Referencing in the Generic Conceptual Model for a discussion on modelling object references. </documentation></annotation><complexType><sequence><element ref="net:NetworkReference"/></sequence><attribute name="nilReason" type="gml:NilReasonType"/></complexType></element><element minOccurs="0" name="inspireId" type="base:IdentifierPropertyType"><annotation><documentation>-- Definition -- External object identifier of the spatial object. -- Description -- NOTE An external object identifier is a unique object identifier published by the responsible body, which may be used by external applications to reference the spatial object. The identifier is an identifier of the spatial object, not an identifier of the real-world phenomenon. </documentation></annotation></element><element name="beginLifespanVersion" nillable="true"><annotation><documentation>-- Definition -- Date and time at which this version of the spatial object was inserted or changed in the spatial data set. </documentation></annotation><complexType><simpleContent><extension base="dateTime"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element><element minOccurs="0" name="endLifespanVersion" nillable="true"><annotation><documentation>-- Definition -- Date and time at which this version of the spatial object was superseded or retired in the spatial data set. </documentation></annotation><complexType><simpleContent><extension base="dateTime"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element></sequence></extension></complexContent></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

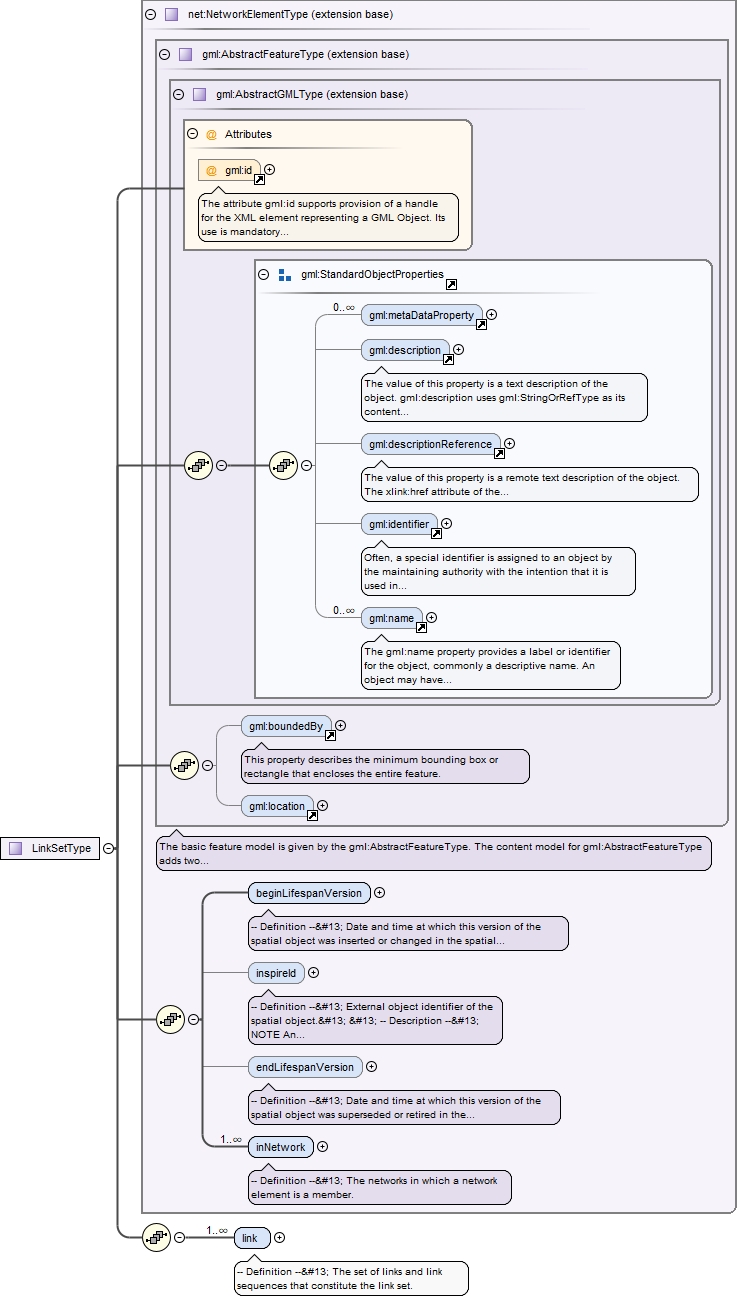

<complexType abstract="true" name="LinkSetType"><complexContent><extension base="net:NetworkElementType"><sequence><element maxOccurs="unbounded" name="link"><annotation><documentation>-- Definition -- The set of links and link sequences that constitute the link set.</documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:GeneralisedLink</targetElement></appinfo></annotation><complexType><complexContent><extension base="gml:AbstractMemberType"><sequence/><attributeGroup ref="gml:AssociationAttributeGroup"/></extension></complexContent></complexType></element></sequence></extension></complexContent></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

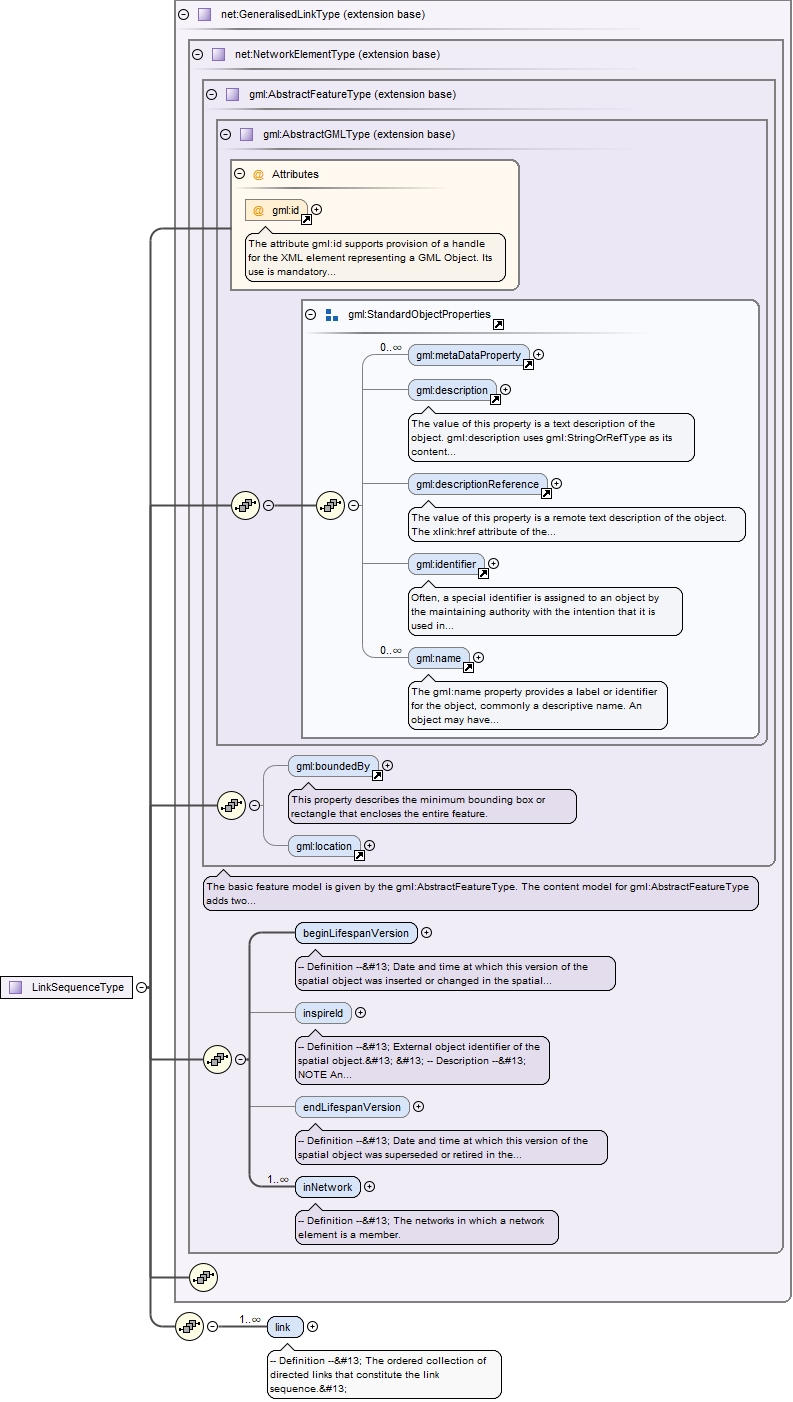

<complexType abstract="true" name="LinkSequenceType"><complexContent><extension base="net:GeneralisedLinkType"><sequence><element maxOccurs="unbounded" name="link" type="net:DirectedLinkPropertyType"><annotation><documentation>-- Definition -- The ordered collection of directed links that constitute the link sequence. </documentation></annotation></element></sequence></extension></complexContent></complexType>

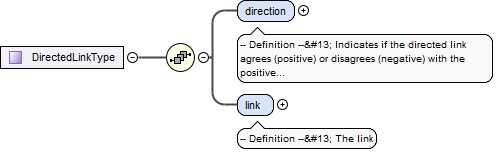

<complexType name="DirectedLinkType"><sequence><element name="direction" type="gml:SignType"><annotation><documentation>-- Definition -- Indicates if the directed link agrees (positive) or disagrees (negative) with the positive direction of the link. </documentation></annotation></element><element name="link" type="gml:ReferenceType"><annotation><documentation>-- Definition -- The link</documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:Link</targetElement></appinfo></annotation></element></sequence></complexType>

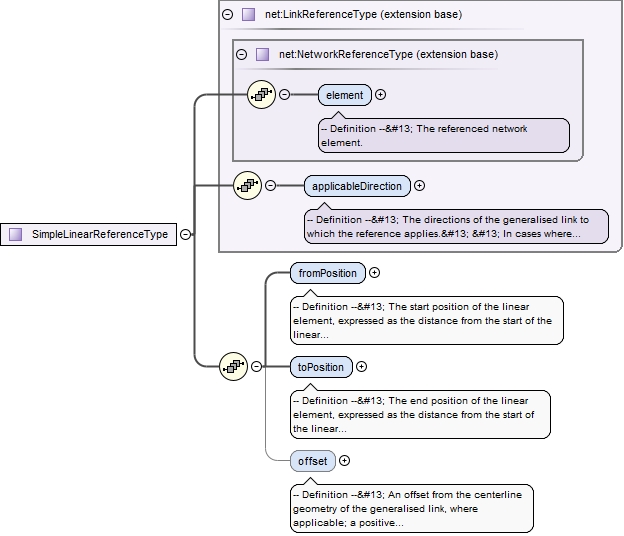

<complexType name="SimpleLinearReferenceType"><complexContent><extension base="net:LinkReferenceType"><sequence><element name="fromPosition" type="gml:LengthType"><annotation><documentation>-- Definition -- The start position of the linear element, expressed as the distance from the start of the linear network element along its curve geometry. </documentation></annotation></element><element name="toPosition" type="gml:LengthType"><annotation><documentation>-- Definition -- The end position of the linear element, expressed as the distance from the start of the linear network element along its curve geometry. </documentation></annotation></element><element minOccurs="0" name="offset" nillable="true"><annotation><documentation>-- Definition -- An offset from the centerline geometry of the generalised link, where applicable; a positive offset is to the right in the direction of the link, a negative offset is to the left. </documentation></annotation><complexType><simpleContent><extension base="gml:LengthType"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element></sequence></extension></complexContent></complexType>

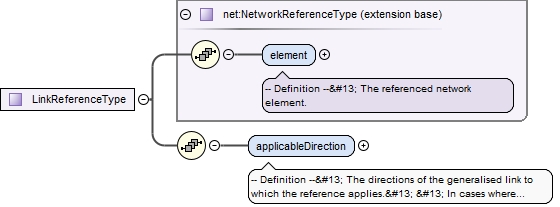

<complexType name="LinkReferenceType"><complexContent><extension base="net:NetworkReferenceType"><sequence><element name="applicableDirection" nillable="true"><annotation><documentation>-- Definition -- The directions of the generalised link to which the reference applies. In cases where a property does not apply <i>to</i> a direction along a link, but represents a phenomenon <i>along</i> a link, “inDirection” refers to the right side in the direction of the link. -- Description -- EXAMPLE A speed limit is a property that applies to a direction of the link (or both directions) while a house number is a phenomenon along a link. </documentation></annotation><complexType><simpleContent><extension base="gml:CodeType"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element></sequence></extension></complexContent></complexType>
Complex Type net:SimpleLinearReferencePropertyType

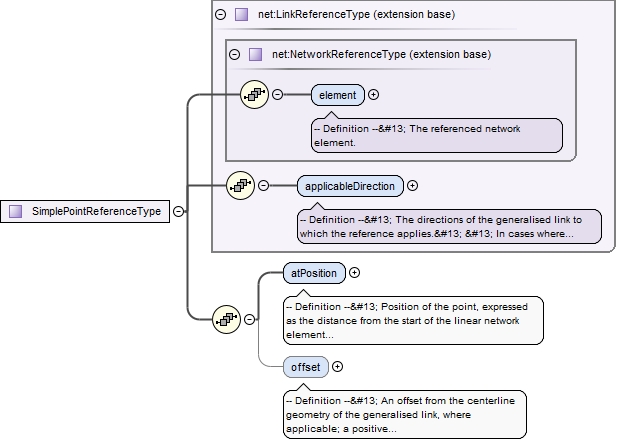

<complexType name="SimplePointReferenceType"><complexContent><extension base="net:LinkReferenceType"><sequence><element name="atPosition" type="gml:LengthType"><annotation><documentation>-- Definition -- Position of the point, expressed as the distance from the start of the linear network element along its curve geometry. </documentation></annotation></element><element minOccurs="0" name="offset" nillable="true"><annotation><documentation>-- Definition -- An offset from the centerline geometry of the generalised link, where applicable; a positive offset is to the right in the direction of the link, a negative offset is to the left. </documentation></annotation><complexType><simpleContent><extension base="gml:LengthType"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element></sequence></extension></complexContent></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

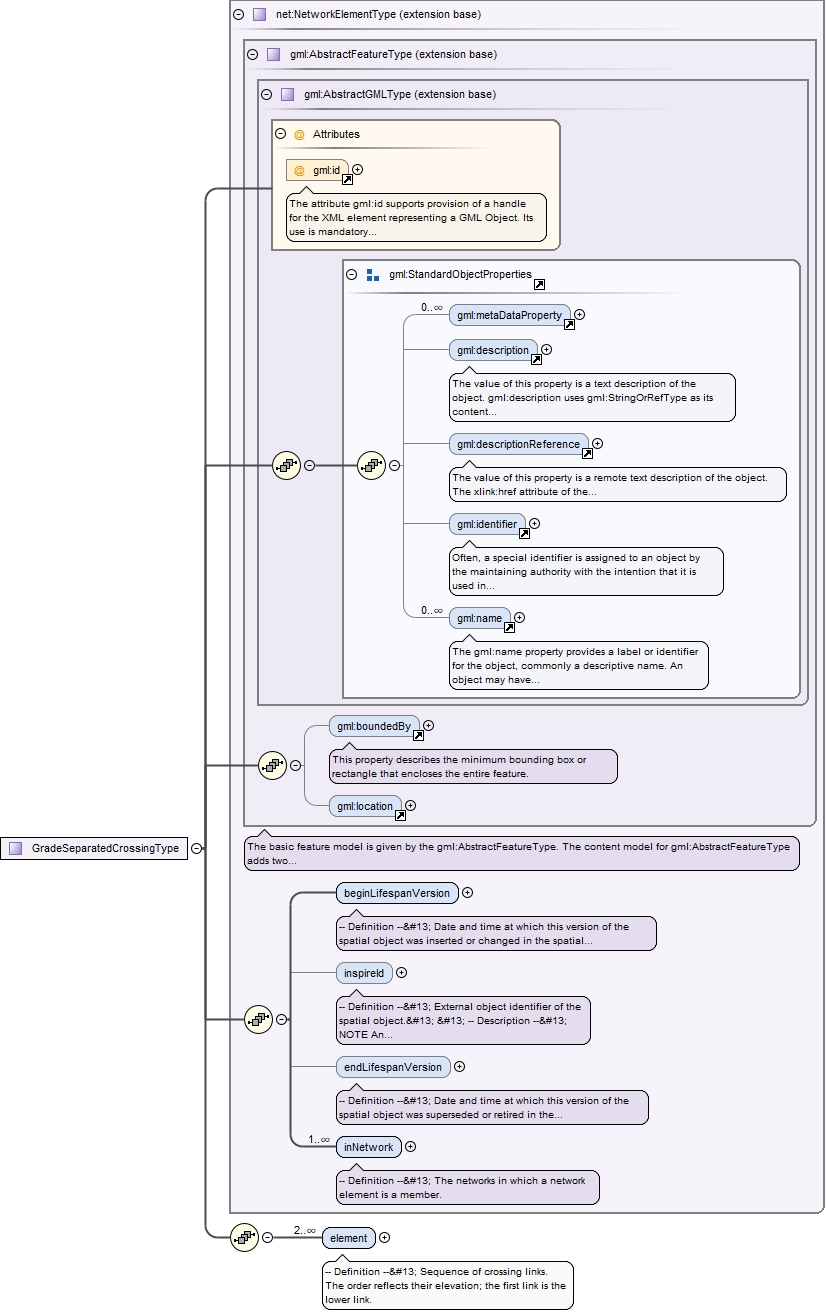

<complexType name="GradeSeparatedCrossingType"><complexContent><extension base="net:NetworkElementType"><sequence><element maxOccurs="unbounded" minOccurs="2" name="element" type="gml:ReferenceType"><annotation><documentation>-- Definition -- Sequence of crossing links. The order reflects their elevation; the first link is the lower link.</documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:Link</targetElement></appinfo></annotation></element></sequence></extension></complexContent></complexType>

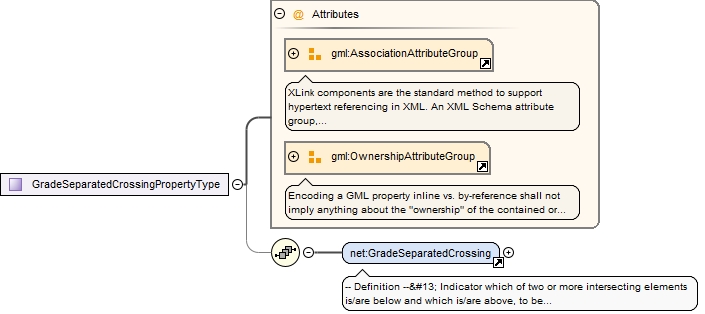

Complex Type net:GradeSeparatedCrossingPropertyType
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

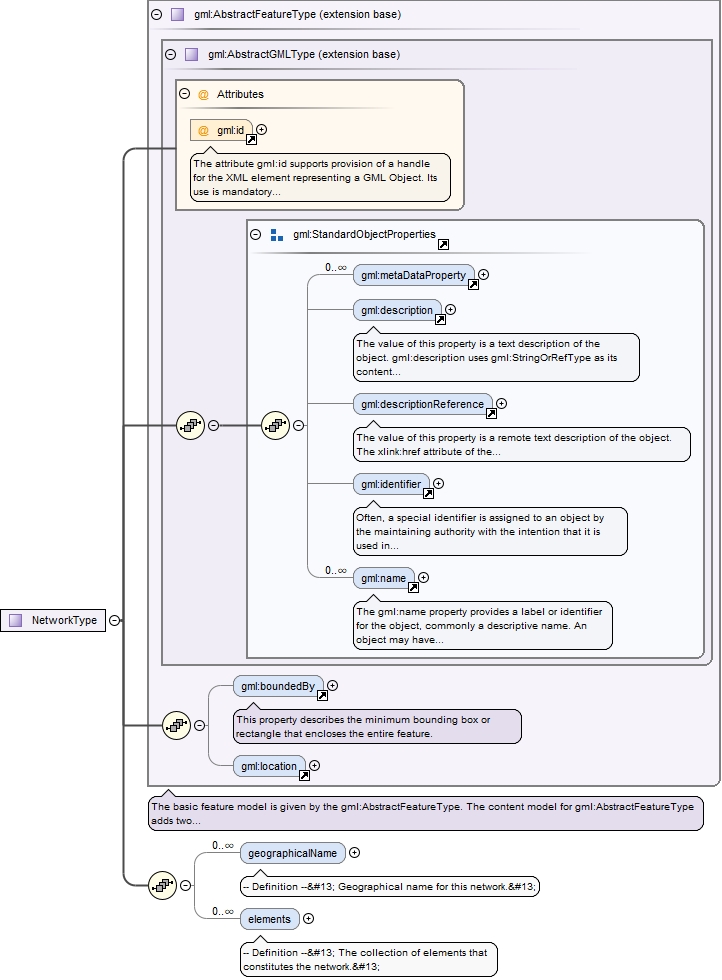

<complexType name="NetworkType"><complexContent><extension base="gml:AbstractFeatureType"><sequence><element maxOccurs="unbounded" minOccurs="0" name="geographicalName" nillable="true"><annotation><documentation>-- Definition -- Geographical name for this network. </documentation></annotation><complexType><sequence><element ref="gn:GeographicalName"/></sequence><attribute name="nilReason" type="gml:NilReasonType"/></complexType></element><element maxOccurs="unbounded" minOccurs="0" name="elements" type="gml:ReferenceType"><annotation><documentation>-- Definition -- The collection of elements that constitutes the network. </documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:NetworkElement</targetElement><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">net:inNetwork</reversePropertyName></appinfo></annotation></element></sequence></extension></complexContent></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

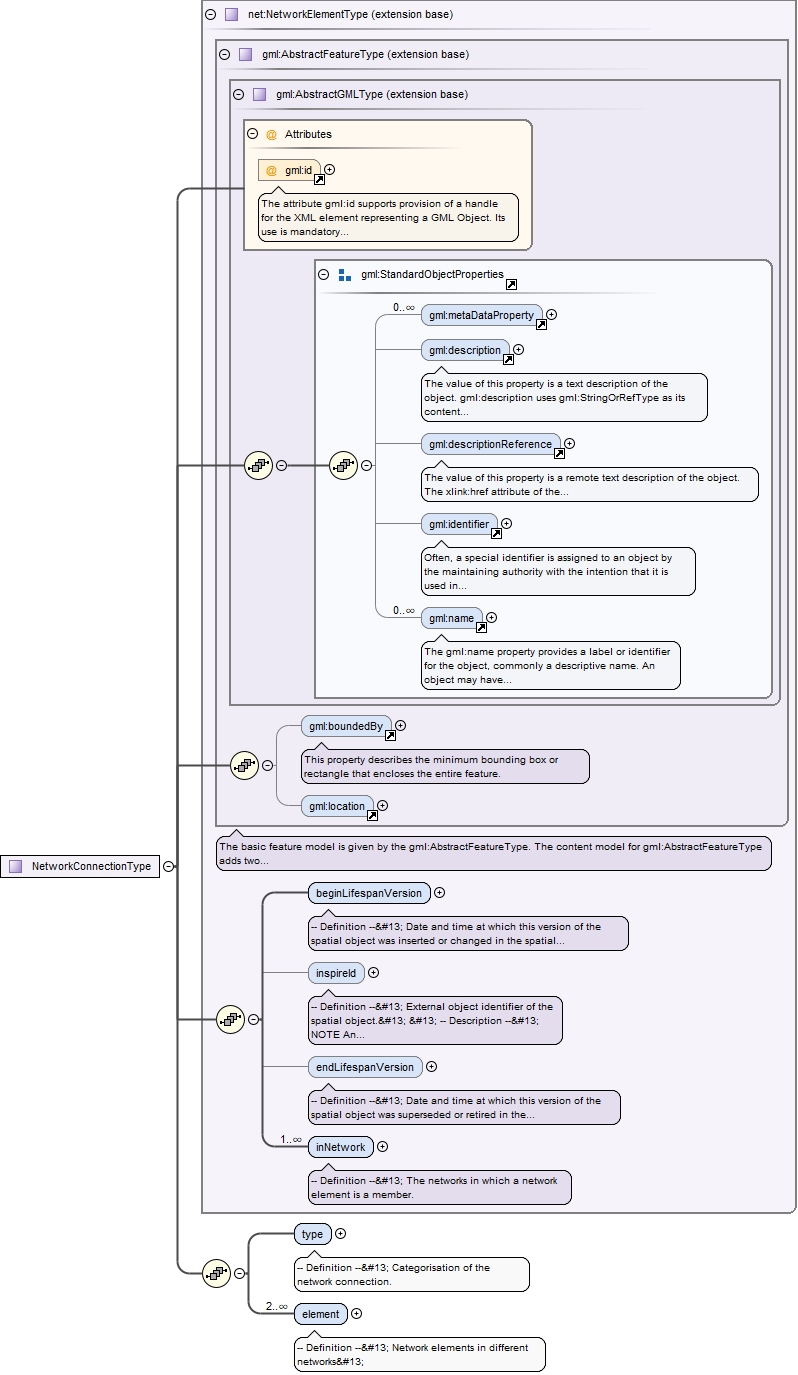

<complexType name="NetworkConnectionType"><complexContent><extension base="net:NetworkElementType"><sequence><element name="type" nillable="true"><annotation><documentation>-- Definition -- Categorisation of the network connection.</documentation></annotation><complexType><simpleContent><extension base="gml:CodeType"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element><element maxOccurs="unbounded" minOccurs="2" name="element" type="gml:ReferenceType"><annotation><documentation>-- Definition -- Network elements in different networks </documentation><appinfo><targetElement xmlns="http://www.opengis.net/gml/3.2">net:NetworkElement</targetElement></appinfo></annotation></element></sequence></extension></complexContent></complexType>
