Included schema simple_components.xsd
Namespace http://www.opengis.net/swe/2.0
Annotations

SWE Common Data Model schema for simple data components (i.e. without descendants). See requirements class http://www.opengis.net/spec/SWE/2.0/req/xsd-simple-components/

SWE Common is an OGC Standard.
Copyright (c) 2010 Open Geospatial Consortium.
To obtain additional rights of use, visit http://www.opengeospatial.org/legal/ .
Properties
attribute form default unqualified
element form default qualified
version 2.0.1

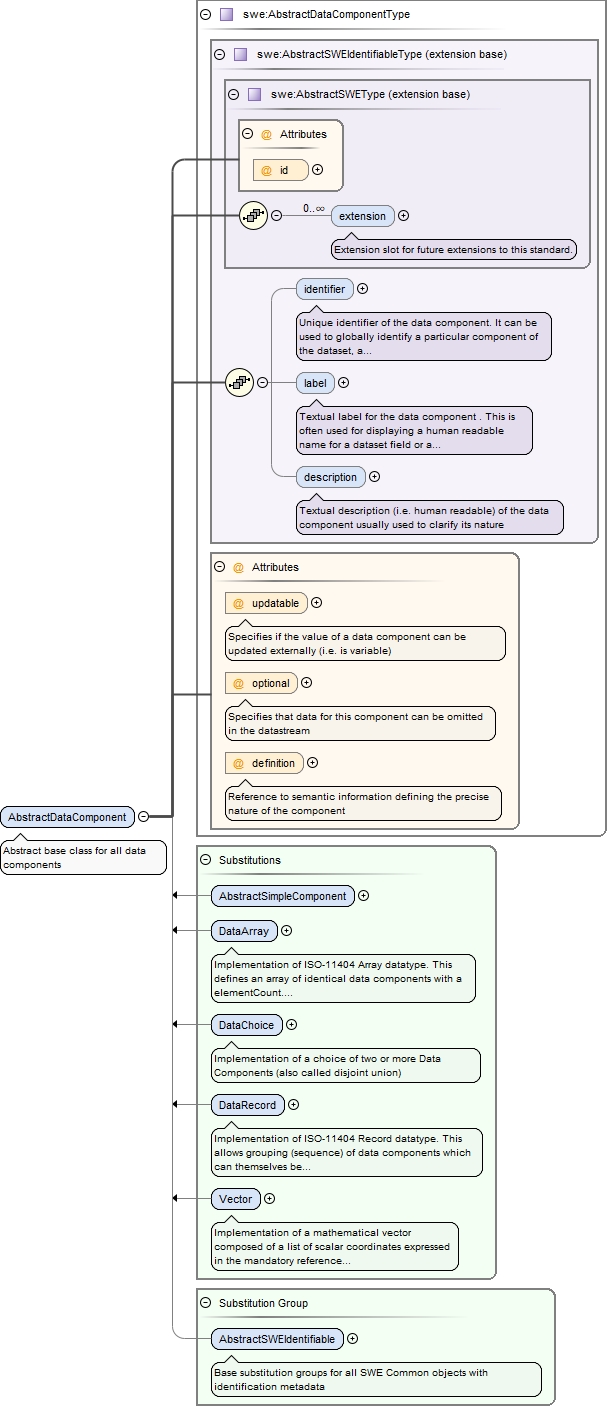

Element swe:AbstractDataComponent
Namespace http://www.opengis.net/swe/2.0
Annotations

Abstract base class for all data components

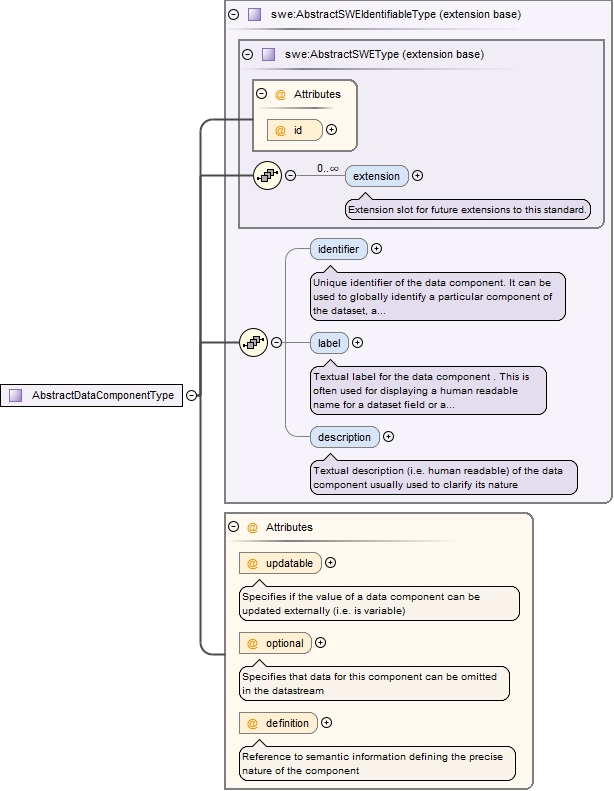

Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentblock_components_xsd.tmp#DataArraychoice_components_xsd.tmp#DataChoicerecord_components_xsd.tmp#DataRecordrecord_components_xsd.tmp#http___www.opengis.net_swe_2.0_Vectorbasic_types_xsd.tmp#AbstractSWEIdentifiable
Type swe:AbstractDataComponentType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Substitution Group Affiliation
Used by
Model
Children swe:description, swe:extension, swe:identifier, swe:label
Instance

<swe:AbstractDataComponent definition="" id="" optional="false" updatable="" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:extension>{0,unbounded}</swe:extension>
  <swe:identifier>{0,1}</swe:identifier>
  <swe:label>{0,1}</swe:label>
  <swe:description>{0,1}</swe:description>
</swe:AbstractDataComponent>
Attributes
QName Type Default Use Annotation
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<element abstract="true" name="AbstractDataComponent" substitutionGroup="swe:AbstractSWEIdentifiable" type="swe:AbstractDataComponentType">
  <annotation>
    <documentation>Abstract base class for all data components</documentation>
  </annotation>
</element>
Element swe:Count
Namespace http://www.opengis.net/swe/2.0
Annotations

Scalar component with integer representation used for a discrete counting value

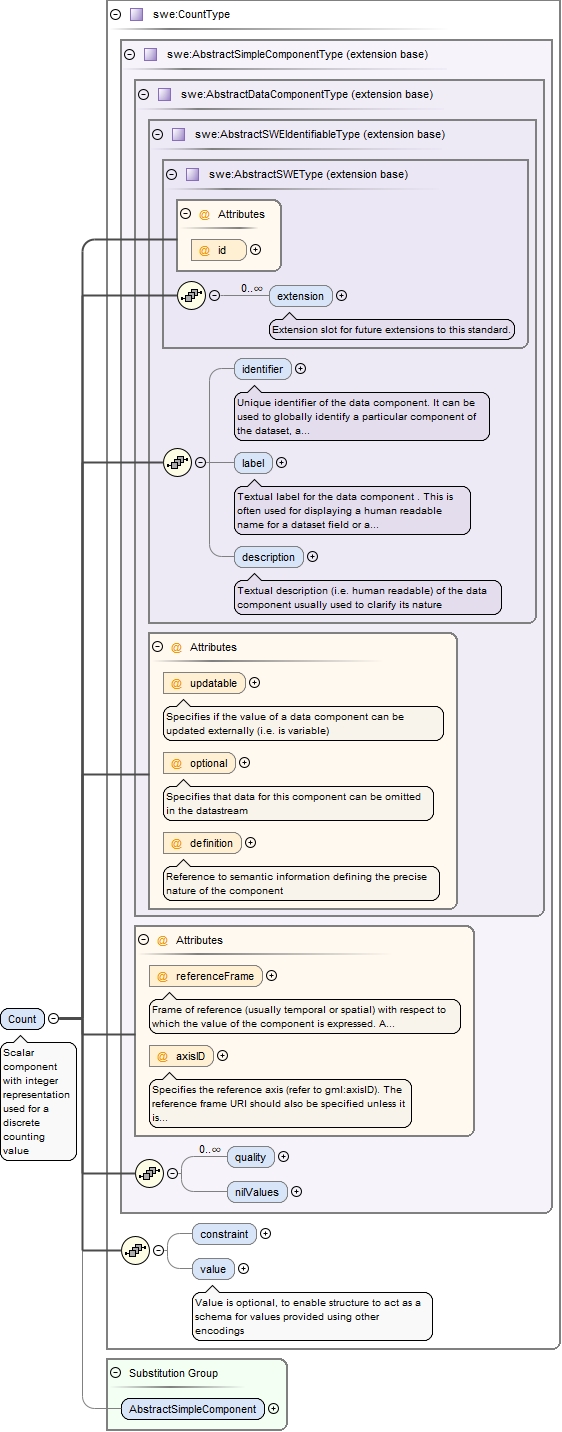

Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#CountType_constraintsimple_components_xsd.tmp#CountType_valuesimple_components_xsd.tmp#CountTypesimple_components_xsd.tmp#AbstractSimpleComponent

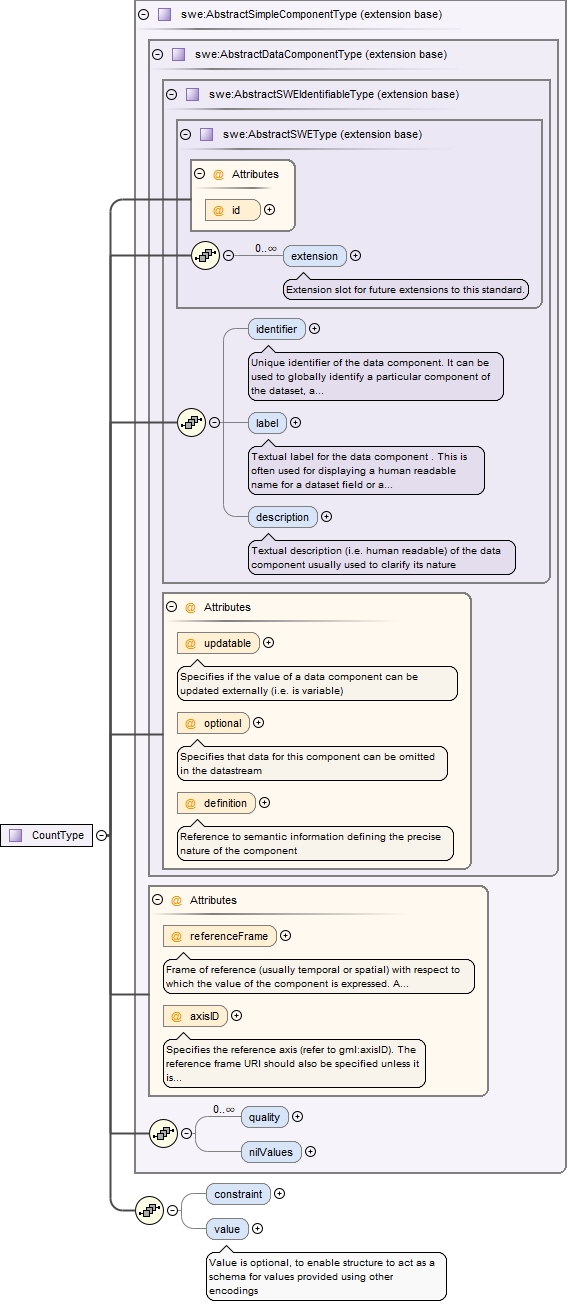

Type swe:CountType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by

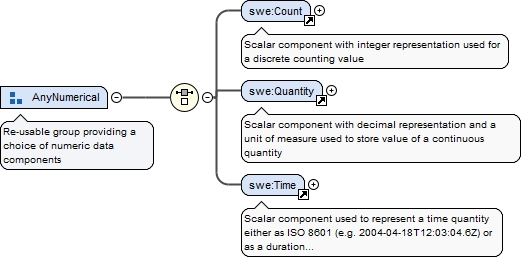

Element Groups swe:AnyNumerical, swe:AnyScalar

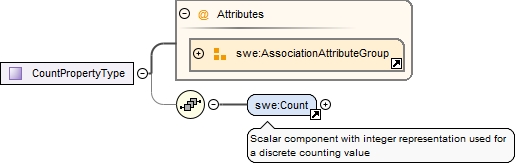

Complex Type swe:CountPropertyType
Element swe:DataStreamType/swe:elementCount
Model
swe:extension* , swe:identifier{0,1} , swe:label{0,1} , swe:description{0,1} , swe:quality* , swe:nilValues{0,1} , swe:constraint{0,1} , swe:value{0,1}
Children swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:value
Instance

<swe:Count axisID="" definition="" id="" optional="false" referenceFrame="" updatable="" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:extension>{0,unbounded}</swe:extension>
  <swe:identifier>{0,1}</swe:identifier>
  <swe:label>{0,1}</swe:label>
  <swe:description>{0,1}</swe:description>
  <swe:quality xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</swe:quality>
  <swe:nilValues xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:nilValues>
  <swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:constraint>
  <swe:value>{0,1}</swe:value>
</swe:Count>
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<element name="Count" substitutionGroup="swe:AbstractSimpleComponent" type="swe:CountType">
  <annotation>
    <documentation>Scalar component with integer representation used for a discrete counting value</documentation>
  </annotation>
</element>

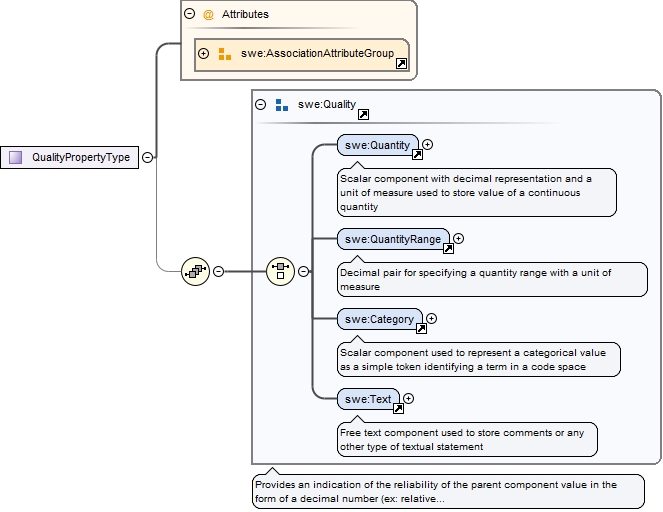

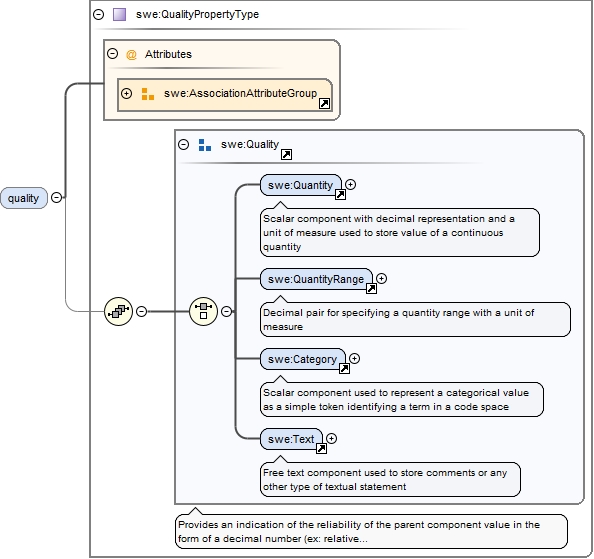

Element swe:AbstractSimpleComponentType / swe:quality
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Quantitysimple_components_xsd.tmp#QuantityRangesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Categorysimple_components_xsd.tmp#Textsimple_components_xsd.tmp#Qualitysimple_components_xsd.tmp#QualityPropertyType
Type swe:QualityPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children swe:Category, swe:Quantity, swe:QuantityRange, swe:Text
Instance

<swe:quality xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:Quantity axisID="" definition="" id="" optional="false" referenceFrame="" updatable="">{1,1}</swe:Quantity>
  <swe:QuantityRange axisID="" definition="" id="" optional="false" referenceFrame="" updatable="">{1,1}</swe:QuantityRange>
  <swe:Category axisID="" definition="" id="" optional="false" referenceFrame="" updatable="">{1,1}</swe:Category>
  <swe:Text axisID="" definition="" id="" optional="false" referenceFrame="" updatable="">{1,1}</swe:Text>
</swe:quality>
Attributes
Source

<element maxOccurs="unbounded" minOccurs="0" name="quality" type="swe:QualityPropertyType"/>

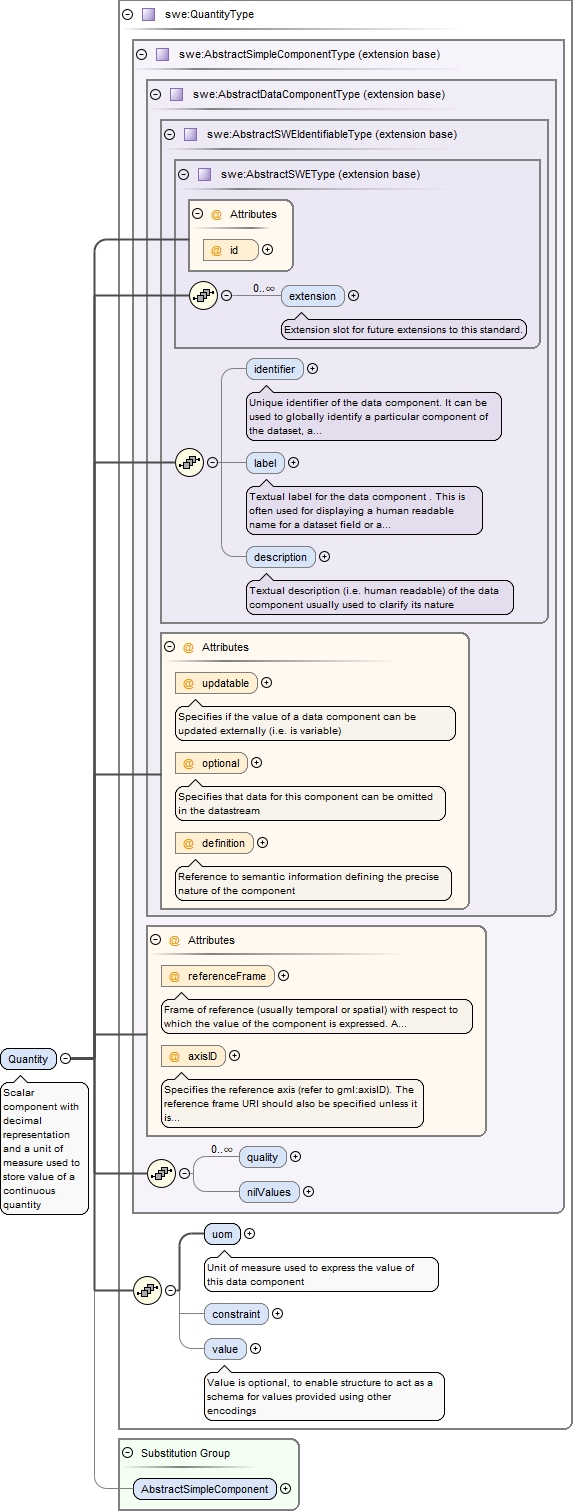

Element swe:Quantity
Namespace http://www.opengis.net/swe/2.0
Annotations

Scalar component with decimal representation and a unit of measure used to store value of a continuous quantity
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_QuantityType_uomsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_QuantityType_constraintsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_QuantityType_valuesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_QuantityTypesimple_components_xsd.tmp#AbstractSimpleComponent
Type swe:QuantityType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by

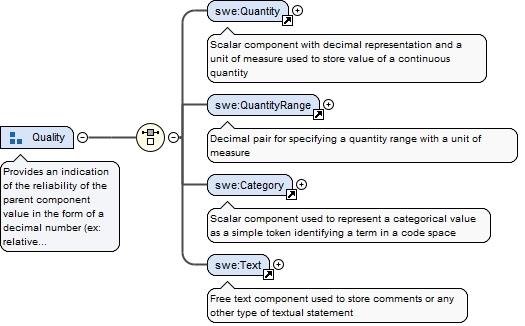

Element Groups swe:AnyNumerical, swe:AnyScalar, swe:Quality

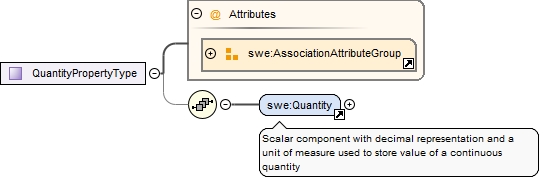

Complex Type swe:QuantityPropertyType
Model
swe:extension* , swe:identifier{0,1} , swe:label{0,1} , swe:description{0,1} , swe:quality* , swe:nilValues{0,1} , swe:uom , swe:constraint{0,1} , swe:value{0,1}
Children swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:uom, swe:value
Instance

<swe:Quantity axisID="" definition="" id="" optional="false" referenceFrame="" updatable="" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:extension>{0,unbounded}</swe:extension>
  <swe:identifier>{0,1}</swe:identifier>
  <swe:label>{0,1}</swe:label>
  <swe:description>{0,1}</swe:description>
  <swe:quality xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</swe:quality>
  <swe:nilValues xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:nilValues>
  <swe:uom xlink:actuate="" xlink:arcrole="" code="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</swe:uom>
  <swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:constraint>
  <swe:value>{0,1}</swe:value>
</swe:Quantity>
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<element name="Quantity" substitutionGroup="swe:AbstractSimpleComponent" type="swe:QuantityType">
  <annotation>
    <documentation>Scalar component with decimal representation and a unit of measure used to store value of a continuous quantity</documentation>
  </annotation>
</element>

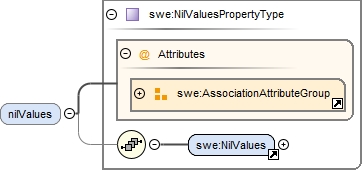

Element swe:AbstractSimpleComponentType / swe:nilValues
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#NilValuessimple_components_xsd.tmp#NilValuesPropertyType

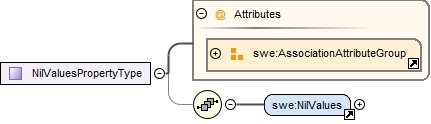

Type swe:NilValuesPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children swe:NilValues
Instance

<swe:nilValues xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:NilValues id="">{1,1}</swe:NilValues>
</swe:nilValues>
Attributes
Source

<element maxOccurs="1" minOccurs="0" name="nilValues" type="swe:NilValuesPropertyType"/>

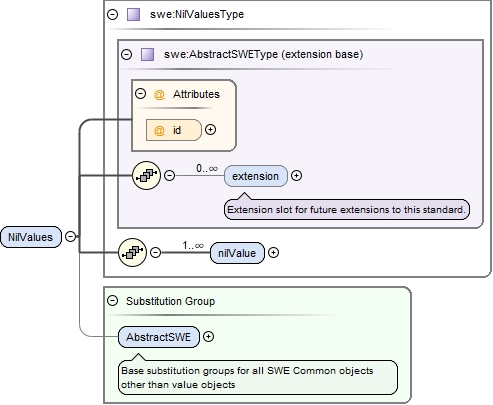

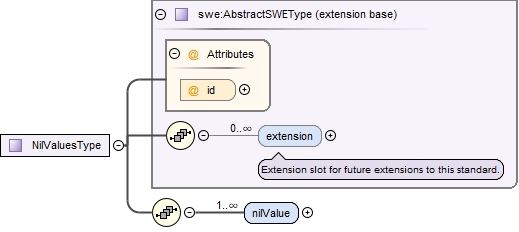

Element swe:NilValues
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypesimple_components_xsd.tmp#NilValuesType_nilValuesimple_components_xsd.tmp#NilValuesTypebasic_types_xsd.tmp#AbstractSWE
Type swe:NilValuesType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children swe:extension, swe:nilValue
Instance

<swe:NilValues id="" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:extension>{0,unbounded}</swe:extension>
  <swe:nilValue reason="">{1,unbounded}</swe:nilValue>
</swe:NilValues>
Attributes
QName Type Use
id ID optional
Source

<element name="NilValues" substitutionGroup="swe:AbstractSWE" type="swe:NilValuesType"/>

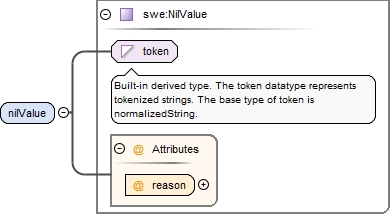

Element swe:NilValuesType / swe:nilValue
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#NilValue_reasonbasic_types_xsd.tmp#NilValue
Type swe:NilValue
Properties
content complex
minOccurs 1
maxOccurs unbounded
Attributes
QName Type Use
reason anyURI required
Source

<element maxOccurs="unbounded" minOccurs="1" name="nilValue" type="swe:NilValue"/>

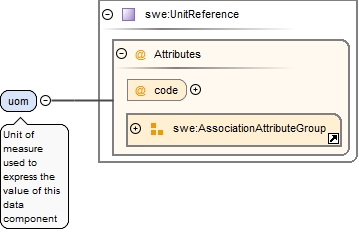

Element swe:QuantityType / swe:uom
Namespace http://www.opengis.net/swe/2.0
Annotations

Unit of measure used to express the value of this data component
Diagram
Diagrambasic_types_xsd.tmp#UnitReference_codebasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupbasic_types_xsd.tmp#UnitReference
Type swe:UnitReference
Properties
content complex
Attributes
QName Type Fixed Use
code swe:UomSymbol optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="uom" type="swe:UnitReference">
  <annotation>
    <documentation>Unit of measure used to express the value of this data component</documentation>
  </annotation>
</element>

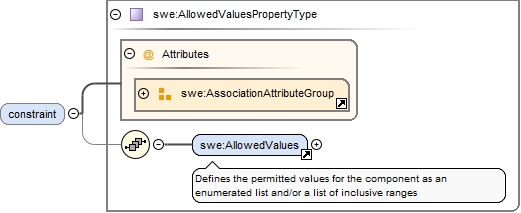

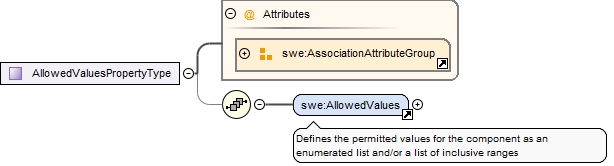

Element swe:QuantityType / swe:constraint
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#AllowedValuessimple_components_xsd.tmp#AllowedValuesPropertyType
Type swe:AllowedValuesPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
swe:AllowedValues
Children swe:AllowedValues
Instance

<swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:AllowedValues id="">{1,1}</swe:AllowedValues>
</swe:constraint>
Attributes
QName Type Fixed Use
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedValuesPropertyType"/>

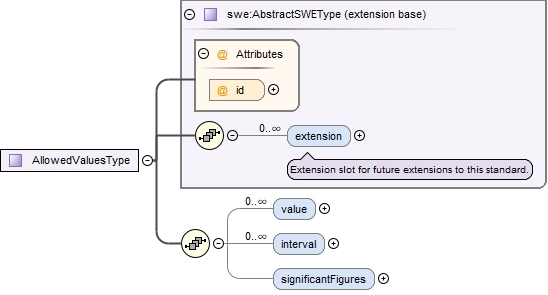

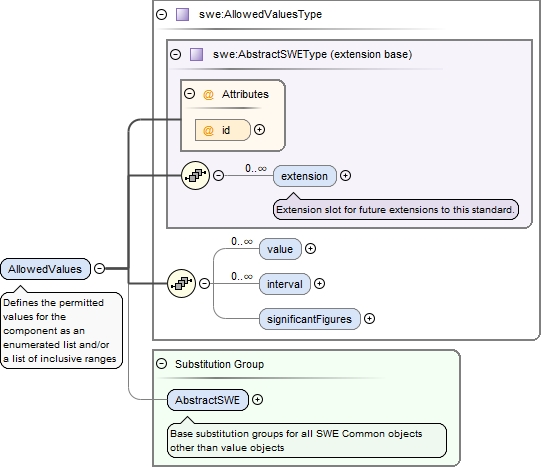

Element swe:AllowedValues
Namespace http://www.opengis.net/swe/2.0
Annotations

Defines the permitted values for the component as an enumerated list and/or a list of inclusive ranges
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypesimple_components_xsd.tmp#AllowedValuesType_valuesimple_components_xsd.tmp#AllowedValuesType_intervalsimple_components_xsd.tmp#AllowedValuesType_significantFiguressimple_components_xsd.tmp#AllowedValuesTypebasic_types_xsd.tmp#AbstractSWE
Type swe:AllowedValuesType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children swe:extension, swe:interval, swe:significantFigures, swe:value
Instance

<swe:AllowedValues id="" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:extension>{0,unbounded}</swe:extension>
  <swe:value>{0,unbounded}</swe:value>
  <swe:interval>{0,unbounded}</swe:interval>
  <swe:significantFigures>{0,1}</swe:significantFigures>
</swe:AllowedValues>
Attributes
QName Type Use
id ID optional
Source

<element name="AllowedValues" substitutionGroup="swe:AbstractSWE" type="swe:AllowedValuesType">
  <annotation>
    <documentation>Defines the permitted values for the component as an enumerated list and/or a list of inclusive ranges</documentation>
  </annotation>
</element>

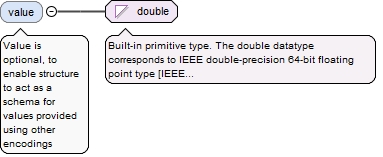

Element swe:AllowedValuesType / swe:value
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source

<element maxOccurs="unbounded" minOccurs="0" name="value" type="double"/>
Element swe:AllowedValuesType / swe:interval
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#RealPair
Type swe:RealPair
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
length 2
Source

<element maxOccurs="unbounded" minOccurs="0" name="interval" type="swe:RealPair"/>
Element swe:AllowedValuesType / swe:significantFigures
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagram
Type integer
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="0" name="significantFigures" type="integer"/>
Element swe:QuantityType / swe:value
Namespace http://www.opengis.net/swe/2.0
Annotations

Value is optional, to enable structure to act as a schema for values provided using other encodings
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="0" name="value" type="double">
  <annotation>
    <documentation>Value is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
  </annotation>
</element>

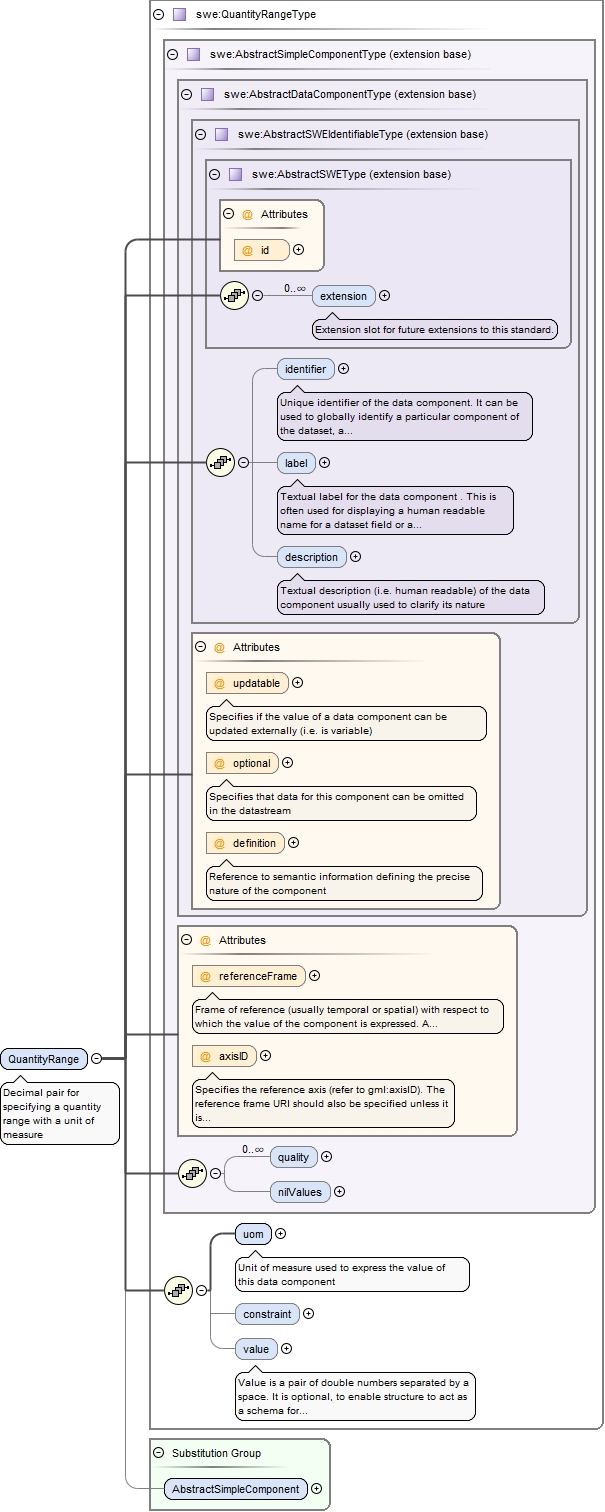

Element swe:QuantityRange
Namespace http://www.opengis.net/swe/2.0
Annotations

Decimal pair for specifying a quantity range with a unit of measure
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#QuantityRangeType_uomsimple_components_xsd.tmp#QuantityRangeType_constraintsimple_components_xsd.tmp#QuantityRangeType_valuesimple_components_xsd.tmp#QuantityRangeTypesimple_components_xsd.tmp#AbstractSimpleComponent

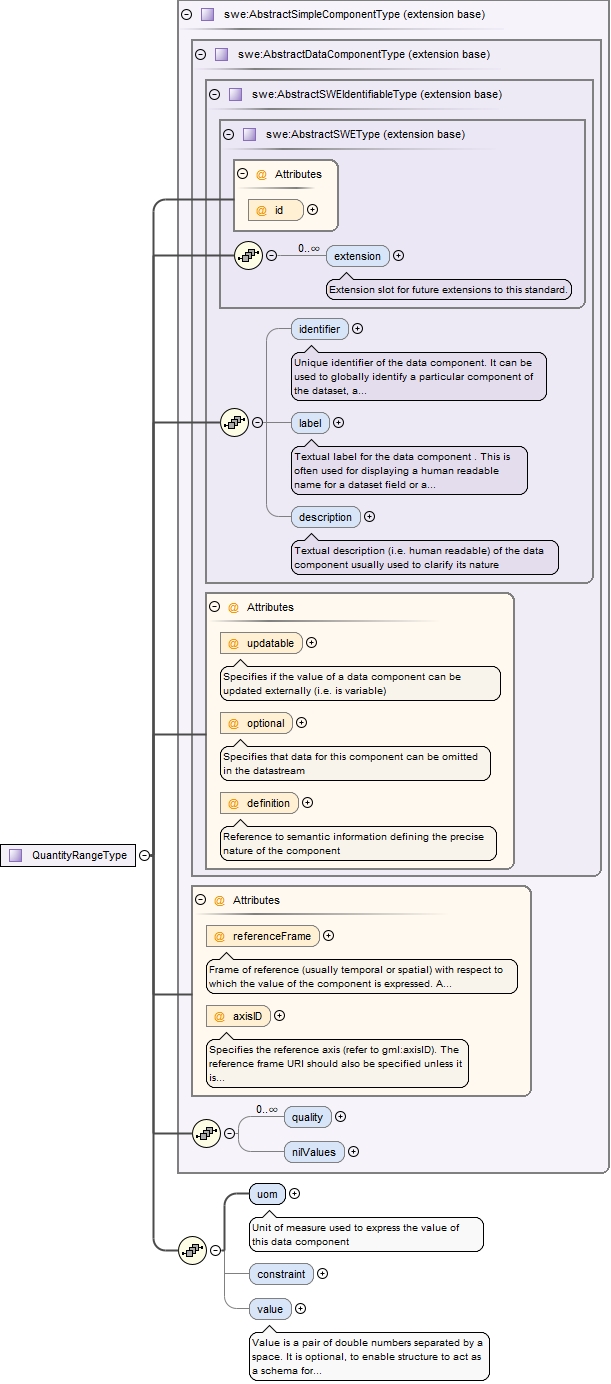

Type swe:QuantityRangeType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:uom, swe:value
Instance

<swe:QuantityRange axisID="" definition="" id="" optional="false" referenceFrame="" updatable="" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:extension>{0,unbounded}</swe:extension>
  <swe:identifier>{0,1}</swe:identifier>
  <swe:label>{0,1}</swe:label>
  <swe:description>{0,1}</swe:description>
  <swe:quality xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</swe:quality>
  <swe:nilValues xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:nilValues>
  <swe:uom xlink:actuate="" xlink:arcrole="" code="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</swe:uom>
  <swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:constraint>
  <swe:value>{0,1}</swe:value>
</swe:QuantityRange>
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<element name="QuantityRange" substitutionGroup="swe:AbstractSimpleComponent" type="swe:QuantityRangeType">
  <annotation>
    <documentation>Decimal pair for specifying a quantity range with a unit of measure</documentation>
  </annotation>
</element>
Element swe:QuantityRangeType / swe:uom
Namespace http://www.opengis.net/swe/2.0
Annotations

Unit of measure used to express the value of this data component
Diagram
Diagrambasic_types_xsd.tmp#UnitReference_codebasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupbasic_types_xsd.tmp#UnitReference
Type swe:UnitReference
Properties
content complex
Attributes
Source

<element name="uom" type="swe:UnitReference">
  <annotation>
    <documentation>Unit of measure used to express the value of this data component</documentation>
  </annotation>
</element>
Element swe:QuantityRangeType / swe:constraint
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#AllowedValuessimple_components_xsd.tmp#AllowedValuesPropertyType
Type swe:AllowedValuesPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children swe:AllowedValues
Instance

<swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:AllowedValues id="">{1,1}</swe:AllowedValues>
</swe:constraint>
Attributes
Source

<element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedValuesPropertyType"/>
Element swe:QuantityRangeType / swe:value
Namespace http://www.opengis.net/swe/2.0
Annotations

Value is a pair of double numbers separated by a space. It is optional, to enable structure to act as a schema for values provided using other encodings
Diagram
Diagrambasic_types_xsd.tmp#RealPair
Type swe:RealPair
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 2
Source

<element maxOccurs="1" minOccurs="0" name="value" type="swe:RealPair">
  <annotation>
    <documentation>Value is a pair of double numbers separated by a space. It is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
  </annotation>
</element>

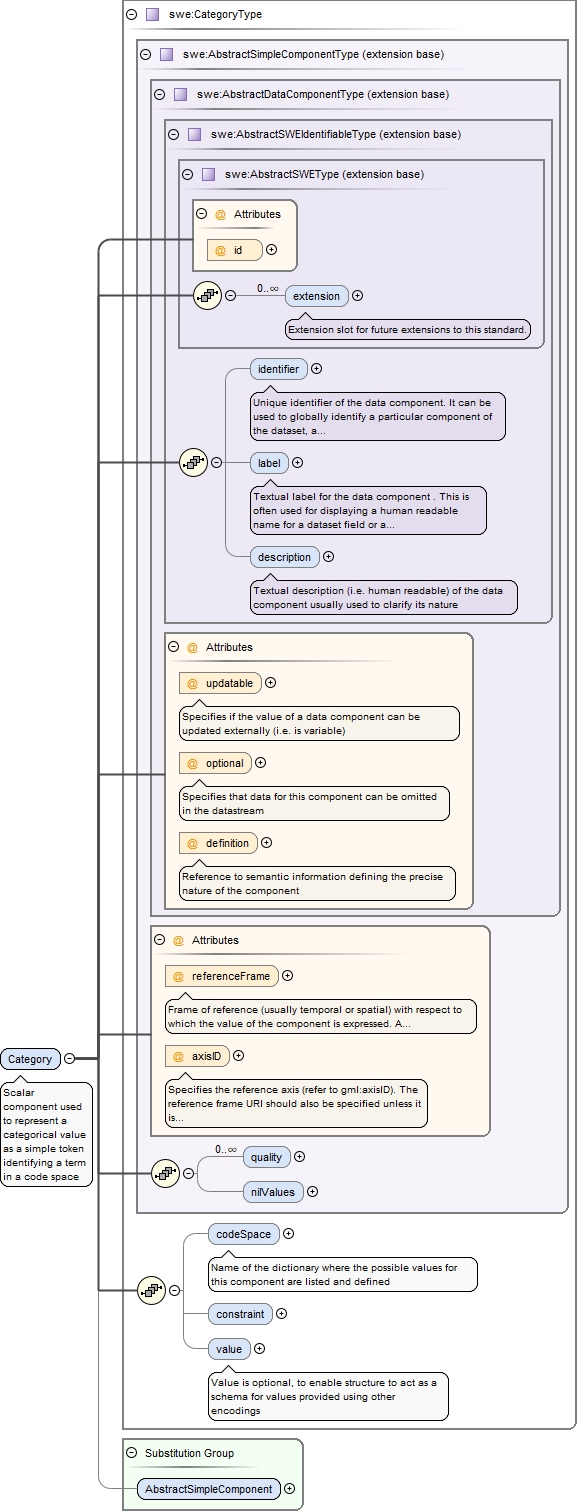

Element swe:Category
Namespace http://www.opengis.net/swe/2.0
Annotations

Scalar component used to represent a categorical value as a simple token identifying a term in a code space
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#CategoryType_codeSpacesimple_components_xsd.tmp#CategoryType_constraintsimple_components_xsd.tmp#CategoryType_valuesimple_components_xsd.tmp#CategoryTypesimple_components_xsd.tmp#AbstractSimpleComponent
Type swe:CategoryType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Element Groups swe:AnyScalar, swe:Quality

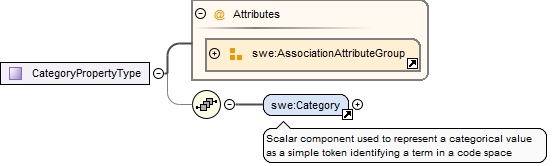

Complex Type swe:CategoryPropertyType
Element swe:DataChoiceType/swe:choiceValue
Model
swe:extension* , swe:identifier{0,1} , swe:label{0,1} , swe:description{0,1} , swe:quality* , swe:nilValues{0,1} , swe:codeSpace{0,1} , swe:constraint{0,1} , swe:value{0,1}
Children swe:codeSpace, swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:value
Instance

<swe:Category axisID="" definition="" id="" optional="false" referenceFrame="" updatable="" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:extension>{0,unbounded}</swe:extension>
  <swe:identifier>{0,1}</swe:identifier>
  <swe:label>{0,1}</swe:label>
  <swe:description>{0,1}</swe:description>
  <swe:quality xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</swe:quality>
  <swe:nilValues xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:nilValues>
  <swe:codeSpace xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:codeSpace>
  <swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:constraint>
  <swe:value>{0,1}</swe:value>
</swe:Category>
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<element name="Category" substitutionGroup="swe:AbstractSimpleComponent" type="swe:CategoryType">
  <annotation>
    <documentation>Scalar component used to represent a categorical value as a simple token identifying a term in a code space</documentation>
  </annotation>
</element>

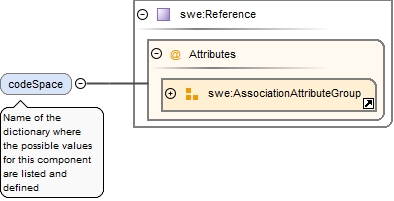

Element swe:CategoryType / swe:codeSpace
Namespace http://www.opengis.net/swe/2.0
Annotations

Name of the dictionary where the possible values for this component are listed and defined
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupbasic_types_xsd.tmp#Reference
Type swe:Reference
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
Source

<element maxOccurs="1" minOccurs="0" name="codeSpace" type="swe:Reference">
  <annotation>
    <documentation>Name of the dictionary where the possible values for this component are listed and defined</documentation>
  </annotation>
</element>
Element swe:CategoryType / swe:constraint
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#AllowedTokenssimple_components_xsd.tmp#AllowedTokensPropertyType

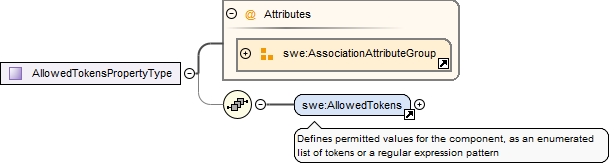

Type swe:AllowedTokensPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children swe:AllowedTokens
Instance

<swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:AllowedTokens id="">{1,1}</swe:AllowedTokens>
</swe:constraint>
Attributes
Source

<element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedTokensPropertyType"/>

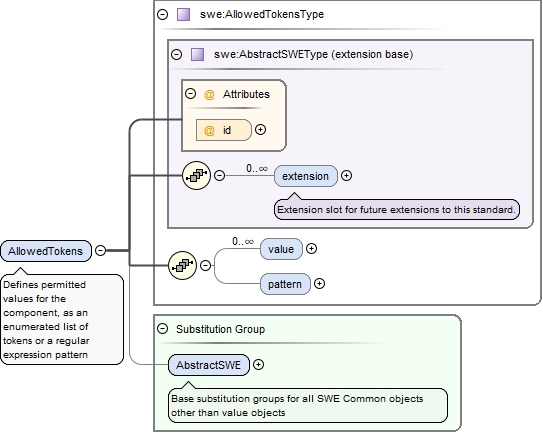

Element swe:AllowedTokens
Namespace http://www.opengis.net/swe/2.0
Annotations

Defines permitted values for the component, as an enumerated list of tokens or a regular expression pattern
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypesimple_components_xsd.tmp#AllowedTokensType_valuesimple_components_xsd.tmp#AllowedTokensType_patternsimple_components_xsd.tmp#AllowedTokensTypebasic_types_xsd.tmp#AbstractSWE

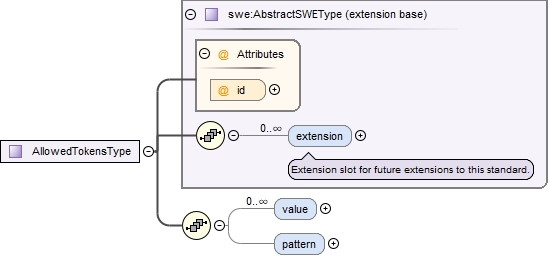

Type swe:AllowedTokensType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children swe:extension, swe:pattern, swe:value
Instance

<swe:AllowedTokens id="" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:extension>{0,unbounded}</swe:extension>
  <swe:value>{0,unbounded}</swe:value>
  <swe:pattern>{0,1}</swe:pattern>
</swe:AllowedTokens>
Attributes
QName Type Use
id ID optional
Source

<element name="AllowedTokens" substitutionGroup="swe:AbstractSWE" type="swe:AllowedTokensType">
  <annotation>
    <documentation>Defines permitted values for the component, as an enumerated list of tokens or a regular expression pattern</documentation>
  </annotation>
</element>
Element swe:AllowedTokensType / swe:value
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source

<element maxOccurs="unbounded" minOccurs="0" name="value" type="string"/>
Element swe:AllowedTokensType / swe:pattern
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="0" name="pattern" type="string"/>

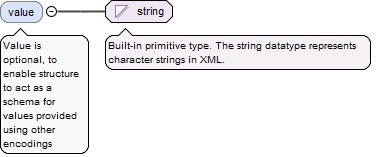

Element swe:CategoryType / swe:value
Namespace http://www.opengis.net/swe/2.0
Annotations

Value is optional, to enable structure to act as a schema for values provided using other encodings
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="0" name="value" type="string">
  <annotation>
    <documentation>Value is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
  </annotation>
</element>
Element swe:Text
Namespace http://www.opengis.net/swe/2.0
Annotations

Free text component used to store comments or any other type of textual statement
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#TextType_constraintsimple_components_xsd.tmp#TextType_valuesimple_components_xsd.tmp#TextTypesimple_components_xsd.tmp#AbstractSimpleComponent
Type swe:TextType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Element Groups swe:AnyScalar, swe:Quality
Complex Type swe:TextPropertyType
Model
swe:extension* , swe:identifier{0,1} , swe:label{0,1} , swe:description{0,1} , swe:quality* , swe:nilValues{0,1} , swe:constraint{0,1} , swe:value{0,1}
Children swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:value
Instance

<swe:Text axisID="" definition="" id="" optional="false" referenceFrame="" updatable="" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:extension>{0,unbounded}</swe:extension>
  <swe:identifier>{0,1}</swe:identifier>
  <swe:label>{0,1}</swe:label>
  <swe:description>{0,1}</swe:description>
  <swe:quality xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</swe:quality>
  <swe:nilValues xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:nilValues>
  <swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:constraint>
  <swe:value>{0,1}</swe:value>
</swe:Text>
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<element name="Text" substitutionGroup="swe:AbstractSimpleComponent" type="swe:TextType">
  <annotation>
    <documentation>Free text component used to store comments or any other type of textual statement</documentation>
  </annotation>
</element>

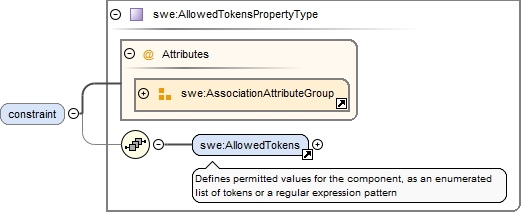

Element swe:TextType / swe:constraint
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#AllowedTokenssimple_components_xsd.tmp#AllowedTokensPropertyType
Type swe:AllowedTokensPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children swe:AllowedTokens
Instance

<swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:AllowedTokens id="">{1,1}</swe:AllowedTokens>
</swe:constraint>
Attributes
Source

<element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedTokensPropertyType"/>
Element swe:TextType / swe:value
Namespace http://www.opengis.net/swe/2.0
Annotations

Value is optional, to enable structure to act as a schema for values provided using other encodings
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="0" name="value" type="string">
  <annotation>
    <documentation>Value is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
  </annotation>
</element>
Element swe:CountType / swe:constraint
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#AllowedValuessimple_components_xsd.tmp#AllowedValuesPropertyType
Type swe:AllowedValuesPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children swe:AllowedValues
Instance

<swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:AllowedValues id="">{1,1}</swe:AllowedValues>
</swe:constraint>
Attributes
Source

<element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedValuesPropertyType"/>

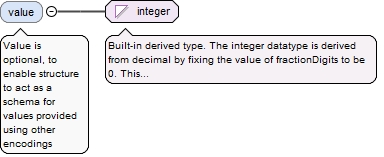

Element swe:CountType / swe:value
Namespace http://www.opengis.net/swe/2.0
Annotations

Value is optional, to enable structure to act as a schema for values provided using other encodings
Diagram
Diagram
Type integer
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="0" name="value" type="integer">
  <annotation>
    <documentation>Value is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
  </annotation>
</element>

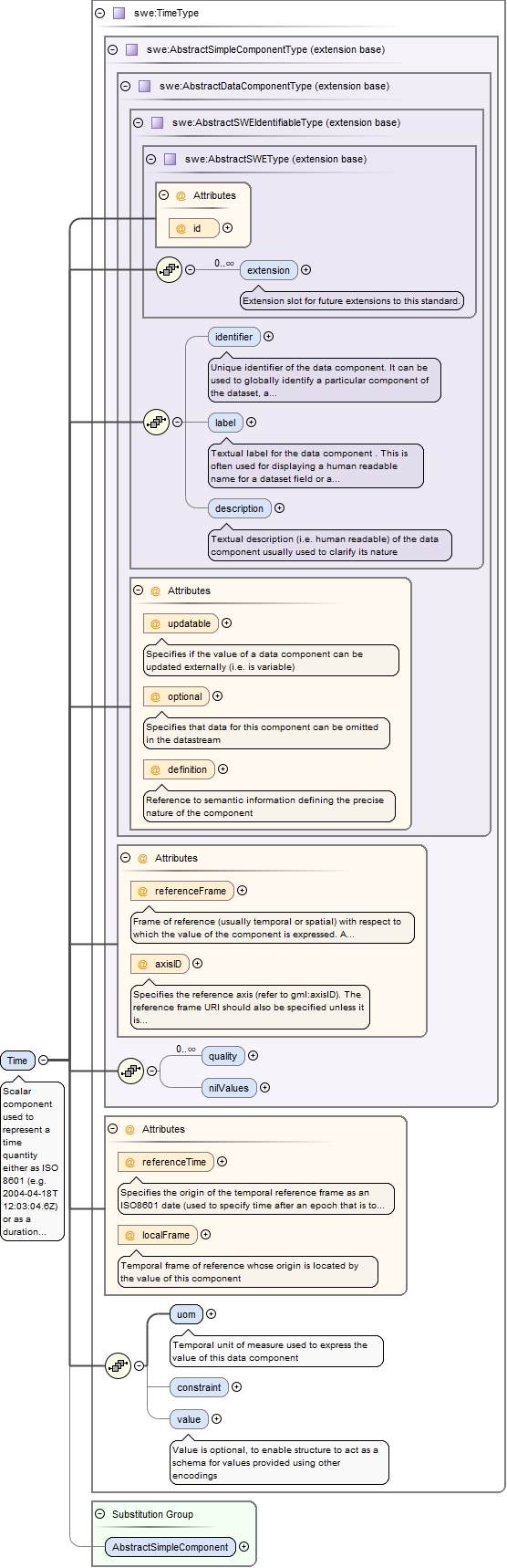

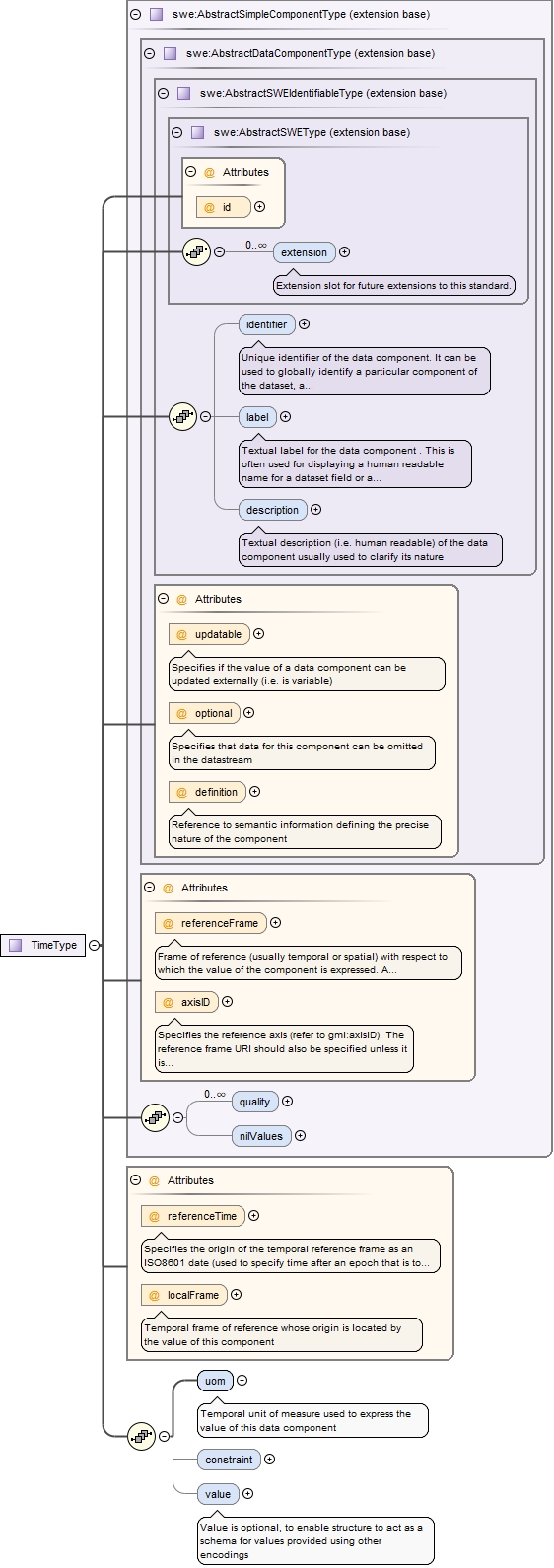

Element swe:Time
Namespace http://www.opengis.net/swe/2.0
Annotations

Scalar component used to represent a time quantity either as ISO 8601 (e.g. 2004-04-18T12:03:04.6Z) or as a duration relative to a time of reference
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_TimeType_referenceTimesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_TimeType_localFramesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_TimeType_uomsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_TimeType_constraintsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_TimeType_valuesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_TimeTypesimple_components_xsd.tmp#AbstractSimpleComponent
Type swe:TimeType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Element Groups swe:AnyNumerical, swe:AnyScalar

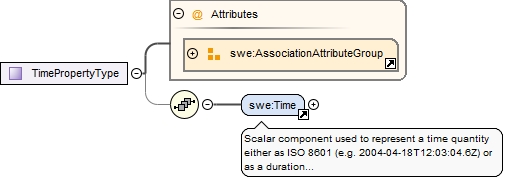

Complex Type swe:TimePropertyType
Model
Children swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:uom, swe:value
Instance

<swe:Time axisID="" definition="" id="" localFrame="" optional="false" referenceFrame="" referenceTime="" updatable="" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:extension>{0,unbounded}</swe:extension>
  <swe:identifier>{0,1}</swe:identifier>
  <swe:label>{0,1}</swe:label>
  <swe:description>{0,1}</swe:description>
  <swe:quality xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</swe:quality>
  <swe:nilValues xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:nilValues>
  <swe:uom xlink:actuate="" xlink:arcrole="" code="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</swe:uom>
  <swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:constraint>
  <swe:value>{0,1}</swe:value>
</swe:Time>
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
localFrame anyURI optional
Temporal frame of reference whose origin is located by the value of this component
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
referenceTime dateTime optional
Specifies the origin of the temporal reference frame as an ISO8601 date (used to specify time after an epoch that is to say in a custom frame)
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<element name="Time" substitutionGroup="swe:AbstractSimpleComponent" type="swe:TimeType">
  <annotation>
    <documentation>Scalar component used to represent a time quantity either as ISO 8601 (e.g. 2004-04-18T12:03:04.6Z) or as a duration relative to a time of reference</documentation>
  </annotation>
</element>
Element swe:TimeType / swe:uom
Namespace http://www.opengis.net/swe/2.0
Annotations

Temporal unit of measure used to express the value of this data component
Diagram
Diagrambasic_types_xsd.tmp#UnitReference_codebasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupbasic_types_xsd.tmp#UnitReference
Type swe:UnitReference
Properties
content complex
Attributes
QName Type Fixed Use
code swe:UomSymbol optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="uom" type="swe:UnitReference">
  <annotation>
    <documentation>Temporal unit of measure used to express the value of this data component</documentation>
  </annotation>
</element>

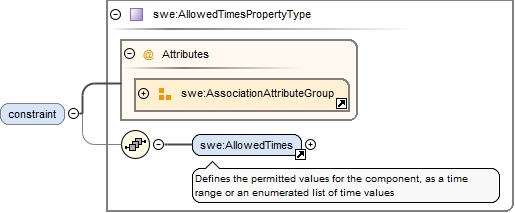

Element swe:TimeType / swe:constraint
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#AllowedTimessimple_components_xsd.tmp#AllowedTimesPropertyType
Type swe:AllowedTimesPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
swe:AllowedTimes
Children swe:AllowedTimes
Instance

<swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:AllowedTimes id="">{1,1}</swe:AllowedTimes>
</swe:constraint>
Attributes
QName Type Fixed Use
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedTimesPropertyType"/>
Element swe:AllowedTimes
Namespace http://www.opengis.net/swe/2.0
Annotations

Defines the permitted values for the component, as a time range or an enumerated list of time values
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypesimple_components_xsd.tmp#AllowedTimesType_valuesimple_components_xsd.tmp#AllowedTimesType_intervalsimple_components_xsd.tmp#AllowedTimesType_significantFiguressimple_components_xsd.tmp#AllowedTimesTypebasic_types_xsd.tmp#AbstractSWE

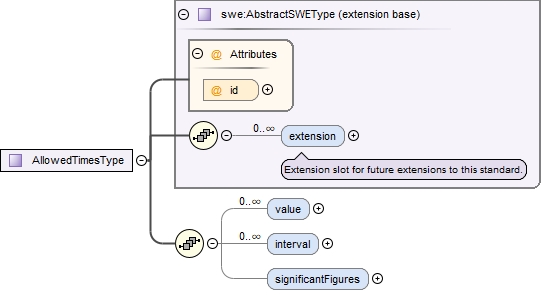

Type swe:AllowedTimesType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children swe:extension, swe:interval, swe:significantFigures, swe:value
Instance

<swe:AllowedTimes id="" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:extension>{0,unbounded}</swe:extension>
  <swe:value>{0,unbounded}</swe:value>
  <swe:interval>{0,unbounded}</swe:interval>
  <swe:significantFigures>{0,1}</swe:significantFigures>
</swe:AllowedTimes>
Attributes
QName Type Use
id ID optional
Source

<element name="AllowedTimes" substitutionGroup="swe:AbstractSWE" type="swe:AllowedTimesType">
  <annotation>
    <documentation>Defines the permitted values for the component, as a time range or an enumerated list of time values</documentation>
  </annotation>
</element>
Element swe:AllowedTimesType / swe:value
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_TimePosition
Type swe:TimePosition
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source

<element maxOccurs="unbounded" minOccurs="0" name="value" type="swe:TimePosition"/>
Element swe:AllowedTimesType / swe:interval
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#TimePair
Type swe:TimePair
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
length 2
Source

<element maxOccurs="unbounded" minOccurs="0" name="interval" type="swe:TimePair"/>
Element swe:AllowedTimesType / swe:significantFigures
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagram
Type integer
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="0" name="significantFigures" type="integer"/>
Element swe:TimeType / swe:value
Namespace http://www.opengis.net/swe/2.0
Annotations

Value is optional, to enable structure to act as a schema for values provided using other encodings
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_TimePosition
Type swe:TimePosition
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="0" name="value" type="swe:TimePosition">
  <annotation>
    <documentation>Value is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
  </annotation>
</element>

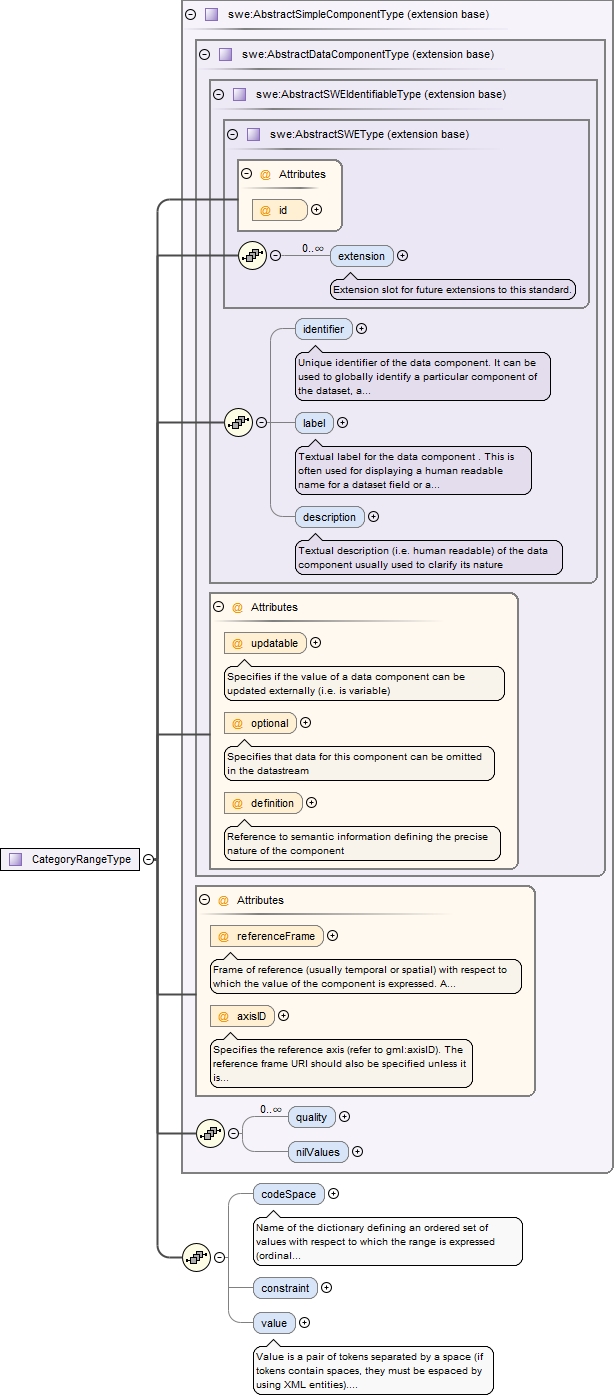

Element swe:CategoryRange
Namespace http://www.opengis.net/swe/2.0
Annotations

Pair of categorical values used to specify a range in an ordinal reference system (specified by the code space)
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#CategoryRangeType_codeSpacesimple_components_xsd.tmp#CategoryRangeType_constraintsimple_components_xsd.tmp#CategoryRangeType_valuesimple_components_xsd.tmp#CategoryRangeTypesimple_components_xsd.tmp#AbstractSimpleComponent
Type swe:CategoryRangeType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by

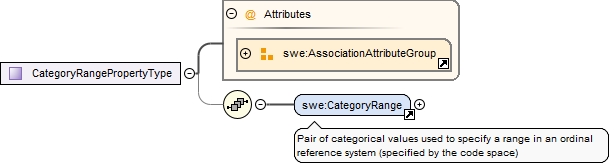

Complex Type swe:CategoryRangePropertyType

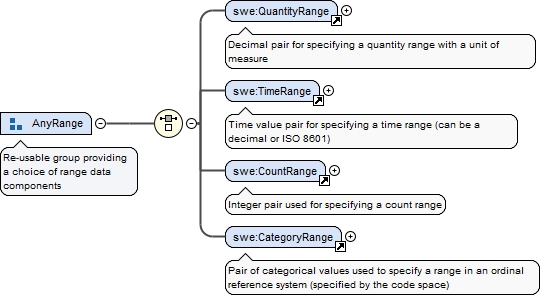

Element Group swe:AnyRange
Model
Children swe:codeSpace, swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:value
Instance

<swe:CategoryRange axisID="" definition="" id="" optional="false" referenceFrame="" updatable="" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:extension>{0,unbounded}</swe:extension>
  <swe:identifier>{0,1}</swe:identifier>
  <swe:label>{0,1}</swe:label>
  <swe:description>{0,1}</swe:description>
  <swe:quality xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</swe:quality>
  <swe:nilValues xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:nilValues>
  <swe:codeSpace xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:codeSpace>
  <swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:constraint>
  <swe:value>{0,1}</swe:value>
</swe:CategoryRange>
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<element name="CategoryRange" substitutionGroup="swe:AbstractSimpleComponent" type="swe:CategoryRangeType">
  <annotation>
    <documentation>Pair of categorical values used to specify a range in an ordinal reference system (specified by the code space)</documentation>
  </annotation>
</element>
Element swe:CategoryRangeType / swe:codeSpace
Namespace http://www.opengis.net/swe/2.0
Annotations

Name of the dictionary defining an ordered set of values with respect to which the range is expressed (ordinal reference system)
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupbasic_types_xsd.tmp#Reference
Type swe:Reference
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
Source

<element maxOccurs="1" minOccurs="0" name="codeSpace" type="swe:Reference">
  <annotation>
    <documentation>Name of the dictionary defining an ordered set of values with respect to which the range is expressed (ordinal reference system)</documentation>
  </annotation>
</element>
Element swe:CategoryRangeType / swe:constraint
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#AllowedTokenssimple_components_xsd.tmp#AllowedTokensPropertyType
Type swe:AllowedTokensPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children swe:AllowedTokens
Instance

<swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:AllowedTokens id="">{1,1}</swe:AllowedTokens>
</swe:constraint>
Attributes
Source

<element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedTokensPropertyType"/>
Element swe:CategoryRangeType / swe:value
Namespace http://www.opengis.net/swe/2.0
Annotations

Value is a pair of tokens separated by a space (if tokens contain spaces, they must be espaced by using XML entities). It is optional, to enable structure to act as a schema for values provided using other encodings
Diagram
Diagrambasic_types_xsd.tmp#TokenPair
Type swe:TokenPair
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 2
Source

<element maxOccurs="1" minOccurs="0" name="value" type="swe:TokenPair">
  <annotation>
    <documentation>Value is a pair of tokens separated by a space (if tokens contain spaces, they must be espaced by using XML entities). It is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
  </annotation>
</element>

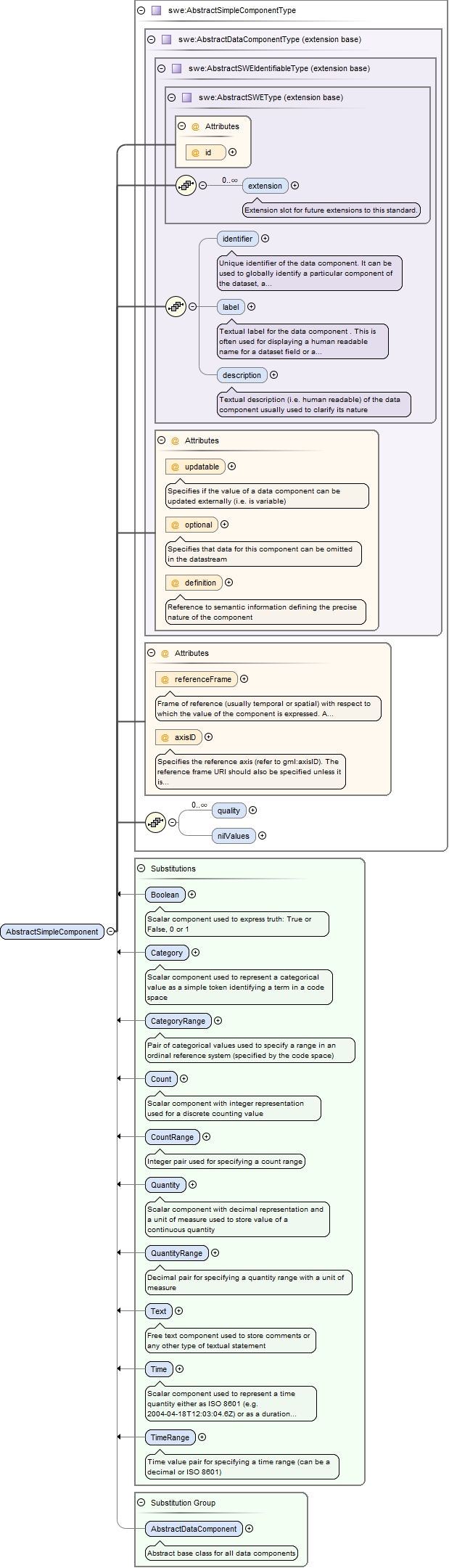

Element swe:AbstractSimpleComponent
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Booleansimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Categorysimple_components_xsd.tmp#CategoryRangesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Countsimple_components_xsd.tmp#CountRangesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Quantitysimple_components_xsd.tmp#QuantityRangesimple_components_xsd.tmp#Textsimple_components_xsd.tmp#Timesimple_components_xsd.tmp#TimeRangesimple_components_xsd.tmp#AbstractDataComponent

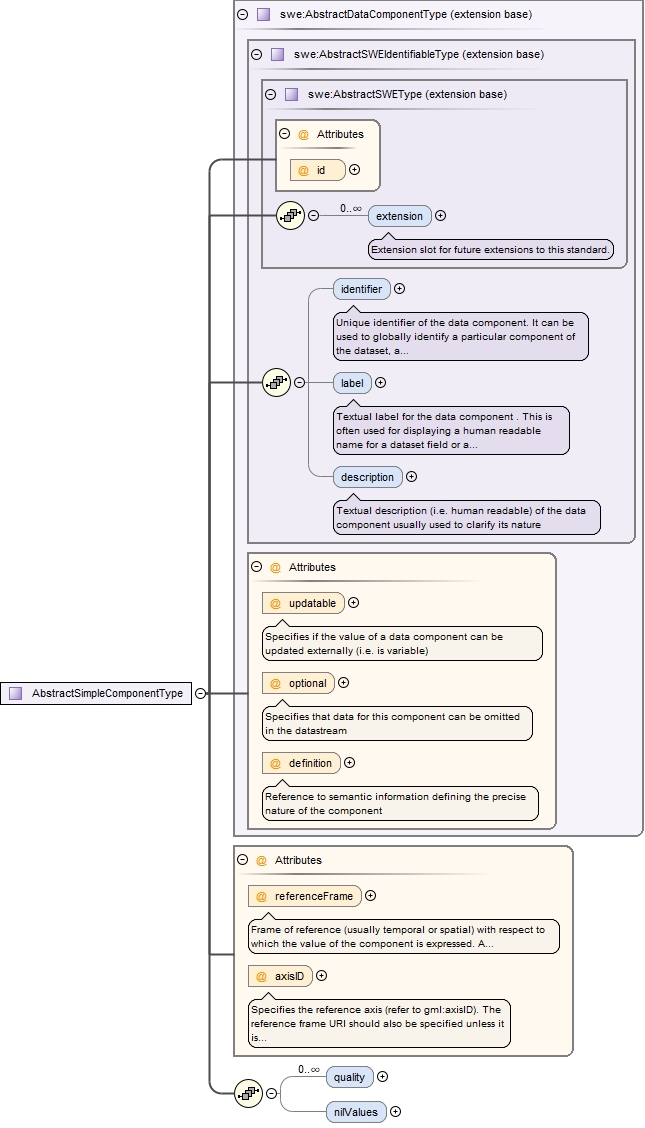

Type swe:AbstractSimpleComponentType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Substitution Group Affiliation
Used by
Model
Children swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality
Instance

<swe:AbstractSimpleComponent axisID="" definition="" id="" optional="false" referenceFrame="" updatable="" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:extension>{0,unbounded}</swe:extension>
  <swe:identifier>{0,1}</swe:identifier>
  <swe:label>{0,1}</swe:label>
  <swe:description>{0,1}</swe:description>
  <swe:quality xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</swe:quality>
  <swe:nilValues xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:nilValues>
</swe:AbstractSimpleComponent>
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<element abstract="true" name="AbstractSimpleComponent" substitutionGroup="swe:AbstractDataComponent" type="swe:AbstractSimpleComponentType"/>

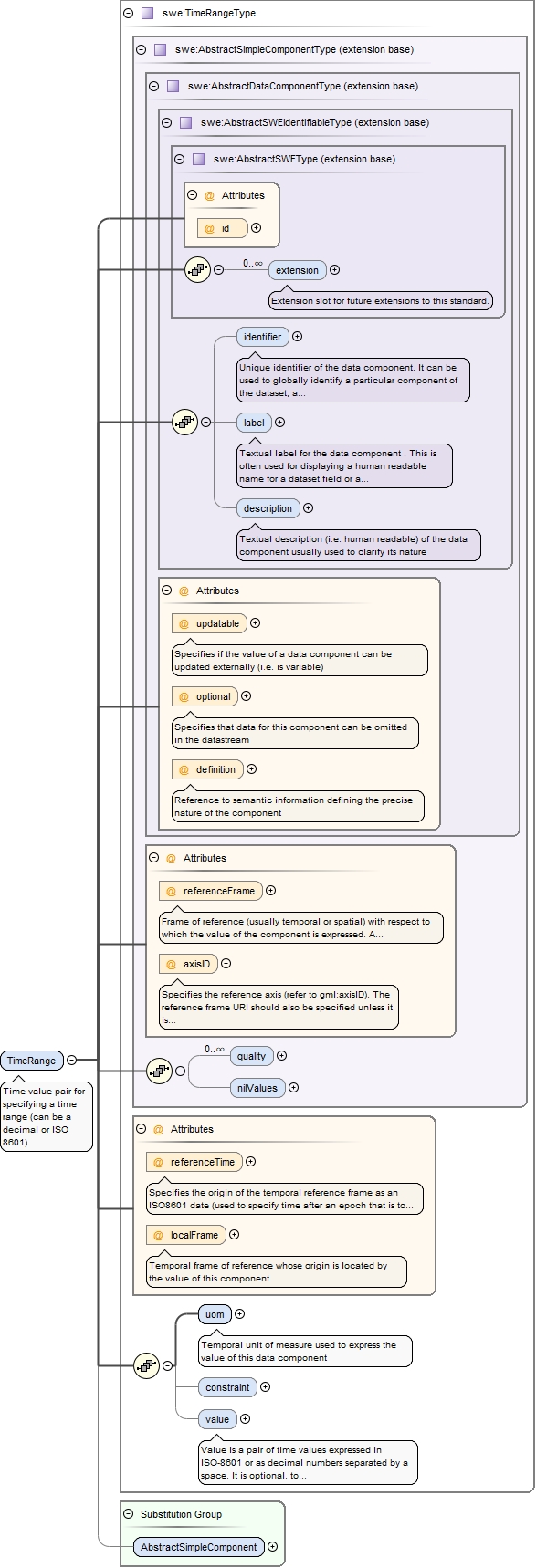

Element swe:TimeRange
Namespace http://www.opengis.net/swe/2.0
Annotations

Time value pair for specifying a time range (can be a decimal or ISO 8601)
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#TimeRangeType_referenceTimesimple_components_xsd.tmp#TimeRangeType_localFramesimple_components_xsd.tmp#TimeRangeType_uomsimple_components_xsd.tmp#TimeRangeType_constraintsimple_components_xsd.tmp#TimeRangeType_valuesimple_components_xsd.tmp#TimeRangeTypesimple_components_xsd.tmp#AbstractSimpleComponent

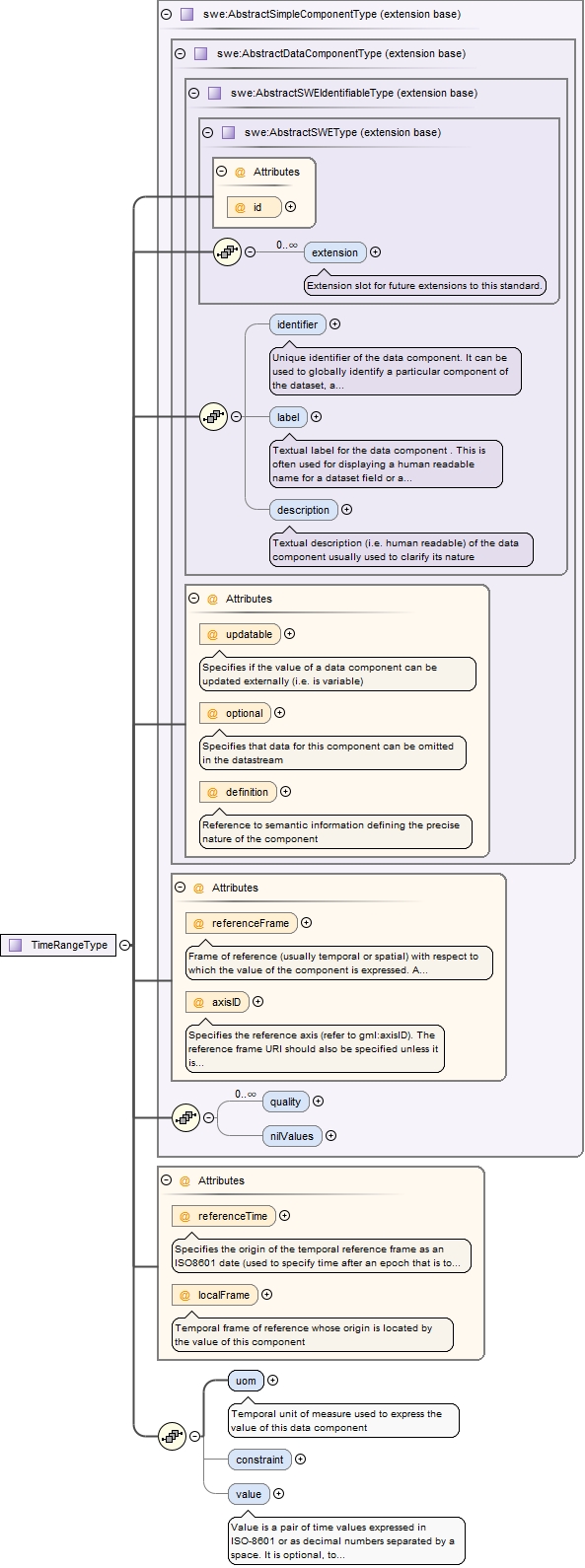

Type swe:TimeRangeType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by

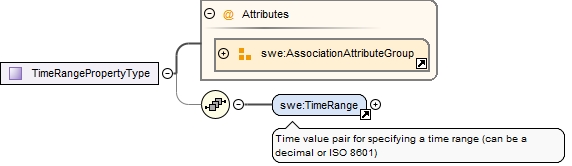

Complex Type swe:TimeRangePropertyType
Element Group swe:AnyRange
Model
Children swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:uom, swe:value
Instance

<swe:TimeRange axisID="" definition="" id="" localFrame="" optional="false" referenceFrame="" referenceTime="" updatable="" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:extension>{0,unbounded}</swe:extension>
  <swe:identifier>{0,1}</swe:identifier>
  <swe:label>{0,1}</swe:label>
  <swe:description>{0,1}</swe:description>
  <swe:quality xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</swe:quality>
  <swe:nilValues xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:nilValues>
  <swe:uom xlink:actuate="" xlink:arcrole="" code="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</swe:uom>
  <swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:constraint>
  <swe:value>{0,1}</swe:value>
</swe:TimeRange>
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
localFrame anyURI optional
Temporal frame of reference whose origin is located by the value of this component
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
referenceTime dateTime optional
Specifies the origin of the temporal reference frame as an ISO8601 date (used to specify time after an epoch that is to say in a custom frame)
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<element name="TimeRange" substitutionGroup="swe:AbstractSimpleComponent" type="swe:TimeRangeType">
  <annotation>
    <documentation>Time value pair for specifying a time range (can be a decimal or ISO 8601)</documentation>
  </annotation>
</element>
Element swe:TimeRangeType / swe:uom
Namespace http://www.opengis.net/swe/2.0
Annotations

Temporal unit of measure used to express the value of this data component
Diagram
Diagrambasic_types_xsd.tmp#UnitReference_codebasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupbasic_types_xsd.tmp#UnitReference
Type swe:UnitReference
Properties
content complex
Attributes
Source

<element name="uom" type="swe:UnitReference">
  <annotation>
    <documentation>Temporal unit of measure used to express the value of this data component</documentation>
  </annotation>
</element>
Element swe:TimeRangeType / swe:constraint
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#AllowedTimessimple_components_xsd.tmp#AllowedTimesPropertyType
Type swe:AllowedTimesPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children swe:AllowedTimes
Instance

<swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:AllowedTimes id="">{1,1}</swe:AllowedTimes>
</swe:constraint>
Attributes
Source

<element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedTimesPropertyType"/>
Element swe:TimeRangeType / swe:value
Namespace http://www.opengis.net/swe/2.0
Annotations

Value is a pair of time values expressed in ISO-8601 or as decimal numbers separated by a space. It is optional, to enable structure to act as a schema for values provided using other encodings
Diagram
Diagrambasic_types_xsd.tmp#TimePair
Type swe:TimePair
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 2
Source

<element maxOccurs="1" minOccurs="0" name="value" type="swe:TimePair">
  <annotation>
    <documentation>Value is a pair of time values expressed in ISO-8601 or as decimal numbers separated by a space. It is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
  </annotation>
</element>

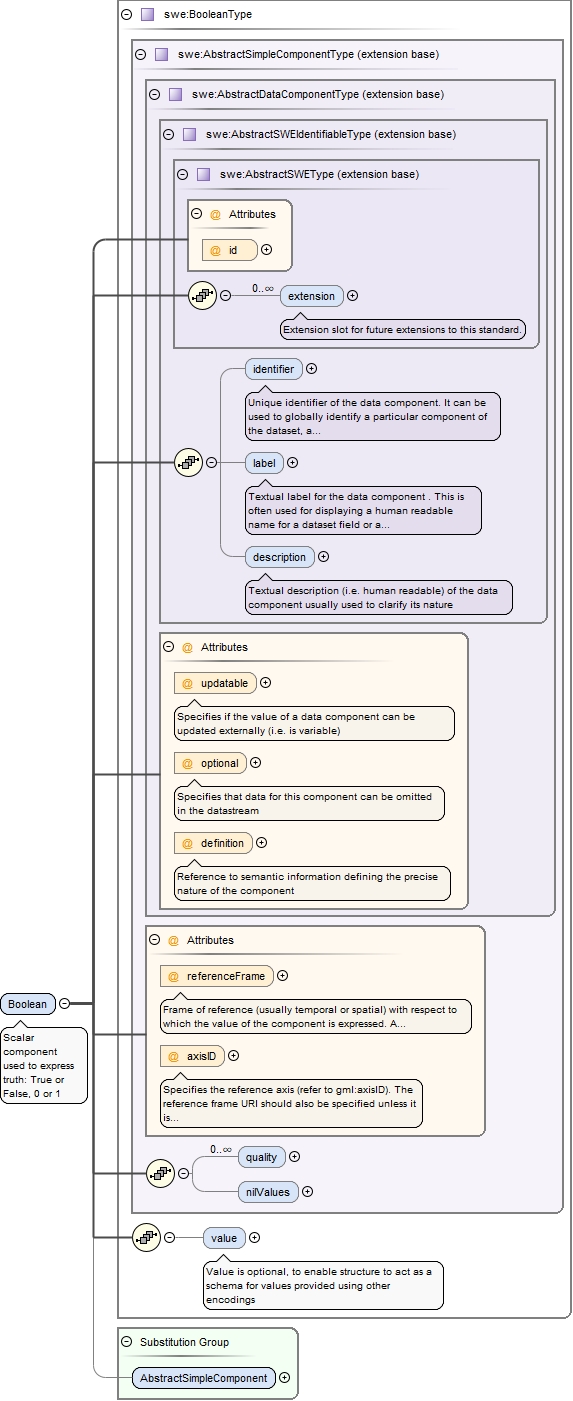

Element swe:Boolean
Namespace http://www.opengis.net/swe/2.0
Annotations

Scalar component used to express truth: True or False, 0 or 1
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#BooleanType_valuesimple_components_xsd.tmp#BooleanTypesimple_components_xsd.tmp#AbstractSimpleComponent
Type swe:BooleanType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by

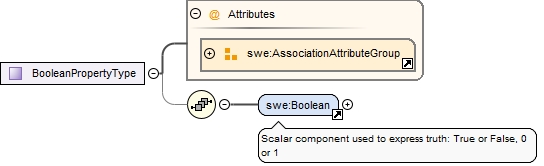

Complex Type swe:BooleanPropertyType
Element Group swe:AnyScalar
Model
swe:extension* , swe:identifier{0,1} , swe:label{0,1} , swe:description{0,1} , swe:quality* , swe:nilValues{0,1} , swe:value{0,1}
Children swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:value
Instance

<swe:Boolean axisID="" definition="" id="" optional="false" referenceFrame="" updatable="" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:extension>{0,unbounded}</swe:extension>
  <swe:identifier>{0,1}</swe:identifier>
  <swe:label>{0,1}</swe:label>
  <swe:description>{0,1}</swe:description>
  <swe:quality xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</swe:quality>
  <swe:nilValues xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:nilValues>
  <swe:value>{0,1}</swe:value>
</swe:Boolean>
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<element name="Boolean" substitutionGroup="swe:AbstractSimpleComponent" type="swe:BooleanType">
  <annotation>
    <documentation>Scalar component used to express truth: True or False, 0 or 1</documentation>
  </annotation>
</element>

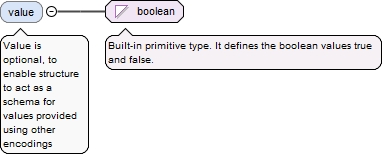

Element swe:BooleanType / swe:value
Namespace http://www.opengis.net/swe/2.0
Annotations

Value is optional, to enable structure to act as a schema for values provided using other encodings
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="0" name="value" type="boolean">
  <annotation>
    <documentation>Value is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
  </annotation>
</element>

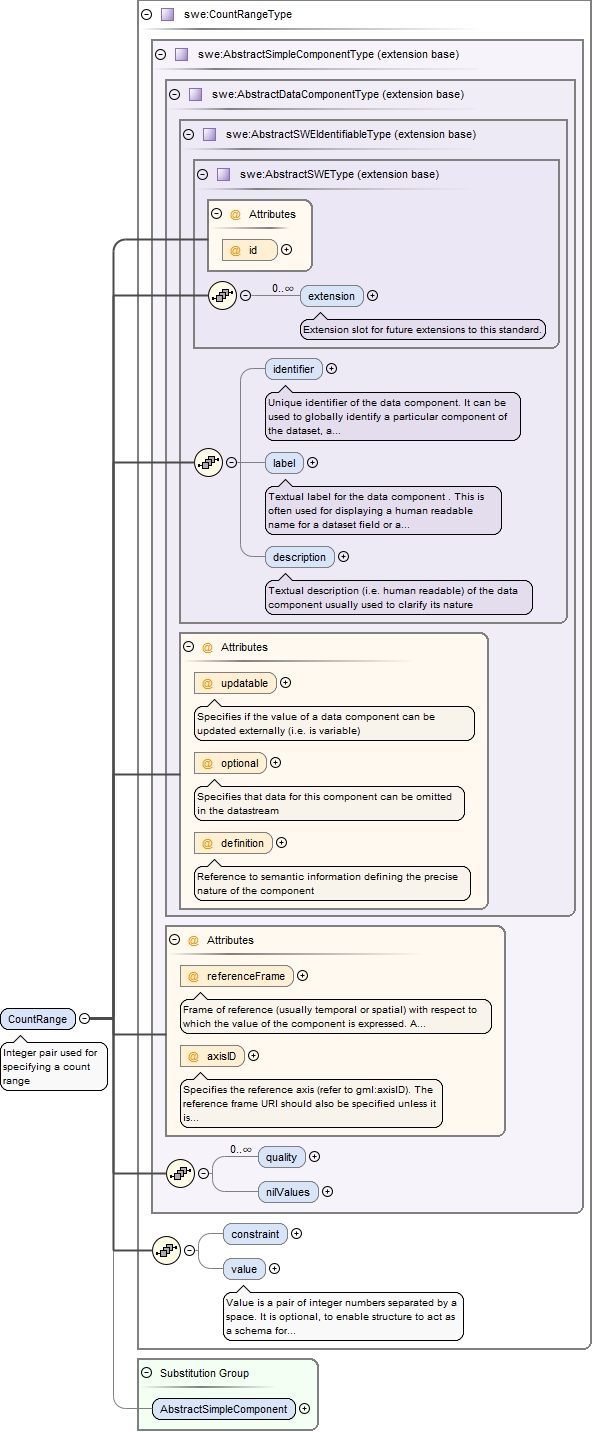

Element swe:CountRange
Namespace http://www.opengis.net/swe/2.0
Annotations

Integer pair used for specifying a count range
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#CountRangeType_constraintsimple_components_xsd.tmp#CountRangeType_valuesimple_components_xsd.tmp#CountRangeTypesimple_components_xsd.tmp#AbstractSimpleComponent

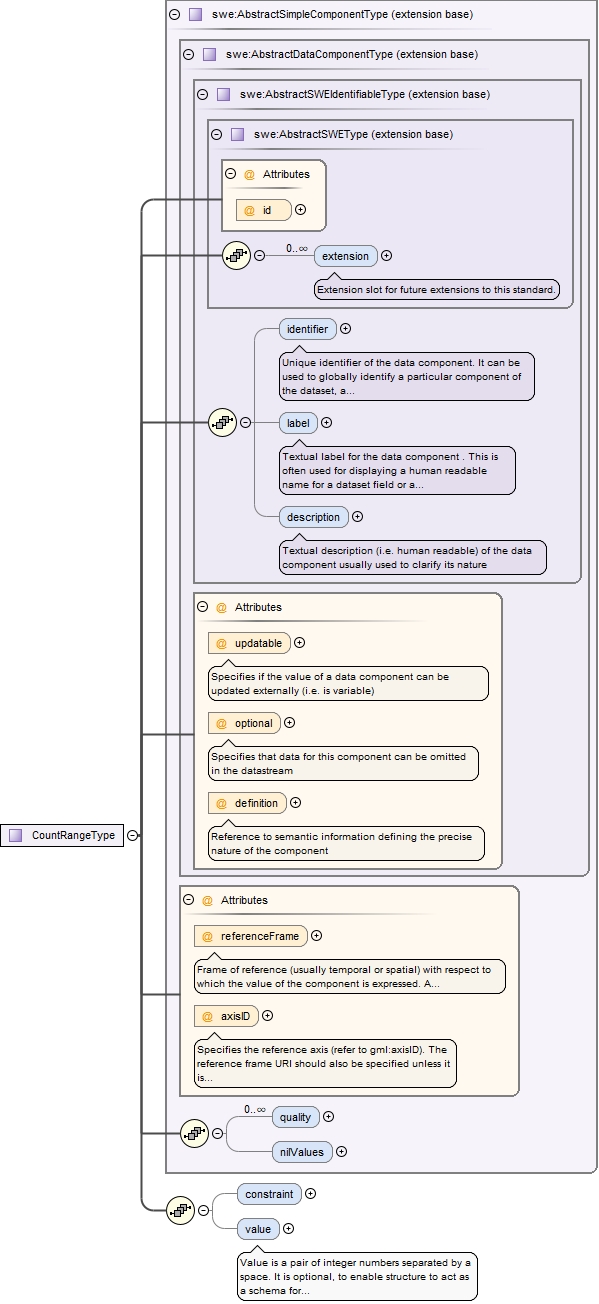

Type swe:CountRangeType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by

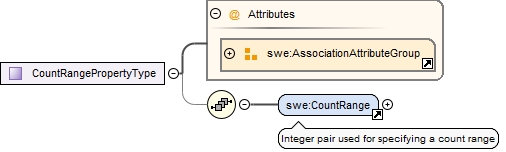

Complex Type swe:CountRangePropertyType
Element Group swe:AnyRange
Model
Children swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:value
Instance

<swe:CountRange axisID="" definition="" id="" optional="false" referenceFrame="" updatable="" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:extension>{0,unbounded}</swe:extension>
  <swe:identifier>{0,1}</swe:identifier>
  <swe:label>{0,1}</swe:label>
  <swe:description>{0,1}</swe:description>
  <swe:quality xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</swe:quality>
  <swe:nilValues xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:nilValues>
  <swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</swe:constraint>
  <swe:value>{0,1}</swe:value>
</swe:CountRange>
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<element name="CountRange" substitutionGroup="swe:AbstractSimpleComponent" type="swe:CountRangeType">
  <annotation>
    <documentation>Integer pair used for specifying a count range</documentation>
  </annotation>
</element>
Element swe:CountRangeType / swe:constraint
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#AllowedValuessimple_components_xsd.tmp#AllowedValuesPropertyType
Type swe:AllowedValuesPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children swe:AllowedValues
Instance

<swe:constraint xlink:actuate="" xlink:arcrole="" xlink:href="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:swe="http://www.opengis.net/swe/2.0">
  <swe:AllowedValues id="">{1,1}</swe:AllowedValues>
</swe:constraint>
Attributes
Source

<element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedValuesPropertyType"/>
Element swe:CountRangeType / swe:value
Namespace http://www.opengis.net/swe/2.0
Annotations

Value is a pair of integer numbers separated by a space. It is optional, to enable structure to act as a schema for values provided using other encodings
Diagram
Diagrambasic_types_xsd.tmp#IntegerPair
Type swe:IntegerPair
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 2
Source

<element maxOccurs="1" minOccurs="0" name="value" type="swe:IntegerPair">
  <annotation>
    <documentation>Value is a pair of integer numbers separated by a space. It is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
  </annotation>
</element>
Complex Type swe:AbstractDataComponentType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definition
Type extension of swe:AbstractSWEIdentifiableType
Type hierarchy
Properties
abstract true
Used by
Model
Children swe:description, swe:extension, swe:identifier, swe:label
Attributes
QName Type Default Use Annotation
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<complexType abstract="true" name="AbstractDataComponentType">
  <complexContent>
    <extension base="swe:AbstractSWEIdentifiableType">
      <attribute name="updatable" type="boolean" use="optional">
        <annotation>
          <documentation>Specifies if the value of a data component can be updated externally (i.e. is variable)</documentation>
        </annotation>
      </attribute>
      <attribute default="false" name="optional" type="boolean" use="optional">
        <annotation>
          <documentation>Specifies that data for this component can be omitted in the datastream</documentation>
        </annotation>
      </attribute>
      <attribute name="definition" type="anyURI" use="optional">
        <annotation>
          <documentation>Reference to semantic information defining the precise nature of the component</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type swe:AbstractDataComponentPropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#AbstractDataComponent
Used by
Model
Children swe:AbstractDataComponent
Attributes
Source

<complexType name="AbstractDataComponentPropertyType">
  <sequence minOccurs="0">
    <element ref="swe:AbstractDataComponent"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:AnyNumericalPropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Countsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Quantitysimple_components_xsd.tmp#Timesimple_components_xsd.tmp#AnyNumerical
Used by
Model
Children swe:Count, swe:Quantity, swe:Time
Attributes
Source

<complexType name="AnyNumericalPropertyType">
  <sequence minOccurs="0">
    <group ref="swe:AnyNumerical"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:CountType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#CountType_constraintsimple_components_xsd.tmp#CountType_value
Type extension of swe:AbstractSimpleComponentType
Type hierarchy
Used by
Element swe:Count
Model
Children swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:value
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<complexType name="CountType">
  <complexContent>
    <extension base="swe:AbstractSimpleComponentType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedValuesPropertyType"/>
        <element maxOccurs="1" minOccurs="0" name="value" type="integer">
          <annotation>
            <documentation>Value is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type swe:AbstractSimpleComponentType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValues
Type extension of swe:AbstractDataComponentType
Type hierarchy
Properties
abstract true
Used by
Model
Children swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<complexType abstract="true" name="AbstractSimpleComponentType">
  <complexContent>
    <extension base="swe:AbstractDataComponentType">
      <sequence>
        <element maxOccurs="unbounded" minOccurs="0" name="quality" type="swe:QualityPropertyType"/>
        <element maxOccurs="1" minOccurs="0" name="nilValues" type="swe:NilValuesPropertyType"/>
      </sequence>
      <attribute name="referenceFrame" type="anyURI" use="optional">
        <annotation>
          <documentation>Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.</documentation>
        </annotation>
      </attribute>
      <attribute name="axisID" type="string" use="optional">
        <annotation>
          <documentation>Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type swe:QualityPropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Quantitysimple_components_xsd.tmp#QuantityRangesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Categorysimple_components_xsd.tmp#Textsimple_components_xsd.tmp#Quality
Used by
Model
Children swe:Category, swe:Quantity, swe:QuantityRange, swe:Text
Attributes
Source

<complexType name="QualityPropertyType">
  <sequence minOccurs="0">
    <group ref="swe:Quality"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:QuantityType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_QuantityType_uomsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_QuantityType_constraintsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_QuantityType_value
Type extension of swe:AbstractSimpleComponentType
Type hierarchy
Used by
Element swe:Quantity
Model
swe:extension* , swe:identifier{0,1} , swe:label{0,1} , swe:description{0,1} , swe:quality* , swe:nilValues{0,1} , swe:uom , swe:constraint{0,1} , swe:value{0,1}
Children swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:uom, swe:value
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<complexType name="QuantityType">
  <complexContent>
    <extension base="swe:AbstractSimpleComponentType">
      <sequence>
        <element name="uom" type="swe:UnitReference">
          <annotation>
            <documentation>Unit of measure used to express the value of this data component</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedValuesPropertyType"/>
        <element maxOccurs="1" minOccurs="0" name="value" type="double">
          <annotation>
            <documentation>Value is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type swe:NilValuesPropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#NilValues
Used by
Model
Children swe:NilValues
Attributes
Source

<complexType name="NilValuesPropertyType">
  <sequence minOccurs="0">
    <element ref="swe:NilValues"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:NilValuesType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypesimple_components_xsd.tmp#NilValuesType_nilValue
Type extension of swe:AbstractSWEType
Type hierarchy
Used by
Element swe:NilValues
Model
Children swe:extension, swe:nilValue
Attributes
QName Type Use
id ID optional
Source

<complexType name="NilValuesType">
  <complexContent>
    <extension base="swe:AbstractSWEType">
      <sequence>
        <element maxOccurs="unbounded" minOccurs="1" name="nilValue" type="swe:NilValue"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type swe:AllowedValuesPropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#AllowedValues
Used by
Model
Children swe:AllowedValues
Attributes
Source

<complexType name="AllowedValuesPropertyType">
  <sequence minOccurs="0">
    <element ref="swe:AllowedValues"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:AllowedValuesType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypesimple_components_xsd.tmp#AllowedValuesType_valuesimple_components_xsd.tmp#AllowedValuesType_intervalsimple_components_xsd.tmp#AllowedValuesType_significantFigures
Type extension of swe:AbstractSWEType
Type hierarchy
Used by
Model
Children swe:extension, swe:interval, swe:significantFigures, swe:value
Attributes
QName Type Use
id ID optional
Source

<complexType name="AllowedValuesType">
  <complexContent>
    <extension base="swe:AbstractSWEType">
      <sequence>
        <element maxOccurs="unbounded" minOccurs="0" name="value" type="double"/>
        <element maxOccurs="unbounded" minOccurs="0" name="interval" type="swe:RealPair"/>
        <element maxOccurs="1" minOccurs="0" name="significantFigures" type="integer"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type swe:QuantityRangeType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#QuantityRangeType_uomsimple_components_xsd.tmp#QuantityRangeType_constraintsimple_components_xsd.tmp#QuantityRangeType_value
Type extension of swe:AbstractSimpleComponentType
Type hierarchy
Used by
Model
Children swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:uom, swe:value
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<complexType name="QuantityRangeType">
  <complexContent>
    <extension base="swe:AbstractSimpleComponentType">
      <sequence>
        <element name="uom" type="swe:UnitReference">
          <annotation>
            <documentation>Unit of measure used to express the value of this data component</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedValuesPropertyType"/>
        <element maxOccurs="1" minOccurs="0" name="value" type="swe:RealPair">
          <annotation>
            <documentation>Value is a pair of double numbers separated by a space. It is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type swe:CategoryType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#CategoryType_codeSpacesimple_components_xsd.tmp#CategoryType_constraintsimple_components_xsd.tmp#CategoryType_value
Type extension of swe:AbstractSimpleComponentType
Type hierarchy
Used by
Element swe:Category
Model
Children swe:codeSpace, swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:value
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<complexType name="CategoryType">
  <complexContent>
    <extension base="swe:AbstractSimpleComponentType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="codeSpace" type="swe:Reference">
          <annotation>
            <documentation>Name of the dictionary where the possible values for this component are listed and defined</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedTokensPropertyType"/>
        <element maxOccurs="1" minOccurs="0" name="value" type="string">
          <annotation>
            <documentation>Value is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type swe:AllowedTokensPropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#AllowedTokens
Used by
Model
Children swe:AllowedTokens
Attributes
Source

<complexType name="AllowedTokensPropertyType">
  <sequence minOccurs="0">
    <element ref="swe:AllowedTokens"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:AllowedTokensType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypesimple_components_xsd.tmp#AllowedTokensType_valuesimple_components_xsd.tmp#AllowedTokensType_pattern
Type extension of swe:AbstractSWEType
Type hierarchy
Used by
Model
Children swe:extension, swe:pattern, swe:value
Attributes
QName Type Use
id ID optional
Source

<complexType name="AllowedTokensType">
  <complexContent>
    <extension base="swe:AbstractSWEType">
      <sequence>
        <element maxOccurs="unbounded" minOccurs="0" name="value" type="string"/>
        <element maxOccurs="1" minOccurs="0" name="pattern" type="string"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type swe:TextType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#TextType_constraintsimple_components_xsd.tmp#TextType_value
Type extension of swe:AbstractSimpleComponentType
Type hierarchy
Used by
Element swe:Text
Model
Children swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:value
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<complexType name="TextType">
  <complexContent>
    <extension base="swe:AbstractSimpleComponentType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedTokensPropertyType"/>
        <element maxOccurs="1" minOccurs="0" name="value" type="string">
          <annotation>
            <documentation>Value is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type swe:TimeType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_TimeType_referenceTimesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_TimeType_localFramesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_TimeType_uomsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_TimeType_constraintsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_TimeType_value
Type extension of swe:AbstractSimpleComponentType
Type hierarchy
Used by
Element swe:Time
Model
swe:extension* , swe:identifier{0,1} , swe:label{0,1} , swe:description{0,1} , swe:quality* , swe:nilValues{0,1} , swe:uom , swe:constraint{0,1} , swe:value{0,1}
Children swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:uom, swe:value
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
localFrame anyURI optional
Temporal frame of reference whose origin is located by the value of this component
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
referenceTime dateTime optional
Specifies the origin of the temporal reference frame as an ISO8601 date (used to specify time after an epoch that is to say in a custom frame)
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<complexType name="TimeType">
  <complexContent>
    <extension base="swe:AbstractSimpleComponentType">
      <sequence>
        <element name="uom" type="swe:UnitReference">
          <annotation>
            <documentation>Temporal unit of measure used to express the value of this data component</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedTimesPropertyType"/>
        <element maxOccurs="1" minOccurs="0" name="value" type="swe:TimePosition">
          <annotation>
            <documentation>Value is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="referenceTime" type="dateTime" use="optional">
        <annotation>
          <documentation>Specifies the origin of the temporal reference frame as an ISO8601 date (used to specify time after an epoch that is to say in a custom frame)</documentation>
        </annotation>
      </attribute>
      <attribute name="localFrame" type="anyURI" use="optional">
        <annotation>
          <documentation>Temporal frame of reference whose origin is located by the value of this component</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type swe:AllowedTimesPropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#AllowedTimes
Used by
Model
Children swe:AllowedTimes
Attributes
Source

<complexType name="AllowedTimesPropertyType">
  <sequence minOccurs="0">
    <element ref="swe:AllowedTimes"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:AllowedTimesType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypesimple_components_xsd.tmp#AllowedTimesType_valuesimple_components_xsd.tmp#AllowedTimesType_intervalsimple_components_xsd.tmp#AllowedTimesType_significantFigures
Type extension of swe:AbstractSWEType
Type hierarchy
Used by
Model
Children swe:extension, swe:interval, swe:significantFigures, swe:value
Attributes
QName Type Use
id ID optional
Source

<complexType name="AllowedTimesType">
  <complexContent>
    <extension base="swe:AbstractSWEType">
      <sequence>
        <element maxOccurs="unbounded" minOccurs="0" name="value" type="swe:TimePosition"/>
        <element maxOccurs="unbounded" minOccurs="0" name="interval" type="swe:TimePair"/>
        <element maxOccurs="1" minOccurs="0" name="significantFigures" type="integer"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type swe:CountPropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Count
Used by
Element swe:DataArrayType/swe:elementCount
Model
swe:Count
Children swe:Count
Attributes
QName Type Fixed Use
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<complexType name="CountPropertyType">
  <sequence minOccurs="0">
    <element ref="swe:Count"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:CategoryRangeType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#CategoryRangeType_codeSpacesimple_components_xsd.tmp#CategoryRangeType_constraintsimple_components_xsd.tmp#CategoryRangeType_value
Type extension of swe:AbstractSimpleComponentType
Type hierarchy
Used by
Model
Children swe:codeSpace, swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:value
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<complexType name="CategoryRangeType">
  <complexContent>
    <extension base="swe:AbstractSimpleComponentType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="codeSpace" type="swe:Reference">
          <annotation>
            <documentation>Name of the dictionary defining an ordered set of values with respect to which the range is expressed (ordinal reference system)</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedTokensPropertyType"/>
        <element maxOccurs="1" minOccurs="0" name="value" type="swe:TokenPair">
          <annotation>
            <documentation>Value is a pair of tokens separated by a space (if tokens contain spaces, they must be espaced by using XML entities). It is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type swe:CategoryRangePropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#CategoryRange
Model
Children swe:CategoryRange
Attributes
Source

<complexType name="CategoryRangePropertyType">
  <sequence minOccurs="0">
    <element ref="swe:CategoryRange"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:AbstractSimpleComponentPropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#AbstractSimpleComponent
Model
Children swe:AbstractSimpleComponent
Attributes
Source

<complexType name="AbstractSimpleComponentPropertyType">
  <sequence minOccurs="0">
    <element ref="swe:AbstractSimpleComponent"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:QuantityRangePropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#QuantityRange
Model
Children swe:QuantityRange
Attributes
Source

<complexType name="QuantityRangePropertyType">
  <sequence minOccurs="0">
    <element ref="swe:QuantityRange"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:TimePropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#Time
Model
Children swe:Time
Attributes
Source

<complexType name="TimePropertyType">
  <sequence minOccurs="0">
    <element ref="swe:Time"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:TimeRangeType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#TimeRangeType_referenceTimesimple_components_xsd.tmp#TimeRangeType_localFramesimple_components_xsd.tmp#TimeRangeType_uomsimple_components_xsd.tmp#TimeRangeType_constraintsimple_components_xsd.tmp#TimeRangeType_value
Type extension of swe:AbstractSimpleComponentType
Type hierarchy
Used by
Element swe:TimeRange
Model
Children swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:uom, swe:value
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
localFrame anyURI optional
Temporal frame of reference whose origin is located by the value of this component
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
referenceTime dateTime optional
Specifies the origin of the temporal reference frame as an ISO8601 date (used to specify time after an epoch that is to say in a custom frame)
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<complexType name="TimeRangeType">
  <complexContent>
    <extension base="swe:AbstractSimpleComponentType">
      <sequence>
        <element name="uom" type="swe:UnitReference">
          <annotation>
            <documentation>Temporal unit of measure used to express the value of this data component</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedTimesPropertyType"/>
        <element maxOccurs="1" minOccurs="0" name="value" type="swe:TimePair">
          <annotation>
            <documentation>Value is a pair of time values expressed in ISO-8601 or as decimal numbers separated by a space. It is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="referenceTime" type="dateTime" use="optional">
        <annotation>
          <documentation>Specifies the origin of the temporal reference frame as an ISO8601 date (used to specify time after an epoch that is to say in a custom frame)</documentation>
        </annotation>
      </attribute>
      <attribute name="localFrame" type="anyURI" use="optional">
        <annotation>
          <documentation>Temporal frame of reference whose origin is located by the value of this component</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type swe:TimeRangePropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#TimeRange
Model
Children swe:TimeRange
Attributes
Source

<complexType name="TimeRangePropertyType">
  <sequence minOccurs="0">
    <element ref="swe:TimeRange"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:BooleanType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#BooleanType_value
Type extension of swe:AbstractSimpleComponentType
Type hierarchy
Used by
Element swe:Boolean
Model
Children swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:value
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<complexType name="BooleanType">
  <complexContent>
    <extension base="swe:AbstractSimpleComponentType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="value" type="boolean">
          <annotation>
            <documentation>Value is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type swe:BooleanPropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Boolean
Model
swe:Boolean
Children swe:Boolean
Attributes
QName Type Fixed Use
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<complexType name="BooleanPropertyType">
  <sequence minOccurs="0">
    <element ref="swe:Boolean"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:TextPropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#Text
Model
Children swe:Text
Attributes
Source

<complexType name="TextPropertyType">
  <sequence minOccurs="0">
    <element ref="swe:Text"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:CategoryPropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Category
Model
swe:Category
Children swe:Category
Attributes
QName Type Fixed Use
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<complexType name="CategoryPropertyType">
  <sequence minOccurs="0">
    <element ref="swe:Category"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:QuantityPropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Quantity
Model
swe:Quantity
Children swe:Quantity
Attributes
QName Type Fixed Use
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<complexType name="QuantityPropertyType">
  <sequence minOccurs="0">
    <element ref="swe:Quantity"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:CountRangeType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#AbstractSWEType_idbasic_types_xsd.tmp#AbstractSWEType_extensionbasic_types_xsd.tmp#AbstractSWETypebasic_types_xsd.tmp#AbstractSWEIdentifiableType_identifierbasic_types_xsd.tmp#AbstractSWEIdentifiableType_labelbasic_types_xsd.tmp#AbstractSWEIdentifiableType_descriptionbasic_types_xsd.tmp#AbstractSWEIdentifiableTypesimple_components_xsd.tmp#AbstractDataComponentType_updatablesimple_components_xsd.tmp#AbstractDataComponentType_optionalsimple_components_xsd.tmp#AbstractDataComponentType_definitionsimple_components_xsd.tmp#AbstractDataComponentTypesimple_components_xsd.tmp#AbstractSimpleComponentType_referenceFramesimple_components_xsd.tmp#AbstractSimpleComponentType_axisIDsimple_components_xsd.tmp#AbstractSimpleComponentType_qualitysimple_components_xsd.tmp#AbstractSimpleComponentType_nilValuessimple_components_xsd.tmp#AbstractSimpleComponentTypesimple_components_xsd.tmp#CountRangeType_constraintsimple_components_xsd.tmp#CountRangeType_value
Type extension of swe:AbstractSimpleComponentType
Type hierarchy
Used by
Element swe:CountRange
Model
Children swe:constraint, swe:description, swe:extension, swe:identifier, swe:label, swe:nilValues, swe:quality, swe:value
Attributes
QName Type Default Use Annotation
axisID string optional
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
definition anyURI optional
Reference to semantic information defining the precise nature of the component
id ID optional
optional boolean false optional
Specifies that data for this component can be omitted in the datastream
referenceFrame anyURI optional
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
updatable boolean optional
Specifies if the value of a data component can be updated externally (i.e. is variable)
Source

<complexType name="CountRangeType">
  <complexContent>
    <extension base="swe:AbstractSimpleComponentType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="constraint" type="swe:AllowedValuesPropertyType"/>
        <element maxOccurs="1" minOccurs="0" name="value" type="swe:IntegerPair">
          <annotation>
            <documentation>Value is a pair of integer numbers separated by a space. It is optional, to enable structure to act as a schema for values provided using other encodings</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type swe:CountRangePropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#CountRange
Model
Children swe:CountRange
Attributes
Source

<complexType name="CountRangePropertyType">
  <sequence minOccurs="0">
    <element ref="swe:CountRange"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:AllowedTokensPropertyByValueType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagramsimple_components_xsd.tmp#AllowedTokens
Model
Children swe:AllowedTokens
Source

<complexType name="AllowedTokensPropertyByValueType">
  <sequence>
    <element ref="swe:AllowedTokens"/>
  </sequence>
</complexType>
Complex Type swe:AllowedValuesPropertyByValueType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagramsimple_components_xsd.tmp#AllowedValues
Model
Children swe:AllowedValues
Source

<complexType name="AllowedValuesPropertyByValueType">
  <sequence>
    <element ref="swe:AllowedValues"/>
  </sequence>
</complexType>
Complex Type swe:AllowedTimesPropertyByValueType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagramsimple_components_xsd.tmp#AllowedTimes
Model
Children swe:AllowedTimes
Source

<complexType name="AllowedTimesPropertyByValueType">
  <sequence>
    <element ref="swe:AllowedTimes"/>
  </sequence>
</complexType>
Complex Type swe:AnyRangePropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#QuantityRangesimple_components_xsd.tmp#TimeRangesimple_components_xsd.tmp#CountRangesimple_components_xsd.tmp#CategoryRangesimple_components_xsd.tmp#AnyRange
Model
Children swe:CategoryRange, swe:CountRange, swe:QuantityRange, swe:TimeRange
Attributes
Source

<complexType name="AnyRangePropertyType">
  <sequence minOccurs="0">
    <group ref="swe:AnyRange"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Complex Type swe:AnyScalarPropertyType
Namespace http://www.opengis.net/swe/2.0
Diagram
Diagrambasic_types_xsd.tmp#http___www.opengis.net_swe_2.0_AssociationAttributeGroupsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Booleansimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Countsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Quantitysimple_components_xsd.tmp#Timesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Categorysimple_components_xsd.tmp#Textsimple_components_xsd.tmp#AnyScalar
Model
Children swe:Boolean, swe:Category, swe:Count, swe:Quantity, swe:Text, swe:Time
Attributes
Source

<complexType name="AnyScalarPropertyType">
  <sequence minOccurs="0">
    <group ref="swe:AnyScalar"/>
  </sequence>
  <attributeGroup ref="swe:AssociationAttributeGroup"/>
</complexType>
Attribute swe:AbstractDataComponentType / @updatable
Namespace No namespace
Annotations

Specifies if the value of a data component can be updated externally (i.e. is variable)
Type boolean
Properties
use optional
Used by
Source

<attribute name="updatable" type="boolean" use="optional">
  <annotation>
    <documentation>Specifies if the value of a data component can be updated externally (i.e. is variable)</documentation>
  </annotation>
</attribute>
Attribute swe:AbstractDataComponentType / @optional
Namespace No namespace
Annotations

Specifies that data for this component can be omitted in the datastream
Type boolean
Properties
use optional
default false
Used by
Source

<attribute default="false" name="optional" type="boolean" use="optional">
  <annotation>
    <documentation>Specifies that data for this component can be omitted in the datastream</documentation>
  </annotation>
</attribute>
Attribute swe:AbstractDataComponentType / @definition
Namespace No namespace
Annotations

Reference to semantic information defining the precise nature of the component
Type anyURI
Properties
use optional
Used by
Source

<attribute name="definition" type="anyURI" use="optional">
  <annotation>
    <documentation>Reference to semantic information defining the precise nature of the component</documentation>
  </annotation>
</attribute>
Attribute swe:AbstractSimpleComponentType / @referenceFrame
Namespace No namespace
Annotations

Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
Type anyURI
Properties
use optional
Used by
Source

<attribute name="referenceFrame" type="anyURI" use="optional">
  <annotation>
    <documentation>Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.</documentation>
  </annotation>
</attribute>
Attribute swe:AbstractSimpleComponentType / @axisID
Namespace No namespace
Annotations

Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
Type string
Properties
use optional
Used by
Source

<attribute name="axisID" type="string" use="optional">
  <annotation>
    <documentation>Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector</documentation>
  </annotation>
</attribute>
Attribute swe:TimeType / @referenceTime
Namespace No namespace
Annotations

Specifies the origin of the temporal reference frame as an ISO8601 date (used to specify time after an epoch that is to say in a custom frame)
Type dateTime
Properties
use optional
Used by
Complex Type swe:TimeType
Source

<attribute name="referenceTime" type="dateTime" use="optional">
  <annotation>
    <documentation>Specifies the origin of the temporal reference frame as an ISO8601 date (used to specify time after an epoch that is to say in a custom frame)</documentation>
  </annotation>
</attribute>
Attribute swe:TimeType / @localFrame
Namespace No namespace
Annotations

Temporal frame of reference whose origin is located by the value of this component
Type anyURI
Properties
use optional
Used by
Complex Type swe:TimeType
Source

<attribute name="localFrame" type="anyURI" use="optional">
  <annotation>
    <documentation>Temporal frame of reference whose origin is located by the value of this component</documentation>
  </annotation>
</attribute>
Attribute swe:TimeRangeType / @referenceTime
Namespace No namespace
Annotations

Specifies the origin of the temporal reference frame as an ISO8601 date (used to specify time after an epoch that is to say in a custom frame)
Type dateTime
Properties
use optional
Used by
Complex Type swe:TimeRangeType
Source

<attribute name="referenceTime" type="dateTime" use="optional">
  <annotation>
    <documentation>Specifies the origin of the temporal reference frame as an ISO8601 date (used to specify time after an epoch that is to say in a custom frame)</documentation>
  </annotation>
</attribute>
Attribute swe:TimeRangeType / @localFrame
Namespace No namespace
Annotations

Temporal frame of reference whose origin is located by the value of this component
Type anyURI
Properties
use optional
Used by
Complex Type swe:TimeRangeType
Source

<attribute name="localFrame" type="anyURI" use="optional">
  <annotation>
    <documentation>Temporal frame of reference whose origin is located by the value of this component</documentation>
  </annotation>
</attribute>
Element Group swe:AnyNumerical
Namespace http://www.opengis.net/swe/2.0
Annotations

Re-usable group providing a choice of numeric data components
Diagram
Diagramsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Countsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Quantitysimple_components_xsd.tmp#Time
Used by
Model
Children swe:Count, swe:Quantity, swe:Time
Source

<group name="AnyNumerical">
  <annotation>
    <documentation>Re-usable group providing a choice of numeric data components</documentation>
  </annotation>
  <choice>
    <element ref="swe:Count"/>
    <element ref="swe:Quantity"/>
    <element ref="swe:Time"/>
  </choice>
</group>
Element Group swe:Quality
Namespace http://www.opengis.net/swe/2.0
Annotations

Provides an indication of the reliability of the parent component value in the form of a decimal number (ex: relative accuracy), a range (ex: bidirectional tolerance), a categorical value (ex: good, bad) or plain textual statement
Diagram
Diagramsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Quantitysimple_components_xsd.tmp#QuantityRangesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Categorysimple_components_xsd.tmp#Text
Used by
Model
Children swe:Category, swe:Quantity, swe:QuantityRange, swe:Text
Source

<group name="Quality">
  <annotation>
    <documentation>Provides an indication of the reliability of the parent component value in the form of a decimal number (ex: relative accuracy), a range (ex: bidirectional tolerance), a categorical value (ex: good, bad) or plain textual statement</documentation>
  </annotation>
  <choice>
    <element ref="swe:Quantity"/>
    <element ref="swe:QuantityRange"/>
    <element ref="swe:Category"/>
    <element ref="swe:Text"/>
  </choice>
</group>
Element Group swe:AnyRange
Namespace http://www.opengis.net/swe/2.0
Annotations

Re-usable group providing a choice of range data components
Diagram
Diagramsimple_components_xsd.tmp#QuantityRangesimple_components_xsd.tmp#TimeRangesimple_components_xsd.tmp#CountRangesimple_components_xsd.tmp#CategoryRange
Used by
Model
Children swe:CategoryRange, swe:CountRange, swe:QuantityRange, swe:TimeRange
Source

<group name="AnyRange">
  <annotation>
    <documentation>Re-usable group providing a choice of range data components</documentation>
  </annotation>
  <choice>
    <element ref="swe:QuantityRange"/>
    <element ref="swe:TimeRange"/>
    <element ref="swe:CountRange"/>
    <element ref="swe:CategoryRange"/>
  </choice>
</group>
Element Group swe:AnyScalar
Namespace http://www.opengis.net/swe/2.0
Annotations

Re-usable group providing a choice of scalar data components
Diagram
Diagramsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Booleansimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Countsimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Quantitysimple_components_xsd.tmp#Timesimple_components_xsd.tmp#http___www.opengis.net_swe_2.0_Categorysimple_components_xsd.tmp#Text
Used by
Model
Children swe:Boolean, swe:Category, swe:Count, swe:Quantity, swe:Text, swe:Time
Source

<group name="AnyScalar">
  <annotation>
    <documentation>Re-usable group providing a choice of scalar data components</documentation>
  </annotation>
  <choice>
    <element ref="swe:Boolean"/>
    <element ref="swe:Count"/>
    <element ref="swe:Quantity"/>
    <element ref="swe:Time"/>
    <element ref="swe:Category"/>
    <element ref="swe:Text"/>
  </choice>
</group>
XML Schema documentation generated by ® XML Editor.
