Imported schema BaseTypes2.xsd
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Definition --
schema for additional basic types used by multiple themes

-- Description --
NOTE	The additional types specified with Annex II/III data specifications are placed in a separate schema to maintain backwards compatibility.
Properties
attribute form default unqualified
element form default qualified
version 1.0

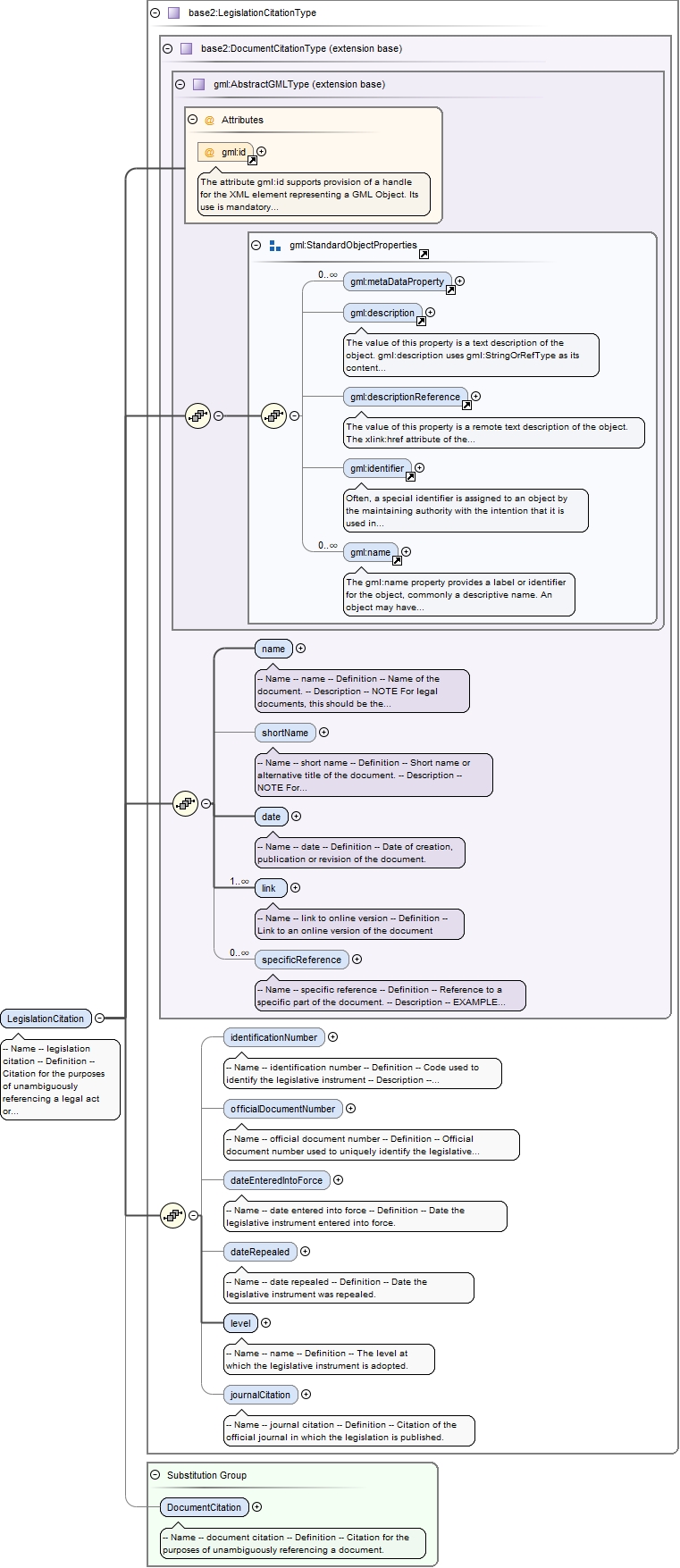

Element base2:LegislationCitation
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
legislation citation

-- Definition --
Citation for the purposes of unambiguously referencing a legal act or a specific part of a legal act.

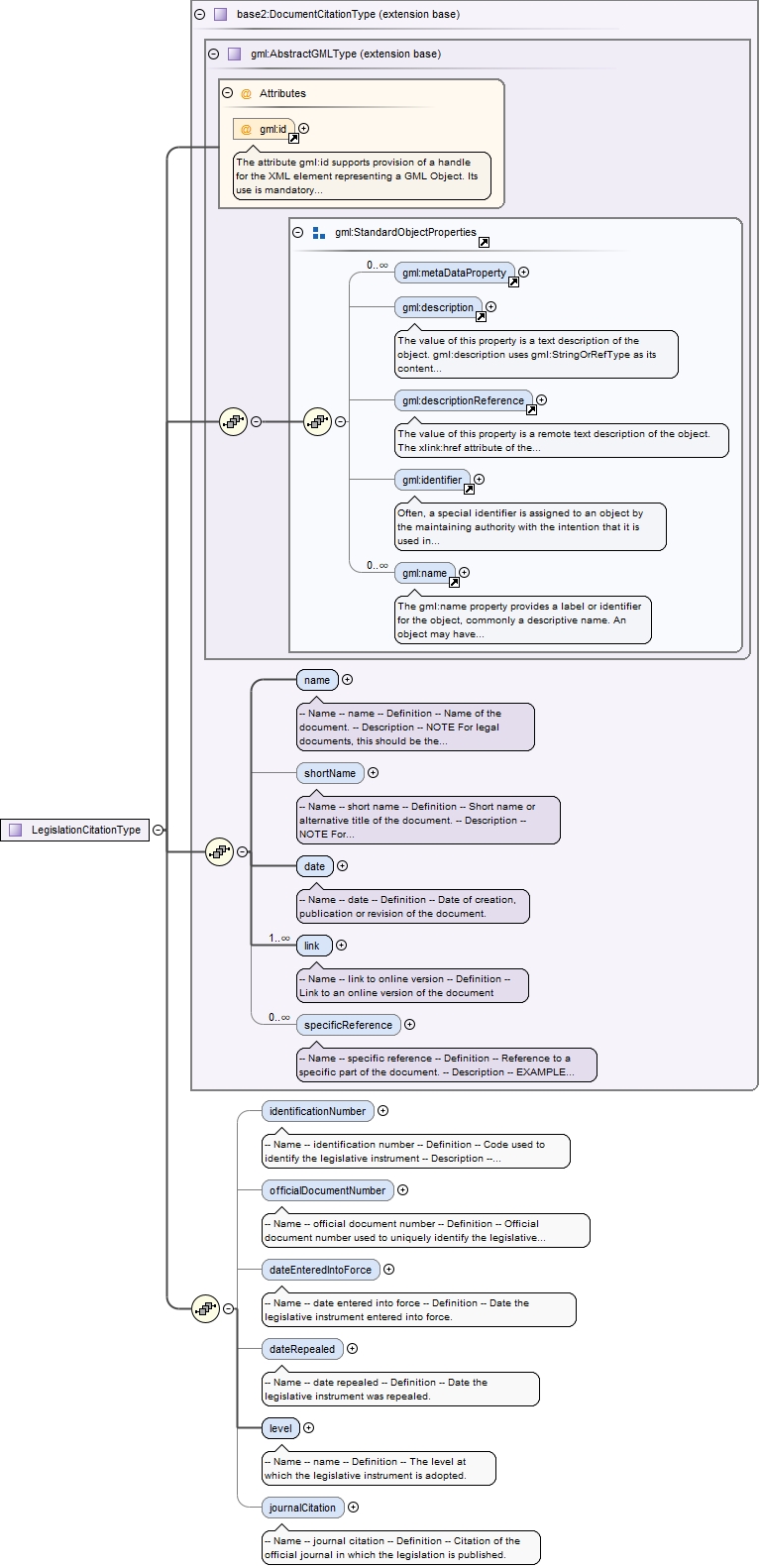

Diagram
DiagramgmlBase_xsd.tmp#iddeprecatedTypes_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#descriptionReferencegmlBase_xsd.tmp#identifiergmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypeBaseTypes2_xsd.tmp#DocumentCitationType_nameBaseTypes2_xsd.tmp#DocumentCitationType_shortNameBaseTypes2_xsd.tmp#DocumentCitationType_dateBaseTypes2_xsd.tmp#DocumentCitationType_linkBaseTypes2_xsd.tmp#DocumentCitationType_specificReferenceBaseTypes2_xsd.tmp#DocumentCitationTypeBaseTypes2_xsd.tmp#LegislationCitationType_identificationNumberBaseTypes2_xsd.tmp#LegislationCitationType_officialDocumentNumberBaseTypes2_xsd.tmp#LegislationCitationType_dateEnteredIntoForceBaseTypes2_xsd.tmp#LegislationCitationType_dateRepealedBaseTypes2_xsd.tmp#LegislationCitationType_levelBaseTypes2_xsd.tmp#LegislationCitationType_journalCitationBaseTypes2_xsd.tmp#LegislationCitationTypeBaseTypes2_xsd.tmp#DocumentCitation
Type base2:LegislationCitationType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children base2:date, base2:dateEnteredIntoForce, base2:dateRepealed, base2:identificationNumber, base2:journalCitation, base2:level, base2:link, base2:name, base2:officialDocumentNumber, base2:shortName, base2:specificReference, gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name
Instance

<base2:LegislationCitation gml:id="" xmlns:base2="http://inspire.ec.europa.eu/schemas/base2/1.0" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <base2:name>{1,1}</base2:name>
  <base2:shortName nilReason="">{0,1}</base2:shortName>
  <base2:date nilReason="" owns="false">{1,1}</base2:date>
  <base2:link nilReason="">{1,unbounded}</base2:link>
  <base2:specificReference nilReason="">{0,unbounded}</base2:specificReference>
  <base2:identificationNumber>{0,1}</base2:identificationNumber>
  <base2:officialDocumentNumber>{0,1}</base2:officialDocumentNumber>
  <base2:dateEnteredIntoForce calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</base2:dateEnteredIntoForce>
  <base2:dateRepealed calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</base2:dateRepealed>
  <base2:level xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</base2:level>
  <base2:journalCitation>{0,1}</base2:journalCitation>
</base2:LegislationCitation>
Attributes
QName Type Use Annotation
gml:id ID optional
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<element name="LegislationCitation" type="base2:LegislationCitationType" substitutionGroup="base2:DocumentCitation">
  <annotation>
    <documentation>-- Name -- legislation citation -- Definition -- Citation for the purposes of unambiguously referencing a legal act or a specific part of a legal act.</documentation>
  </annotation>
</element>

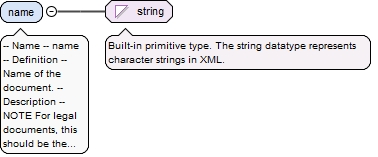

Element base2:DocumentCitationType / base2:name
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
name

-- Definition --
Name of the document.

-- Description --
NOTE	For legal documents, this should be the official name assigned to the legislative instrument.

EXAMPLE The official legal name for the INSPIRE Directive is "Directive 2007/2/EC of the European Parliament and of the Council of 14 March 2007 establishing an Infrastructure for Spatial Information in the European Community (INSPIRE)"
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="name" type="string">
  <annotation>
    <documentation>-- Name -- name -- Definition -- Name of the document. -- Description -- NOTE For legal documents, this should be the official name assigned to the legislative instrument. EXAMPLE The official legal name for the INSPIRE Directive is "Directive 2007/2/EC of the European Parliament and of the Council of 14 March 2007 establishing an Infrastructure for Spatial Information in the European Community (INSPIRE)"</documentation>
  </annotation>
</element>

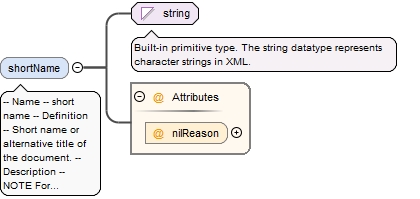

Element base2:DocumentCitationType / base2:shortName
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
short name

-- Definition --
Short name or alternative title of the document.

-- Description --
NOTE	For legal documents, this should be a short name or alternative title commonly used to identify the legislation.

EXAMPLE 1: INSPIRE Directive is the short name for "Directive 2007/2/EC of the European Parliament and of the Council of 14 March 2007 establishing an Infrastructure for Spatial Information in the European Community (INSPIRE)"

EXAMPLE 2: CAFE Directive is the short name for the Directive 2008/50/EC of the European Parliament and of the Council of 21 May 2008 on ambient air quality and cleaner air for Europe"

EXAMPLE  3: Water Framework Directive the short name for "Directive 2000/60/EC of the European Parliament and of the Council establishing a framework for the Community action in the field of water policy"
Diagram
DiagramBaseTypes2_xsd.tmp#DocumentCitationType_DocumentCitationType_shortName_nilReason
Type extension of string
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
nilReason gml:NilReasonType optional
Source

<element name="shortName" nillable="true" minOccurs="0">
  <annotation>
    <documentation>-- Name -- short name -- Definition -- Short name or alternative title of the document. -- Description -- NOTE For legal documents, this should be a short name or alternative title commonly used to identify the legislation. EXAMPLE 1: INSPIRE Directive is the short name for "Directive 2007/2/EC of the European Parliament and of the Council of 14 March 2007 establishing an Infrastructure for Spatial Information in the European Community (INSPIRE)" EXAMPLE 2: CAFE Directive is the short name for the Directive 2008/50/EC of the European Parliament and of the Council of 21 May 2008 on ambient air quality and cleaner air for Europe" EXAMPLE 3: Water Framework Directive the short name for "Directive 2000/60/EC of the European Parliament and of the Council establishing a framework for the Community action in the field of water policy"</documentation>
  </annotation>
  <complexType>
    <simpleContent>
      <extension base="string">
        <attribute name="nilReason" type="gml:NilReasonType"/>
      </extension>
    </simpleContent>
  </complexType>
</element>

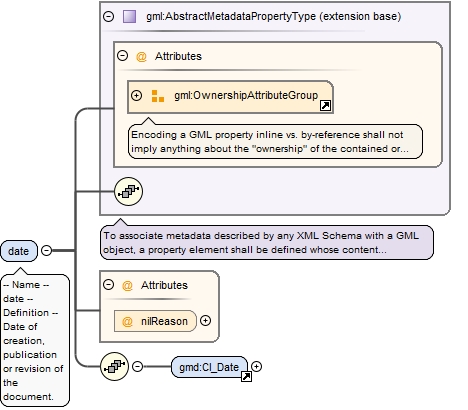

Element base2:DocumentCitationType / base2:date
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
date

-- Definition --
Date of creation, publication or revision of the document.
Diagram
DiagramgmlBase_xsd.tmp#OwnershipAttributeGroupgmlBase_xsd.tmp#AbstractMetadataPropertyTypeBaseTypes2_xsd.tmp#DocumentCitationType_DocumentCitationType_date_nilReasoncitation_xsd.tmp#CI_Date
Type extension of gml:AbstractMetadataPropertyType
Type hierarchy
Properties
content complex
nillable true
Model
Children gmd:CI_Date
Instance

<base2:date nilReason="" owns="false" xmlns:base2="http://inspire.ec.europa.eu/schemas/base2/1.0" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:CI_Date id="" uuid="">{1,1}</gmd:CI_Date>
</base2:date>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
Source

<element name="date" nillable="true">
  <annotation>
    <documentation>-- Name -- date -- Definition -- Date of creation, publication or revision of the document.</documentation>
  </annotation>
  <complexType>
    <complexContent>
      <extension base="gml:AbstractMetadataPropertyType">
        <sequence>
          <element ref="gmd:CI_Date"/>
        </sequence>
        <attribute name="nilReason" type="gml:NilReasonType"/>
      </extension>
    </complexContent>
  </complexType>
</element>

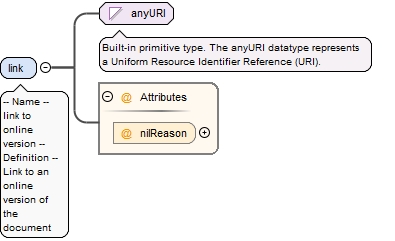

Element base2:DocumentCitationType / base2:link
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations
Diagram
Type extension of anyURI
Properties
Attributes
Source

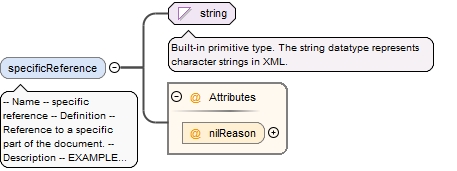

Element base2:DocumentCitationType / base2:specificReference
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
specific reference

-- Definition --
Reference to a specific part of the document.

-- Description --
EXAMPLE For legal documents, this attribute can contain a reference to article(s) that specify a specific requirement or obligation.
Diagram
DiagramBaseTypes2_xsd.tmp#DocumentCitationType_DocumentCitationType_specificReference_nilReason
Type extension of string
Properties
content complex
minOccurs 0
maxOccurs unbounded
nillable true
Attributes
QName Type Use
nilReason gml:NilReasonType optional
Source

<element name="specificReference" nillable="true" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>-- Name -- specific reference -- Definition -- Reference to a specific part of the document. -- Description -- EXAMPLE For legal documents, this attribute can contain a reference to article(s) that specify a specific requirement or obligation.</documentation>
  </annotation>
  <complexType>
    <simpleContent>
      <extension base="string">
        <attribute name="nilReason" type="gml:NilReasonType"/>
      </extension>
    </simpleContent>
  </complexType>
</element>

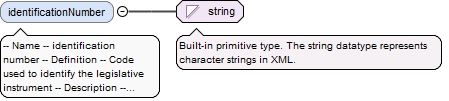

Element base2:LegislationCitationType / base2:identificationNumber
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
identification number

-- Definition --
Code used to identify the legislative instrument

-- Description --

EXAMPLE 1: 2007/2/EC is the identification number for the INSPIRE Directive

EXAMPLE 2: 2008/50/EC is the identification number for the CAFE Directive

EXAMPLE 3: 2000/60/EC is the identification number for the  Water Framework Directive
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element name="identificationNumber" type="string" minOccurs="0">
  <annotation>
    <documentation>-- Name -- identification number -- Definition -- Code used to identify the legislative instrument -- Description -- EXAMPLE 1: 2007/2/EC is the identification number for the INSPIRE Directive EXAMPLE 2: 2008/50/EC is the identification number for the CAFE Directive EXAMPLE 3: 2000/60/EC is the identification number for the Water Framework Directive</documentation>
  </annotation>
</element>

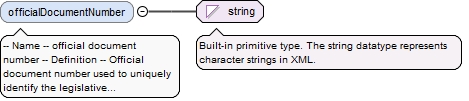

Element base2:LegislationCitationType / base2:officialDocumentNumber
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
official document number

-- Definition --
Official document number used to uniquely identify the legislative instrument.

-- Description --
NOTE: An official document number may be assigned to uniquely identify the legislative instrument.

EXAMPLE: CELEX Number used to uniquely identify European Union Legislation
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element name="officialDocumentNumber" type="string" minOccurs="0">
  <annotation>
    <documentation>-- Name -- official document number -- Definition -- Official document number used to uniquely identify the legislative instrument. -- Description -- NOTE: An official document number may be assigned to uniquely identify the legislative instrument. EXAMPLE: CELEX Number used to uniquely identify European Union Legislation</documentation>
  </annotation>
</element>
Element base2:LegislationCitationType / base2:dateEnteredIntoForce
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
date entered into force

-- Definition --
Date the legislative instrument entered into force.
Diagram
Diagramtemporal_xsd.tmp#TimePositionUniontemporal_xsd.tmp#TimePositionType_frametemporal_xsd.tmp#TimePositionType_calendarEraNametemporal_xsd.tmp#TimePositionType_indeterminatePositiontemporal_xsd.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element name="dateEnteredIntoForce" type="gml:TimePositionType" minOccurs="0">
  <annotation>
    <documentation>-- Name -- date entered into force -- Definition -- Date the legislative instrument entered into force.</documentation>
  </annotation>
</element>

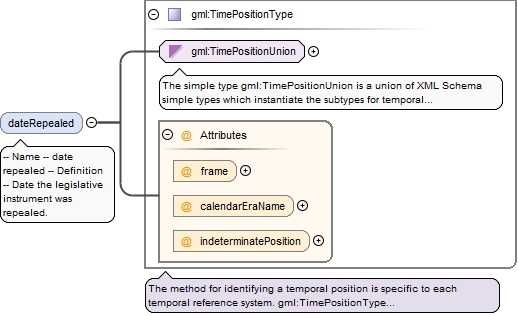

Element base2:LegislationCitationType / base2:dateRepealed
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
date repealed

-- Definition --
Date the legislative instrument was repealed.
Diagram
Diagramtemporal_xsd.tmp#TimePositionUniontemporal_xsd.tmp#TimePositionType_frametemporal_xsd.tmp#TimePositionType_calendarEraNametemporal_xsd.tmp#TimePositionType_indeterminatePositiontemporal_xsd.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element name="dateRepealed" type="gml:TimePositionType" minOccurs="0">
  <annotation>
    <documentation>-- Name -- date repealed -- Definition -- Date the legislative instrument was repealed.</documentation>
  </annotation>
</element>

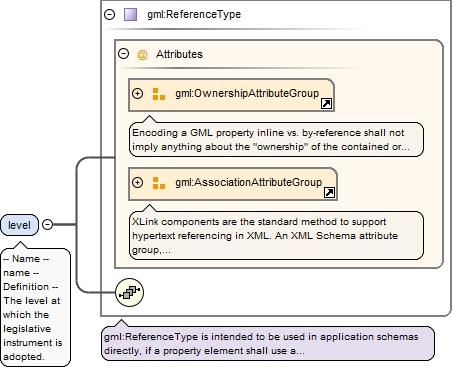

Element base2:LegislationCitationType / base2:level
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
name

-- Definition --
The level at which the legislative instrument is adopted.
Diagram
DiagramgmlBase_xsd.tmp#OwnershipAttributeGroupgmlBase_xsd.tmp#AssociationAttributeGroupgmlBase_xsd.tmp#ReferenceType
Type gml:ReferenceType
Properties
content complex
Model
Attributes
QName Type Fixed Default Use
gml:remoteSchema anyURI optional
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="level" type="gml:ReferenceType">
  <annotation>
    <documentation>-- Name -- name -- Definition -- The level at which the legislative instrument is adopted.</documentation>
  </annotation>
</element>

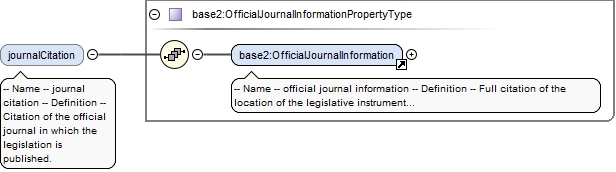

Element base2:LegislationCitationType / base2:journalCitation
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
journal citation

-- Definition --
Citation of the official journal in which the legislation is published.
Diagram
DiagramBaseTypes2_xsd.tmp#OfficialJournalInformationBaseTypes2_xsd.tmp#OfficialJournalInformationPropertyType
Type base2:OfficialJournalInformationPropertyType
Properties
content complex
minOccurs 0
Model
Children base2:OfficialJournalInformation
Instance

<base2:journalCitation xmlns:base2="http://inspire.ec.europa.eu/schemas/base2/1.0">
  <base2:OfficialJournalInformation>{1,1}</base2:OfficialJournalInformation>
</base2:journalCitation>
Source

<element name="journalCitation" type="base2:OfficialJournalInformationPropertyType" minOccurs="0">
  <annotation>
    <documentation>-- Name -- journal citation -- Definition -- Citation of the official journal in which the legislation is published.</documentation>
  </annotation>
</element>

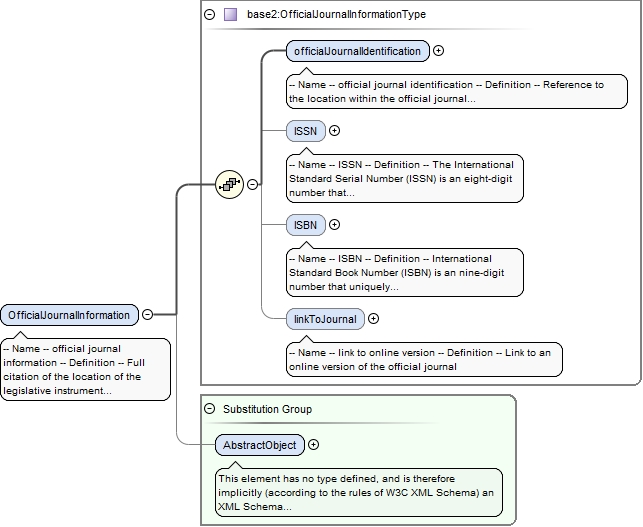

Element base2:OfficialJournalInformation
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
official journal information

-- Definition --
Full citation of the location of the legislative instrument within the official journal.
Diagram
DiagramBaseTypes2_xsd.tmp#OfficialJournalInformationType_officialJournalIdentificationBaseTypes2_xsd.tmp#OfficialJournalInformationType_ISSNBaseTypes2_xsd.tmp#OfficialJournalInformationType_ISBNBaseTypes2_xsd.tmp#OfficialJournalInformationType_linkToJournalBaseTypes2_xsd.tmp#OfficialJournalInformationTypegmlBase_xsd.tmp#AbstractObject
Type base2:OfficialJournalInformationType
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children base2:ISBN, base2:ISSN, base2:linkToJournal, base2:officialJournalIdentification
Instance

<base2:OfficialJournalInformation xmlns:base2="http://inspire.ec.europa.eu/schemas/base2/1.0">
  <base2:officialJournalIdentification>{1,1}</base2:officialJournalIdentification>
  <base2:ISSN>{0,1}</base2:ISSN>
  <base2:ISBN>{0,1}</base2:ISBN>
  <base2:linkToJournal>{0,1}</base2:linkToJournal>
</base2:OfficialJournalInformation>
Source

<element name="OfficialJournalInformation" type="base2:OfficialJournalInformationType" substitutionGroup="gml:AbstractObject">
  <annotation>
    <documentation>-- Name -- official journal information -- Definition -- Full citation of the location of the legislative instrument within the official journal.</documentation>
  </annotation>
</element>

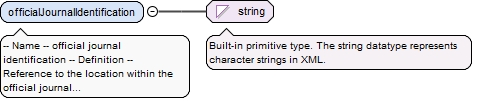

Element base2:OfficialJournalInformationType / base2:officialJournalIdentification
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
official journal identification

-- Definition --
Reference to the location within the official journal within which the legislative instrument was published. This reference shall be comprised of three parts:
- the title of the official journal;
- the volume and/or series number;
- Page number(s);

-- Description --
EXAMPLE: Official Journal of European Union (OJEU), L108, Volume 50, 1-14
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="officialJournalIdentification" type="string">
  <annotation>
    <documentation>-- Name -- official journal identification -- Definition -- Reference to the location within the official journal within which the legislative instrument was published. This reference shall be comprised of three parts: - the title of the official journal; - the volume and/or series number; - Page number(s); -- Description -- EXAMPLE: Official Journal of European Union (OJEU), L108, Volume 50, 1-14</documentation>
  </annotation>
</element>

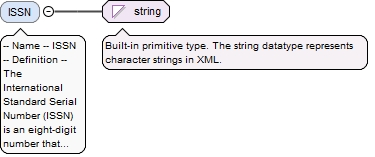

Element base2:OfficialJournalInformationType / base2:ISSN
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
ISSN

-- Definition --
The International Standard Serial Number (ISSN) is an eight-digit number that identifies the periodical publication in which the legislative instrument was published.

-- Description --
NOTE: Periodical publilcations are issued in successive parts, usually having numerical or chronological designations and required that each serial publication can be uniquely identified.

EXAMPLE: OJ Series in which INSPIRE Directive is published has been assigned the ISSN: 1725-2555
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element name="ISSN" type="string" minOccurs="0">
  <annotation>
    <documentation>-- Name -- ISSN -- Definition -- The International Standard Serial Number (ISSN) is an eight-digit number that identifies the periodical publication in which the legislative instrument was published. -- Description -- NOTE: Periodical publilcations are issued in successive parts, usually having numerical or chronological designations and required that each serial publication can be uniquely identified. EXAMPLE: OJ Series in which INSPIRE Directive is published has been assigned the ISSN: 1725-2555</documentation>
  </annotation>
</element>

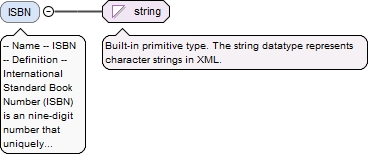

Element base2:OfficialJournalInformationType / base2:ISBN
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
ISBN

-- Definition --
International Standard Book Number (ISBN) is an nine-digit number that uniquely identifies the book in which the legislative instrument was published.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element name="ISBN" type="string" minOccurs="0">
  <annotation>
    <documentation>-- Name -- ISBN -- Definition -- International Standard Book Number (ISBN) is an nine-digit number that uniquely identifies the book in which the legislative instrument was published.</documentation>
  </annotation>
</element>

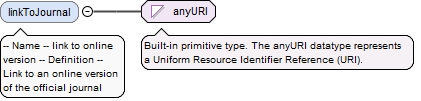

Element base2:OfficialJournalInformationType / base2:linkToJournal
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
link to online version

-- Definition --
Link to an online version of the official journal
Diagram
Diagram
Type anyURI
Properties
content simple
minOccurs 0
Source

<element name="linkToJournal" type="anyURI" minOccurs="0">
  <annotation>
    <documentation>-- Name -- link to online version -- Definition -- Link to an online version of the official journal</documentation>
  </annotation>
</element>

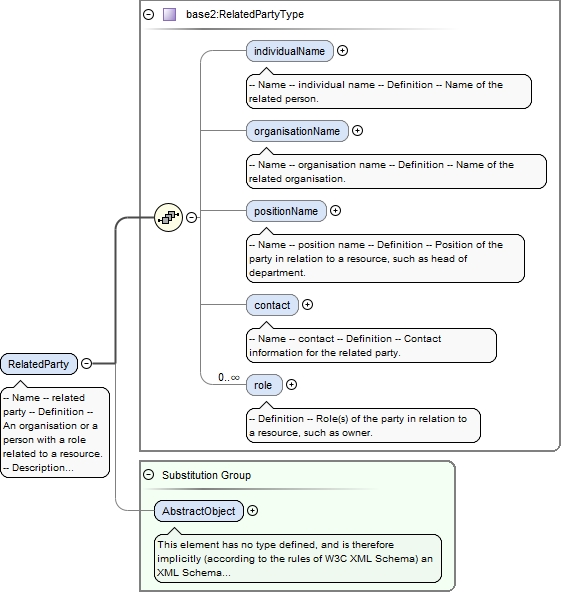

Element base2:RelatedParty
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
related party

-- Definition --
An organisation or a person with a role related to a resource.

-- Description --
NOTE 1 A party, typically an individual person, acting as a general point of contact for a resource can be specified without providing any particular role.
Diagram
DiagramBaseTypes2_xsd.tmp#RelatedPartyType_individualNameBaseTypes2_xsd.tmp#RelatedPartyType_organisationNameBaseTypes2_xsd.tmp#RelatedPartyType_positionNameBaseTypes2_xsd.tmp#RelatedPartyType_contactBaseTypes2_xsd.tmp#RelatedPartyType_roleBaseTypes2_xsd.tmp#RelatedPartyTypegmlBase_xsd.tmp#AbstractObject

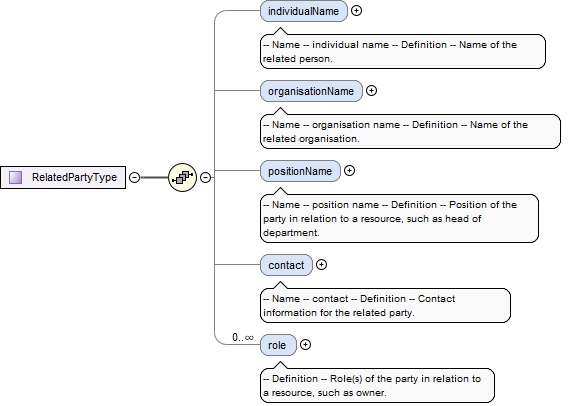

Type base2:RelatedPartyType
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children base2:contact, base2:individualName, base2:organisationName, base2:positionName, base2:role
Instance

<base2:RelatedParty xmlns:base2="http://inspire.ec.europa.eu/schemas/base2/1.0">
  <base2:individualName gco:nilReason="">{0,1}</base2:individualName>
  <base2:organisationName gco:nilReason="">{0,1}</base2:organisationName>
  <base2:positionName gco:nilReason="">{0,1}</base2:positionName>
  <base2:contact nilReason="">{0,1}</base2:contact>

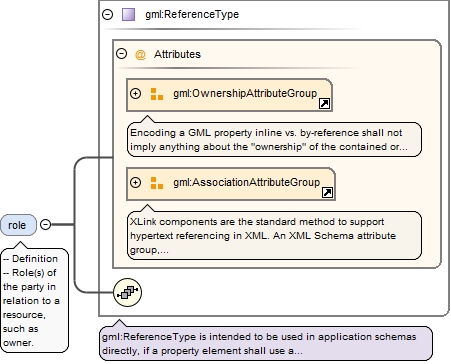

  <base2:role xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</base2:role>
</base2:RelatedParty>
Source

<element name="RelatedParty" type="base2:RelatedPartyType" substitutionGroup="gml:AbstractObject">
  <annotation>
    <documentation>-- Name -- related party -- Definition -- An organisation or a person with a role related to a resource. -- Description -- NOTE 1 A party, typically an individual person, acting as a general point of contact for a resource can be specified without providing any particular role.</documentation>
  </annotation>
</element>

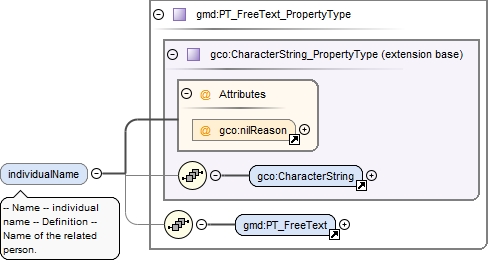

Element base2:RelatedPartyType / base2:individualName
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
individual name

-- Definition --
Name of the related person.
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyTypefreeText_xsd.tmp#PT_FreeTextfreeText_xsd.tmp#PT_FreeText_PropertyType
Type gmd:PT_FreeText_PropertyType
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Model
Children gco:CharacterString, gmd:PT_FreeText
Instance

<base2:individualName gco:nilReason="" xmlns:base2="http://inspire.ec.europa.eu/schemas/base2/1.0" xmlns:gco="http://www.isotc211.org/2005/gco" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gco:CharacterString>{1,1}</gco:CharacterString>
  <gmd:PT_FreeText id="" uuid="">{1,1}</gmd:PT_FreeText>
</base2:individualName>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<element name="individualName" type="gmd:PT_FreeText_PropertyType" nillable="true" minOccurs="0">
  <annotation>
    <documentation>-- Name -- individual name -- Definition -- Name of the related person.</documentation>
  </annotation>
</element>

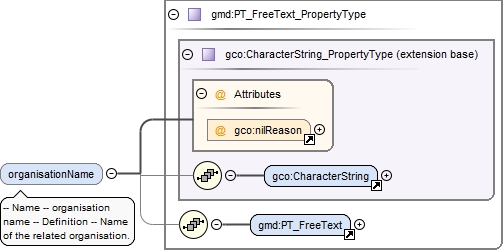

Element base2:RelatedPartyType / base2:organisationName
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
organisation name

-- Definition --
Name of the related organisation.
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyTypefreeText_xsd.tmp#PT_FreeTextfreeText_xsd.tmp#PT_FreeText_PropertyType
Type gmd:PT_FreeText_PropertyType
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Model
Children gco:CharacterString, gmd:PT_FreeText
Instance

<base2:organisationName gco:nilReason="" xmlns:base2="http://inspire.ec.europa.eu/schemas/base2/1.0" xmlns:gco="http://www.isotc211.org/2005/gco" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gco:CharacterString>{1,1}</gco:CharacterString>
  <gmd:PT_FreeText id="" uuid="">{1,1}</gmd:PT_FreeText>
</base2:organisationName>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<element name="organisationName" type="gmd:PT_FreeText_PropertyType" nillable="true" minOccurs="0">
  <annotation>
    <documentation>-- Name -- organisation name -- Definition -- Name of the related organisation.</documentation>
  </annotation>
</element>

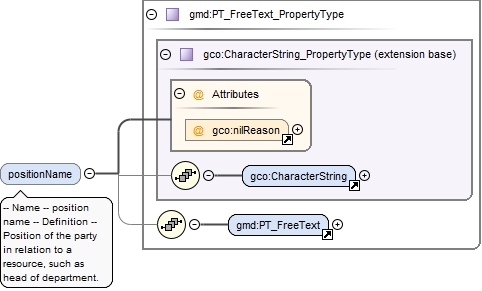

Element base2:RelatedPartyType / base2:positionName
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
position name

-- Definition --
Position of the party in relation to a resource, such as head of department.
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyTypefreeText_xsd.tmp#PT_FreeTextfreeText_xsd.tmp#PT_FreeText_PropertyType
Type gmd:PT_FreeText_PropertyType
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Model
Children gco:CharacterString, gmd:PT_FreeText
Instance

<base2:positionName gco:nilReason="" xmlns:base2="http://inspire.ec.europa.eu/schemas/base2/1.0" xmlns:gco="http://www.isotc211.org/2005/gco" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gco:CharacterString>{1,1}</gco:CharacterString>
  <gmd:PT_FreeText id="" uuid="">{1,1}</gmd:PT_FreeText>
</base2:positionName>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<element name="positionName" type="gmd:PT_FreeText_PropertyType" nillable="true" minOccurs="0">
  <annotation>
    <documentation>-- Name -- position name -- Definition -- Position of the party in relation to a resource, such as head of department.</documentation>
  </annotation>
</element>

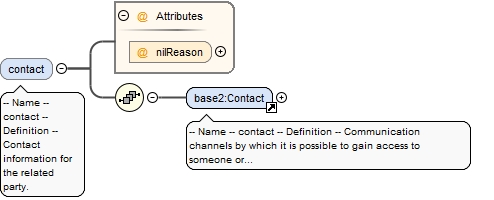

Element base2:RelatedPartyType / base2:contact
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
contact

-- Definition --
Contact information for the related party.
Diagram
DiagramBaseTypes2_xsd.tmp#RelatedPartyType_RelatedPartyType_contact_nilReasonBaseTypes2_xsd.tmp#Contact
Properties
content complex
minOccurs 0
nillable true
Model
Children base2:Contact
Instance

<base2:contact nilReason="" xmlns:base2="http://inspire.ec.europa.eu/schemas/base2/1.0">
  <base2:Contact>{1,1}</base2:Contact>
</base2:contact>
Attributes
QName Type Use
nilReason gml:NilReasonType optional
Source

<element name="contact" nillable="true" minOccurs="0">
  <annotation>
    <documentation>-- Name -- contact -- Definition -- Contact information for the related party.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="base2:Contact"/>
    </sequence>
    <attribute name="nilReason" type="gml:NilReasonType"/>
  </complexType>
</element>

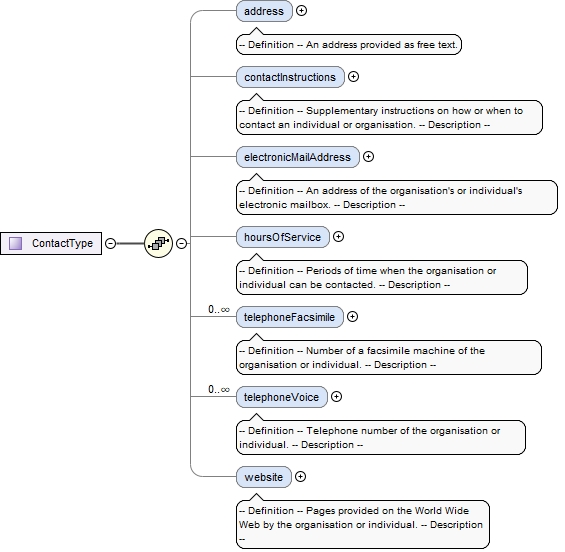

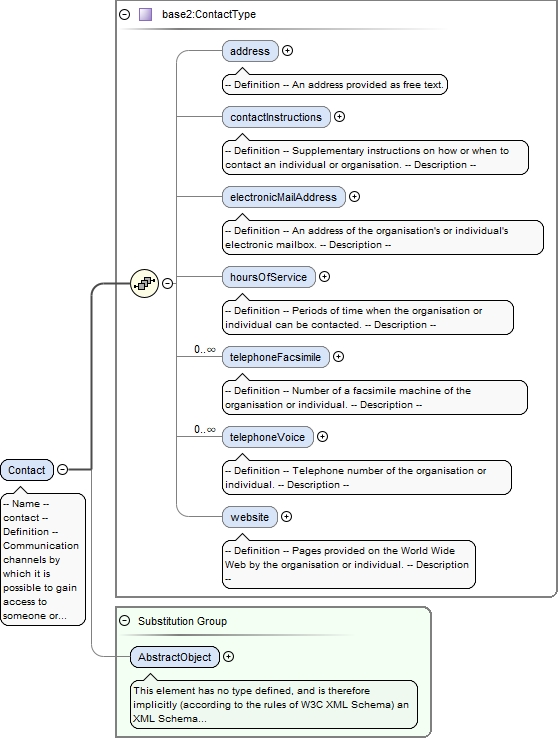

Element base2:Contact
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
contact

-- Definition --
Communication channels by which it is possible to gain access to someone or something.

-- Description --
Diagram
DiagramBaseTypes2_xsd.tmp#ContactType_addressBaseTypes2_xsd.tmp#ContactType_contactInstructionsBaseTypes2_xsd.tmp#ContactType_electronicMailAddressBaseTypes2_xsd.tmp#ContactType_hoursOfServiceBaseTypes2_xsd.tmp#ContactType_telephoneFacsimileBaseTypes2_xsd.tmp#ContactType_telephoneVoiceBaseTypes2_xsd.tmp#ContactType_websiteBaseTypes2_xsd.tmp#ContactTypegmlBase_xsd.tmp#AbstractObject
Type base2:ContactType
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children base2:address, base2:contactInstructions, base2:electronicMailAddress, base2:hoursOfService, base2:telephoneFacsimile, base2:telephoneVoice, base2:website
Instance

<base2:Contact xmlns:base2="http://inspire.ec.europa.eu/schemas/base2/1.0">
  <base2:address nilReason="">{0,1}</base2:address>
  <base2:contactInstructions gco:nilReason="">{0,1}</base2:contactInstructions>

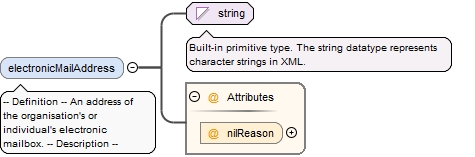

  <base2:electronicMailAddress nilReason="">{0,1}</base2:electronicMailAddress>

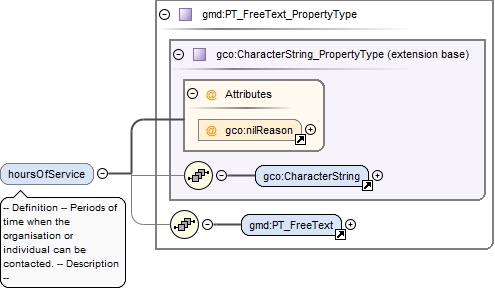

  <base2:hoursOfService gco:nilReason="">{0,1}</base2:hoursOfService>

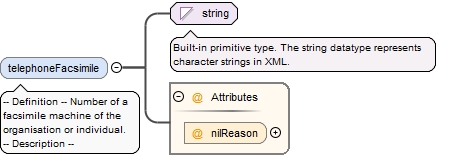

  <base2:telephoneFacsimile nilReason="">{0,unbounded}</base2:telephoneFacsimile>

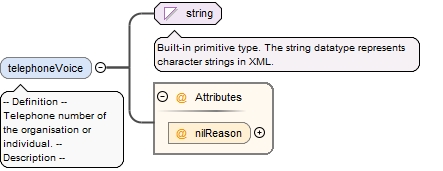

  <base2:telephoneVoice nilReason="">{0,unbounded}</base2:telephoneVoice>
  <base2:website nilReason="">{0,1}</base2:website>
</base2:Contact>
Source

<element name="Contact" type="base2:ContactType" substitutionGroup="gml:AbstractObject">
  <annotation>
    <documentation>-- Name -- contact -- Definition -- Communication channels by which it is possible to gain access to someone or something. -- Description --</documentation>
  </annotation>
</element>

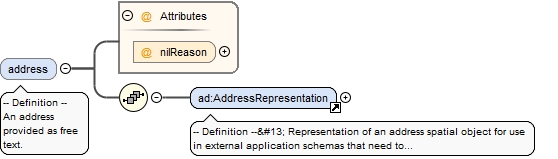

Element base2:ContactType / base2:address
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Definition --
An address provided as free text.
Diagram
DiagramBaseTypes2_xsd.tmp#ContactType_ContactType_address_nilReasonAddresses_xsd.tmp#AddressRepresentation
Properties
content complex
minOccurs 0
nillable true
Model
Children ad:AddressRepresentation
Instance

<base2:address nilReason="" xmlns:base2="http://inspire.ec.europa.eu/schemas/base2/1.0" xmlns:ad="urn:x-inspire:specification:gmlas:Addresses:3.0">
  <ad:AddressRepresentation>{1,1}</ad:AddressRepresentation>
</base2:address>
Attributes
QName Type Use
nilReason gml:NilReasonType optional
Source

<element name="address" nillable="true" minOccurs="0">
  <annotation>
    <documentation>-- Definition -- An address provided as free text.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="ad:AddressRepresentation"/>
    </sequence>
    <attribute name="nilReason" type="gml:NilReasonType"/>
  </complexType>
</element>

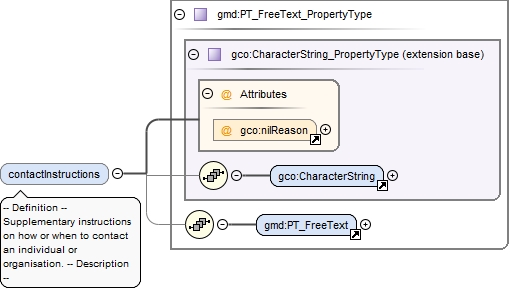

Element base2:ContactType / base2:contactInstructions
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Definition --
Supplementary instructions on how or when to contact an individual or organisation.


-- Description --
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyTypefreeText_xsd.tmp#PT_FreeTextfreeText_xsd.tmp#PT_FreeText_PropertyType
Type gmd:PT_FreeText_PropertyType
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Model
Children gco:CharacterString, gmd:PT_FreeText
Instance

<base2:contactInstructions gco:nilReason="" xmlns:base2="http://inspire.ec.europa.eu/schemas/base2/1.0" xmlns:gco="http://www.isotc211.org/2005/gco" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gco:CharacterString>{1,1}</gco:CharacterString>
  <gmd:PT_FreeText id="" uuid="">{1,1}</gmd:PT_FreeText>
</base2:contactInstructions>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<element name="contactInstructions" type="gmd:PT_FreeText_PropertyType" nillable="true" minOccurs="0">
  <annotation>
    <documentation>-- Definition -- Supplementary instructions on how or when to contact an individual or organisation. -- Description --</documentation>
  </annotation>
</element>
Element base2:ContactType / base2:electronicMailAddress
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Definition --
An address of the organisation's or individual's electronic mailbox.

-- Description --
Diagram
DiagramBaseTypes2_xsd.tmp#ContactType_ContactType_electronicMailAddress_nilReason
Type extension of string
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
nilReason gml:NilReasonType optional
Source

<element name="electronicMailAddress" nillable="true" minOccurs="0">
  <annotation>
    <documentation>-- Definition -- An address of the organisation's or individual's electronic mailbox. -- Description --</documentation>
  </annotation>
  <complexType>
    <simpleContent>
      <extension base="string">
        <attribute name="nilReason" type="gml:NilReasonType"/>
      </extension>
    </simpleContent>
  </complexType>
</element>
Element base2:ContactType / base2:hoursOfService
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Definition --
Periods of time when the organisation or individual can be contacted.

-- Description --
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyTypefreeText_xsd.tmp#PT_FreeTextfreeText_xsd.tmp#PT_FreeText_PropertyType
Type gmd:PT_FreeText_PropertyType
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Model
Children gco:CharacterString, gmd:PT_FreeText
Instance

<base2:hoursOfService gco:nilReason="" xmlns:base2="http://inspire.ec.europa.eu/schemas/base2/1.0" xmlns:gco="http://www.isotc211.org/2005/gco" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gco:CharacterString>{1,1}</gco:CharacterString>
  <gmd:PT_FreeText id="" uuid="">{1,1}</gmd:PT_FreeText>
</base2:hoursOfService>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<element name="hoursOfService" type="gmd:PT_FreeText_PropertyType" nillable="true" minOccurs="0">
  <annotation>
    <documentation>-- Definition -- Periods of time when the organisation or individual can be contacted. -- Description --</documentation>
  </annotation>
</element>
Element base2:ContactType / base2:telephoneFacsimile
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Definition --
Number of a facsimile machine of the organisation or individual.

-- Description --
Diagram
DiagramBaseTypes2_xsd.tmp#ContactType_ContactType_telephoneFacsimile_nilReason
Type extension of string
Properties
content complex
minOccurs 0
maxOccurs unbounded
nillable true
Attributes
QName Type Use
nilReason gml:NilReasonType optional
Source

<element name="telephoneFacsimile" nillable="true" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>-- Definition -- Number of a facsimile machine of the organisation or individual. -- Description --</documentation>
  </annotation>
  <complexType>
    <simpleContent>
      <extension base="string">
        <attribute name="nilReason" type="gml:NilReasonType"/>
      </extension>
    </simpleContent>
  </complexType>
</element>
Element base2:ContactType / base2:telephoneVoice
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Definition --
Telephone number of the organisation or individual.

-- Description --
Diagram
DiagramBaseTypes2_xsd.tmp#ContactType_ContactType_telephoneVoice_nilReason
Type extension of string
Properties
content complex
minOccurs 0
maxOccurs unbounded
nillable true
Attributes
QName Type Use
nilReason gml:NilReasonType optional
Source

<element name="telephoneVoice" nillable="true" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>-- Definition -- Telephone number of the organisation or individual. -- Description --</documentation>
  </annotation>
  <complexType>
    <simpleContent>
      <extension base="string">
        <attribute name="nilReason" type="gml:NilReasonType"/>
      </extension>
    </simpleContent>
  </complexType>
</element>

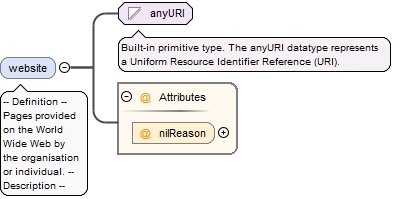

Element base2:ContactType / base2:website
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Definition --
Pages provided on the World Wide Web by the organisation or individual.

-- Description --
Diagram
DiagramBaseTypes2_xsd.tmp#ContactType_ContactType_website_nilReason
Type extension of anyURI
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
nilReason gml:NilReasonType optional
Source

<element name="website" nillable="true" minOccurs="0">
  <annotation>
    <documentation>-- Definition -- Pages provided on the World Wide Web by the organisation or individual. -- Description --</documentation>
  </annotation>
  <complexType>
    <simpleContent>
      <extension base="anyURI">
        <attribute name="nilReason" type="gml:NilReasonType"/>
      </extension>
    </simpleContent>
  </complexType>
</element>
Element base2:RelatedPartyType / base2:role
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Definition --
Role(s) of the party in relation to a resource, such as owner.
Diagram
DiagramgmlBase_xsd.tmp#OwnershipAttributeGroupgmlBase_xsd.tmp#AssociationAttributeGroupgmlBase_xsd.tmp#ReferenceType
Type gml:ReferenceType
Properties
content complex
minOccurs 0
maxOccurs unbounded
nillable true
Model
Attributes
QName Type Fixed Default Use
gml:remoteSchema anyURI optional
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="role" type="gml:ReferenceType" nillable="true" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>-- Definition -- Role(s) of the party in relation to a resource, such as owner.</documentation>
    <appinfo>
      <taggedValue xmlns="http://www.interactive-instruments.de/ShapeChange/AppInfo" tag="obligation">TG</taggedValue>
    </appinfo>
  </annotation>
</element>

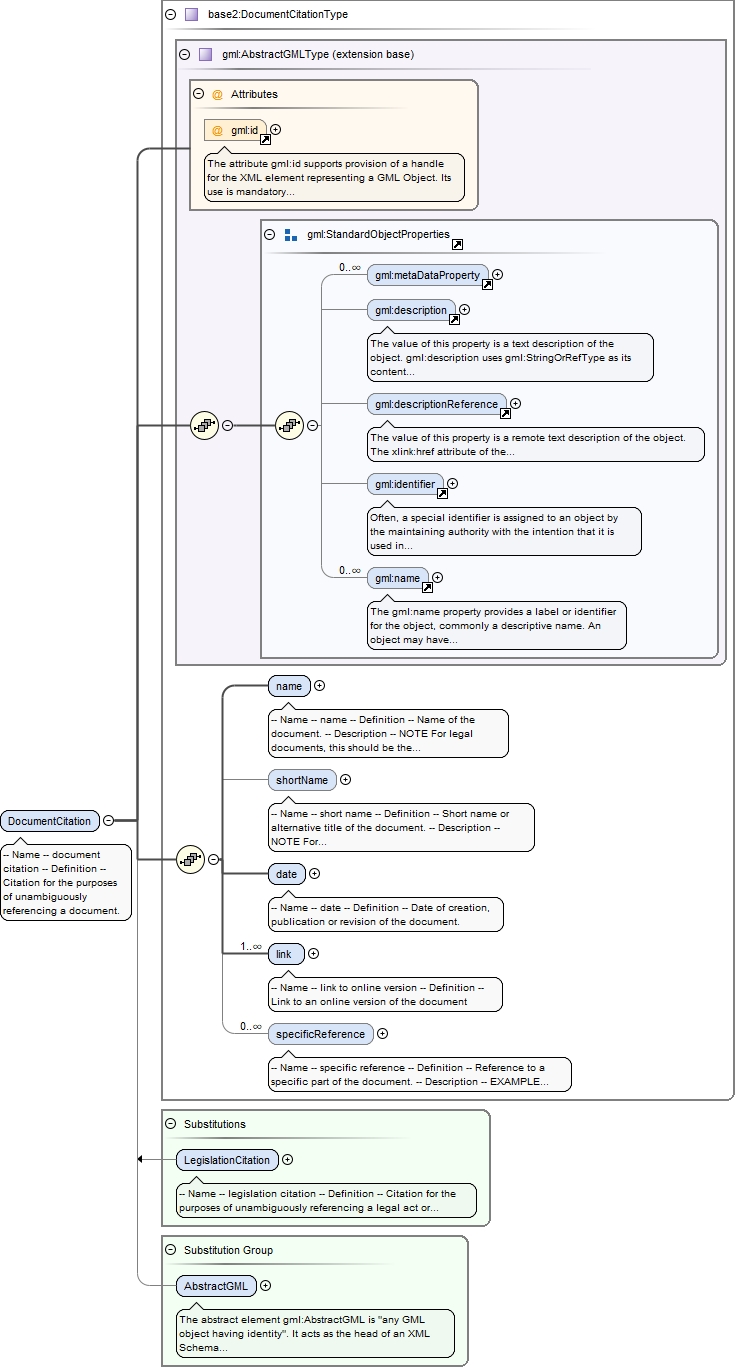

Element base2:DocumentCitation
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
document citation

-- Definition --
Citation for the purposes of unambiguously referencing a document.
Diagram
DiagramgmlBase_xsd.tmp#iddeprecatedTypes_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#descriptionReferencegmlBase_xsd.tmp#identifiergmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypeBaseTypes2_xsd.tmp#DocumentCitationType_nameBaseTypes2_xsd.tmp#DocumentCitationType_shortNameBaseTypes2_xsd.tmp#DocumentCitationType_dateBaseTypes2_xsd.tmp#DocumentCitationType_linkBaseTypes2_xsd.tmp#DocumentCitationType_specificReferenceBaseTypes2_xsd.tmp#DocumentCitationTypeBaseTypes2_xsd.tmp#LegislationCitationgmlBase_xsd.tmp#AbstractGML

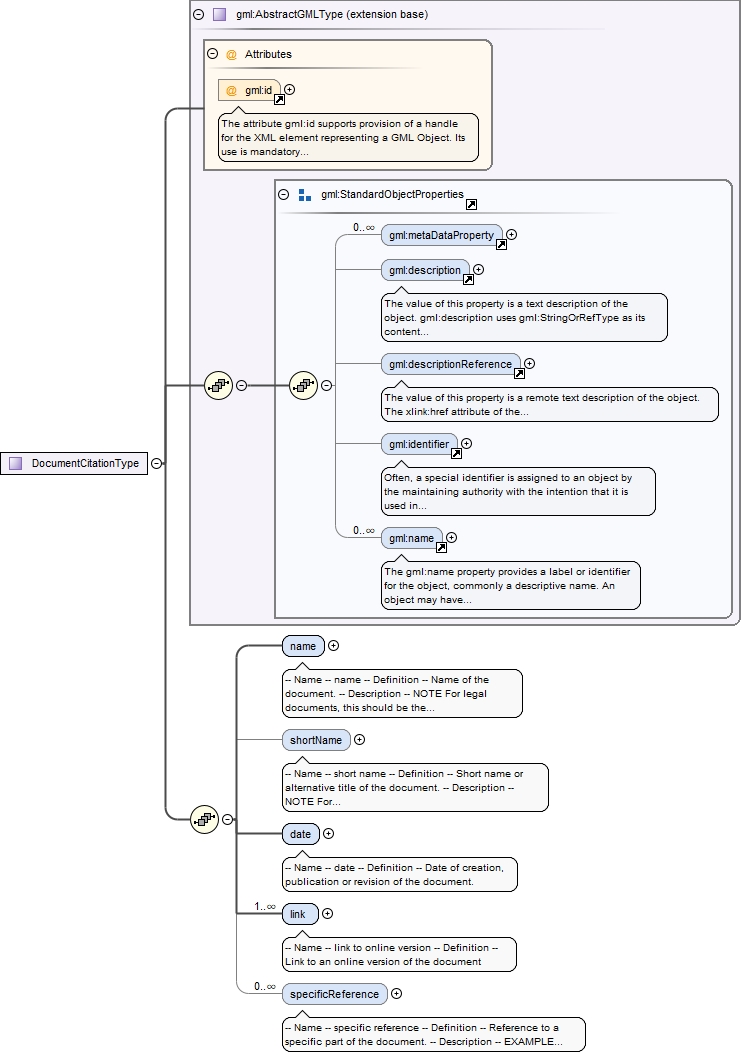

Type base2:DocumentCitationType
Type hierarchy
Properties
content complex
Substitution Group
Substitution Group Affiliation
Used by
Model
Children base2:date, base2:link, base2:name, base2:shortName, base2:specificReference, gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name
Instance

<base2:DocumentCitation gml:id="" xmlns:base2="http://inspire.ec.europa.eu/schemas/base2/1.0" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <base2:name>{1,1}</base2:name>
  <base2:shortName nilReason="">{0,1}</base2:shortName>
  <base2:date nilReason="" owns="false">{1,1}</base2:date>
  <base2:link nilReason="">{1,unbounded}</base2:link>
  <base2:specificReference nilReason="">{0,unbounded}</base2:specificReference>
</base2:DocumentCitation>
Attributes
QName Type Use Annotation
gml:id ID optional
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<element name="DocumentCitation" type="base2:DocumentCitationType" substitutionGroup="gml:AbstractGML">
  <annotation>
    <documentation>-- Name -- document citation -- Definition -- Citation for the purposes of unambiguously referencing a document.</documentation>
  </annotation>
</element>

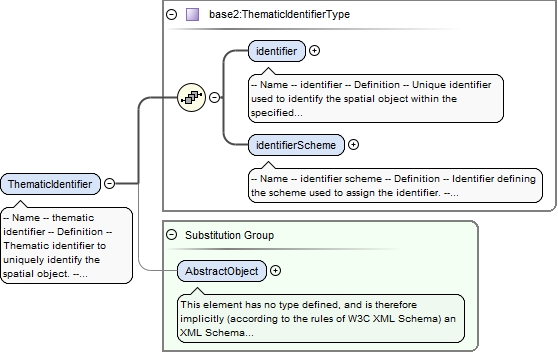

Element base2:ThematicIdentifier
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
thematic identifier

-- Definition --
Thematic identifier to uniquely identify the spatial object.

-- Description --
Some spatial objects may be assigned multiple unique identifiers.
These may have been established to meet data exchange requirements of different reporting obligations at International, European or national levels and/or internal data maintenance requirements.
Diagram

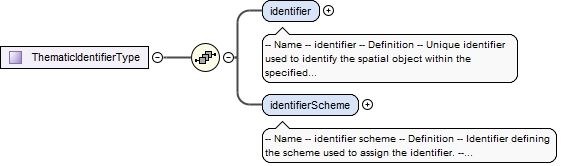

DiagramBaseTypes2_xsd.tmp#ThematicIdentifierType_identifierBaseTypes2_xsd.tmp#ThematicIdentifierType_identifierSchemeBaseTypes2_xsd.tmp#ThematicIdentifierTypegmlBase_xsd.tmp#AbstractObject
Type base2:ThematicIdentifierType
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children base2:identifier, base2:identifierScheme
Instance

<base2:ThematicIdentifier xmlns:base2="http://inspire.ec.europa.eu/schemas/base2/1.0">
  <base2:identifier>{1,1}</base2:identifier>
  <base2:identifierScheme>{1,1}</base2:identifierScheme>
</base2:ThematicIdentifier>
Source

<element name="ThematicIdentifier" type="base2:ThematicIdentifierType" substitutionGroup="gml:AbstractObject">
  <annotation>
    <documentation>-- Name -- thematic identifier -- Definition -- Thematic identifier to uniquely identify the spatial object. -- Description -- Some spatial objects may be assigned multiple unique identifiers. These may have been established to meet data exchange requirements of different reporting obligations at International, European or national levels and/or internal data maintenance requirements.</documentation>
  </annotation>
</element>

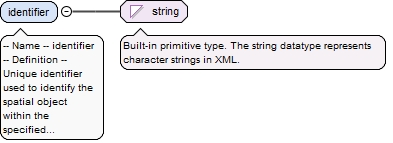

Element base2:ThematicIdentifierType / base2:identifier
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
identifier

-- Definition --
Unique identifier used to identify the spatial object within the specified identification scheme.
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="identifier" type="string">
  <annotation>
    <documentation>-- Name -- identifier -- Definition -- Unique identifier used to identify the spatial object within the specified identification scheme.</documentation>
  </annotation>
</element>

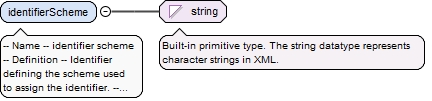

Element base2:ThematicIdentifierType / base2:identifierScheme
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Annotations

-- Name --
identifier scheme

-- Definition --
Identifier defining the scheme used to assign the identifier.

-- Description --
NOTE 1: Reporting requirements for different environmental legislation mandate that each spatial object is assigned an identifier conforming to specific lexical rules.

NOTE 2: These rules are often inconsistent so a spatial object may be assigned multiple identifiers which are used for object referencing to link information to the spatial object.
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="identifierScheme" type="string">
  <annotation>
    <documentation>-- Name -- identifier scheme -- Definition -- Identifier defining the scheme used to assign the identifier. -- Description -- NOTE 1: Reporting requirements for different environmental legislation mandate that each spatial object is assigned an identifier conforming to specific lexical rules. NOTE 2: These rules are often inconsistent so a spatial object may be assigned multiple identifiers which are used for object referencing to link information to the spatial object.</documentation>
  </annotation>
</element>
Complex Type base2:LegislationCitationType
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Diagram
DiagramgmlBase_xsd.tmp#iddeprecatedTypes_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#descriptionReferencegmlBase_xsd.tmp#identifiergmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypeBaseTypes2_xsd.tmp#DocumentCitationType_nameBaseTypes2_xsd.tmp#DocumentCitationType_shortNameBaseTypes2_xsd.tmp#DocumentCitationType_dateBaseTypes2_xsd.tmp#DocumentCitationType_linkBaseTypes2_xsd.tmp#DocumentCitationType_specificReferenceBaseTypes2_xsd.tmp#DocumentCitationTypeBaseTypes2_xsd.tmp#LegislationCitationType_identificationNumberBaseTypes2_xsd.tmp#LegislationCitationType_officialDocumentNumberBaseTypes2_xsd.tmp#LegislationCitationType_dateEnteredIntoForceBaseTypes2_xsd.tmp#LegislationCitationType_dateRepealedBaseTypes2_xsd.tmp#LegislationCitationType_levelBaseTypes2_xsd.tmp#LegislationCitationType_journalCitation
Type extension of base2:DocumentCitationType
Type hierarchy
Used by
Model
Children base2:date, base2:dateEnteredIntoForce, base2:dateRepealed, base2:identificationNumber, base2:journalCitation, base2:level, base2:link, base2:name, base2:officialDocumentNumber, base2:shortName, base2:specificReference, gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name
Attributes
QName Type Use Annotation
gml:id ID optional
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<complexType name="LegislationCitationType">
  <complexContent>
    <extension base="base2:DocumentCitationType">
      <sequence>
        <element name="identificationNumber" type="string" minOccurs="0">
          <annotation>
            <documentation>-- Name -- identification number -- Definition -- Code used to identify the legislative instrument -- Description -- EXAMPLE 1: 2007/2/EC is the identification number for the INSPIRE Directive EXAMPLE 2: 2008/50/EC is the identification number for the CAFE Directive EXAMPLE 3: 2000/60/EC is the identification number for the Water Framework Directive</documentation>
          </annotation>
        </element>
        <element name="officialDocumentNumber" type="string" minOccurs="0">
          <annotation>
            <documentation>-- Name -- official document number -- Definition -- Official document number used to uniquely identify the legislative instrument. -- Description -- NOTE: An official document number may be assigned to uniquely identify the legislative instrument. EXAMPLE: CELEX Number used to uniquely identify European Union Legislation</documentation>
          </annotation>
        </element>
        <element name="dateEnteredIntoForce" type="gml:TimePositionType" minOccurs="0">
          <annotation>
            <documentation>-- Name -- date entered into force -- Definition -- Date the legislative instrument entered into force.</documentation>
          </annotation>
        </element>
        <element name="dateRepealed" type="gml:TimePositionType" minOccurs="0">
          <annotation>
            <documentation>-- Name -- date repealed -- Definition -- Date the legislative instrument was repealed.</documentation>
          </annotation>
        </element>
        <element name="level" type="gml:ReferenceType">
          <annotation>
            <documentation>-- Name -- name -- Definition -- The level at which the legislative instrument is adopted.</documentation>
          </annotation>
        </element>
        <element name="journalCitation" type="base2:OfficialJournalInformationPropertyType" minOccurs="0">
          <annotation>
            <documentation>-- Name -- journal citation -- Definition -- Citation of the official journal in which the legislation is published.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type base2:DocumentCitationType
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Diagram
DiagramgmlBase_xsd.tmp#iddeprecatedTypes_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#descriptionReferencegmlBase_xsd.tmp#identifiergmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypeBaseTypes2_xsd.tmp#DocumentCitationType_nameBaseTypes2_xsd.tmp#DocumentCitationType_shortNameBaseTypes2_xsd.tmp#DocumentCitationType_dateBaseTypes2_xsd.tmp#DocumentCitationType_linkBaseTypes2_xsd.tmp#DocumentCitationType_specificReference
Type extension of gml:AbstractGMLType
Type hierarchy
Used by
Model
Children base2:date, base2:link, base2:name, base2:shortName, base2:specificReference, gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name
Attributes
QName Type Use Annotation
gml:id ID optional
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<complexType name="DocumentCitationType">
  <complexContent>
    <extension base="gml:AbstractGMLType">
      <sequence>
        <element name="name" type="string">
          <annotation>
            <documentation>-- Name -- name -- Definition -- Name of the document. -- Description -- NOTE For legal documents, this should be the official name assigned to the legislative instrument. EXAMPLE The official legal name for the INSPIRE Directive is "Directive 2007/2/EC of the European Parliament and of the Council of 14 March 2007 establishing an Infrastructure for Spatial Information in the European Community (INSPIRE)"</documentation>
          </annotation>
        </element>
        <element name="shortName" nillable="true" minOccurs="0">
          <annotation>
            <documentation>-- Name -- short name -- Definition -- Short name or alternative title of the document. -- Description -- NOTE For legal documents, this should be a short name or alternative title commonly used to identify the legislation. EXAMPLE 1: INSPIRE Directive is the short name for "Directive 2007/2/EC of the European Parliament and of the Council of 14 March 2007 establishing an Infrastructure for Spatial Information in the European Community (INSPIRE)" EXAMPLE 2: CAFE Directive is the short name for the Directive 2008/50/EC of the European Parliament and of the Council of 21 May 2008 on ambient air quality and cleaner air for Europe" EXAMPLE 3: Water Framework Directive the short name for "Directive 2000/60/EC of the European Parliament and of the Council establishing a framework for the Community action in the field of water policy"</documentation>
          </annotation>
          <complexType>
            <simpleContent>
              <extension base="string">
                <attribute name="nilReason" type="gml:NilReasonType"/>
              </extension>
            </simpleContent>
          </complexType>
        </element>
        <element name="date" nillable="true">
          <annotation>
            <documentation>-- Name -- date -- Definition -- Date of creation, publication or revision of the document.</documentation>
          </annotation>
          <complexType>
            <complexContent>
              <extension base="gml:AbstractMetadataPropertyType">
                <sequence>
                  <element ref="gmd:CI_Date"/>
                </sequence>
                <attribute name="nilReason" type="gml:NilReasonType"/>
              </extension>
            </complexContent>
          </complexType>
        </element>
        <element name="link" nillable="true" maxOccurs="unbounded">
          <annotation>
            <documentation>-- Name -- link to online version -- Definition -- Link to an online version of the document</documentation>
          </annotation>
          <complexType>
            <simpleContent>
              <extension base="anyURI">
                <attribute name="nilReason" type="gml:NilReasonType"/>
              </extension>
            </simpleContent>
          </complexType>
        </element>
        <element name="specificReference" nillable="true" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>-- Name -- specific reference -- Definition -- Reference to a specific part of the document. -- Description -- EXAMPLE For legal documents, this attribute can contain a reference to article(s) that specify a specific requirement or obligation.</documentation>
          </annotation>
          <complexType>
            <simpleContent>
              <extension base="string">
                <attribute name="nilReason" type="gml:NilReasonType"/>
              </extension>
            </simpleContent>
          </complexType>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type base2:OfficialJournalInformationPropertyType
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Diagram
DiagramBaseTypes2_xsd.tmp#OfficialJournalInformation
Used by
Model
Children base2:OfficialJournalInformation
Source

<complexType name="OfficialJournalInformationPropertyType">
  <sequence>
    <element ref="base2:OfficialJournalInformation"/>
  </sequence>
</complexType>
Complex Type base2:OfficialJournalInformationType
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Diagram
DiagramBaseTypes2_xsd.tmp#OfficialJournalInformationType_officialJournalIdentificationBaseTypes2_xsd.tmp#OfficialJournalInformationType_ISSNBaseTypes2_xsd.tmp#OfficialJournalInformationType_ISBNBaseTypes2_xsd.tmp#OfficialJournalInformationType_linkToJournal
Used by
Model
Children base2:ISBN, base2:ISSN, base2:linkToJournal, base2:officialJournalIdentification
Source

<complexType name="OfficialJournalInformationType">
  <sequence>
    <element name="officialJournalIdentification" type="string">
      <annotation>
        <documentation>-- Name -- official journal identification -- Definition -- Reference to the location within the official journal within which the legislative instrument was published. This reference shall be comprised of three parts: - the title of the official journal; - the volume and/or series number; - Page number(s); -- Description -- EXAMPLE: Official Journal of European Union (OJEU), L108, Volume 50, 1-14</documentation>
      </annotation>
    </element>
    <element name="ISSN" type="string" minOccurs="0">
      <annotation>
        <documentation>-- Name -- ISSN -- Definition -- The International Standard Serial Number (ISSN) is an eight-digit number that identifies the periodical publication in which the legislative instrument was published. -- Description -- NOTE: Periodical publilcations are issued in successive parts, usually having numerical or chronological designations and required that each serial publication can be uniquely identified. EXAMPLE: OJ Series in which INSPIRE Directive is published has been assigned the ISSN: 1725-2555</documentation>
      </annotation>
    </element>
    <element name="ISBN" type="string" minOccurs="0">
      <annotation>
        <documentation>-- Name -- ISBN -- Definition -- International Standard Book Number (ISBN) is an nine-digit number that uniquely identifies the book in which the legislative instrument was published.</documentation>
      </annotation>
    </element>
    <element name="linkToJournal" type="anyURI" minOccurs="0">
      <annotation>
        <documentation>-- Name -- link to online version -- Definition -- Link to an online version of the official journal</documentation>
      </annotation>
    </element>
  </sequence>
</complexType>
Complex Type base2:RelatedPartyType
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Diagram
DiagramBaseTypes2_xsd.tmp#RelatedPartyType_individualNameBaseTypes2_xsd.tmp#RelatedPartyType_organisationNameBaseTypes2_xsd.tmp#RelatedPartyType_positionNameBaseTypes2_xsd.tmp#RelatedPartyType_contactBaseTypes2_xsd.tmp#RelatedPartyType_role
Used by
Model
Children base2:contact, base2:individualName, base2:organisationName, base2:positionName, base2:role
Source

<complexType name="RelatedPartyType">
  <sequence>
    <element name="individualName" type="gmd:PT_FreeText_PropertyType" nillable="true" minOccurs="0">
      <annotation>
        <documentation>-- Name -- individual name -- Definition -- Name of the related person.</documentation>
      </annotation>
    </element>
    <element name="organisationName" type="gmd:PT_FreeText_PropertyType" nillable="true" minOccurs="0">
      <annotation>
        <documentation>-- Name -- organisation name -- Definition -- Name of the related organisation.</documentation>
      </annotation>
    </element>
    <element name="positionName" type="gmd:PT_FreeText_PropertyType" nillable="true" minOccurs="0">
      <annotation>
        <documentation>-- Name -- position name -- Definition -- Position of the party in relation to a resource, such as head of department.</documentation>
      </annotation>
    </element>
    <element name="contact" nillable="true" minOccurs="0">
      <annotation>
        <documentation>-- Name -- contact -- Definition -- Contact information for the related party.</documentation>
      </annotation>
      <complexType>
        <sequence>
          <element ref="base2:Contact"/>
        </sequence>
        <attribute name="nilReason" type="gml:NilReasonType"/>
      </complexType>
    </element>
    <element name="role" type="gml:ReferenceType" nillable="true" minOccurs="0" maxOccurs="unbounded">
      <annotation>
        <documentation>-- Definition -- Role(s) of the party in relation to a resource, such as owner.</documentation>
        <appinfo>
          <taggedValue xmlns="http://www.interactive-instruments.de/ShapeChange/AppInfo" tag="obligation">TG</taggedValue>
        </appinfo>
      </annotation>
    </element>
  </sequence>
</complexType>
Complex Type base2:ContactType
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Diagram
DiagramBaseTypes2_xsd.tmp#ContactType_addressBaseTypes2_xsd.tmp#ContactType_contactInstructionsBaseTypes2_xsd.tmp#ContactType_electronicMailAddressBaseTypes2_xsd.tmp#ContactType_hoursOfServiceBaseTypes2_xsd.tmp#ContactType_telephoneFacsimileBaseTypes2_xsd.tmp#ContactType_telephoneVoiceBaseTypes2_xsd.tmp#ContactType_website
Used by
Element base2:Contact
Model
Children base2:address, base2:contactInstructions, base2:electronicMailAddress, base2:hoursOfService, base2:telephoneFacsimile, base2:telephoneVoice, base2:website
Source

<complexType name="ContactType">
  <sequence>
    <element name="address" nillable="true" minOccurs="0">
      <annotation>
        <documentation>-- Definition -- An address provided as free text.</documentation>
      </annotation>
      <complexType>
        <sequence>
          <element ref="ad:AddressRepresentation"/>
        </sequence>
        <attribute name="nilReason" type="gml:NilReasonType"/>
      </complexType>
    </element>
    <element name="contactInstructions" type="gmd:PT_FreeText_PropertyType" nillable="true" minOccurs="0">
      <annotation>
        <documentation>-- Definition -- Supplementary instructions on how or when to contact an individual or organisation. -- Description --</documentation>
      </annotation>
    </element>
    <element name="electronicMailAddress" nillable="true" minOccurs="0">
      <annotation>
        <documentation>-- Definition -- An address of the organisation's or individual's electronic mailbox. -- Description --</documentation>
      </annotation>
      <complexType>
        <simpleContent>
          <extension base="string">
            <attribute name="nilReason" type="gml:NilReasonType"/>
          </extension>
        </simpleContent>
      </complexType>
    </element>
    <element name="hoursOfService" type="gmd:PT_FreeText_PropertyType" nillable="true" minOccurs="0">
      <annotation>
        <documentation>-- Definition -- Periods of time when the organisation or individual can be contacted. -- Description --</documentation>
      </annotation>
    </element>
    <element name="telephoneFacsimile" nillable="true" minOccurs="0" maxOccurs="unbounded">
      <annotation>
        <documentation>-- Definition -- Number of a facsimile machine of the organisation or individual. -- Description --</documentation>
      </annotation>
      <complexType>
        <simpleContent>
          <extension base="string">
            <attribute name="nilReason" type="gml:NilReasonType"/>
          </extension>
        </simpleContent>
      </complexType>
    </element>
    <element name="telephoneVoice" nillable="true" minOccurs="0" maxOccurs="unbounded">
      <annotation>
        <documentation>-- Definition -- Telephone number of the organisation or individual. -- Description --</documentation>
      </annotation>
      <complexType>
        <simpleContent>
          <extension base="string">
            <attribute name="nilReason" type="gml:NilReasonType"/>
          </extension>
        </simpleContent>
      </complexType>
    </element>
    <element name="website" nillable="true" minOccurs="0">
      <annotation>
        <documentation>-- Definition -- Pages provided on the World Wide Web by the organisation or individual. -- Description --</documentation>
      </annotation>
      <complexType>
        <simpleContent>
          <extension base="anyURI">
            <attribute name="nilReason" type="gml:NilReasonType"/>
          </extension>
        </simpleContent>
      </complexType>
    </element>
  </sequence>
</complexType>
Complex Type base2:ThematicIdentifierType
Namespace http://inspire.ec.europa.eu/schemas/base2/1.0
Diagram
DiagramBaseTypes2_xsd.tmp#ThematicIdentifierType_identifierBaseTypes2_xsd.tmp#ThematicIdentifierType_identifierScheme
Used by
Model
Children base2:identifier, base2:identifierScheme
Source

<complexType name="ThematicIdentifierType">
  <sequence>
    <element name="identifier" type="string">
      <annotation>
        <documentation>-- Name -- identifier -- Definition -- Unique identifier used to identify the spatial object within the specified identification scheme.</documentation>
      </annotation>
    </element>
    <element name="identifierScheme" type="string">
      <annotation>
        <documentation>-- Name -- identifier scheme -- Definition -- Identifier defining the scheme used to assign the identifier. -- Description -- NOTE 1: Reporting requirements for different environmental legislation mandate that each spatial object is assigned an identifier conforming to specific lexical rules. NOTE 2: These rules are often inconsistent so a spatial object may be assigned multiple identifiers which are used for object referencing to link information to the spatial object.</documentation>
      </annotation>
    </element>
  </sequence>
</complexType>
Attribute base2:DocumentCitationType / base2:shortName / @nilReason
Namespace No namespace
Type gml:NilReasonType
Properties
content simple
Used by
Source

<attribute name="nilReason" type="gml:NilReasonType"/>
Attribute base2:DocumentCitationType / base2:date / @nilReason
Namespace No namespace
Type gml:NilReasonType
Properties
content simple
Used by
Source

<attribute name="nilReason" type="gml:NilReasonType"/>
Attribute base2:DocumentCitationType / base2:link / @nilReason
Namespace No namespace
Type gml:NilReasonType
Properties
Used by
Source
Attribute base2:DocumentCitationType / base2:specificReference / @nilReason
Namespace No namespace
Type gml:NilReasonType
Properties
content simple
Used by
Source

<attribute name="nilReason" type="gml:NilReasonType"/>
Attribute base2:ContactType / base2:address / @nilReason
Namespace No namespace
Type gml:NilReasonType
Properties
content simple
Used by
Source

<attribute name="nilReason" type="gml:NilReasonType"/>
Attribute base2:ContactType / base2:electronicMailAddress / @nilReason
Namespace No namespace
Type gml:NilReasonType
Properties
content simple
Used by
Source

<attribute name="nilReason" type="gml:NilReasonType"/>
Attribute base2:ContactType / base2:telephoneFacsimile / @nilReason
Namespace No namespace
Type gml:NilReasonType
Properties
content simple
Used by
Source

<attribute name="nilReason" type="gml:NilReasonType"/>
Attribute base2:ContactType / base2:telephoneVoice / @nilReason
Namespace No namespace
Type gml:NilReasonType
Properties
content simple
Used by
Source

<attribute name="nilReason" type="gml:NilReasonType"/>
Attribute base2:ContactType / base2:website / @nilReason
Namespace No namespace
Type gml:NilReasonType
Properties
content simple
Used by
Source

<attribute name="nilReason" type="gml:NilReasonType"/>
Attribute base2:RelatedPartyType / base2:contact / @nilReason
Namespace No namespace
Type gml:NilReasonType
Properties
content simple
Used by
Source

<attribute name="nilReason" type="gml:NilReasonType"/>
XML Schema documentation generated by ® XML Editor.
