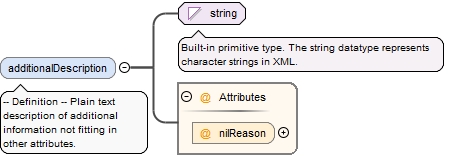

<element name="additionalDescription" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- Plain text description of additional information not fitting in other attributes.</documentation></annotation><complexType><simpleContent><extension base="string"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>

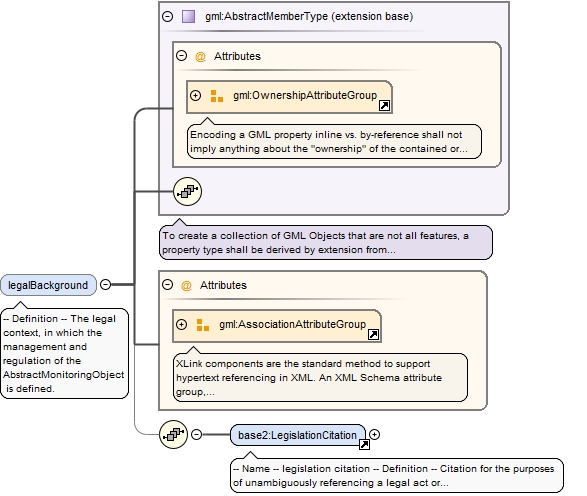

<element name="legalBackground" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- The legal context, in which the management and regulation of the AbstractMonitoringObject is defined.</documentation></annotation><complexType><complexContent><extension base="gml:AbstractMemberType"><sequence minOccurs="0"><element ref="base2:LegislationCitation"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/></extension></complexContent></complexType></element>

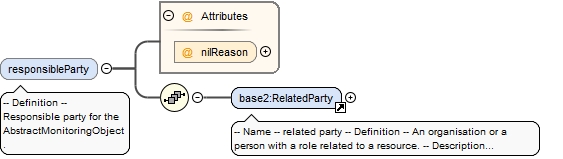

<element name="responsibleParty" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- Responsible party for the AbstractMonitoringObject.</documentation></annotation><complexType><sequence><element ref="base2:RelatedParty"/></sequence><attribute name="nilReason" type="gml:NilReasonType"/></complexType></element>

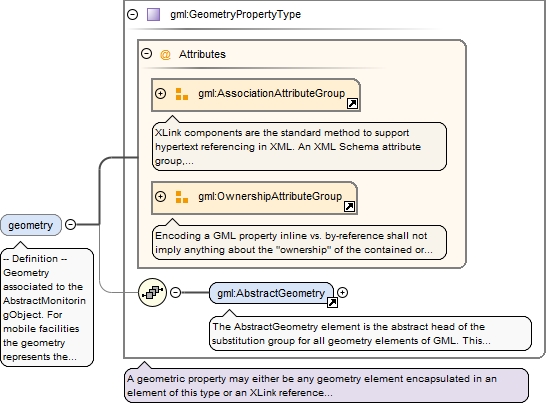

-- Definition --Geometry associated to the AbstractMonitoringObject.For mobile facilities the geometry represents the area the facility is expected to measure in.
<element name="geometry" type="gml:GeometryPropertyType" minOccurs="0"><annotation><documentation>-- Definition -- Geometry associated to the AbstractMonitoringObject. For mobile facilities the geometry represents the area the facility is expected to measure in.</documentation></annotation></element>

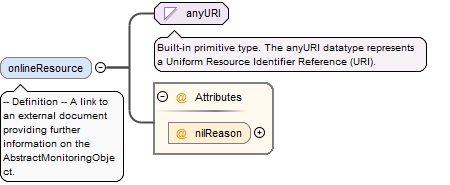

<element name="onlineResource" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- A link to an external document providing further information on the AbstractMonitoringObject.</documentation></annotation><complexType><simpleContent><extension base="anyURI"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>
<element name="purpose" type="gml:ReferenceType" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- Reason for which the AbstractMonitoringObject has been generated.</documentation></annotation></element>

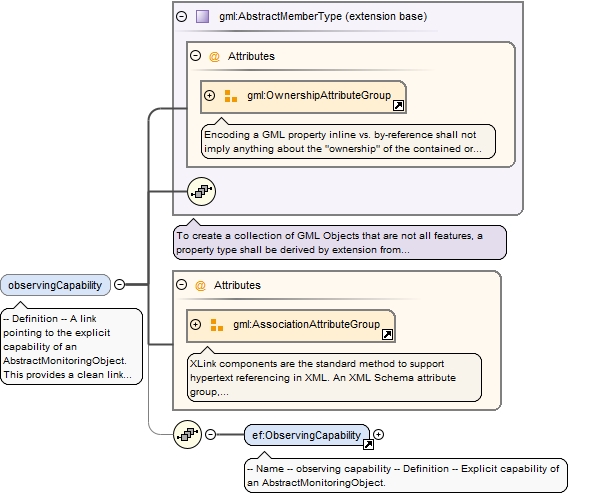

-- Definition --A link pointing to the explicit capability of an AbstractMonitoringObject. This provides a clean link between the observed property, the procedure used as well as the location of the measurement
<element name="observingCapability" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- A link pointing to the explicit capability of an AbstractMonitoringObject. This provides a clean link between the observed property, the procedure used as well as the location of the measurement</documentation></annotation><complexType><complexContent><extension base="gml:AbstractMemberType"><sequence minOccurs="0"><element ref="ef:ObservingCapability"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/></extension></complexContent></complexType></element>

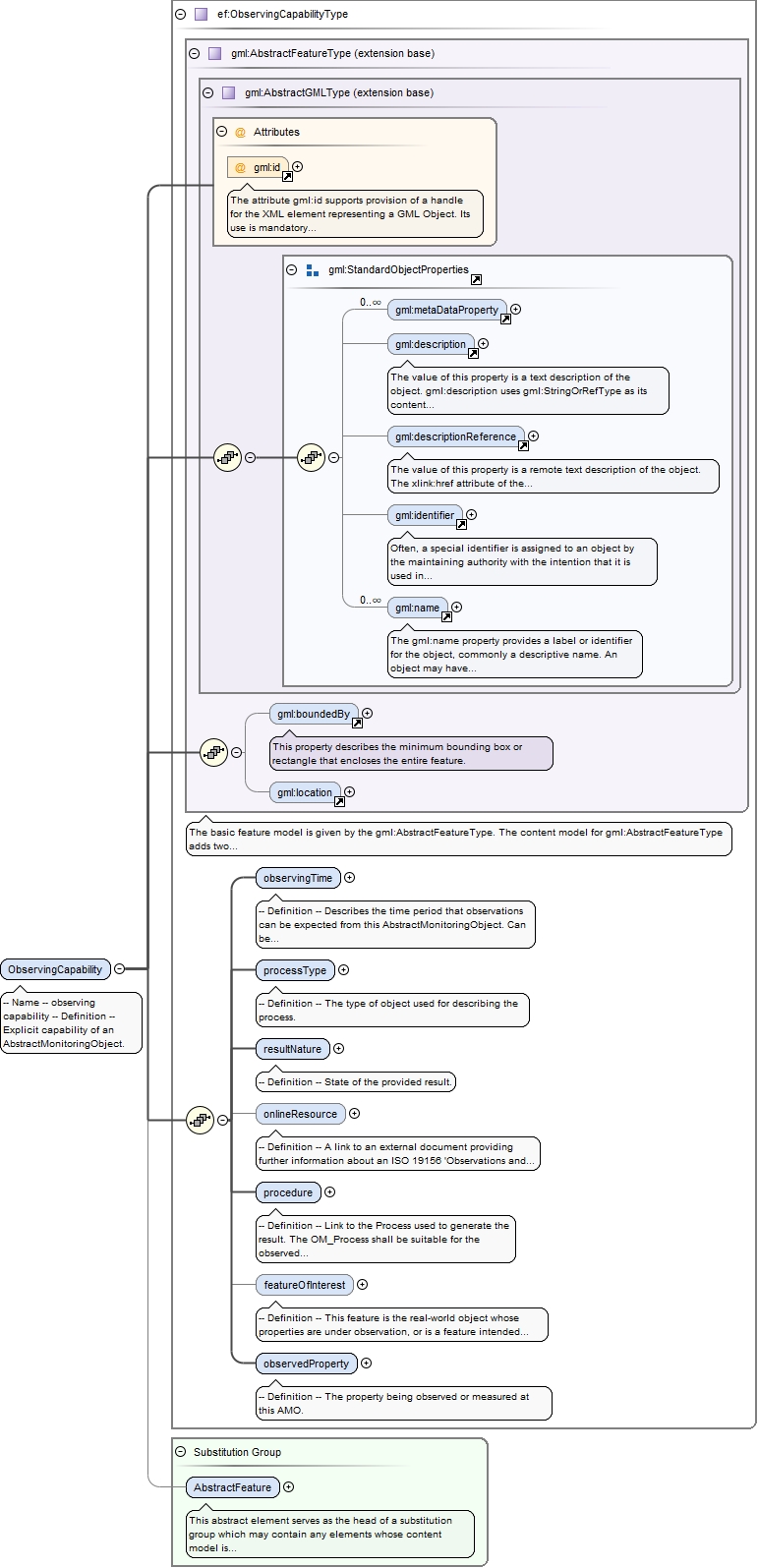

Element ef:ObservingCapability
Namespace
http://inspire.ec.europa.eu/schemas/ef/3.0
Annotations
-- Name --observing capability-- Definition --Explicit capability of an AbstractMonitoringObject.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name="ObservingCapability" type="ef:ObservingCapabilityType" substitutionGroup="gml:AbstractFeature"><annotation><documentation>-- Name -- observing capability -- Definition -- Explicit capability of an AbstractMonitoringObject.</documentation></annotation></element>

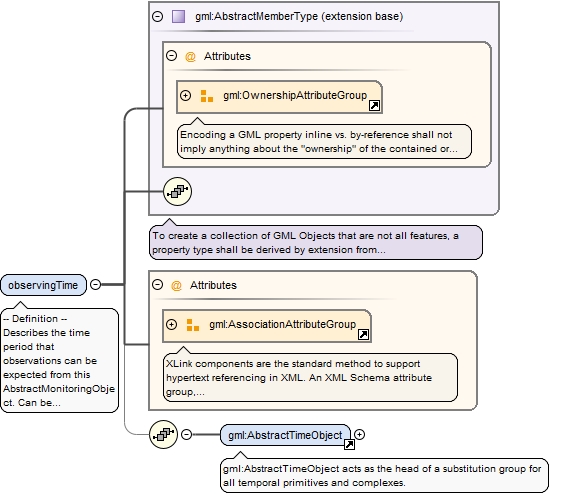

-- Definition --Describes the time period that observations can be expected from this AbstractMonitoringObject. Can be only a start time for running measurements or an interval.
<element name="observingTime" nillable="true"><annotation><documentation>-- Definition -- Describes the time period that observations can be expected from this AbstractMonitoringObject. Can be only a start time for running measurements or an interval.</documentation></annotation><complexType><complexContent><extension base="gml:AbstractMemberType"><sequence minOccurs="0"><element ref="gml:AbstractTimeObject"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/></extension></complexContent></complexType></element>

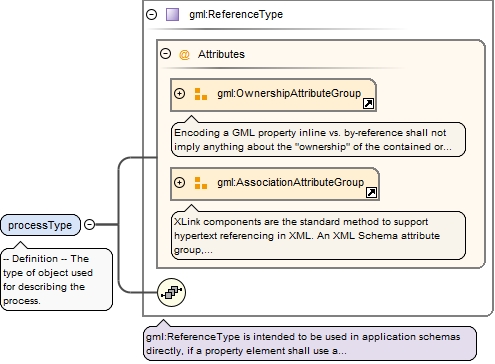

<element name="processType" type="gml:ReferenceType" nillable="true"><annotation><documentation>-- Definition -- The type of object used for describing the process.</documentation></annotation></element>

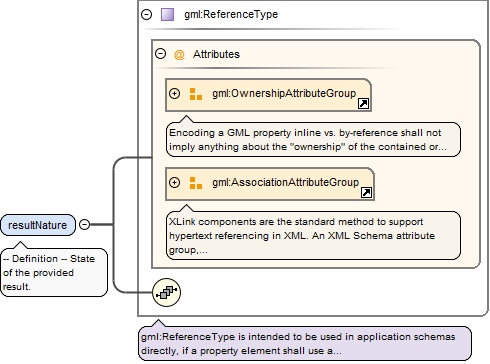

<element name="resultNature" type="gml:ReferenceType" nillable="true"><annotation><documentation>-- Definition -- State of the provided result.</documentation></annotation></element>

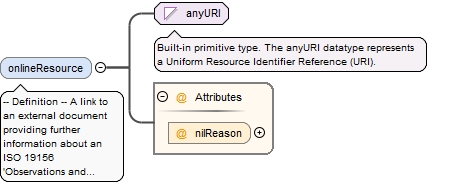

-- Definition --A link to an external document providing further information about an ISO 19156 'Observations and Measurements' compliant data model used to store or exchange Observations and Measurements acquired.
<element name="onlineResource" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- A link to an external document providing further information about an ISO 19156 'Observations and Measurements' compliant data model used to store or exchange Observations and Measurements acquired.</documentation></annotation><complexType><simpleContent><extension base="anyURI"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>

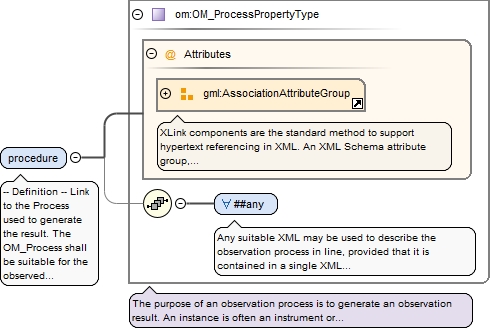

-- Definition --Link to the Process used to generate the result. The OM_Process shall be suitable for the observed property. As a corollary, details of the observed property are constrained by the procedure used.
<element name="procedure" type="om:OM_ProcessPropertyType"><annotation><documentation>-- Definition -- Link to the Process used to generate the result. The OM_Process shall be suitable for the observed property. As a corollary, details of the observed property are constrained by the procedure used.</documentation></annotation></element>

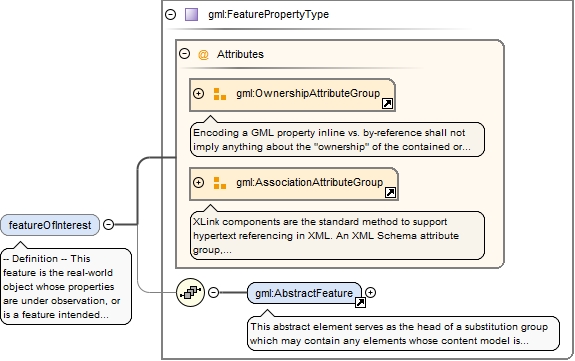

<element name="featureOfInterest" type="gml:FeaturePropertyType" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- This feature is the real-world object whose properties are under observation, or is a feature intended to sample the real-world object</documentation></annotation></element>

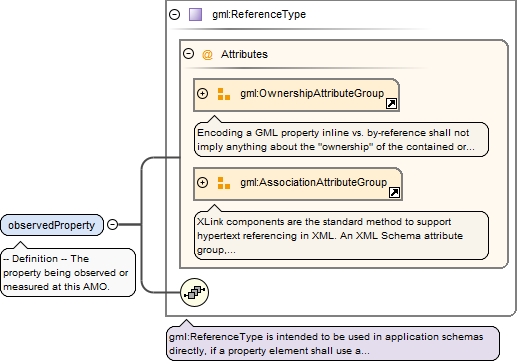

<element name="observedProperty" type="gml:ReferenceType"><annotation><documentation>-- Definition -- The property being observed or measured at this AMO.</documentation></annotation></element>

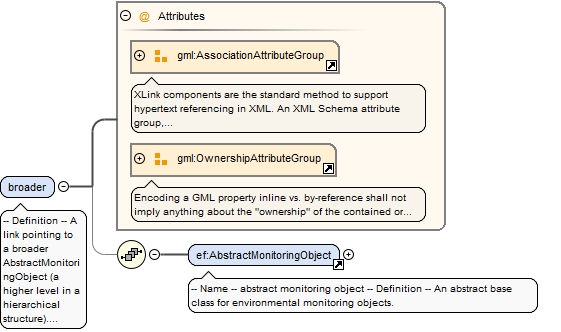

-- Definition --A link pointing to a broader AbstractMonitoringObject (a higher level in a hierarchical structure).The association has additionalproperties as defined in theassociation class Hierarchy.
<element name="broader" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- A link pointing to a broader AbstractMonitoringObject (a higher level in a hierarchical structure). The association has additional properties as defined in the association class Hierarchy.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:narrower</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:Hierarchy"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element>

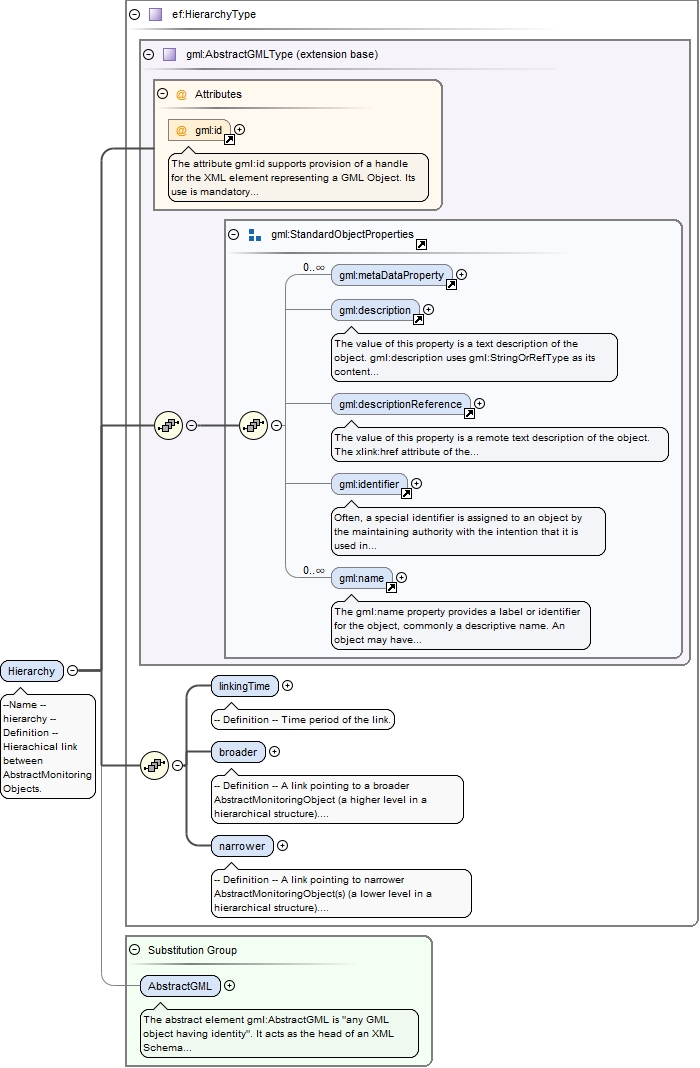

Element ef:Hierarchy
Namespace
http://inspire.ec.europa.eu/schemas/ef/3.0
Annotations
--Name --hierarchy-- Definition --Hierachical link between AbstractMonitoringObjects.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name="Hierarchy" type="ef:HierarchyType" substitutionGroup="gml:AbstractGML"><annotation><documentation>--Name -- hierarchy -- Definition -- Hierachical link between AbstractMonitoringObjects.</documentation></annotation></element>

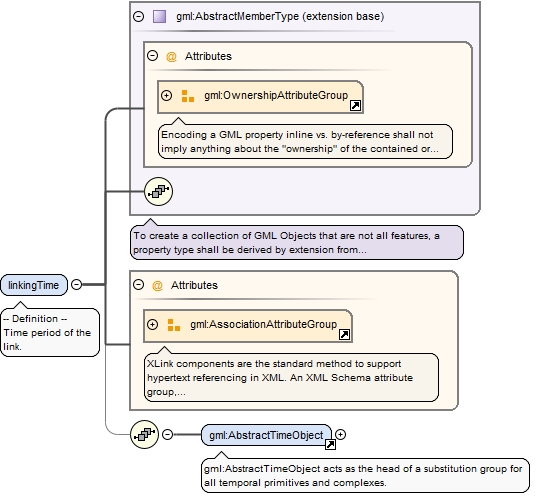

<element name="linkingTime" nillable="true"><annotation><documentation>-- Definition -- Time period of the link.</documentation></annotation><complexType><complexContent><extension base="gml:AbstractMemberType"><sequence minOccurs="0"><element ref="gml:AbstractTimeObject"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/></extension></complexContent></complexType></element>
-- Definition --A link pointing to a broader AbstractMonitoringObject (a higher level in a hierarchical structure).The association has additionalproperties as defined in theassociation class Hierarchy.
<element name="broader" nillable="true"><annotation><documentation>-- Definition -- A link pointing to a broader AbstractMonitoringObject (a higher level in a hierarchical structure). The association has additional properties as defined in the association class Hierarchy.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:narrower</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:AbstractMonitoringObject"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element>

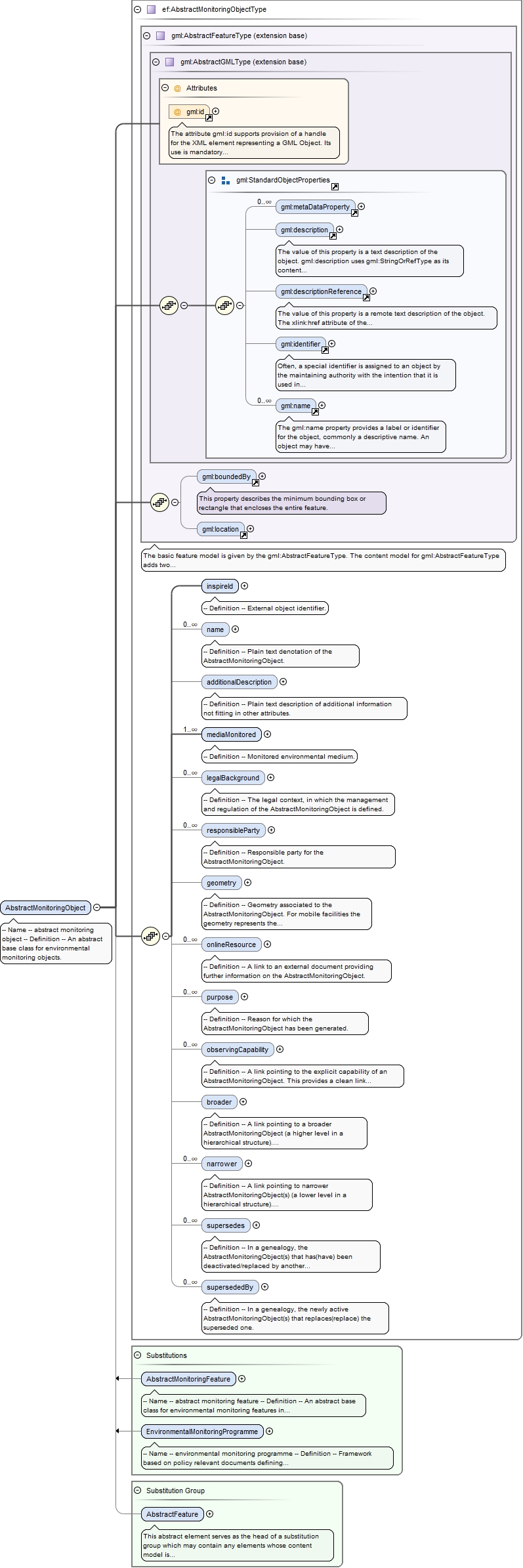

Element ef:AbstractMonitoringObject
Namespace
http://inspire.ec.europa.eu/schemas/ef/3.0
Annotations
-- Name --abstract monitoring object-- Definition --An abstract base class for environmental monitoring objects.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name="AbstractMonitoringObject" type="ef:AbstractMonitoringObjectType" abstract="true" substitutionGroup="gml:AbstractFeature"><annotation><documentation>-- Name -- abstract monitoring object -- Definition -- An abstract base class for environmental monitoring objects.</documentation></annotation></element>

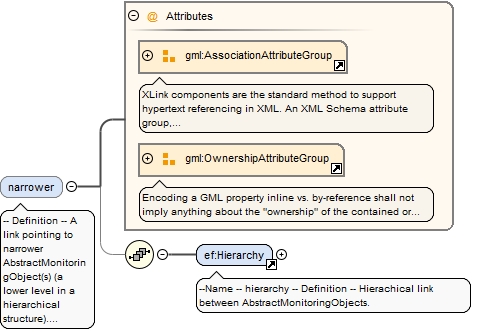

-- Definition --A link pointing to narrower AbstractMonitoringObject(s) (a lower level in a hierarchical structure).The association has additionalproperties as defined in theassociation class Hierarchy.
<element name="narrower" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- A link pointing to narrower AbstractMonitoringObject(s) (a lower level in a hierarchical structure). The association has additional properties as defined in the association class Hierarchy.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:broader</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:Hierarchy"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element>

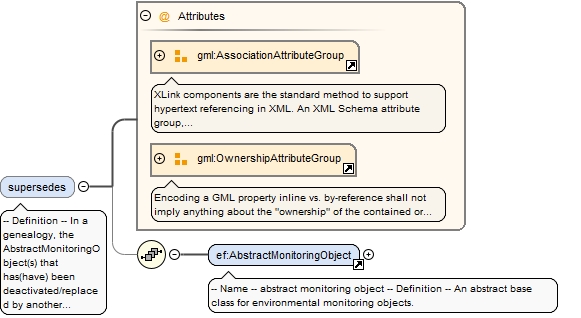

<element name="supersedes" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- In a genealogy, the AbstractMonitoringObject(s) that has(have) been deactivated/replaced by another one.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:supersededBy</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:AbstractMonitoringObject"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element>

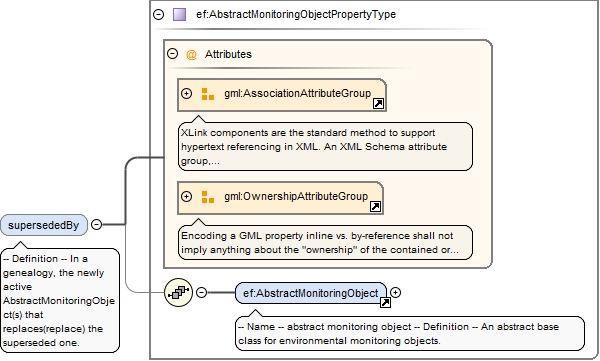

<element name="supersededBy" type="ef:AbstractMonitoringObjectPropertyType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- In a genealogy, the newly active AbstractMonitoringObject(s) that replaces(replace) the superseded one.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:supersedes</reversePropertyName></appinfo></annotation></element>

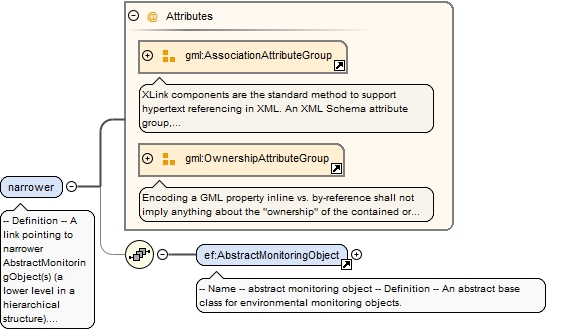

-- Definition --A link pointing to narrower AbstractMonitoringObject(s) (a lower level in a hierarchical structure).The association has additionalproperties as defined in theassociation class Hierarchy.
<element name="narrower" nillable="true"><annotation><documentation>-- Definition -- A link pointing to narrower AbstractMonitoringObject(s) (a lower level in a hierarchical structure). The association has additional properties as defined in the association class Hierarchy.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:broader</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:AbstractMonitoringObject"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element>
<element name="reportedTo" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- Information on the involvement of the AbstractMonitoringFeature in reporting.</documentation></annotation><complexType><sequence><element ref="ef:ReportToLegalAct"/></sequence><attribute name="nilReason" type="gml:NilReasonType"/></complexType></element>
Element ef:ReportToLegalAct
Namespace
http://inspire.ec.europa.eu/schemas/ef/3.0
Annotations
-- Name --report to legal act-- Definition --Information on the involvement of an AbstractMonitoringFeature in reporting. The information is specific per submitted reporting envelope and not per obligation/agreement.-- Description --From INSPIRE perspective, an AbstractMonitoringFeature requires the provision of ISO 19156 compliant observations & measurements only in the case that these have been required by a legal reporting obligation or a commonly agreed voluntarily data flow using INSPIRE EF dataspecification for the definition of datastructure.
<element name="ReportToLegalAct" type="ef:ReportToLegalActType" substitutionGroup="gml:AbstractObject"><annotation><documentation>-- Name -- report to legal act -- Definition -- Information on the involvement of an AbstractMonitoringFeature in reporting. The information is specific per submitted reporting envelope and not per obligation/agreement. -- Description -- From INSPIRE perspective, an AbstractMonitoringFeature requires the provision of ISO 19156 compliant observations & measurements only in the case that these have been required by a legal reporting obligation or a commonly agreed voluntarily data flow using INSPIRE EF dataspecification for the definition of datastructure.</documentation></annotation></element>

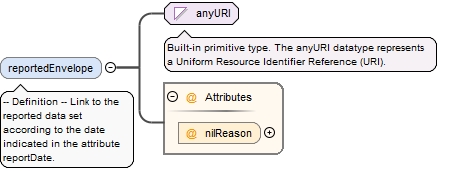

<element name="reportedEnvelope" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- Link to the reported data set according to the date indicated in the attribute reportDate.</documentation></annotation><complexType><simpleContent><extension base="anyURI"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>

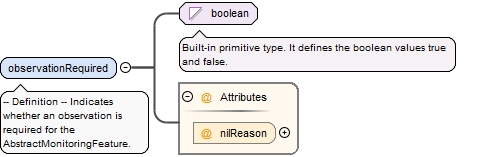

<element name="observationRequired" nillable="true"><annotation><documentation>-- Definition -- Indicates whether an observation is required for the AbstractMonitoringFeature.</documentation></annotation><complexType><simpleContent><extension base="boolean"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>

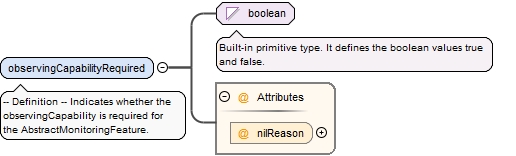

<element name="observingCapabilityRequired" nillable="true"><annotation><documentation>-- Definition -- Indicates whether the observingCapability is required for the AbstractMonitoringFeature.</documentation></annotation><complexType><simpleContent><extension base="boolean"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>

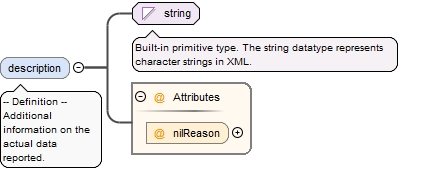

<element name="description" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- Additional information on the actual data reported.</documentation></annotation><complexType><simpleContent><extension base="string"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>

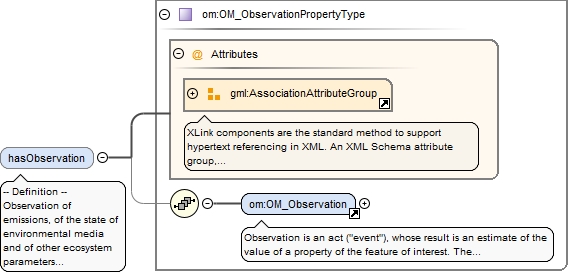

-- Definition --Observation of emissions, of the state of environmental media and of other ecosystem parameters (biodiversity, ecological conditions of vegetation, etc.) by or on behalf of public authorities at this AbstractMonitoringFeature.
<element name="hasObservation" type="om:OM_ObservationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- Observation of emissions, of the state of environmental media and of other ecosystem parameters (biodiversity, ecological conditions of vegetation, etc.) by or on behalf of public authorities at this AbstractMonitoringFeature.</documentation></annotation></element>

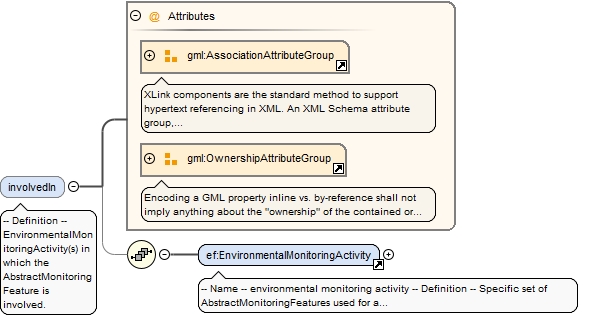

<element name="involvedIn" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- EnvironmentalMonitoringActivity(s) in which the AbstractMonitoringFeature is involved.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:uses</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:EnvironmentalMonitoringActivity"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element>

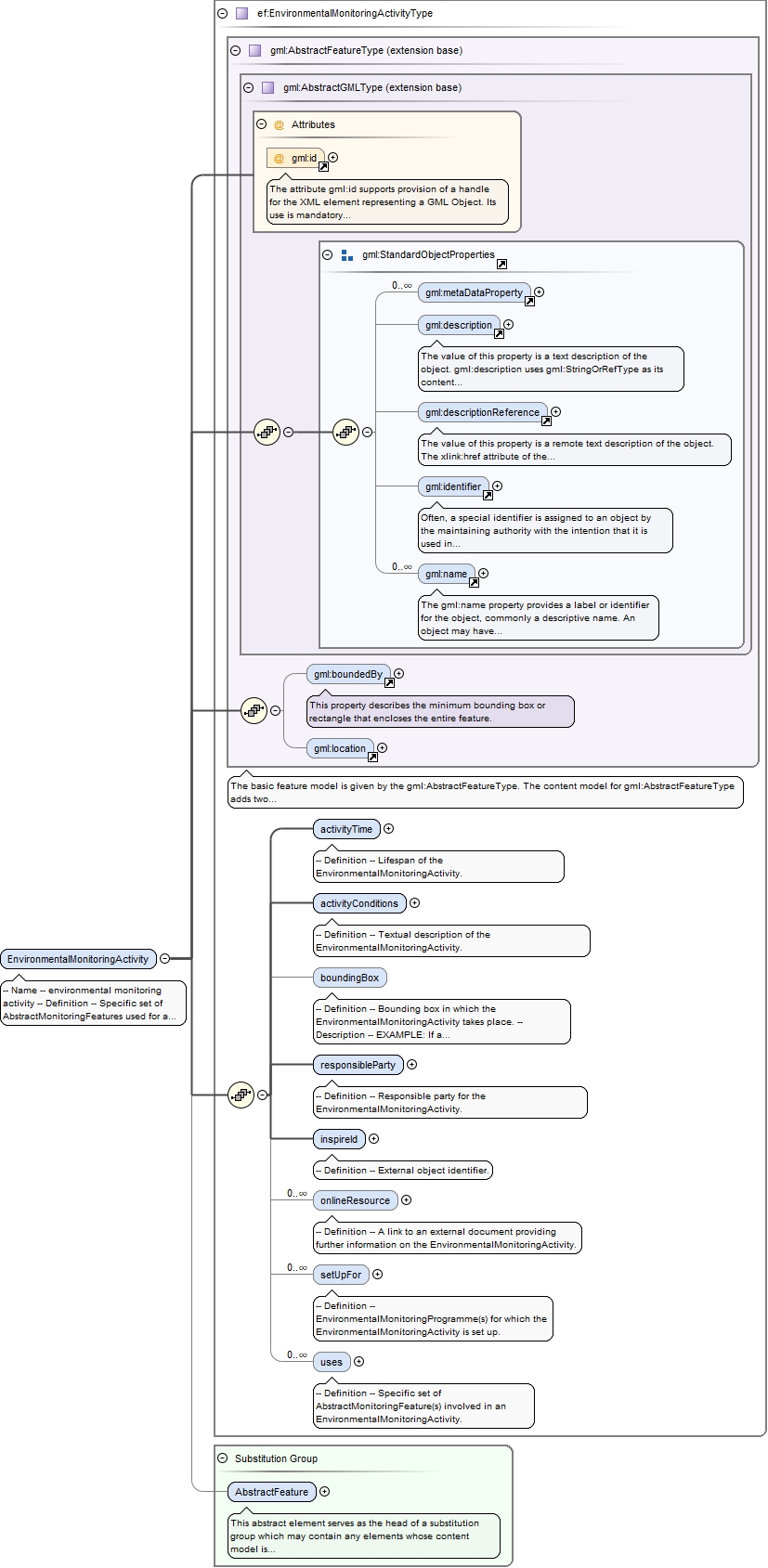

Element ef:EnvironmentalMonitoringActivity
Namespace
http://inspire.ec.europa.eu/schemas/ef/3.0
Annotations
-- Name --environmental monitoring activity-- Definition --Specific set of AbstractMonitoringFeatures used for a given domain in a coherent and concise timeframe, area and purpose. Usually the information collected is treated as one time step in a long term monitoring programme. It is a concrete realisation of a given EnvironmentalMonitoringProgramme.-- Description --For example a vessel could be equipped with a collection of EnvironmentalMonitoringFacilities for a given campaign (= EnvironmentalMonitoringActivity) fulfilling an EnvironmentalMonitoringProgramme requirements. Then, after a given period this exact same vessel could be equipped with another set of EnvironmentalMonitoringFacilities for another campaign fulfilling another EnvironmentalMonitoringProgramme requirements.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name="EnvironmentalMonitoringActivity" type="ef:EnvironmentalMonitoringActivityType" substitutionGroup="gml:AbstractFeature"><annotation><documentation>-- Name -- environmental monitoring activity -- Definition -- Specific set of AbstractMonitoringFeatures used for a given domain in a coherent and concise timeframe, area and purpose. Usually the information collected is treated as one time step in a long term monitoring programme. It is a concrete realisation of a given EnvironmentalMonitoringProgramme. -- Description -- For example a vessel could be equipped with a collection of EnvironmentalMonitoringFacilities for a given campaign (= EnvironmentalMonitoringActivity) fulfilling an EnvironmentalMonitoringProgramme requirements. Then, after a given period this exact same vessel could be equipped with another set of EnvironmentalMonitoringFacilities for another campaign fulfilling another EnvironmentalMonitoringProgramme requirements.</documentation></annotation></element>
-- Definition --Bounding box in which the EnvironmentalMonitoringActivity takes place. -- Description --EXAMPLE: If a research vessel has several monitoring activities (EnvironmentalMonitoringActivity) one wants to know where he cruised for each of those (EnvironmentaMonitoringActivity).
Diagram
Properties
minOccurs
0
nillable
true
Source
<element name="boundingBox" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- Bounding box in which the EnvironmentalMonitoringActivity takes place. -- Description -- EXAMPLE: If a research vessel has several monitoring activities (EnvironmentalMonitoringActivity) one wants to know where he cruised for each of those (EnvironmentaMonitoringActivity).</documentation></annotation></element>

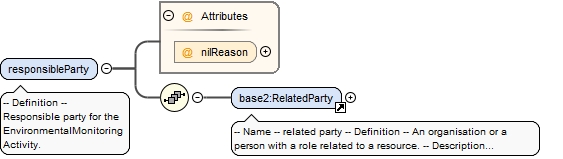

<element name="responsibleParty" nillable="true"><annotation><documentation>-- Definition -- Responsible party for the EnvironmentalMonitoringActivity.</documentation></annotation><complexType><sequence><element ref="base2:RelatedParty"/></sequence><attribute name="nilReason" type="gml:NilReasonType"/></complexType></element>
<element name="onlineResource" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- A link to an external document providing further information on the EnvironmentalMonitoringActivity.</documentation></annotation><complexType><simpleContent><extension base="anyURI"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>

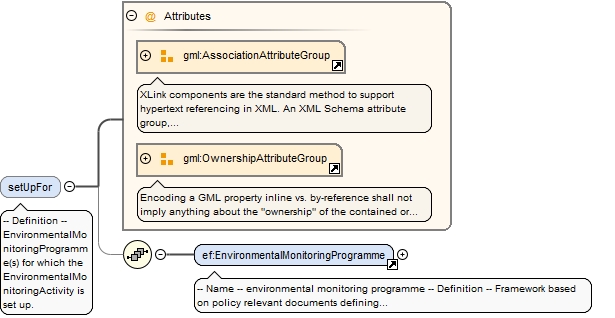

<element name="setUpFor" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- EnvironmentalMonitoringProgramme(s) for which the EnvironmentalMonitoringActivity is set up.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:triggers</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:EnvironmentalMonitoringProgramme"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element>

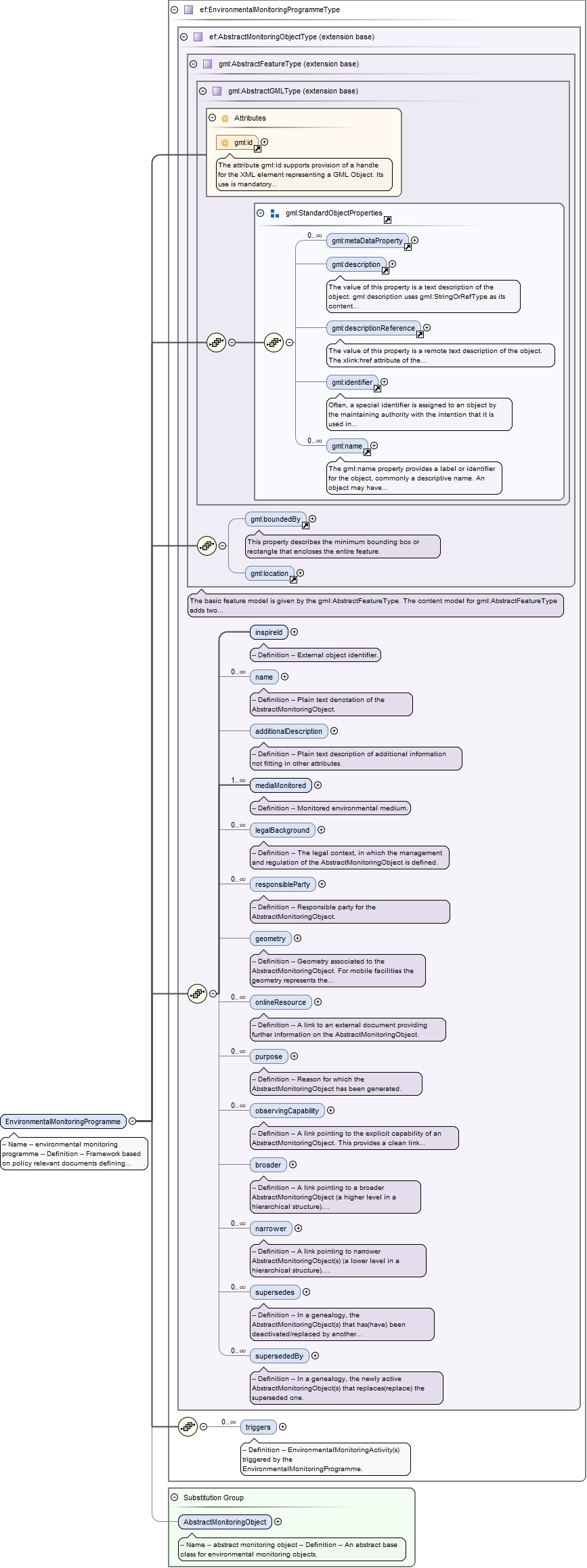

Element ef:EnvironmentalMonitoringProgramme
Namespace
http://inspire.ec.europa.eu/schemas/ef/3.0
Annotations
-- Name --environmental monitoring programme-- Definition --Framework based on policy relevant documents defining the target of a collection of observations and/or the deployment of AbstractMonitoringFeatures on the field. Usually an Environmental Monitoring Programme has a long term perspective over at least a few years.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name="EnvironmentalMonitoringProgramme" type="ef:EnvironmentalMonitoringProgrammeType" substitutionGroup="ef:AbstractMonitoringObject"><annotation><documentation>-- Name -- environmental monitoring programme -- Definition -- Framework based on policy relevant documents defining the target of a collection of observations and/or the deployment of AbstractMonitoringFeatures on the field. Usually an Environmental Monitoring Programme has a long term perspective over at least a few years.</documentation></annotation></element>

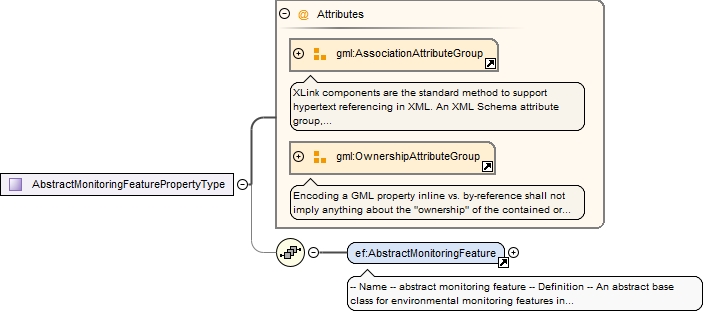

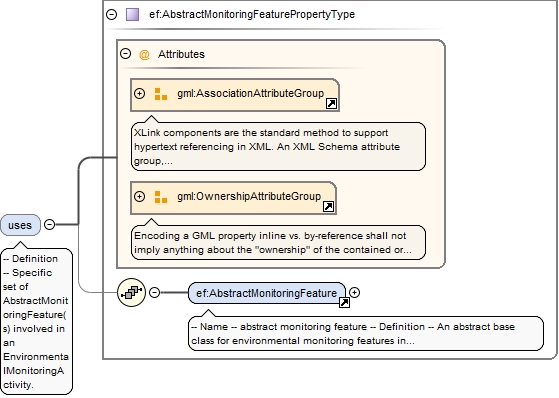

<element name="uses" type="ef:AbstractMonitoringFeaturePropertyType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- Specific set of AbstractMonitoringFeature(s) involved in an EnvironmentalMonitoringActivity.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:involvedIn</reversePropertyName></appinfo></annotation></element>

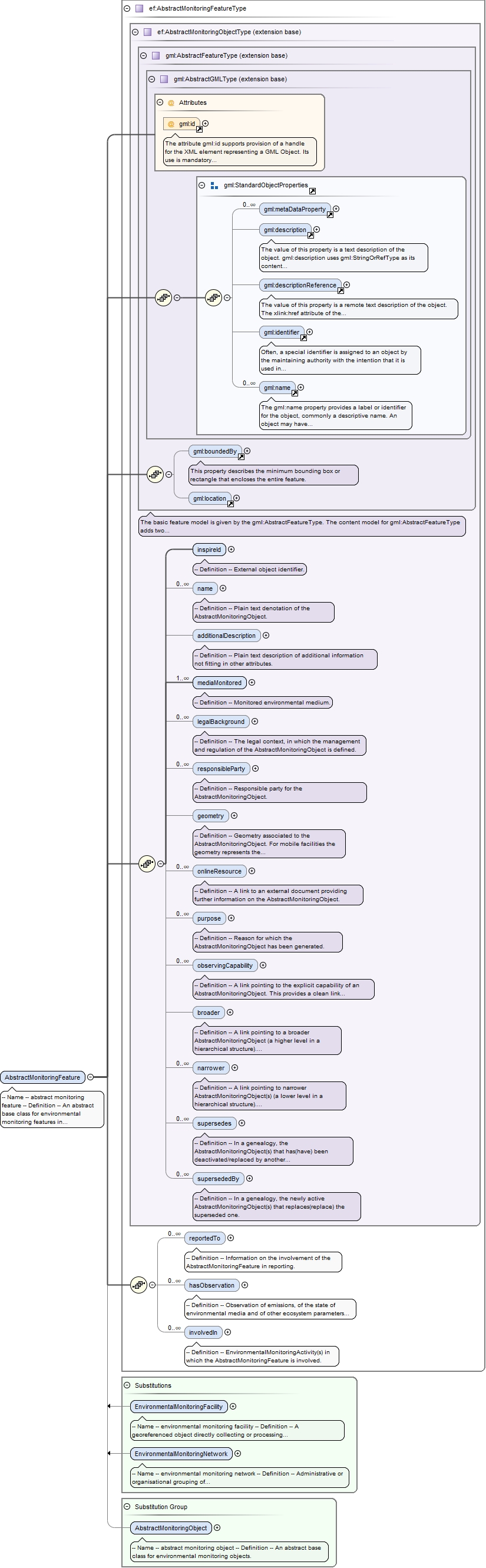

Element ef:AbstractMonitoringFeature
Namespace
http://inspire.ec.europa.eu/schemas/ef/3.0
Annotations
-- Name --abstract monitoring feature-- Definition --An abstract base class for environmental monitoring features in the real world (EnvironmentalMonitoringNetwork, EnvironmentalMonitoringFacility).-- Description --
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name="AbstractMonitoringFeature" type="ef:AbstractMonitoringFeatureType" abstract="true" substitutionGroup="ef:AbstractMonitoringObject"><annotation><documentation>-- Name -- abstract monitoring feature -- Definition -- An abstract base class for environmental monitoring features in the real world (EnvironmentalMonitoringNetwork, EnvironmentalMonitoringFacility). -- Description --</documentation></annotation></element>

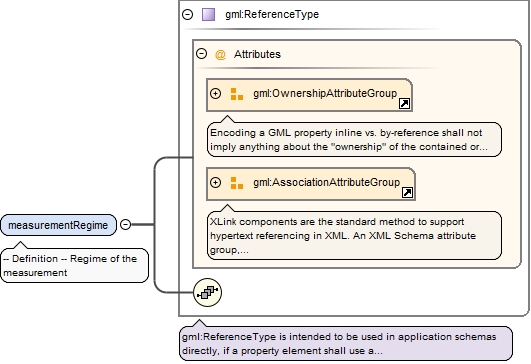

<element name="measurementRegime" type="gml:ReferenceType" nillable="true"><annotation><documentation>-- Definition -- Regime of the measurement</documentation></annotation></element>

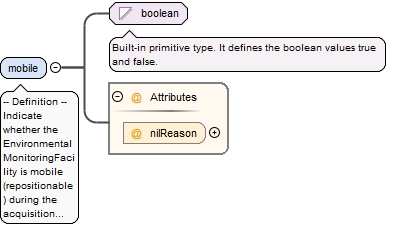

<element name="mobile" nillable="true"><annotation><documentation>-- Definition -- Indicate whether the EnvironmentalMonitoringFacility is mobile (repositionable) during the acquisition of the observation.</documentation></annotation><complexType><simpleContent><extension base="boolean"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>
-- Definition --Categorisation of EnvironmentalMonitoringFacilities generally used by domain and in national settings.-- Description --EXAMPLE: platform, site, station, sensor, ...
<element name="specialisedEMFType" type="gml:ReferenceType" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- Categorisation of EnvironmentalMonitoringFacilities generally used by domain and in national settings. -- Description -- EXAMPLE: platform, site, station, sensor, ...</documentation></annotation></element>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

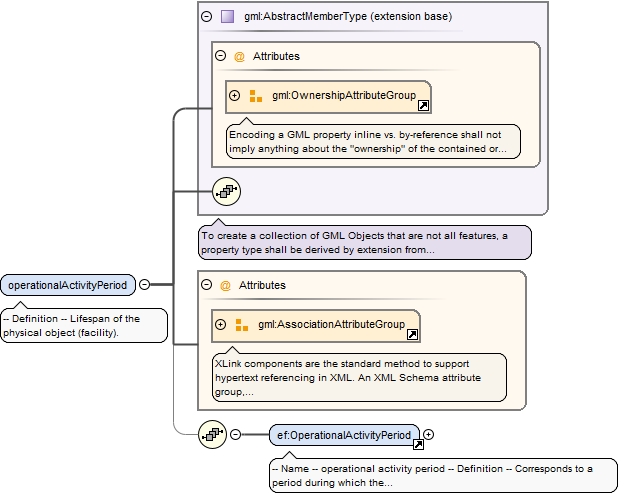

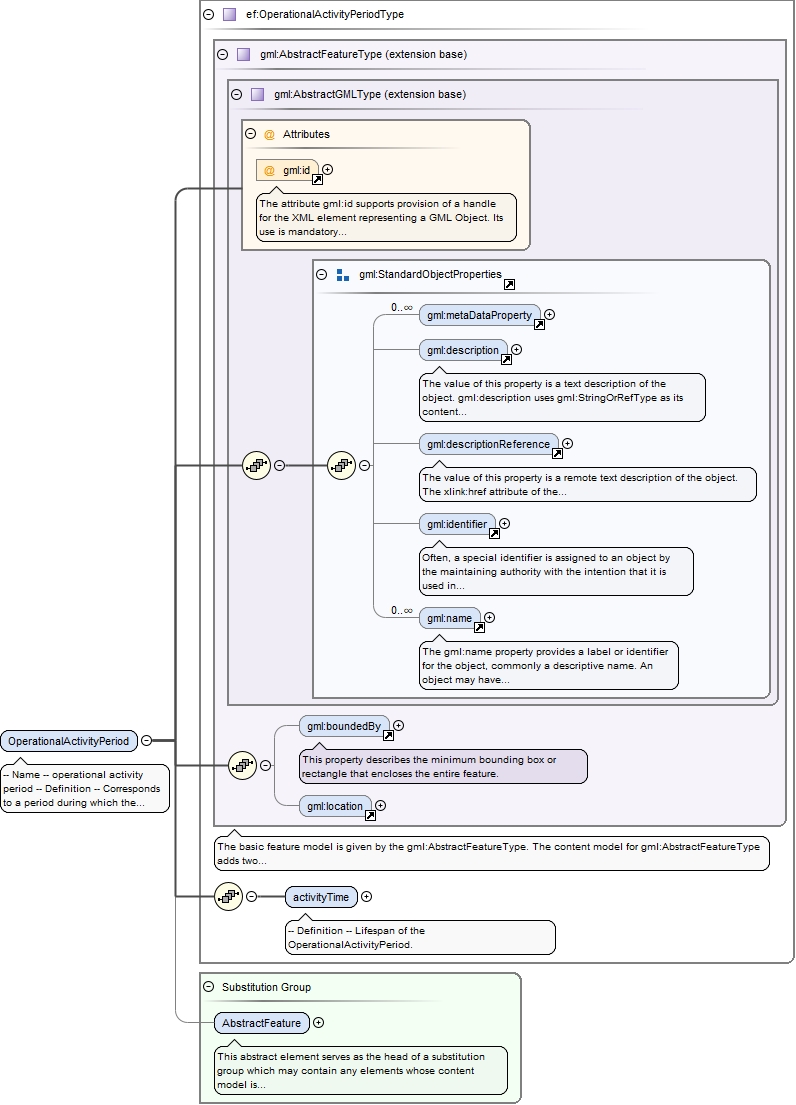

<element name="OperationalActivityPeriod" type="ef:OperationalActivityPeriodType" substitutionGroup="gml:AbstractFeature"><annotation><documentation>-- Name -- operational activity period -- Definition -- Corresponds to a period during which the EnvironmentalMonitoringFacility has been up and running.</documentation></annotation></element>

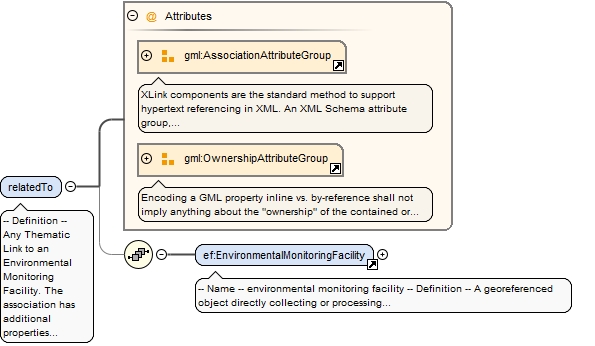

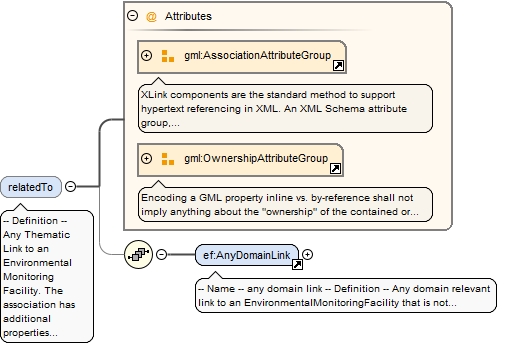

-- Definition --Any Thematic Link to an Environmental Monitoring Facility.The association has additional properties as defined in the association class AnyDomainLink.
<element name="relatedTo" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- Any Thematic Link to an Environmental Monitoring Facility. The association has additional properties as defined in the association class AnyDomainLink.</documentation></annotation><complexType><sequence minOccurs="0"><element ref="ef:AnyDomainLink"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element>

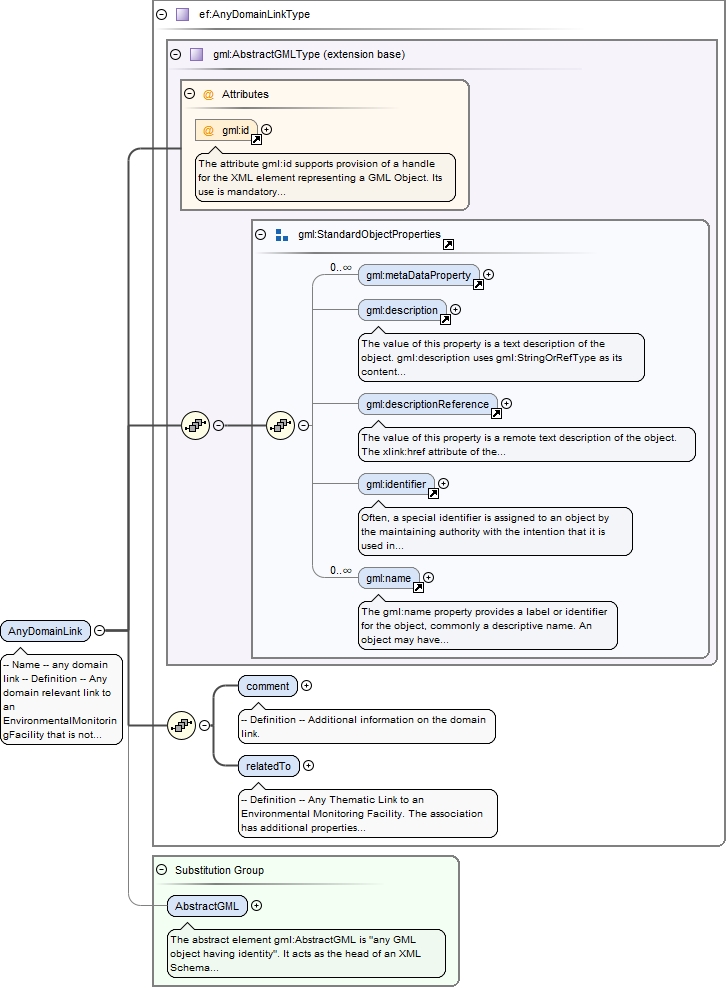

Element ef:AnyDomainLink
Namespace
http://inspire.ec.europa.eu/schemas/ef/3.0
Annotations
-- Name --any domain link-- Definition --Any domain relevant link to an EnvironmentalMonitoringFacility that is not hierarchical or associated with a notion of genealogy.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name="AnyDomainLink" type="ef:AnyDomainLinkType" substitutionGroup="gml:AbstractGML"><annotation><documentation>-- Name -- any domain link -- Definition -- Any domain relevant link to an EnvironmentalMonitoringFacility that is not hierarchical or associated with a notion of genealogy.</documentation></annotation></element>

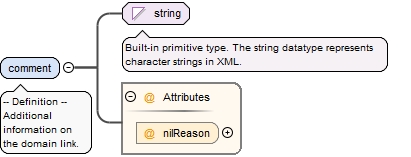

<element name="comment" nillable="true"><annotation><documentation>-- Definition -- Additional information on the domain link.</documentation></annotation><complexType><simpleContent><extension base="string"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element>
-- Definition --Any Thematic Link to an Environmental Monitoring Facility.The association has additional properties as defined in the association class AnyDomainLink.
<element name="relatedTo" nillable="true"><annotation><documentation>-- Definition -- Any Thematic Link to an Environmental Monitoring Facility. The association has additional properties as defined in the association class AnyDomainLink.</documentation></annotation><complexType><sequence minOccurs="0"><element ref="ef:EnvironmentalMonitoringFacility"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element>

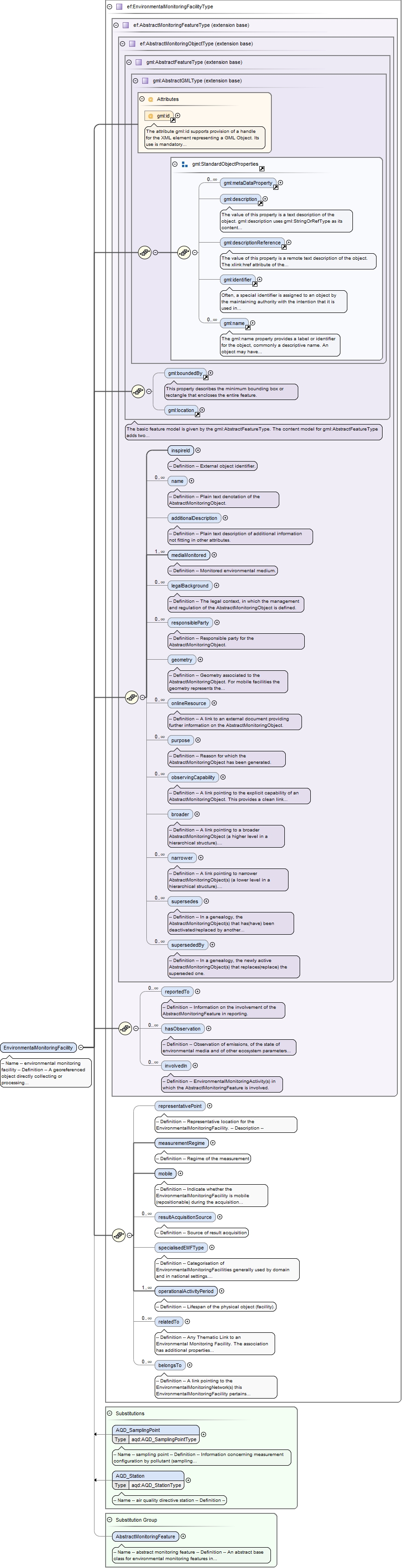

Element ef:EnvironmentalMonitoringFacility
Namespace
http://inspire.ec.europa.eu/schemas/ef/3.0
Annotations
-- Name --environmental monitoring facility-- Definition --A georeferenced object directly collecting or processing data about objects whose properties (e.g. physical, chemical, biological or other aspects of environmental conditions) are repeatedly observed or measured. An environmental monitoring facility can also host other environmental monitoring facilities.-- Description --NOTE 1: An EnvironmentalMonitoringFacility is not a facility in the common INSPIRE sense realised by the Generic Conceptual Model class ActivtiyComplex.NOTE 2: Laboratories are not EnvironmentalMonitoringFacilities from an INSPIRE perspective as the exact location of the laboratory does not add further information to the measurement. The methodology used in the laboratory should be provided with observational data.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name="EnvironmentalMonitoringFacility" type="ef:EnvironmentalMonitoringFacilityType" substitutionGroup="ef:AbstractMonitoringFeature"><annotation><documentation>-- Name -- environmental monitoring facility -- Definition -- A georeferenced object directly collecting or processing data about objects whose properties (e.g. physical, chemical, biological or other aspects of environmental conditions) are repeatedly observed or measured. An environmental monitoring facility can also host other environmental monitoring facilities. -- Description -- NOTE 1: An EnvironmentalMonitoringFacility is not a facility in the common INSPIRE sense realised by the Generic Conceptual Model class ActivtiyComplex. NOTE 2: Laboratories are not EnvironmentalMonitoringFacilities from an INSPIRE perspective as the exact location of the laboratory does not add further information to the measurement. The methodology used in the laboratory should be provided with observational data.</documentation></annotation></element>

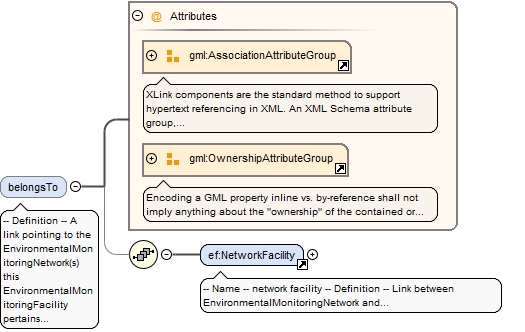

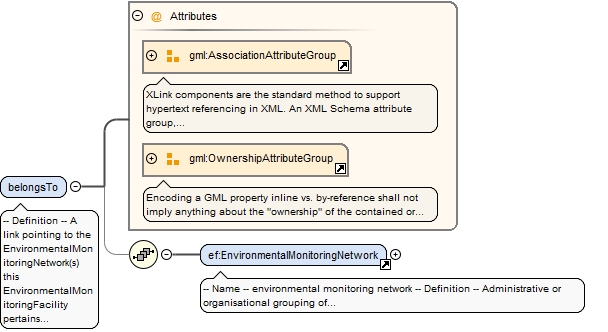

-- Definition --A link pointing to the EnvironmentalMonitoringNetwork(s) this EnvironmentalMonitoringFacility pertains to.The association has additional properties as defined in the association class NetworkFacility.
<element name="belongsTo" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- A link pointing to the EnvironmentalMonitoringNetwork(s) this EnvironmentalMonitoringFacility pertains to. The association has additional properties as defined in the association class NetworkFacility.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:contains</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:NetworkFacility"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element>

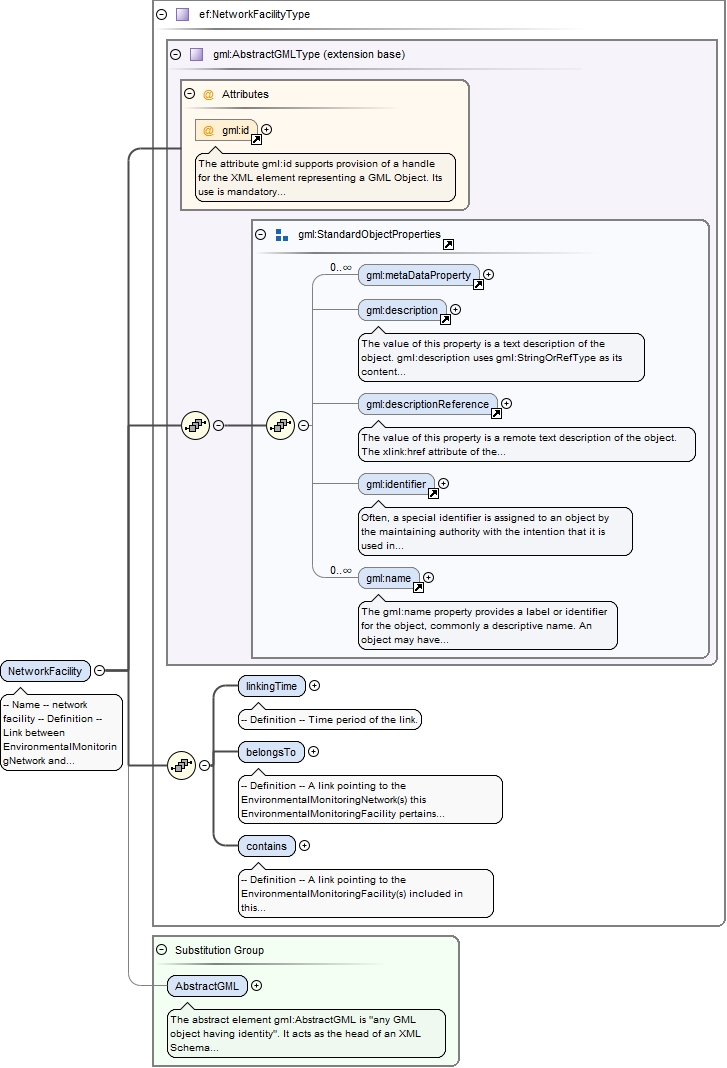

Element ef:NetworkFacility
Namespace
http://inspire.ec.europa.eu/schemas/ef/3.0
Annotations
-- Name --network facility-- Definition --Link between EnvironmentalMonitoringNetwork and EnvironmentalMonitoringFacility.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name="NetworkFacility" type="ef:NetworkFacilityType" substitutionGroup="gml:AbstractGML"><annotation><documentation>-- Name -- network facility -- Definition -- Link between EnvironmentalMonitoringNetwork and EnvironmentalMonitoringFacility.</documentation></annotation></element>
<element name="linkingTime" nillable="true"><annotation><documentation>-- Definition -- Time period of the link.</documentation></annotation><complexType><complexContent><extension base="gml:AbstractMemberType"><sequence minOccurs="0"><element ref="gml:AbstractTimeObject"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/></extension></complexContent></complexType></element>
-- Definition --A link pointing to the EnvironmentalMonitoringNetwork(s) this EnvironmentalMonitoringFacility pertains to.The association has additional properties as defined in the association class NetworkFacility.
<element name="belongsTo" nillable="true"><annotation><documentation>-- Definition -- A link pointing to the EnvironmentalMonitoringNetwork(s) this EnvironmentalMonitoringFacility pertains to. The association has additional properties as defined in the association class NetworkFacility.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:contains</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:EnvironmentalMonitoringNetwork"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element>

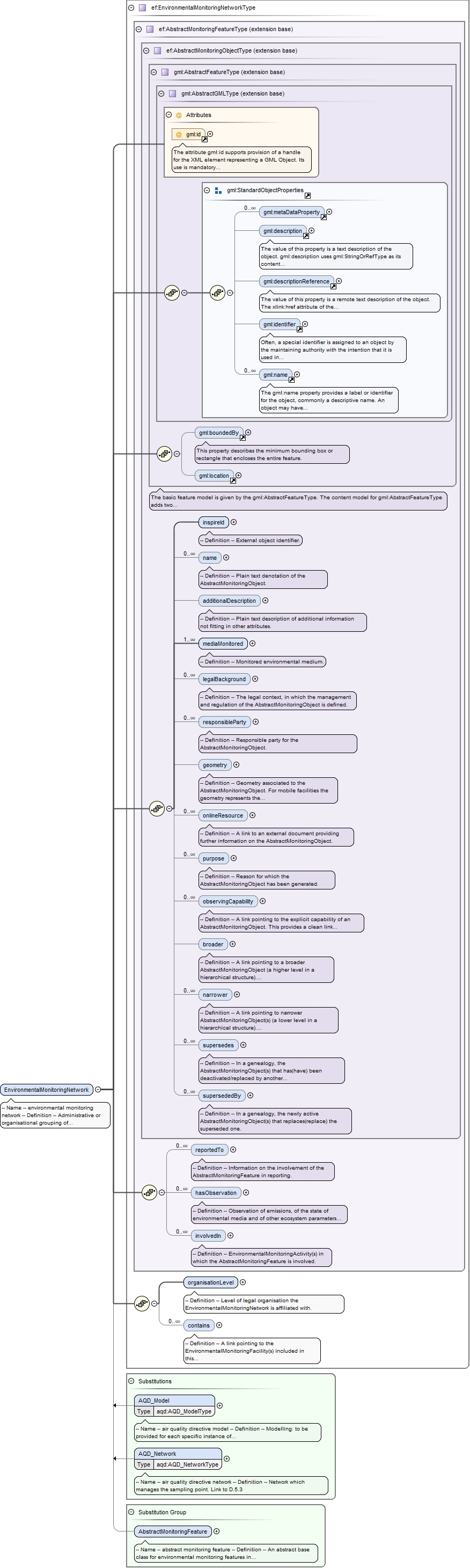

Element ef:EnvironmentalMonitoringNetwork
Namespace
http://inspire.ec.europa.eu/schemas/ef/3.0
Annotations
-- Name --environmental monitoring network-- Definition --Administrative or organisational grouping of EnvironmentalMonitoringFacilities managed the same way for a specific purpose, targeting a specific area. Each network respects common rules aiming at ensuring coherence of the observations, especially for purposes of EnvironmentalMonitoringFacilities, mandatory parameters selection, measurement methods and measurement regime.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name="EnvironmentalMonitoringNetwork" type="ef:EnvironmentalMonitoringNetworkType" substitutionGroup="ef:AbstractMonitoringFeature"><annotation><documentation>-- Name -- environmental monitoring network -- Definition -- Administrative or organisational grouping of EnvironmentalMonitoringFacilities managed the same way for a specific purpose, targeting a specific area. Each network respects common rules aiming at ensuring coherence of the observations, especially for purposes of EnvironmentalMonitoringFacilities, mandatory parameters selection, measurement methods and measurement regime.</documentation></annotation></element>
<element name="organisationLevel" type="gml:ReferenceType" nillable="true"><annotation><documentation>-- Definition -- Level of legal organisation the EnvironmentalMonitoringNetwork is affiliated with.</documentation></annotation></element>
-- Definition --A link pointing to the EnvironmentalMonitoringFacility(s) included in this EnvironmentalMonitoringNetwork.The association has additional properties as defined in the association class NetworkFacility.

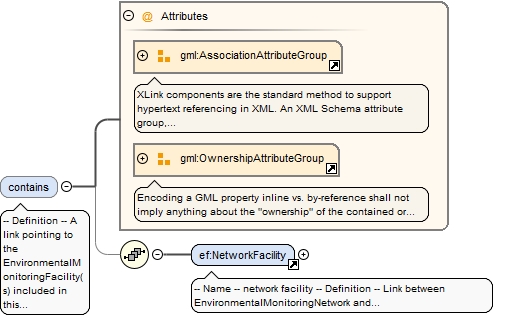

<element name="contains" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- A link pointing to the EnvironmentalMonitoringFacility(s) included in this EnvironmentalMonitoringNetwork. The association has additional properties as defined in the association class NetworkFacility.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:belongsTo</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:NetworkFacility"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element>

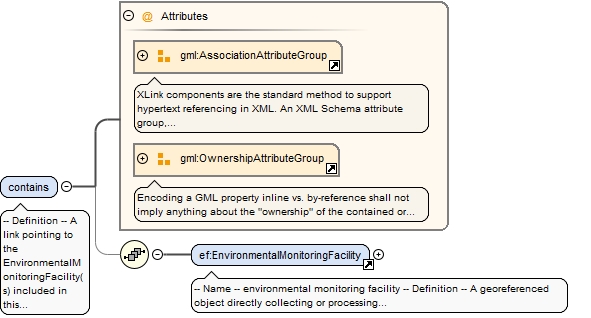

-- Definition --A link pointing to the EnvironmentalMonitoringFacility(s) included in this EnvironmentalMonitoringNetwork.The association has additional properties as defined in the association class NetworkFacility.
<element name="contains" nillable="true"><annotation><documentation>-- Definition -- A link pointing to the EnvironmentalMonitoringFacility(s) included in this EnvironmentalMonitoringNetwork. The association has additional properties as defined in the association class NetworkFacility.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:belongsTo</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:EnvironmentalMonitoringFacility"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element>

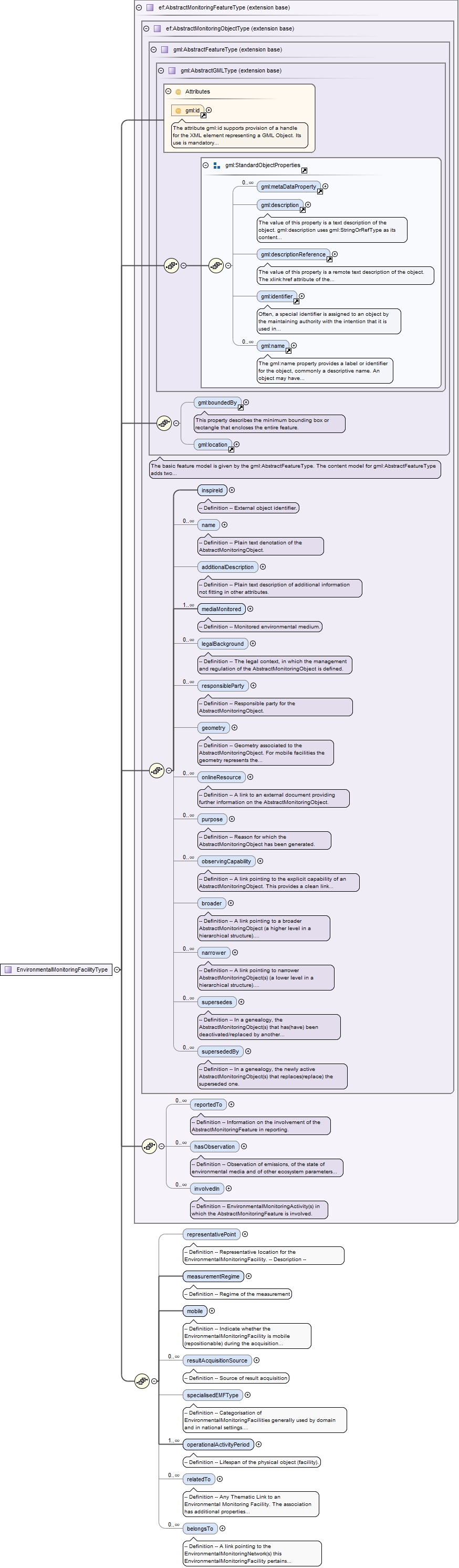

Complex Type ef:EnvironmentalMonitoringFacilityType
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<complexType name="EnvironmentalMonitoringFacilityType"><complexContent><extension base="ef:AbstractMonitoringFeatureType"><sequence><element name="representativePoint" type="gml:PointPropertyType" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- Representative location for the EnvironmentalMonitoringFacility. -- Description --</documentation></annotation></element><element name="measurementRegime" type="gml:ReferenceType" nillable="true"><annotation><documentation>-- Definition -- Regime of the measurement</documentation></annotation></element><element name="mobile" nillable="true"><annotation><documentation>-- Definition -- Indicate whether the EnvironmentalMonitoringFacility is mobile (repositionable) during the acquisition of the observation.</documentation></annotation><complexType><simpleContent><extension base="boolean"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element><element name="resultAcquisitionSource" type="gml:ReferenceType" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- Source of result acquisition</documentation></annotation></element><element name="specialisedEMFType" type="gml:ReferenceType" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- Categorisation of EnvironmentalMonitoringFacilities generally used by domain and in national settings. -- Description -- EXAMPLE: platform, site, station, sensor, ...</documentation></annotation></element><element name="operationalActivityPeriod" nillable="true" maxOccurs="unbounded"><annotation><documentation>-- Definition -- Lifespan of the physical object (facility).</documentation></annotation><complexType><complexContent><extension base="gml:AbstractMemberType"><sequence minOccurs="0"><element ref="ef:OperationalActivityPeriod"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/></extension></complexContent></complexType></element><element name="relatedTo" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- Any Thematic Link to an Environmental Monitoring Facility. The association has additional properties as defined in the association class AnyDomainLink.</documentation></annotation><complexType><sequence minOccurs="0"><element ref="ef:AnyDomainLink"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element><element name="belongsTo" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- A link pointing to the EnvironmentalMonitoringNetwork(s) this EnvironmentalMonitoringFacility pertains to. The association has additional properties as defined in the association class NetworkFacility.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:contains</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:NetworkFacility"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element></sequence></extension></complexContent></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

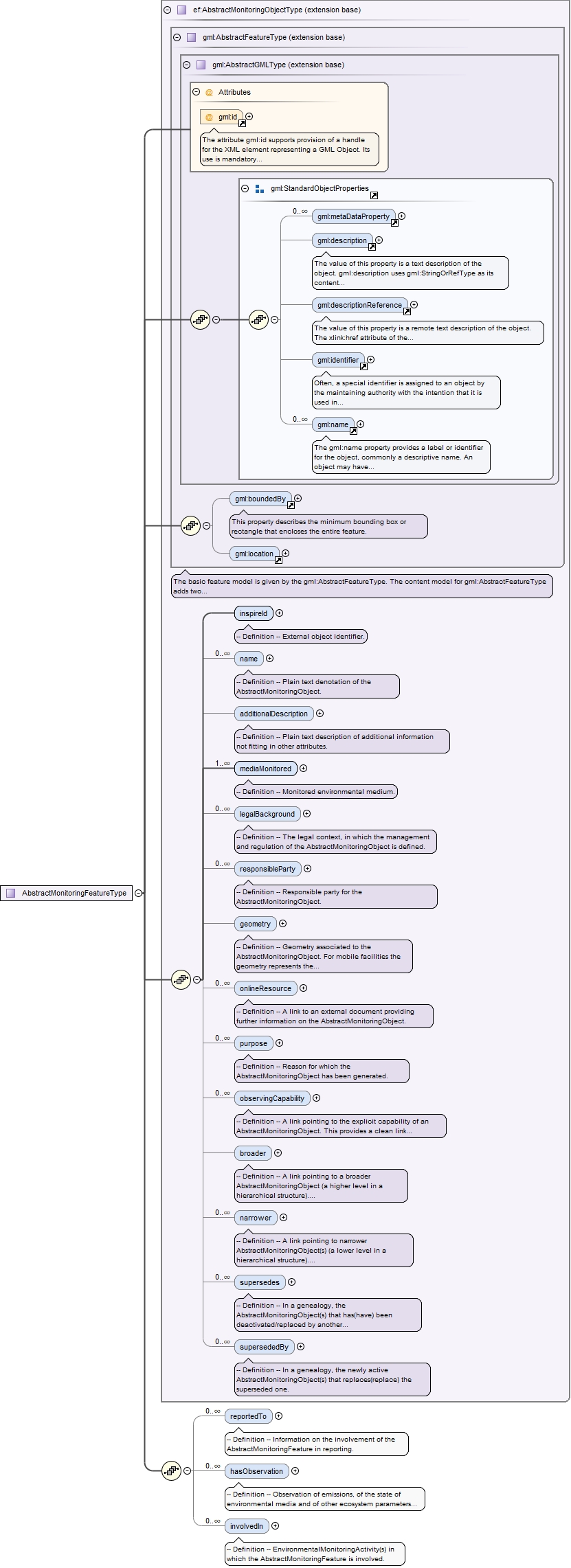

<complexType name="AbstractMonitoringFeatureType" abstract="true"><complexContent><extension base="ef:AbstractMonitoringObjectType"><sequence><element name="reportedTo" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- Information on the involvement of the AbstractMonitoringFeature in reporting.</documentation></annotation><complexType><sequence><element ref="ef:ReportToLegalAct"/></sequence><attribute name="nilReason" type="gml:NilReasonType"/></complexType></element><element name="hasObservation" type="om:OM_ObservationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- Observation of emissions, of the state of environmental media and of other ecosystem parameters (biodiversity, ecological conditions of vegetation, etc.) by or on behalf of public authorities at this AbstractMonitoringFeature.</documentation></annotation></element><element name="involvedIn" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- EnvironmentalMonitoringActivity(s) in which the AbstractMonitoringFeature is involved.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:uses</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:EnvironmentalMonitoringActivity"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element></sequence></extension></complexContent></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

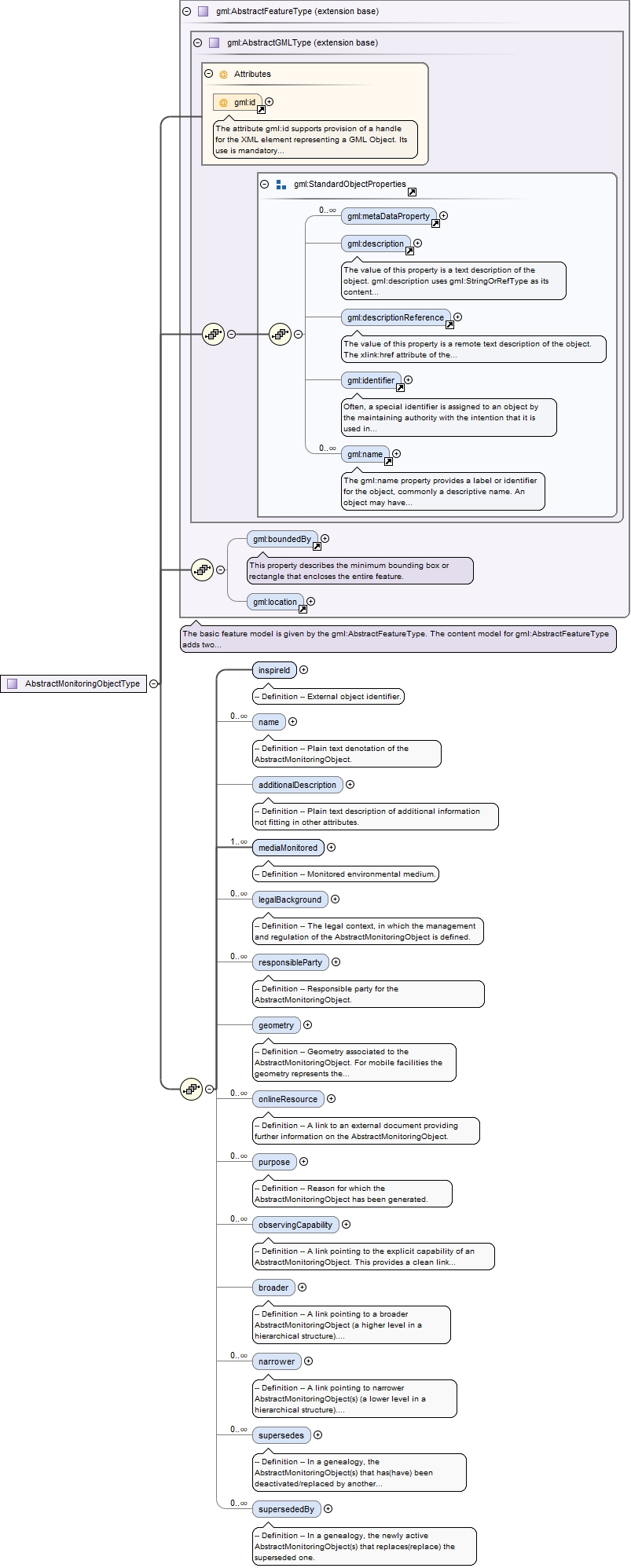

<complexType name="AbstractMonitoringObjectType" abstract="true"><complexContent><extension base="gml:AbstractFeatureType"><sequence><element name="inspireId" type="base:IdentifierPropertyType"><annotation><documentation>-- Definition -- External object identifier.</documentation></annotation></element><element name="name" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- Plain text denotation of the AbstractMonitoringObject.</documentation></annotation><complexType><simpleContent><extension base="string"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element><element name="additionalDescription" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- Plain text description of additional information not fitting in other attributes.</documentation></annotation><complexType><simpleContent><extension base="string"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element><element name="mediaMonitored" type="gml:ReferenceType" maxOccurs="unbounded"><annotation><documentation>-- Definition -- Monitored environmental medium.</documentation></annotation></element><element name="legalBackground" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- The legal context, in which the management and regulation of the AbstractMonitoringObject is defined.</documentation></annotation><complexType><complexContent><extension base="gml:AbstractMemberType"><sequence minOccurs="0"><element ref="base2:LegislationCitation"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/></extension></complexContent></complexType></element><element name="responsibleParty" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- Responsible party for the AbstractMonitoringObject.</documentation></annotation><complexType><sequence><element ref="base2:RelatedParty"/></sequence><attribute name="nilReason" type="gml:NilReasonType"/></complexType></element><element name="geometry" type="gml:GeometryPropertyType" minOccurs="0"><annotation><documentation>-- Definition -- Geometry associated to the AbstractMonitoringObject. For mobile facilities the geometry represents the area the facility is expected to measure in.</documentation></annotation></element><element name="onlineResource" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- A link to an external document providing further information on the AbstractMonitoringObject.</documentation></annotation><complexType><simpleContent><extension base="anyURI"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element><element name="purpose" type="gml:ReferenceType" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- Reason for which the AbstractMonitoringObject has been generated.</documentation></annotation></element><element name="observingCapability" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- A link pointing to the explicit capability of an AbstractMonitoringObject. This provides a clean link between the observed property, the procedure used as well as the location of the measurement</documentation></annotation><complexType><complexContent><extension base="gml:AbstractMemberType"><sequence minOccurs="0"><element ref="ef:ObservingCapability"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/></extension></complexContent></complexType></element><element name="broader" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- A link pointing to a broader AbstractMonitoringObject (a higher level in a hierarchical structure). The association has additional properties as defined in the association class Hierarchy.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:narrower</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:Hierarchy"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element><element name="narrower" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- A link pointing to narrower AbstractMonitoringObject(s) (a lower level in a hierarchical structure). The association has additional properties as defined in the association class Hierarchy.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:broader</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:Hierarchy"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element><element name="supersedes" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- In a genealogy, the AbstractMonitoringObject(s) that has(have) been deactivated/replaced by another one.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:supersededBy</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:AbstractMonitoringObject"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element><element name="supersededBy" type="ef:AbstractMonitoringObjectPropertyType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- In a genealogy, the newly active AbstractMonitoringObject(s) that replaces(replace) the superseded one.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:supersedes</reversePropertyName></appinfo></annotation></element></sequence></extension></complexContent></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

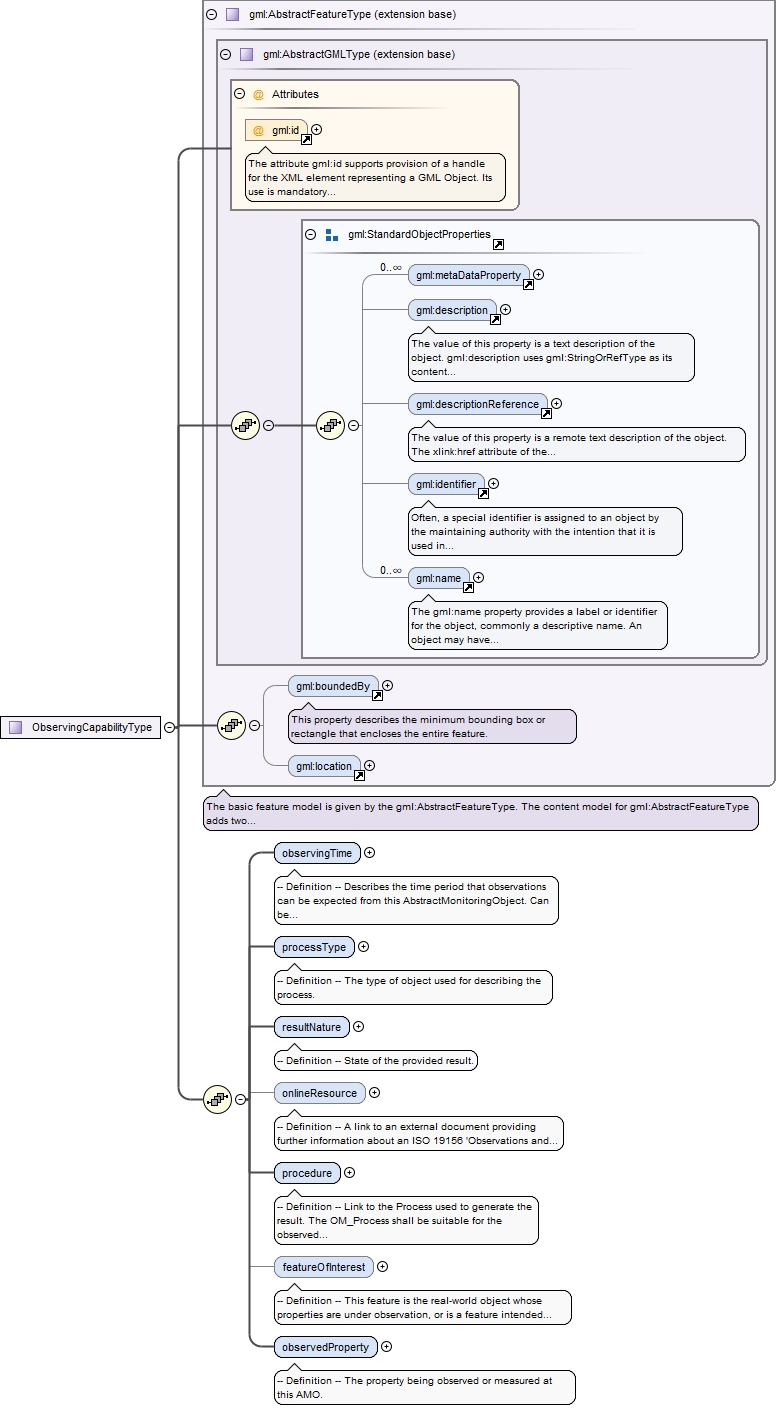

<complexType name="ObservingCapabilityType"><complexContent><extension base="gml:AbstractFeatureType"><sequence><element name="observingTime" nillable="true"><annotation><documentation>-- Definition -- Describes the time period that observations can be expected from this AbstractMonitoringObject. Can be only a start time for running measurements or an interval.</documentation></annotation><complexType><complexContent><extension base="gml:AbstractMemberType"><sequence minOccurs="0"><element ref="gml:AbstractTimeObject"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/></extension></complexContent></complexType></element><element name="processType" type="gml:ReferenceType" nillable="true"><annotation><documentation>-- Definition -- The type of object used for describing the process.</documentation></annotation></element><element name="resultNature" type="gml:ReferenceType" nillable="true"><annotation><documentation>-- Definition -- State of the provided result.</documentation></annotation></element><element name="onlineResource" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- A link to an external document providing further information about an ISO 19156 'Observations and Measurements' compliant data model used to store or exchange Observations and Measurements acquired.</documentation></annotation><complexType><simpleContent><extension base="anyURI"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element><element name="procedure" type="om:OM_ProcessPropertyType"><annotation><documentation>-- Definition -- Link to the Process used to generate the result. The OM_Process shall be suitable for the observed property. As a corollary, details of the observed property are constrained by the procedure used.</documentation></annotation></element><element name="featureOfInterest" type="gml:FeaturePropertyType" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- This feature is the real-world object whose properties are under observation, or is a feature intended to sample the real-world object</documentation></annotation></element><element name="observedProperty" type="gml:ReferenceType"><annotation><documentation>-- Definition -- The property being observed or measured at this AMO.</documentation></annotation></element></sequence></extension></complexContent></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

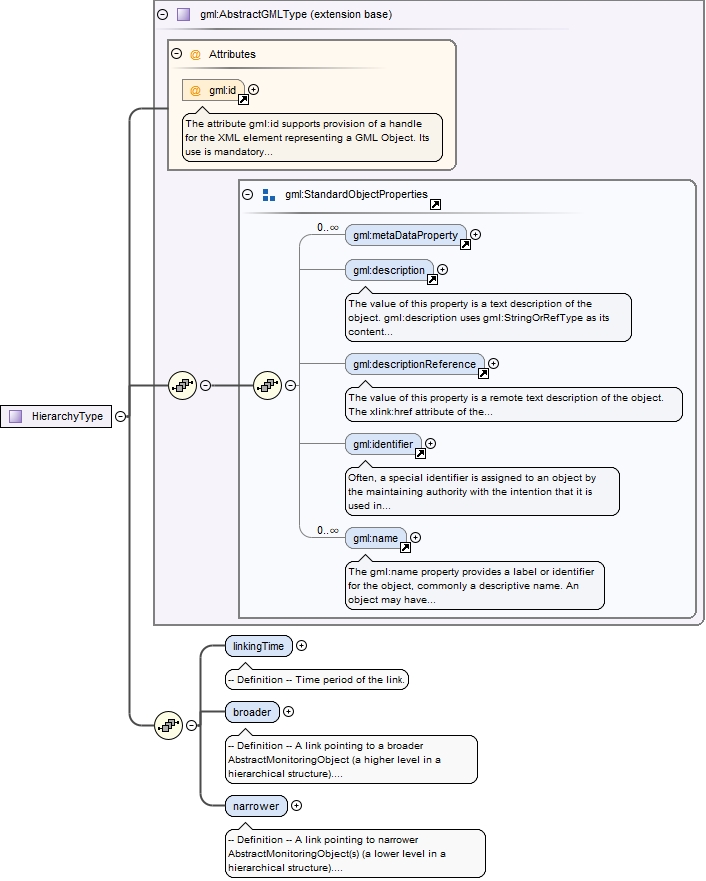

<complexType name="HierarchyType"><complexContent><extension base="gml:AbstractGMLType"><sequence><element name="linkingTime" nillable="true"><annotation><documentation>-- Definition -- Time period of the link.</documentation></annotation><complexType><complexContent><extension base="gml:AbstractMemberType"><sequence minOccurs="0"><element ref="gml:AbstractTimeObject"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/></extension></complexContent></complexType></element><element name="broader" nillable="true"><annotation><documentation>-- Definition -- A link pointing to a broader AbstractMonitoringObject (a higher level in a hierarchical structure). The association has additional properties as defined in the association class Hierarchy.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:narrower</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:AbstractMonitoringObject"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element><element name="narrower" nillable="true"><annotation><documentation>-- Definition -- A link pointing to narrower AbstractMonitoringObject(s) (a lower level in a hierarchical structure). The association has additional properties as defined in the association class Hierarchy.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:broader</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:AbstractMonitoringObject"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element></sequence></extension></complexContent></complexType>
Complex Type ef:AbstractMonitoringObjectPropertyType

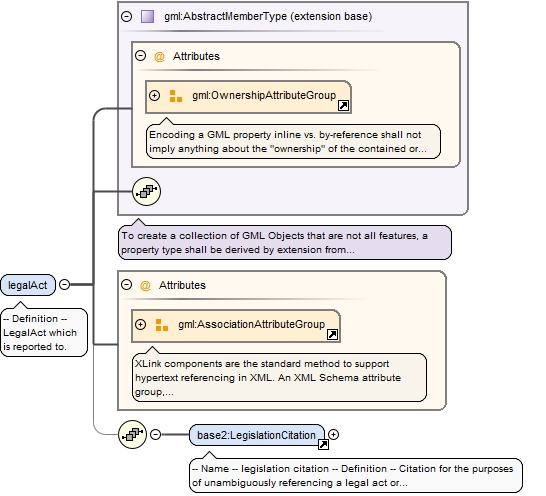

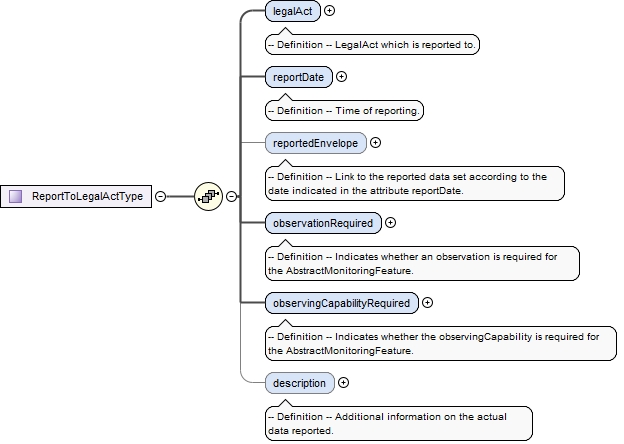

<complexType name="ReportToLegalActType"><sequence><element name="legalAct"><annotation><documentation>-- Definition -- LegalAct which is reported to.</documentation></annotation><complexType><complexContent><extension base="gml:AbstractMemberType"><sequence minOccurs="0"><element ref="base2:LegislationCitation"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/></extension></complexContent></complexType></element><element name="reportDate" nillable="true"><annotation><documentation>-- Definition -- Time of reporting.</documentation></annotation><complexType><simpleContent><extension base="dateTime"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element><element name="reportedEnvelope" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- Link to the reported data set according to the date indicated in the attribute reportDate.</documentation></annotation><complexType><simpleContent><extension base="anyURI"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element><element name="observationRequired" nillable="true"><annotation><documentation>-- Definition -- Indicates whether an observation is required for the AbstractMonitoringFeature.</documentation></annotation><complexType><simpleContent><extension base="boolean"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element><element name="observingCapabilityRequired" nillable="true"><annotation><documentation>-- Definition -- Indicates whether the observingCapability is required for the AbstractMonitoringFeature.</documentation></annotation><complexType><simpleContent><extension base="boolean"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element><element name="description" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- Additional information on the actual data reported.</documentation></annotation><complexType><simpleContent><extension base="string"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element></sequence></complexType>

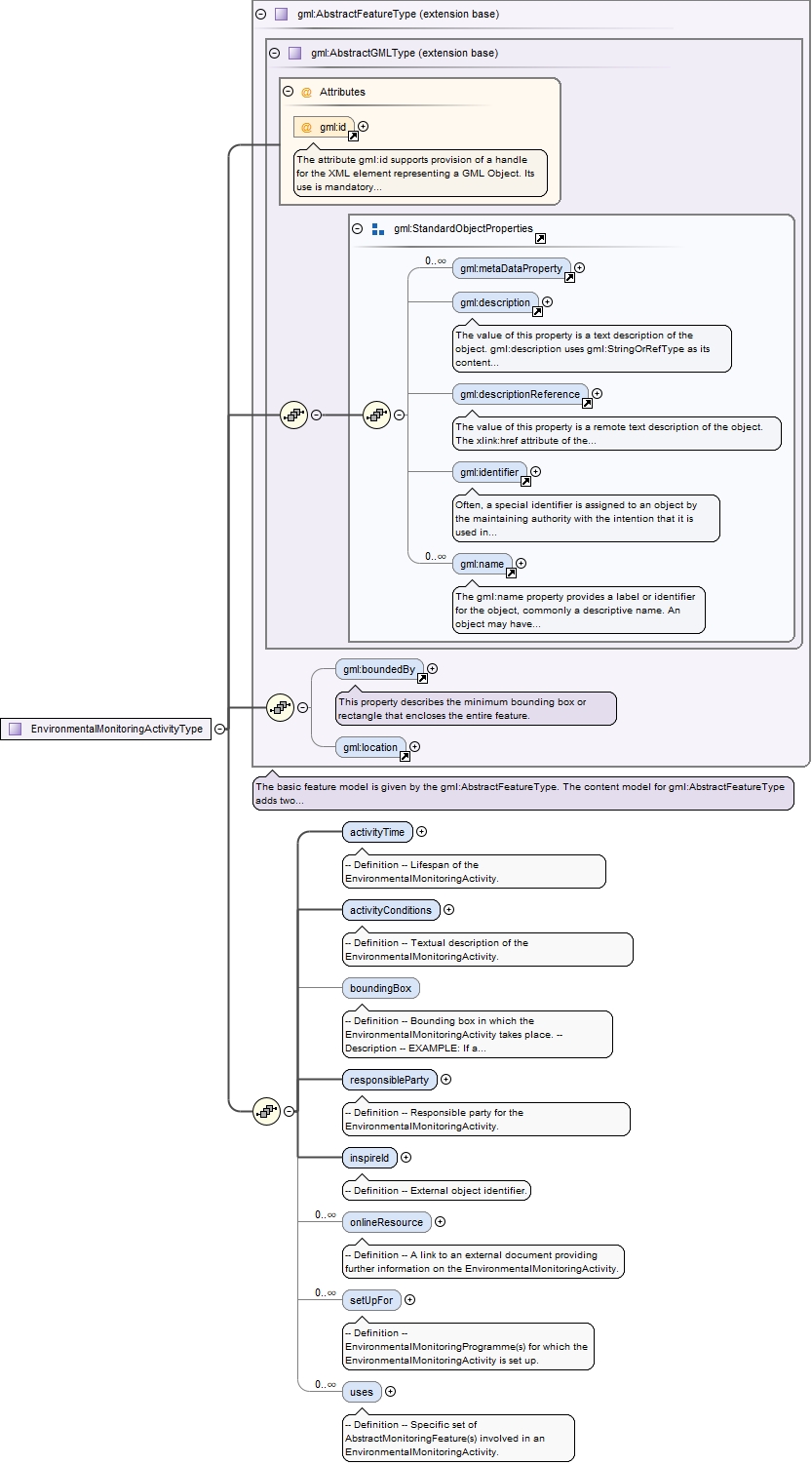

Complex Type ef:EnvironmentalMonitoringActivityType
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<complexType name="EnvironmentalMonitoringActivityType"><complexContent><extension base="gml:AbstractFeatureType"><sequence><element name="activityTime" nillable="true"><annotation><documentation>-- Definition -- Lifespan of the EnvironmentalMonitoringActivity.</documentation></annotation><complexType><complexContent><extension base="gml:AbstractMemberType"><sequence minOccurs="0"><element ref="gml:AbstractTimeObject"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/></extension></complexContent></complexType></element><element name="activityConditions" nillable="true"><annotation><documentation>-- Definition -- Textual description of the EnvironmentalMonitoringActivity.</documentation></annotation><complexType><simpleContent><extension base="string"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element><element name="boundingBox" nillable="true" minOccurs="0"><annotation><documentation>-- Definition -- Bounding box in which the EnvironmentalMonitoringActivity takes place. -- Description -- EXAMPLE: If a research vessel has several monitoring activities (EnvironmentalMonitoringActivity) one wants to know where he cruised for each of those (EnvironmentaMonitoringActivity).</documentation></annotation></element><element name="responsibleParty" nillable="true"><annotation><documentation>-- Definition -- Responsible party for the EnvironmentalMonitoringActivity.</documentation></annotation><complexType><sequence><element ref="base2:RelatedParty"/></sequence><attribute name="nilReason" type="gml:NilReasonType"/></complexType></element><element name="inspireId" type="base:IdentifierPropertyType"><annotation><documentation>-- Definition -- External object identifier.</documentation></annotation></element><element name="onlineResource" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- A link to an external document providing further information on the EnvironmentalMonitoringActivity.</documentation></annotation><complexType><simpleContent><extension base="anyURI"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element><element name="setUpFor" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- EnvironmentalMonitoringProgramme(s) for which the EnvironmentalMonitoringActivity is set up.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:triggers</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:EnvironmentalMonitoringProgramme"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element><element name="uses" type="ef:AbstractMonitoringFeaturePropertyType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- Specific set of AbstractMonitoringFeature(s) involved in an EnvironmentalMonitoringActivity.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:involvedIn</reversePropertyName></appinfo></annotation></element></sequence></extension></complexContent></complexType>

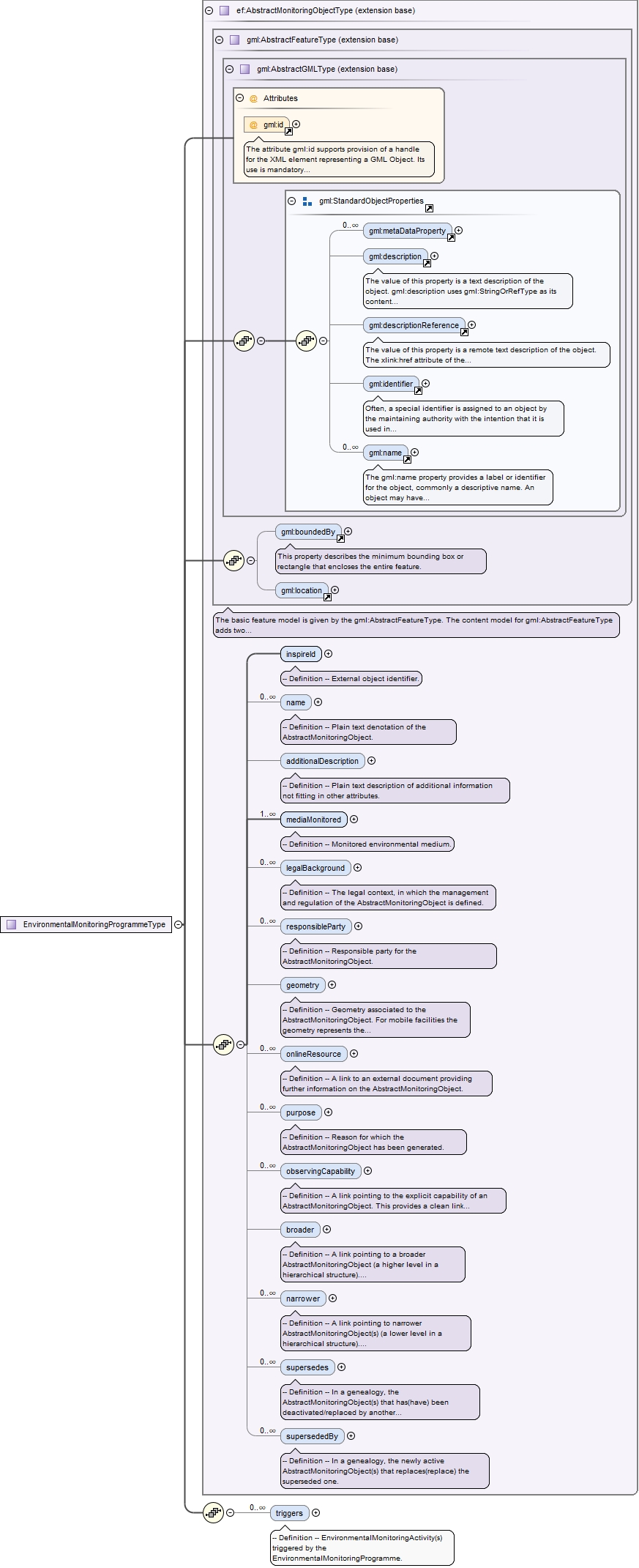

Complex Type ef:EnvironmentalMonitoringProgrammeType
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<complexType name="EnvironmentalMonitoringProgrammeType"><complexContent><extension base="ef:AbstractMonitoringObjectType"><sequence><element name="triggers" type="ef:EnvironmentalMonitoringActivityPropertyType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- EnvironmentalMonitoringActivity(s) triggered by the EnvironmentalMonitoringProgramme.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:setUpFor</reversePropertyName></appinfo></annotation></element></sequence></extension></complexContent></complexType>
Complex Type ef:EnvironmentalMonitoringActivityPropertyType
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

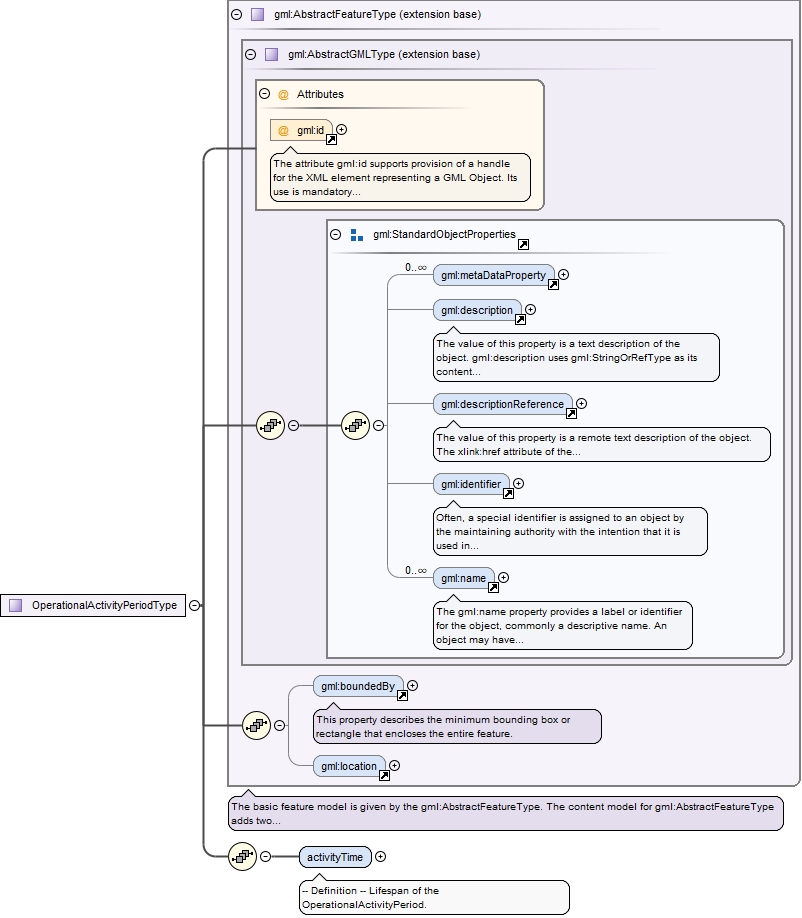

<complexType name="OperationalActivityPeriodType"><complexContent><extension base="gml:AbstractFeatureType"><sequence><element name="activityTime"><annotation><documentation>-- Definition -- Lifespan of the OperationalActivityPeriod.</documentation></annotation><complexType><complexContent><extension base="gml:AbstractMemberType"><sequence minOccurs="0"><element ref="gml:AbstractTimeObject"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/></extension></complexContent></complexType></element></sequence></extension></complexContent></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

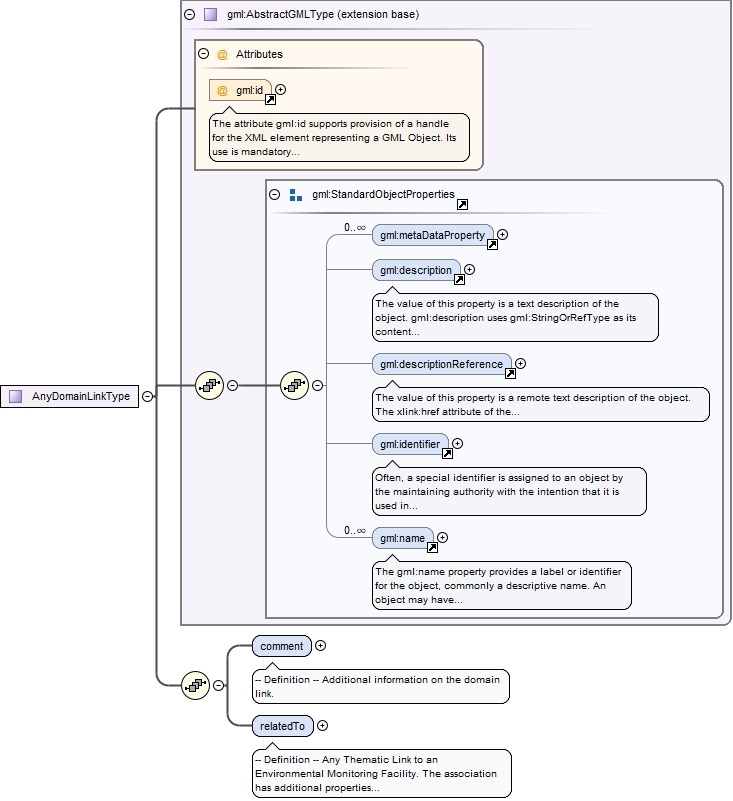

<complexType name="AnyDomainLinkType"><complexContent><extension base="gml:AbstractGMLType"><sequence><element name="comment" nillable="true"><annotation><documentation>-- Definition -- Additional information on the domain link.</documentation></annotation><complexType><simpleContent><extension base="string"><attribute name="nilReason" type="gml:NilReasonType"/></extension></simpleContent></complexType></element><element name="relatedTo" nillable="true"><annotation><documentation>-- Definition -- Any Thematic Link to an Environmental Monitoring Facility. The association has additional properties as defined in the association class AnyDomainLink.</documentation></annotation><complexType><sequence minOccurs="0"><element ref="ef:EnvironmentalMonitoringFacility"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element></sequence></extension></complexContent></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

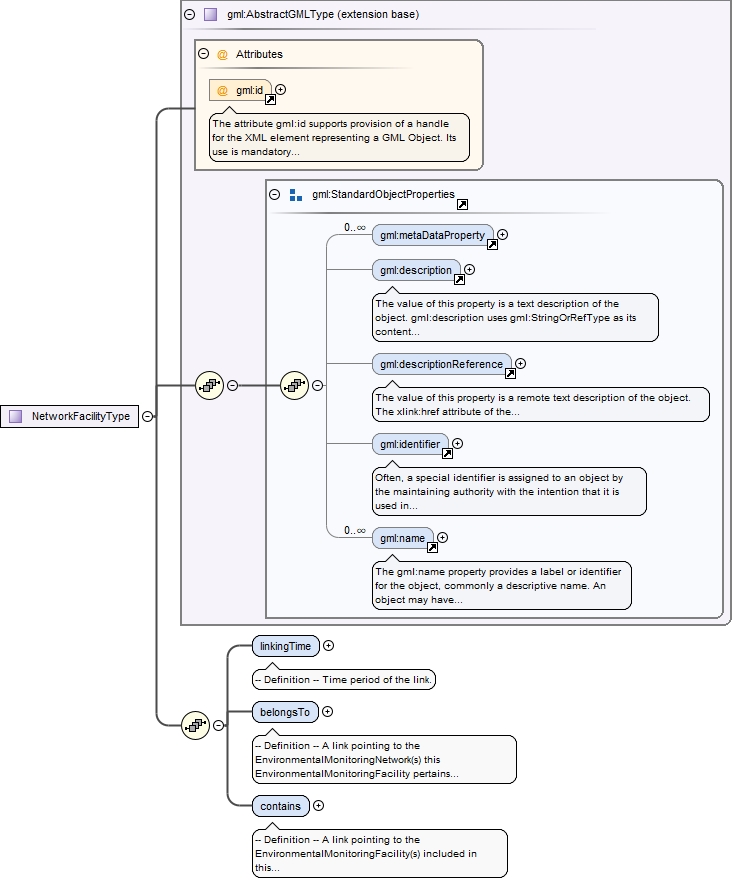

<complexType name="NetworkFacilityType"><complexContent><extension base="gml:AbstractGMLType"><sequence><element name="linkingTime" nillable="true"><annotation><documentation>-- Definition -- Time period of the link.</documentation></annotation><complexType><complexContent><extension base="gml:AbstractMemberType"><sequence minOccurs="0"><element ref="gml:AbstractTimeObject"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/></extension></complexContent></complexType></element><element name="belongsTo" nillable="true"><annotation><documentation>-- Definition -- A link pointing to the EnvironmentalMonitoringNetwork(s) this EnvironmentalMonitoringFacility pertains to. The association has additional properties as defined in the association class NetworkFacility.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:contains</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:EnvironmentalMonitoringNetwork"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element><element name="contains" nillable="true"><annotation><documentation>-- Definition -- A link pointing to the EnvironmentalMonitoringFacility(s) included in this EnvironmentalMonitoringNetwork. The association has additional properties as defined in the association class NetworkFacility.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:belongsTo</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:EnvironmentalMonitoringFacility"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element></sequence></extension></complexContent></complexType>

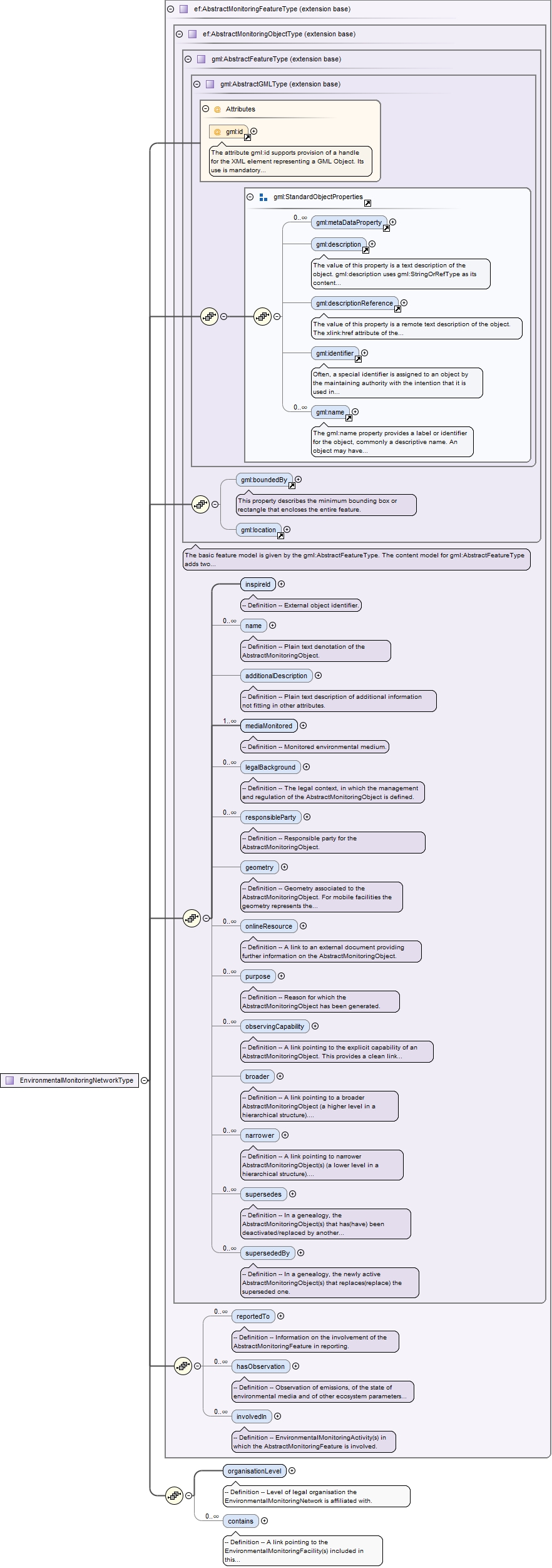

Complex Type ef:EnvironmentalMonitoringNetworkType
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<complexType name="EnvironmentalMonitoringNetworkType"><complexContent><extension base="ef:AbstractMonitoringFeatureType"><sequence><element name="organisationLevel" type="gml:ReferenceType" nillable="true"><annotation><documentation>-- Definition -- Level of legal organisation the EnvironmentalMonitoringNetwork is affiliated with.</documentation></annotation></element><element name="contains" nillable="true" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>-- Definition -- A link pointing to the EnvironmentalMonitoringFacility(s) included in this EnvironmentalMonitoringNetwork. The association has additional properties as defined in the association class NetworkFacility.</documentation><appinfo><reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:belongsTo</reversePropertyName></appinfo></annotation><complexType><sequence minOccurs="0"><element ref="ef:NetworkFacility"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType></element></sequence></extension></complexContent></complexType>
